5–5
Interior Features
Air-Conditioning System

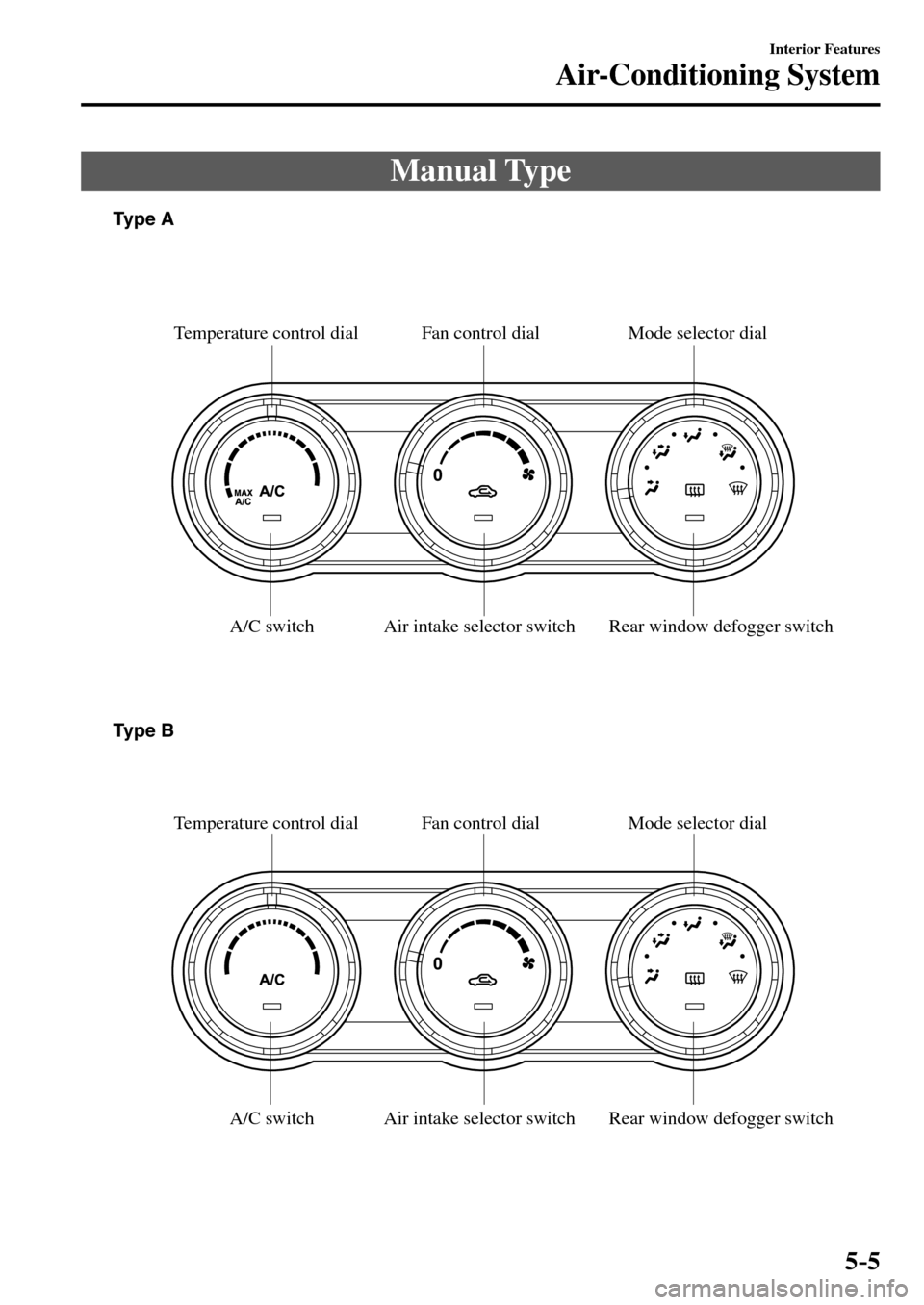

Manual Type
Rear window defogger switch Air intake selector switchFan control dial Temperature control dial
A/C switch
Rear window defogger switch Air intake selector switch A/C switchMode selector dial
Fan control dial Temperature control dial Mode selector dial Type A
Type B
/:A(.'',A'FKVKQPKPFD

5–7
Interior Features
Air-Conditioning System
WARNING
Do not use the position in cold or
rainy weather:
Using the
position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
Rear window defogger switch
Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-77 .
Heating
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside
air position (indicator light turns off).
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidi¿ ed heating is desired, turn
on the air conditioner.
NOTE
  If the windscreen fogs up easily, set
the mode selector dial to the
position.  If cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
  The air to the À oor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
Cooling (With air conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. After cooling begins, adjust the fan
control dial and temperature control
dial as needed to maintain maximum
comfort.
CAUTION
If the air conditioner is used while
driving up long hills or in heavy traf¿ c,
monitor the engine coolant temperature
warning light to see if it is illuminated or
À ashing (page 4-42 ).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or À ashing, turn the air-
conditioning off (page 7-24 ).
/:A(.'',A'FKVKQPKPFD

5–9
Interior Features
Air-Conditioning System
NOTE
  For maximum defrosting, turn on the
air conditioner, set the temperature
control dial to the extreme hot
position, and turn the fan control dial
fully clockwise.
  If warm air is desired at the À oor, set
the mode selector dial to the
position. (Type A) When the fan control dial is ON, and
the mode selector dial is in the
position, the outside air position is
automatically selected.
 (Type B) When the fan control dial is ON, and
the mode selector dial is in the
position, the outside air position is
automatically selected. The air intake
selector cannot be changed to the
recirculated air position.
Dehumidifying (With air
conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windscreen and
side windows.
1. Set the mode selector dial to the desired
position.
2. Set the air intake selector to the outside
air position (indicator light turns off).
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner by pressing
the A/C switch.
NOTE
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the temperature
does not have to be set to cold.
Therefore, set the temperature control
dial to the desired position (hot or cold)
and turn on the air conditioner when you
want to dehumidify the cabin air.
/:A(.'',A'FKVKQPKPFD

5–10
Interior Features
Air-Conditioning System

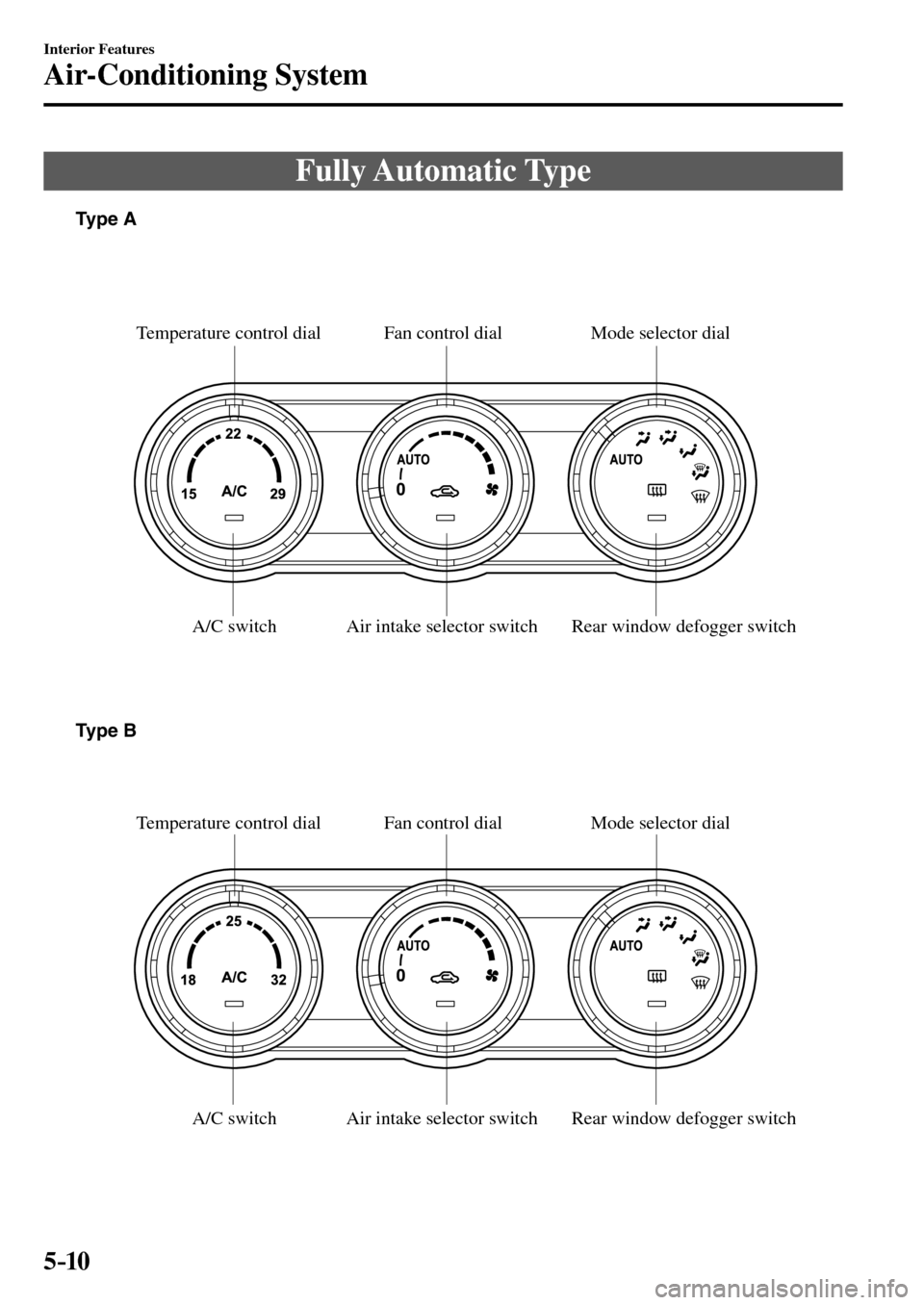

Fully Automatic Type
Rear window defogger switch Air intake selector switchFan control dial Temperature control dial
A/C switch
Rear window defogger switch Air intake selector switch A/C switchMode selector dial
Fan control dial Temperature control dial Mode selector dial Type A
Type B
/:A(.'',A'FKVKQPKPFD

5–12
Interior Features
Air-Conditioning System
Air intake selector
Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.
Recirculated air position (indicator light
illuminated)
Outside air is shut off. Use this position
when going through tunnels, driving in
congested traf¿ c (high engine exhaust
areas) or when quick cooling is desired.
Outside air position (indicator light
turned off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.
WARNING
Do not use the position in cold or
rainy weather:
Using the
position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
Rear window defogger switch
Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-77 .
Operation of Automatic Air-
conditioning
1. Set the mode selector dial to the AUTO
position.
2. Set the air intake selector to the outside
air position (indicator light turned off).
NOTE
If the recirculated air position is used
for long periods in cold weather or high
humidity, the windscreen may fog up
more easily.
3. Set the fan control dial to the AUTO
position.
4. Press the A/C switch to operate the air-
conditioning (turn indicator light on).
5. Set the temperature control dial to the
desired position.
6. To turn off the system, set the fan
control dial to the 0 position.
NOTE
  Setting the temperature to maximum
hot or cold will not provide the
desired temperature at a faster rate.
  When selecting heat, the system will
restrict airÀ ow until it has warmed to
prevent cold air from blowing out of
the vents.
/:A(.'',A'FKVKQPKPFD

5–13
Interior Features
Air-Conditioning System
Windscreen Defrosting and
Defogging
Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windscreen and side windows (page
5-4 ). AirÀ ow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
( position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air À ow temperature and
defog the windscreen more quickly.
Sunlight/Temperature Sensor
Sunlight sensor
Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.
Sunlight sensor
Interior temperature sensor
Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.
Interior temperature sensor
/:A(.'',A'FKVKQPKPFD

5–20
Interior Features
Audio System



 This audio system handles MP3 ¿ les
that have been recorded on CD-R/CD-
RW/CD-ROMs.



 When naming an MP3 ¿ le, be sure to
add an MP3 ¿ le extension (.mp3) after
the¿ le name.




 The number of characters which can be
displayed is restricted.
Operating Tips for WMA
WMA is short for Windows Media *1 Audio
and is the audio compression format used
by Microsoft
*1 .
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays ¿ les with the extension
(.wma) as WMA ¿ les.
*1 Windows Media and Microsoft are
registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.
CAUTION
Do not use an audio ¿ le extension on ¿ les
other than audio ¿ les. In addition, do not
change the audio ¿ le extension. Otherwise,
the unit will not recognise the ¿ le correctly
resulting in noise or a malfunction.



 WMA ¿ les written under speci¿ cations
other than the indicated speci¿ cation
may not play normally or ¿ les or folder
names may not display correctly.



 The ¿ le extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the ¿ le extension “.wma”
to the end of the ¿ le name, and then
write it to the disc/memory.
Operating Tips for AAC
AAC stands for Advanced Audio Coding,
which is standardised voice compression
established by the ISO
*1 working group
(MPEG). Audio data can be created and
stored at a higher compression ratio than
MP3.
This unit plays ¿ les with the extensions
(.aac
*2 /.m4a/.wav *2 ) as the AAC ¿ les.
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the¿ le correctly resulting in noise or a
malfunction.



 AAC ¿ les written under speci¿ cations
other than the indicated speci¿ cation
may not play normally or ¿ les or folder
names may not display correctly.
  The ¿ le extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the ¿ le extension “.aac
*2 ”,
“.m4a”, or “.wav *2 ” to the end of the ¿ le
name, and then write it to the memory.
*1 International Organisation for
Standardisation
*2 Type B/Type C
/:A(.'',A'FKVKQPKPFD

5–96
Interior Features
Bluetooth®
Troubleshooting for Voice Recognition
If you do not understand an operation
method while in the voice recognition
mode, say “Tutorial” or “Help”.
Commands useable anytime during
voice recognition
“Go Back” and “Cancel” are commands
which can be used at anytime during voice
recognition.
Returning to previous operation
To return to the previous operation, say,
“Go Back” while in voice recognition
mode.
Cancel
To put the Bluetooth
® Hands-Free system
in standby mode, say, “Cancel” while in
voice recognition mode.
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:





The voice recognition cannot be
performed while voice guidance or
the beep sound is operating. Wait
until the voice guidance or the beep
sound is ¿ nished before saying your
commands.



 Phone related commands are available
only when your phone is connected via
Bluetooth
® . Make sure your phone is
connected via Bluetooth ® before you
operate phone related voice commands.



 Music play commands, such as Play
Artist and Play Album can be used only
in USB audio mode.



 Do not speak too slowly or loudly (no
loud voice).



 Speak clearly, without pausing between
words or numbers.



 Dialects or different wording other
than hands-free prompts cannot be
recognised by voice recognition. Speak
in the wording speci¿ ed by the voice
commands.



 It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.



 Close the windows and/or the
convertible top to reduce loud noises
from outside the vehicle, or turn down
the airÀ ow of the air-conditioning
system while Bluetooth
® Hands-Free is
being used.



 Make sure the vents are not directing air
up towards the microphone.
NOTE
If the voice recognition performance is
not satisfactory.
Refer to Troubleshooting on page
5-119 .
/:A(.'',A'FKVKQPKPFD

6–1 6–1
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ........................................................................ 6-2
Introduction ................................................................................... 6-2
Scheduled Maintenance ..................................................................... 6-3
Scheduled Maintenance ................................................................ 6-3
Maintenance Monitor .................................................................. 6-10
Owner Maintenance ......................................................................... 6-12
Owner Maintenance Precautions ................................................ 6-12
Bonnet ......................................................................................... 6-14
Engine Compartment Overview ................................................. 6-16
Engine Oil ................................................................................... 6-17
Engine Coolant ............................................................................ 6-20
Brake/Clutch Fluid ...................................................................... 6-22
Window and Headlight Washer Fluid ......................................... 6-23
Body Lubrication ........................................................................ 6-24
Wiper Blades ............................................................................... 6-24
Battery ......................................................................................... 6-28
Key Battery Replacement ........................................................... 6-31
Tyres ............................................................................................ 6-33
Light Bulbs .................................................................................. 6-38
Fuses ........................................................................................... 6-47
Appearance Care.............................................................................. 6-53
Exterior Care ............................................................................... 6-53
Interior Care ................................................................................ 6-64
/:A(.'',A'FKVKQPKPFD

6–23
Maintenance and Care
Owner Maintenance
Left-hand drive model
Right-hand drive model
Window and Headlight
Washer Fluid
Inspecting Washer Fluid Level
WARNING
Use only windscreen washer À uid or
plain water in the reservoir:
Using radiator antifreeze as washer
À uid is dangerous. If sprayed on the
windscreen, it will dirty the windscreen,
affect your visibility, and could result in
an accident.
Inspect À uid level in the washer À uid
reservoir; add À uid if necessary.
Use plain water if washer À uid is
unavailable.
But use only washer À uid in cold weather
to prevent it from freezing.
/:A(.'',A'FKVKQPKPFD
