Page 452 of 609
6–24
Maintenance and Care
Owner Maintenance
Body Lubrication
All moving points of the body, such as
door and bonnet hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the bonnet's secondary latch
keeps the bonnet from opening when the
primary latch is released.
Wiper Blades
CAUTION
Hot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.
To prevent damage to the wiper
blades, do not use petrol, paraf ¿ n,
paint thinner, or other solvents on or
near them.
When the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may move
automatically in the following cases:
If the windscreen above the rain
sensor is touched.
If the windscreen above the rain
sensor is wiped with a cloth.
If the windscreen is struck with a
hand or other object.
If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
¿ ngers as it may cause injury, or
damage the wipers. When washing or
servicing the vehicle, make sure the
wiper lever is in the OFF position.
Contamination of either the windscreen or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 479 of 609
6–51
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
18 A/C MAG 7.5 A Air conditioner
19 AT PUMP
H/L HI 20 A Transmission control system
*
20 AT 15 A Transmission control system *
21 D LOCK 25 A Power door locks
22 H/L RH 20 A Headlight (RH)
23 E N G
B 2
7.5 A Engine control system
24 TAIL 20 A Tail lights, Number plate lights, Position lights
25 DRL 15 A —
26 ROOM 25 A Overhead light
27 FOG 15 A —
28 H/CLEAN 20 A Headlight washer
*
29 STOP 10 A Brake lights, Rear fog light *
30 HORN 15 A Horn
31 H/L LH 20 A Headlight (LH)
32 ABS/DSC S 30 A ABS, Dynamic stability control system
33 HAZARD 15 A Hazard warning À ashers, Direction indicator lights
34 FUEL PUMP 15 A Fuel system
35 E N G
B 3
5 A —
36 WIPER 20 A Windscreen wipers
37 CABIN
B
50 A For protection of various circuits
38 — — —
39 — — —
40 ABS/DSC M 50 A ABS, Dynamic stability control system
41 EVVT
A/R PUMP 20 A Engine control system
42
EVPS 30 A Brake control system
43 FAN1 30 A Cooling fan
44 FAN2 40 A —
45 ENG.MAIN 40 A Engine control system
46 EPS 60 A Power steering system
47
DEFOG 30 A Rear window defogger
48 IG2 30 A For protection of various circuits
49 INJECTOR 30 A Engine control system
50 HEATER 40 A Air conditioner
51 — — —
52 — — —
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 480 of 609
6–52
Maintenance and Care
Owner Maintenance
*Some models.
Fuse block (Left side)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 RHT R 30 A Retractable fastback (RH)
*
2 RHT L 30 A Retractable fastback (LH) *
3 — — —
4 — — —
5 F.OUTLET 15 A Accessory sockets
6 — — —
7 AT IND 7.5 A AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A Retractable fastback (RH) *
10 R_DECK L 30 A Retractable fastback (LH) *
11 F.WASHER 15 A Windscreen washer
12 P.WINDOW 30 A Power windows
13 — — —
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A Seat warmer
*
16 M.DEF 7.5 A Mirror defogger *
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 487 of 609
6–59
Maintenance and Care
Appearance Care
CAUTION

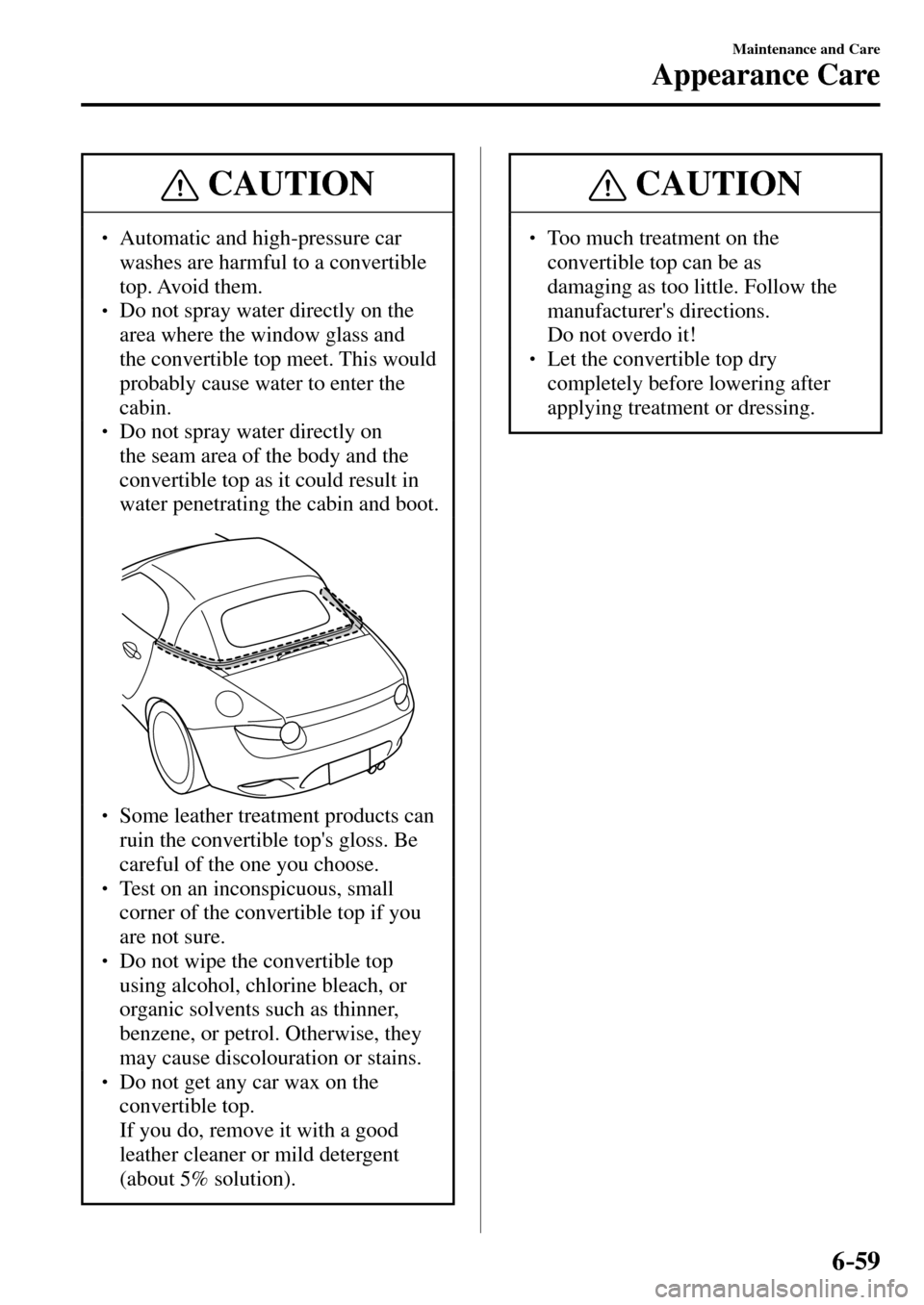

Automatic and high-pressure car
washes are harmful to a convertible
top. Avoid them.
Do not spray water directly on the
area where the window glass and
the convertible top meet. This would
probably cause water to enter the
cabin.
Do not spray water directly on
the seam area of the body and the
convertible top as it could result in
water penetrating the cabin and boot.
Some leather treatment products can
ruin the convertible top's gloss. Be
careful of the one you choose.
Test on an inconspicuous, small
corner of the convertible top if you
are not sure.
Do not wipe the convertible top
using alcohol, chlorine bleach, or
organic solvents such as thinner,
benzene, or petrol. Otherwise, they
may cause discolouration or stains.
Do not get any car wax on the
convertible top.
If you do, remove it with a good
leather cleaner or mild detergent
(about 5% solution).
CAUTION
Too much treatment on the
convertible top can be as
damaging as too little. Follow the
manufacturer's directions.
Do not overdo it! Let the convertible top dry
completely before lowering after
applying treatment or dressing.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 489 of 609
6–61
Maintenance and Care
Appearance Care

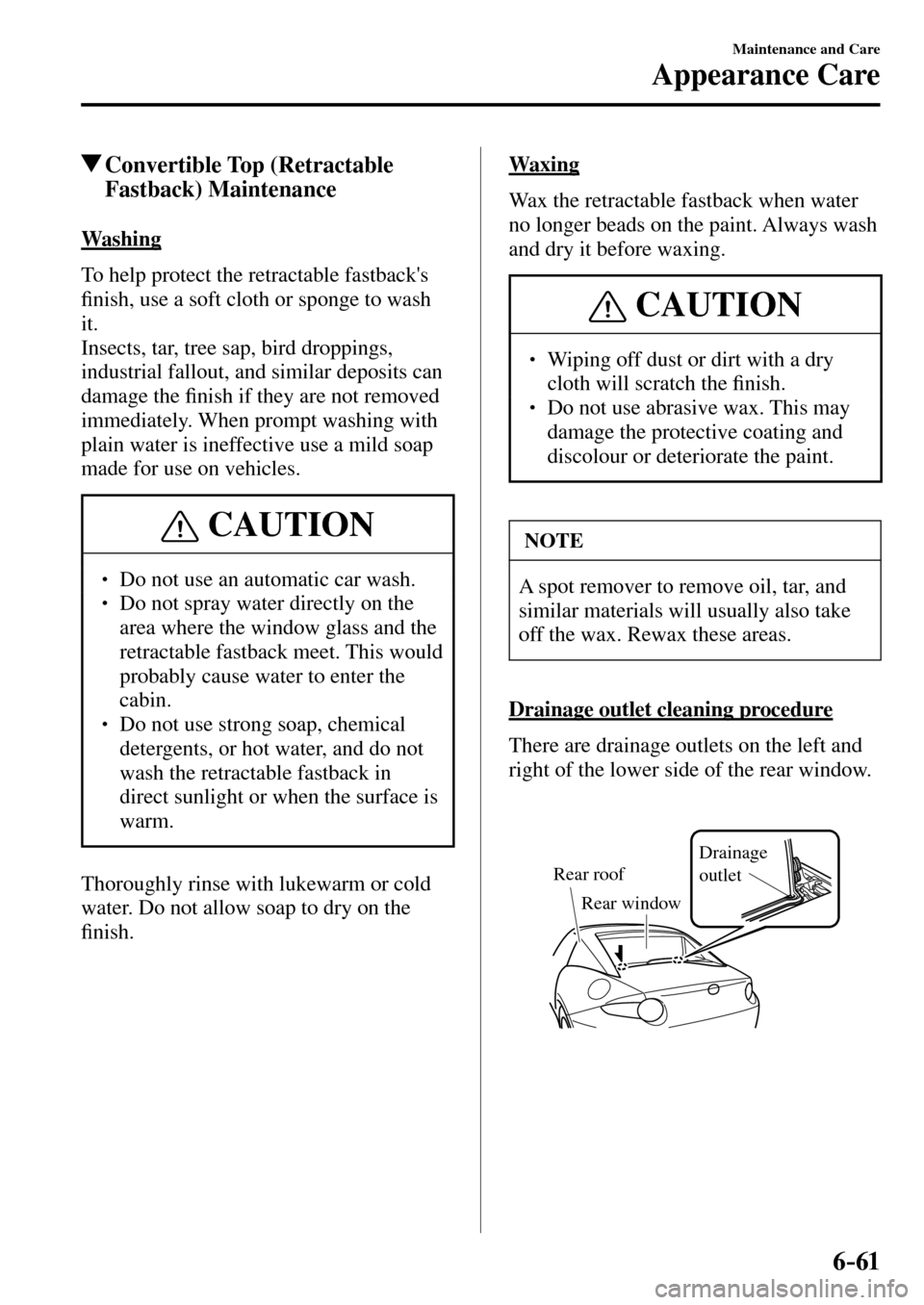

Convertible Top (Retractable
Fastback) Maintenance
W a s h i n g
To help protect the retractable fastback's
¿ nish, use a soft cloth or sponge to wash
it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the ¿ nish if they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
CAUTION
Do not use an automatic car wash.
Do not spray water directly on the
area where the window glass and the
retractable fastback meet. This would
probably cause water to enter the
cabin.
Do not use strong soap, chemical
detergents, or hot water, and do not
wash the retractable fastback in
direct sunlight or when the surface is
warm.
Thoroughly rinse with lukewarm or cold
water. Do not allow soap to dry on the
¿ nish.
Waxing
Wax the retractable fastback when water
no longer beads on the paint. Always wash
and dry it before waxing.
CAUTION
Wiping off dust or dirt with a dry
cloth will scratch the ¿ nish.
Do not use abrasive wax. This may
damage the protective coating and
discolour or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas.
Drainage outlet cleaning procedure
There are drainage outlets on the left and
right of the lower side of the rear window.
Rear roofDrainage
outlet
Rear window
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 494 of 609
6–66
Maintenance and Care
Appearance Care

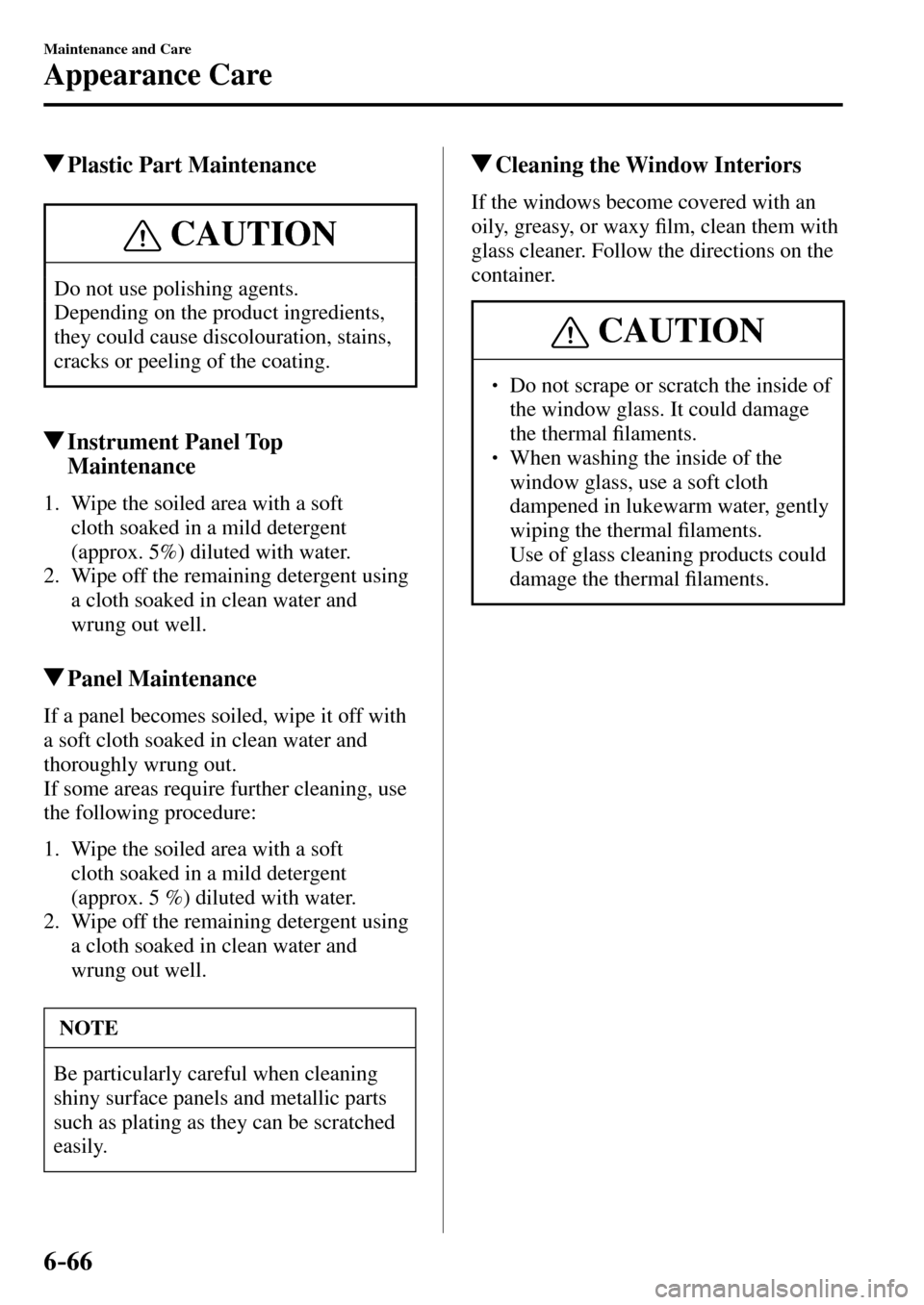

Plastic Part Maintenance

CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discolouration, stains,
cracks or peeling of the coating.
Instrument Panel Top
Maintenance
1. Wipe the soiled area with a soft
cloth soaked in a mild detergent
(approx. 5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft
cloth soaked in a mild detergent
(approx. 5 %) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy ¿ lm, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION
Do not scrape or scratch the inside of
the window glass. It could damage
the thermal ¿ laments.
When washing the inside of the
window glass, use a soft cloth
dampened in lukewarm water, gently
wiping the thermal ¿ laments.
Use of glass cleaning products could
damage the thermal ¿ laments.
