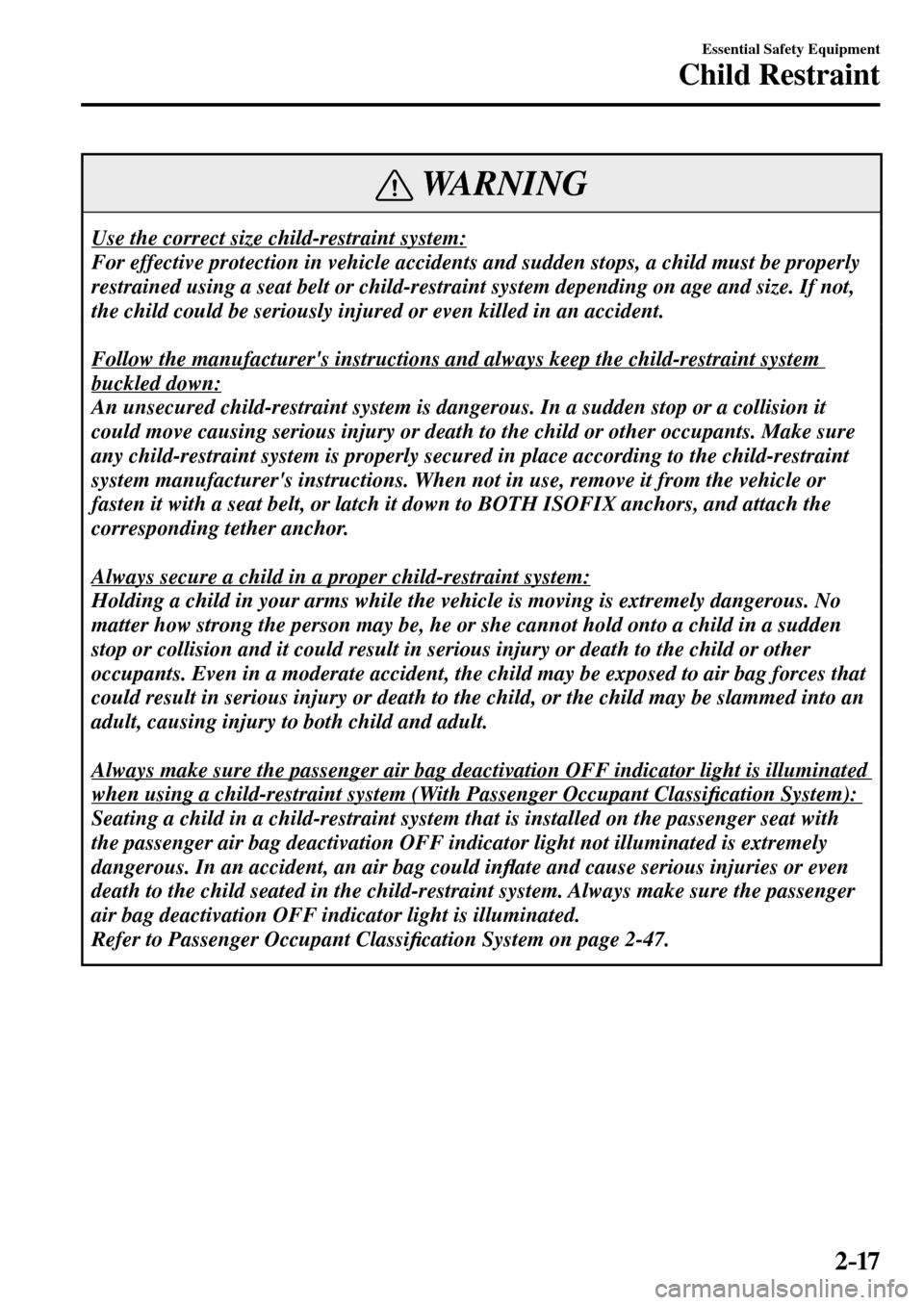

Page 37 of 609
2–17
Essential Safety Equipment
Child Restraint
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not,
the child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
any child-restraint system is properly secured in place according to the child-restraint
system manufacturer's instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH ISOFIX anchors, and attach the
corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces that
could result in serious injury or death to the child, or the child may be slammed into an
adult, causing injury to both child and adult.
Always make sure the passenger air bag deactivation OFF indicator light is illuminated
when using a child-restraint system (With Passenger Occupant Classi ¿ cation System):
Seating a child in a child-restraint system that is installed on the passenger seat with
the passenger air bag deactivation OFF indicator light not illuminated is extremely
dangerous. In an accident, an air bag could in À ate and cause serious injuries or even
death to the child seated in the child-restraint system. Always make sure the passenger
air bag deactivation OFF indicator light is illuminated.
Refer to Passenger Occupant Classi ¿ cation System on page 2-47 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 80 of 609
3–4
Before Driving
Keys
CAUTION
Changes or modi ¿ cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
NOTE
The keyless entry system operation
may vary due to local conditions.
The keyless entry system is fully
operational (door/boot lid/fuel- ¿ ller
À ap lock/unlock) when the ignition
is switched off. The system does not
operate if the ignition is switched to
any position other than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the
battery may be weak. To install a
new battery, refer to Key Battery
Replacement (page 6-31 ).
Battery life is about one year.
Replace the battery with a new one
if the KEY indicator light (green)
À ashes in the instrument cluster (for
vehicles with a type A instrument
cluster (page 4-42 ), messages are
displayed in the instrument cluster).
Replacing the battery about once
a year is recommended because
the KEY warning light/indicator
light may not illuminate or À ash
depending on the rate of battery
depletion.
Additional keys can be obtained at
an Authorised Mazda Repairer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorised Mazda Repairer
when additional keys are required.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 87 of 609
3–11
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not ¿ nd or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Always close both the windows and
convertible top, lock the doors and take
the key with you when leaving your
vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven with
a door not securely closed, the door
could open unexpectedly resulting in
an accident.
WARNING
Always con ¿ rm the safety around the
vehicle before opening a door:
Suddenly opening a door is dangerous.
A passing vehicle or a pedestrian could
be hit and cause an accident.
CAUTION
Always con ¿ rm the conditions
around the vehicle before opening/
closing the doors and use caution
during strong winds or when parked
on an incline. Not being aware of
the conditions around the vehicle
is dangerous because ¿ ngers could
get caught in the door or a passing
pedestrian could be hit, resulting in
an unexpected accident or injury.
If the power window does not go up
or down automatically because the
battery is dead, slowly open/close
the power window while pressing the
glass inward. Otherwise, the power
window may contact the convertible
top and the door cannot be opened/
closed resulting in damage to the
window.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 89 of 609
3–13
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Auxiliary
Key
Both doors and the boot lid, fuel- ¿ ller
À ap lock automatically when the driver's
door is locked using the auxiliary key.
They both unlock when the driver's door is
unlocked using the auxiliary key.
Turn the auxiliary key toward the front to
lock, toward the back to unlock.
LockUnlock
Double Locking System *
The double locking system is designed
to prevent someone who has broken into
your vehicle from opening the door from
the inside.
If you have any problems with the double
locking system, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
WARNING
Never activate the double locking
system with passengers, especially
children, still inside the vehicle:
Activating the system with passengers,
especially children, still inside the
vehicle is dangerous. The passengers
cannot open the doors from inside.
They would be trapped and subjected to
extreme temperatures. This could result
in serious injuries or even death.
How to Activate the system
1. Close both the windows and the
convertible top.
2. Switch the ignition off and take the key
with you.
3. Close both doors and the boot lid.
4. Insert the auxiliary key in the driver's
door, turn the auxiliary key to the lock
position, and return it to the centre
position. Then turn it to the lock
position again within 3 seconds.
Centre
position
Lock
position
/ : A ( . ' ' , A ' F K V K Q P K P F D

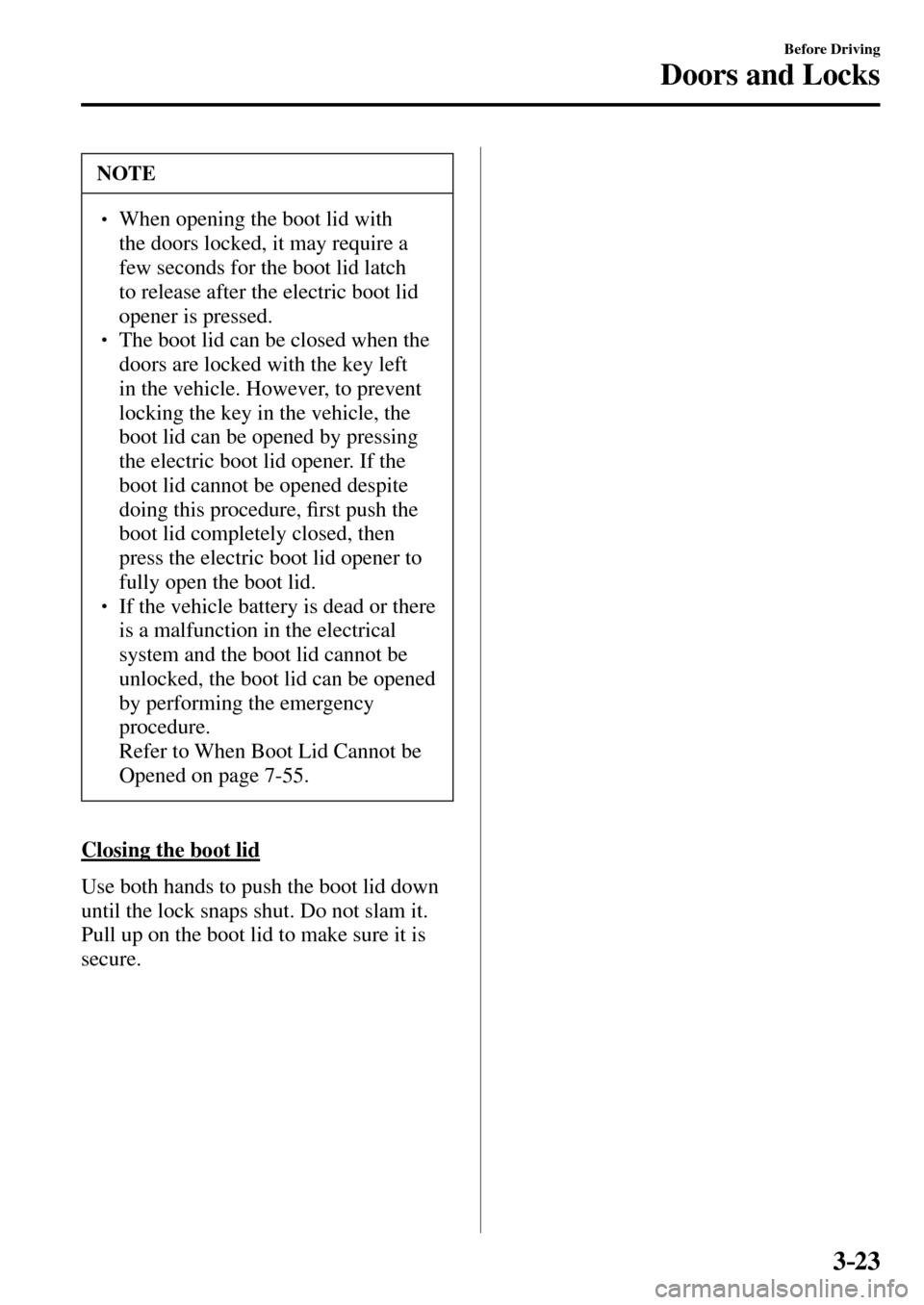

Page 99 of 609
3–23
Before Driving
Doors and Locks
NOTE
When opening the boot lid with
the doors locked, it may require a
few seconds for the boot lid latch
to release after the electric boot lid
opener is pressed.
The boot lid can be closed when the
doors are locked with the key left
in the vehicle. However, to prevent
locking the key in the vehicle, the
boot lid can be opened by pressing
the electric boot lid opener. If the
boot lid cannot be opened despite
doing this procedure, ¿ rst push the
boot lid completely closed, then
press the electric boot lid opener to
fully open the boot lid.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the boot lid cannot be
unlocked, the boot lid can be opened
by performing the emergency
procedure.
Refer to When Boot Lid Cannot be
Opened on page 7-55 .
Closing the boot lid
Use both hands to push the boot lid down
until the lock snaps shut. Do not slam it.
Pull up on the boot lid to make sure it is
secure.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 110 of 609
3–34
Before Driving
Windows
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with power
window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a
child's hands, head or neck becomes
caught by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system, do
not open or close both windows at once.
NOTE
A power window may no longer open/
close if you continue to press the switch
after opening/closing the power window.
If the power window does not open/
close, wait a moment and then operate
the switch again.
Operating the Power Windows
NOTE
The passenger window can be
operated with each door switch when
the power window lock switch on
the driver's door is in the unlocked
position (page 3-36 ).
The passenger window can also be
operated using the master control
switches on the driver's door.
Master control switches
Driver's window
Passenger's window
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 129 of 609
3–53
Before Driving
Security System
M o d i ¿ cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modi ¿ ed or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognises.
If someone attempts to start the engine
with an unrecognised key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorised Mazda Repairer.
CAUTION
Changes or modi ¿ cations not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic ¿ eld.
Expose the key to high
temperatures on places such as the
instrument panel or bonnet, under
direct sunlight.
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or À ashing,
the system may have a malfunction.
Consult an Authorised Mazda
Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 131 of 609
3–55
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft-deterrent system detects an
inappropriate entry into the vehicle or
the intrusion sensor detects movement
in the vehicle which could result in the
vehicle (with the intrusion sensor) or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and À ashing the
hazard warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion sensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.
The intrusion sensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to
operate appropriately, be aware of the
following:
Do not hang clothing or objects from
a head restraint.
Return the sunvisors to their original
positions.
Do not blind the intrusion sensor by
covering it or placing objects over it.
Do not allow the intrusion sensor to
get soiled or wipe it with a liquid.
Do not shock or cause an impact to
the intrusion sensor or the intrusion
sensor bezel.
Do not install seats that are not
Mazda genuine products.
To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are
higher than the head restraints.
Intrusion sensor and
intrusion sensor bezel
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 165 of 609
4–23
When Driving
Start/Stop Engine
WARNING
Do not rely completely on the vehicle roll prevention function.
The vehicle roll prevention function is a supplementary function which operates
for a maximum of four seconds after releasing the brake pedal and accelerating the
vehicle from an engine idling stop condition. Over reliance on the system may result
in an unexpected accident if the vehicle were to suddenly accelerate. Before starting
to drive the vehicle, always con ¿ rm the safety of the surroundings and operate the
selector lever, brake pedal, and accelerator pedal appropriately. Note that the vehicle
may move suddenly depending on the vehicle's load or if it is towing something.
Note that the vehicle may move suddenly after the vehicle roll prevention function is
released while the vehicle is under the following conditions:
The selector lever is in the N position.
If the selector lever is shifted to the N position and the brake pedal is released while
the i-stop function is operating, the brake force is gradually released. To accelerate
the vehicle, release the brake pedal after the engine restarts and shift the selector
lever to a position other than the N position.
NOTE
When the vehicle is stopped on a steep grade, the vehicle roll prevention function does
not operate because engine idling is not stopped.
The brake pedal response may change, sound may occur from the brakes, or the
brake pedal could vibrate from the operation of the vehicle roll prevention function.
However, this does not indicate a malfunction.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 191 of 609
4–49
When Driving
Transmission
NOTE
A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the centre console
box.
If shifting to R is dif ¿ cult, shift back
into neutral, release the clutch pedal,
and try again.
(With i-stop function) If the engine has stopped due to
stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.
The engine cannot be restarted even
if the clutch pedal is depressed under
the following conditions:
The driver's door is open.
The driver's seat belt is unfastened.
The clutch pedal is not released
completely after the engine stalled.
The clutch pedal is depressed with
the engine not stopped completely.
NOTE
(With parking sensor system) When the shift lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on
page 4-148 .
Gear Shift Indicator
The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti ¿ es the driver to change to the most
suitable gear position corresponding to the
actual driving condition.
Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.
and numeral Shift up or down to the indicated
gear position is recommended.
/ : A ( . ' ' , A ' F K V K Q P K P F D
