Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorised Mazda Repairer and have
your code number ready.
NOTE
The driver must carry the key to ensure
the system functions properly.
Auxiliary key Transmitter
Key code number plate
To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.
Knob
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the boot lid, fuel-¿ ller À ap, and opens the
boot lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an expert repairer,
we recommend an Authorised Mazda
Repairer, according to the indication.



 KEY Warning Light (Red)
 Refer to Warning/Indicator Lights on
page 4-42 .




 Ignition Not Switched Off (STOP)
Warning Beep
  Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-51 .



 Key Removed from Vehicle Warning
Beep
  Refer to Key Removed from Vehicle
Warning Beep on page 7-51 .
If you have a problem with the key,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.
If your key is lost or stolen, consult an
Authorised Mazda Repairer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
/:A(.'',A'FKVKQPKPFD

3–5
Before Driving
Keys
Transmitter
Operation buttons Operation indicator light
NOTE
 (European models) The headlights turn on/off by
operating the transmitter. Refer
to Leaving Home Light on page
4-69 .
 (With theft-deterrent system) The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
 Refer to Theft-Deterrent System on
page 3-55 .
  (With the advanced keyless
function (European models))
 The setting can be changed so that a
beep sound is heard for con¿ rmation
when the doors and the boot lid, fuel-
¿ ller À ap are locked/unlocked using
the key.
(With the advanced keyless
function (Except European
models))
 A beep sound can be heard for
con¿ rmation when the doors and the
boot lid, fuel-¿ ller À ap are locked/
unlocked using the key. If you prefer,
the beep sound can be turned off.
 The volume of the beep sound can
also be changed.
 Refer to Personalisation Features on
page 9-10 .
NOTE
 Use the following procedure to
change the setting.
1. Switch the ignition off and close
both of the doors and the boot lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
Both of the doors and the boot lid,
fuel-¿ ller À ap lock and the beep
sound activates at the currently
set volume. The setting changes
each time the LOCK button on the
key is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:



 Switching the ignition to ACC
or ON.



 Closing the driver's door.



 Opening the boot lid.



 Not operating the key for 10
seconds.



 Pressing any button except the
LOCK button on the key.



 Pressing a request switch.
The operation indicator light À ashes when
the buttons are pressed.
/:A(.'',A'FKVKQPKPFD

5–34
Interior Features
Audio System

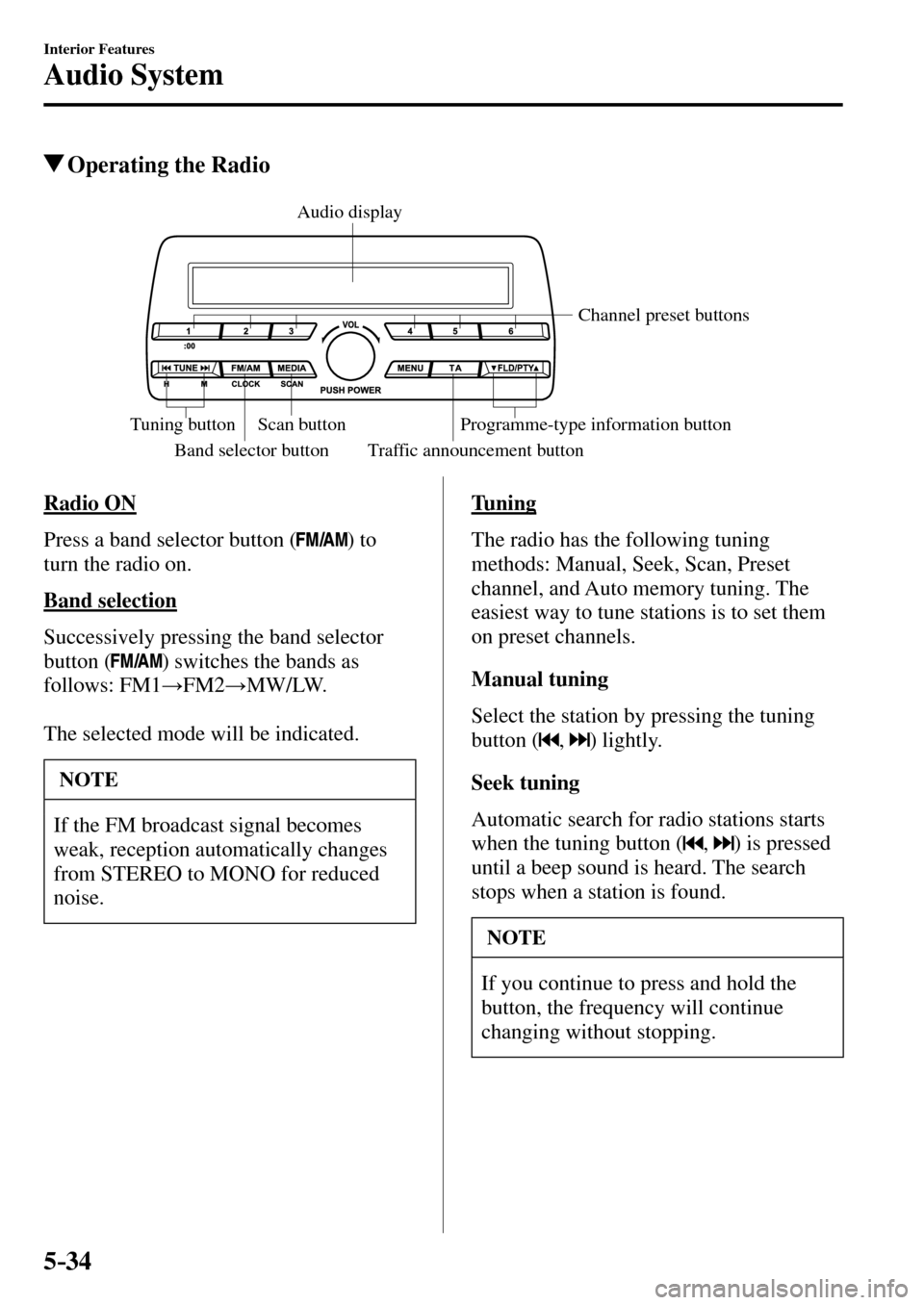

Operating the Radio
