Page 81 of 609
3–5
Before Driving
Keys
Transmitter
Operation buttons Operation indicator light
NOTE
(European models) The headlights turn on/off by
operating the transmitter. Refer
to Leaving Home Light on page
4-69 .
(With theft-deterrent system) The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on
page 3-55 .
(With the advanced keyless
function (European models))
The setting can be changed so that a
beep sound is heard for con ¿ rmation
when the doors and the boot lid, fuel-
¿ ller À ap are locked/unlocked using
the key.
(With the advanced keyless
function (Except European
models))
A beep sound can be heard for
con ¿ rmation when the doors and the
boot lid, fuel- ¿ ller À ap are locked/
unlocked using the key. If you prefer,
the beep sound can be turned off.
The volume of the beep sound can
also be changed.
Refer to Personalisation Features on
page 9-10 .
NOTE
Use the following procedure to
change the setting.
1. Switch the ignition off and close
both of the doors and the boot lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
Both of the doors and the boot lid,
fuel- ¿ ller À ap lock and the beep
sound activates at the currently
set volume. The setting changes
each time the LOCK button on the
key is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:
Switching the ignition to ACC
or ON.
Closing the driver's door.
Opening the boot lid.
Not operating the key for 10
seconds.
Pressing any button except the
LOCK button on the key.
Pressing a request switch.
The operation indicator light À ashes when
the buttons are pressed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 108 of 609
3–32
Before Driving
Mirrors
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to centre on the scene through the rear
window.
NOTE
For the manual antidazzle mirror,
perform the adjustment with the
antidazzle lever in the day position.
Reducing glare from headlights
Manual antidazzle mirror
Push the antidazzle lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Antidazzle lever
Day Night
Auto-dimming mirror
The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
Press the ON/OFF button
to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON/OFF button
. The indicator
light will illuminate.
ON/OFF button Indicator light
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 170 of 609
4–28
When Driving
Instrument Cluster and Display
NOTE
After refuelling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.
The display indicating a quarter
or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.
The direction of the arrow ( )
indicates that the fuel- ¿ ller À ap is on
the left side of the vehicle.
Instrument Panel Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
NOTE
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-63 .
The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.
The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.
The brightness increases by rotating the
knob to the right.
Dim
Bright
Function for cancelling illumination
dimmer
The illumination dimmer can be
cancelled by rotating the instrument panel
illumination knob to the right until a beep
sound is heard while the instrument cluster
is dimmed with the ignition switched
ON. If the instrument cluster's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 187 of 609
4–45
When Driving
Instrument Cluster and Display
*Some models.
Indication/Indicator Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.
Signal Indicator Lights Page
* Passenger Air Bag Deactivation Indicator Light *1 2-47
(White/Green)
* KEY Indicator/Indicator Light 3-9
Security Indicator Light *1 3-54
* Retractable Fastback Operation Indicator Light 3-48
(Green)
* i-stop Indicator Light 4-18
(White/Green) * i-ELOOP Indicator/Indicator Light 4-92
* Vehicle Speed Alarm Indication 4-39
* Wrench Indication/Indicator Light *1 4-47
(Blue) Low Engine Coolant Temperature Indicator Light 4-47
* Shift Position Indication 4-52
Lights-On Indicator Light 4-63
Headlight High-Beam Indicator Light Headlight High-Low
Beam
4-68
Flashing the Headlights
4-68
* Rear Fog Light Indicator Light 4-70
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 205 of 609

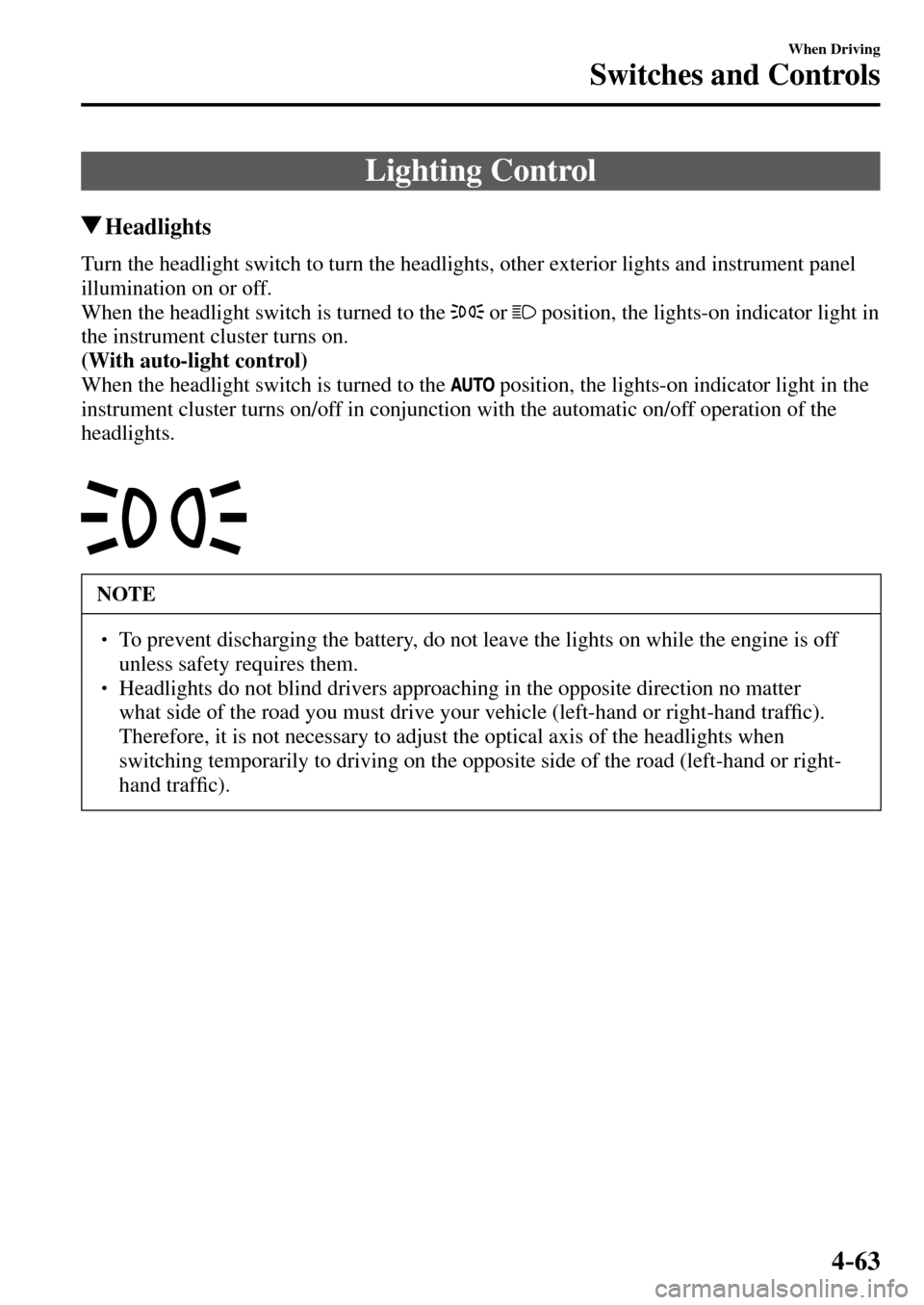

4–63
When Driving
Switches and Controls
Lighting Control
Headlights
Turn the headlight switch to turn the headlights, other exterior lights and instrument panel
illumination on or off.
When the headlight switch is turned to the
or position, the lights-on indicator light in
the instrument cluster turns on.
(With auto-light control)
When the headlight switch is turned to the
position, the lights-on indicator light in the
instrument cluster turns on/off in conjunction with the automatic on/off operation of the
headlights.
NOTE
To prevent discharging the battery, do not leave the lights on while the engine is off
unless safety requires them.
Headlights do not blind drivers approaching in the opposite direction no matter
what side of the road you must drive your vehicle (left-hand or right-hand traf ¿ c).
Therefore, it is not necessary to adjust the optical axis of the headlights when
switching temporarily to driving on the opposite side of the road (left-hand or right-
hand traf ¿ c).
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 206 of 609
4–64
When Driving
Switches and Controls
Without auto-light control
Switch Position
Ignition Position ON ACC or
OFF O N ACC or
OFF O N ACC or
OFF
Headlights Off Off Off Off On Off
Running lights On
*1 Off Off Off Off Off
Tail lights
Position lights
Number plate lights
Instrument panel illumination On
*2 Off On On On On *3
*1 It turns on while driving the vehicle.
*2 When the running lights are turned on, the position lights, tail lights, and number plate lights turn on. The
instrument panel illumination does not turn on.
*3 If the driver's door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 207 of 609
4–65
When Driving
Switches and Controls
With auto-light control
Switch Position
Ignition Position ON ACC
or OFF O N ACC
or OFF O N ACC
or OFF O N ACC
or OFF
Headlights Off Off Auto
*1 Off Off Off On Off
Running lights On *2 Off Auto *1 Off Off Off Off Off
Tail lights
Position lights
Number plate lights
Instrument panel illumination On
*3 Off Auto *1 On *4 /
Off *5 On On On On *6
*1 The headlight and other light settings switch automatically depending on the surrounding brightness detected by
the sensor.
*2 It turns on while driving the vehicle.
*3 When the running lights are turned on, the position lights, tail lights, and number plate lights turn on. The
instrument panel illumination does not turn on.
*4 While the lights are turned on, they will remain on even if the ignition is switched to a position other than ON .
If the driver’s door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
*5 When the ignition is switched to a position other than ON , the lights will not turn on even if the light switch is
switched to
.
*6 If the driver’s door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 208 of 609
4–66
When Driving
Switches and Controls
Auto-light control
When the headlight switch is in the
position and the ignition is switched ON, the light
sensor senses the surrounding lightness or darkness and automatically turns the headlights,
other exterior lights and instrument panel illumination on or off (see chart above).
CAUTION
Do not shade the light sensor by adhering a sticker or a label on the windscreen.
Otherwise the light sensor will not operate correctly.
The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windscreen when the wiper lever is in the
position and the
ignition is switched ON as ¿ ngers could be pinched or the wipers and wiper blades
damaged when the wipers activate automatically. If you are going to clean the
windscreen, be sure the wipers are turned off completely — this is particularly
important when clearing ice and snow — when it is particularly tempting to leave the
engine running.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 209 of 609
4–67
When Driving
Switches and Controls
NOTE
The headlights, other exterior lights and instrument panel illumination may not turn
off immediately even if the surrounding area becomes well-lit because the light sensor
determines that it is night time if the surrounding area is continuously dark for several
minutes such as inside long tunnels, traf ¿ c jams inside tunnels, or in indoor parking
lots.
In this case, the lights turn off if the light switch is turned to the position.
When the headlight switch is in the position and the ignition is switched to ACC
or the ignition is switched off, the headlights, other exterior lights and instrument panel
illumination will turn off.
The instrument panel illumination can be adjusted by rotating the knob in the
instrument cluster. Also, the antidazzle mode can be changed by rotating the knob until
a beep sound is heard. To adjust the brightness of the instrument panel illumination:
Refer to Instrument Panel Illumination on page 4-28 .
The sensitivity of the AUTO lights may be changed by an Authorised Mazda Repairer.
Refer to Personalisation Features on page 9-10 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 210 of 609
4–68
When Driving
Switches and Controls
Headlight High-Low Beam
The headlights switch between high and
low beams by moving the lever forward or
backward.
High beam
Low beam
When the headlight high-beams are on,
the headlight high-beam indicator light is
turned on.
Flashing the Headlights
Can be used when the ignition is switched
ON.
T o À ash the headlights, pull the lever fully
towards you (the headlight switch does not
need to be on).
OFF
Headlight
flashing
The headlight high-beam indicator light
in the instrument cluster illuminates
simultaneously. The lever will return to the
normal position when released.
Coming Home Light
The coming home light turns on the
headlights (low beams) when the lever is
operated.
To turn on the lights
When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
headlights turn on.
The headlights turn off after a certain
period of time has elapsed after the doors
are closed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
