Driving Your Mazda
Climate Control System
I Op€rating Tips
V Operating the climate control
Op€rate the climate control system with
the engine tunning.
V Clearing the air inlet
Clear all obstructions like leaves, snow
and ice from dre bood and the air inl€t in
$e cowling grille to improve iie system
efficiency.
V Foggy windows
The windows may fog upeasily in hunid
weather, Use the climate control syslem
to defrost lhe windows,
To help defrost the windows. operate the
air conditioner ro dehumidify the air.
V Outside/Recirculated air position
Use the outsid€ air position in nornal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooljng of the
V Parking in dir€ct sunlight
Iflhe vebicie has been parked in direct
sunlight during hotweathe! open ihe
windows 10 let warm air escape. then nrn
the climate control system.
V Not using for a long period
Run the air conditioner at least once a
month to keep internal paJts lubricated.
V Check the rcfrigerant before
weather gets hot
Have the air coditioner checked before
the weather gets hot. Lack of refrigeranl
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspectron.
The optional air conditioner is filled with
R I 3 4a, a refrigeranr that will not damage
If ihe air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
5.42

Driving Your Mazda
/6f
cord r7i Hd
v___/
O€,,z.GO
V tran control dial
This dial allows variable fan speeds.
0 Fan off
I -Low speed
2 -Medium low speed
3 Mediurn high speed,l -High speed
V Tempe.aturc control dial
This dial controls temperature. Tum it
clockwise for hot and counterclockwise
V Air intake sel€cto. switch
This switch controls the source of air
ente ngthe vehicle.
Press the switch to alternate between
fte ra and 6 positions. The indicator
light for the selected mode will
illuminate.
It is recommended that under normal
conditions the switch b€ kept in lhe
5-46

Driving Your Mazds
lA
A/C i/
Y
V Arc switch*
Push $e switch io lurn the air conditioner
on. An indicator light on tbe switch will
illuminate when the fan control dial is on.
Push tbe switch once again to tum the air
V Ventilation
l Ser the mode selector dial to the
P' Posnion.
2. Sel rhe air intake selector switch ro ihe
3. Set lbe temperatLrre control dial to the
desired position.
4. Set rhe fan conlrol dial to the desired
speed.
V Heating
l Sel the mode selector dial to the .l
2. Set ihe temperature control dial to the
hotposition.
3. Set the fan control dial ro ihe desired
NOTE
The air condinoner rnay not function
when the outside temperature
approaches 0 'C (32 "F).
5-48

Driving Your Mazda

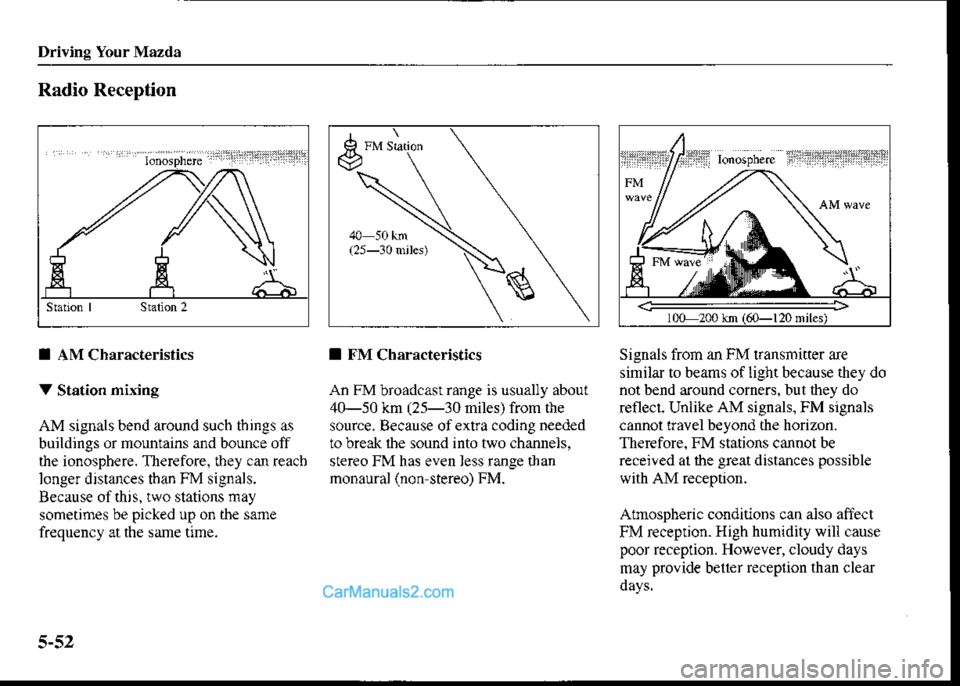

Radio Reception
I AM Characteristics
V Station mixing
AM signalsbend around such tbings as
buildings or mountains and bounce off
the ionosphere. Therefore. lhey can reach
longer distances than FM signals.
Because oflhjs. lwo stations may
somedmes be picked up on the same
frequency at the same time.
I FM Characteristics
An FM broadcasirange is usually about
4G-50 km (25-30miles) from the
source. Because ofextra coding needed
to break ihe sound into two channels,
siereo FM has even less range t}an
monaural (non stereo) FM.
Signals from an FM ransmitter ale
similar to beams oflightbecause they do
not bend around corners. but they do
reflect. Unlike AM signals, FM signals
cannot iravel b€yond the horizon.
Therefore. FM stations cannot be
received al the great distances possible
with AM reception.
Al'nospheric conditions can also affect
FM receplion. High humidity will cause
poor receplion. However, cloudy days
may provide beller r€ception than clear
days.
100 200 rm i60-120niles
5-52

Driving Your Mazda

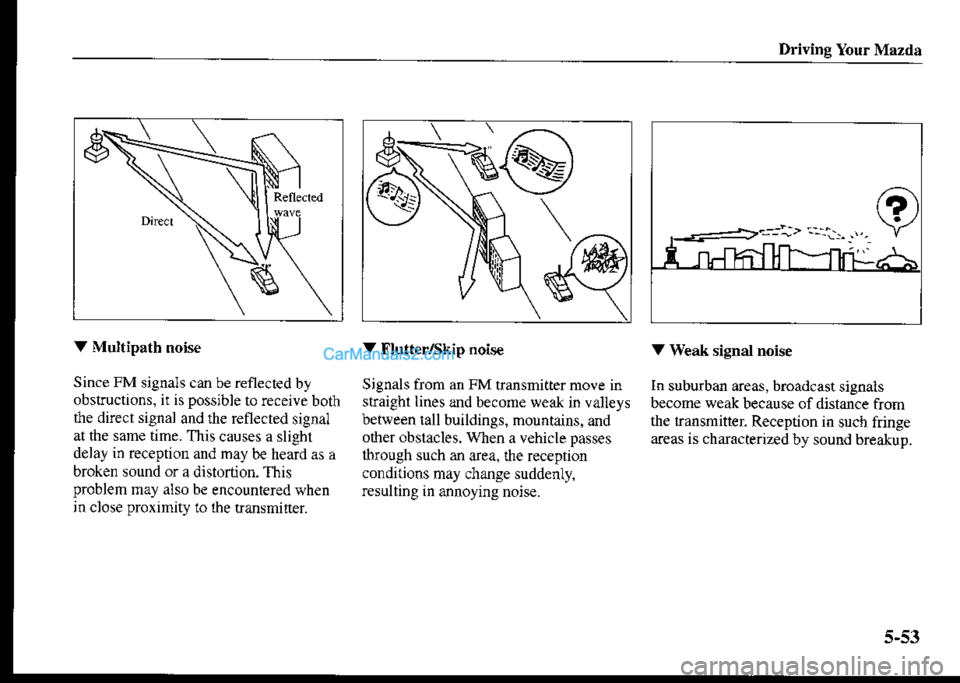

V Multipath noise
Since FM signals can be reflected by
obstructions, ii is possible to receive both
the direci signal and rhe reflecred signal
at the sane time. This causes a slight
delay in reception and may be heard as a
broken sound or a distortion. Thisproblem may also be encountered whenjn close proximity to tbe transmittrer.
V trlutter^kip noise
Sjgnals from an FM transmitlermove in
straighl lines and become weal( in valleys
between tall buildings, mountains. and
other obstacles. Wlen a vehicle passes
lhrough such an area. lhe recepiion
conditions may change suddenly.
resulting in annoying noise.
V Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the lransmitter. Reception in such fringe
areas is chaJacterized by sound breatup.
5-5-t

Driving Your Mazda
Do not leave a cassette tape in the tap€
player slot when not in use. Remove it
completely to perml the slot door 1()
close and to protect the mechanism
from dust.
Store cassette tape away from extreme
heat, magnetic fields, and direct
sunlight. Protect the exposed cassette
tape from dirt and damage. Store
cassettre tapes intheioriginal cases or
other protective cases.
Insert only cassette tapes into the do1.
If objects other than cassetie tapes are
inserted. iley may damage the player.
. Do not insert any objects, other than
cassette tap€, into the slot,
If the casselG lape is loose, it may
produce poor sound or Pertormanceduring playback. Use a p€ncil or
sometbing similar to remove any
slack.
Only cassette tapes that play no longer
than 90 minutes should be used.
Cassette tape exceeding 90 ninutes are
thin and rnay easily br€ak.
5-70

Driving Your Mazda
NCOMPACT
reJ[5G
OIGITAL AUDIO
. The CD player/changer has been
designed 1() play CDs bearing the
identification logo as shown. No other
discs can be played.
*h
,\S -- ,,
6&
B€ sure neYer to toucb ihe signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of lhe hole and the outer
edge.
Do not siick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label).
Dust, finger smudges, and din can
decrease ine amount of light reflecr,ed
from the signal surface, thus affecting
sound quality. If ibe CD should
become soiled. gendy wip€ il with a
soft cloth from lhe cenrer of the CD to
dle edse.
Do not use r€cord sprays. antistatic
agents, or household spray cleaners.Volatile chemicals such as benzine and
ihinner can also damage th€ surface of
the CD and must not be used.
Anything that can damage, warp, or
fog plaslic should never be used to
clean CDs.
CDs. like traditional audio records, are
made of plastic. To avoid warping,
keep the CDs in their cases and do not
store lhem where they will be exposed
to direct sunlight.
5-85

In Case of an Em€rg€ncy
NOTE
The tum signals don't work when
the hazard waming lights are on.
Check local regulations about tbe
use of hazard waming lights while
ihe vehicle is being towed. They
may forbid it.
Hazard Warning Flasher
6.2
Overheating
If the temperature gauge indicates
overheating, you experience power loss,
or you hear a loud knocking or pinging
noise, the engine is probably too hot.
If this happens:
l Drive safely ro the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic
rransaxle in park G), a rnanual
transaxle in neutral.
Apply the parking brake.
3. Tum offthe air conditioner
The hazard warning lights wam other
drivers ihat your vebicle is a traffic
hazard and that they musl take extreme
caution when near il.
The hazard warnins ligbts should always
be used when you stop on or near a
Depress the hazard warning swirch and
all four tum signals willflash at once.

ln Cas€ ofan Emergency
ffiffi
AcluuoN
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
.{. lnspect it and replace ifit blown.
5. Push in anew fuse of the same rating,
and make sure it fits tightly. If it
doesn't, have an Authorized Mazda
Dealer insiall it.
If you have no spare fuses, borrow one of
the same rating from a circuit not
essential to vehicle operation. such as the
RADIO c;cuit.
If the headlights or other electrical
componenls don work and lhe iuses in
the cabin are OK. inspect rhe fuse block
under the hood.Ifafuse is blown, il must
be replaced. Follow th€se steps:
1. Tum off the ignition switch and all
2. To remove the fuse btock cover,
unhook it a:rd lift up on tbe side with
dle tab.
6-7

In Case of an Emergency
I Fuse Panel DescriDtion
tr88
E80
HBE
HEE
HEE
F'H
EE
E
V Fuse block (Engin€ compartment)
DESCRIPTIONFUSDRA1.INGPROTECIED COMPONDNT
HEATER
2(ABS)For pmrection of vanons ci(uirs*
lIC KEYlor pole.lio of veious cimiB
5(CLOw)
6
COOLINC30A
BTNInlerior lights, Power dooi lock+
9Addrtronrl rool,ng lan for r'r rondirion.r'
INJORFIP
(r'JC)
(sTsrc)
HORN
TAIL
(HEADC U)Foi piote.rion of vfjos c;cuits
(FOC)For protecion of vdious cncuns
'sune nodek. 6-9
