ESP MAZDA MODEL RX 8 2004 (in English) User Guide

7-6
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C

About the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hoseCompressor
Spare valve
coreValve core
tool
CaseSpeed restriction
stickerRepaired tire
sticker
Instruction
Ingestion of Tire Sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance. Do not allow
children to touch the tire sealant.
Tire Sealant Contacting Eyes and
Skin:
Tire sealant that comes into contact
with the eyes and skin is dangerous. If
tire sealant enters the eyes or contacts
the skin, flush immediately with large
amounts of water and seek medical
assistance. Do not allow children to
touch the tire sealant.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM

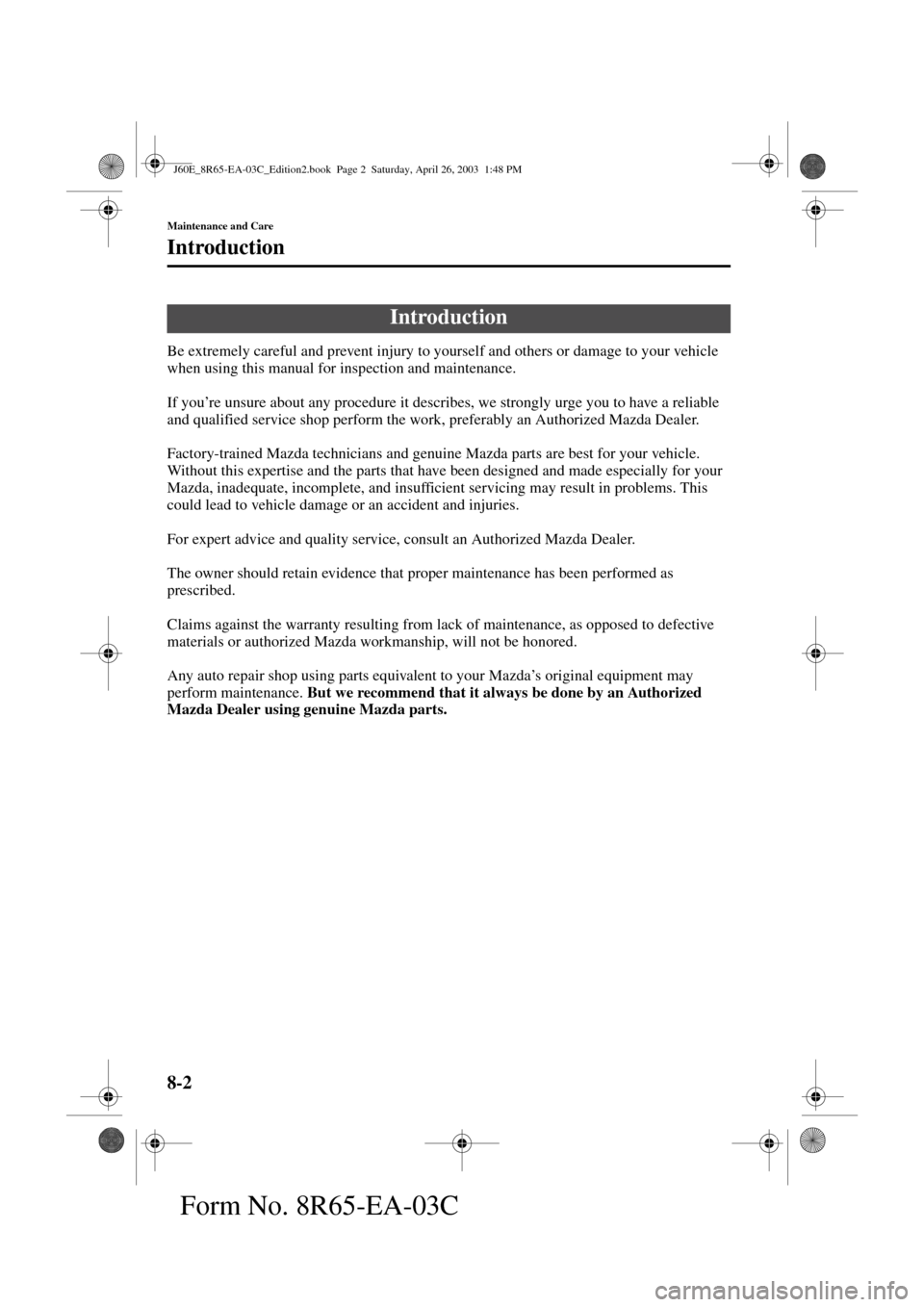

8-2
Maintenance and Care
Form No. 8R65-EA-03C
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda’s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

8-7
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedure can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Working near the electrical cooling fan when it is running is dangerous. You could be
hit by the fan and seriously injured. Turn off the ignition switch and make sure the
fan is not running before attempting to work near the electrical cooling fan.
NOTE
Once the engine coolant exceeds a preset temperature, an electrical cooling fan turns on.
It will continue running for about 10 minutes after the ignition switch is turned to off.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

8-10
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C


Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait 5 minutes for the
oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
5. Pull it out again and examine the level.
It’s OK between L and F.
But if it’s near or below L, add enough
oil to bring the level to F.
The distance between L and F on the
dipstick represents the following:


Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information.
Changing engine oil
Don’t add engine oil over F. This may
cause engine damage.
L (US qt, Imp qt) 1.7 (1.8, 1.5)
Full
Low OK
CAUTION
Handling Used Engine Oil:
Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
Checking or Changing Engine Oil:
Hot engine oil is dangerous. If the
engine has been running, the engine
oil becomes very hot. You could be
seriously burned. Don’t check or
change the engine oil when the
engine is hot.
WARNING
WARNING
08.fm Page 10 Friday, July 4, 2003 11:45 AM

8-41
Maintenance and Care
Appearance Care
Form No. 8R65-EA-03C
Follow all
label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.

Maintaining the Finish
Wa s h i n g
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
•The vehicle is washed without first
rinsing off dirt and other foreign
matter.
•The vehicle is washed with a rough,
dry, or dirty cloth.
•The vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
•Cleansers or wax containing abrasives
are used.To minimize scratches on the vehicle’s
paint finish:
•Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
•Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
•Rub gently when washing or drying the
vehicle.
•Take your vehicle only to a car wash
that keeps its brushes well maintained.
•Don’t use abrasive cleansers or wax
that contain abrasives.
Exterior Care
NOTE
•Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.
•Scratches are more noticeable on
vehicles with darker paint finishes.
Don’t use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage the
protective coating; also, cleaners and
detergents may discolor or deteriorate
the paint.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 41 Saturday, April 26, 2003 1:48 PM

9-12
Customer Information and Reporting Safety Defects
Wa r r a n t y
Form No. 8R65-EA-03C
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle’s performance or safety system; the Mazda warranty doesn’t cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Add-On Non-Genuine Parts and Accessories
Installation of Non-Genuine Parts or Accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle’s performance or safety system.
This could cause you to have an accident or increase your chances of injuries in an
accident. Always consult an Authorized Mazda Dealer before you install non-genuine
parts or accessories.
Add-On Electrical and Electronic Equipment:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS inactivation, or a fire in the vehicle.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 12 Saturday, April 26, 2003 1:48 PM

9-13
Customer Information and Reporting Safety Defects
Form No. 8R65-EA-03C
Cell Phones
Cell Phones Warning
Use of Cell Phones and Other Devices by Driver:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous.
Dialing a number on a cell phone while driving also ties-up the driver’s hands. Use of
these devices will cause the driver to be distracted and could lead to a serious accident.
If a passenger is unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this warning, use a hands-free
system to at least leave the hands free to drive the vehicle. Never use a cell phone or
other electrical devices while the vehicle is moving and, instead, concentrate on the
full-time job of driving.
Please comply to the legal regulations concerning the use of communication
equipment in vehicles in your country.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 13 Saturday, April 26, 2003 1:48 PM

9-15
Customer Information and Reporting Safety Defects
Form No. 8R65-EA-03C
Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National
Highway Traffic Safety Administration for grading tires by tread wear, traction, and
temperature performance.

Tre a d We a r
The tread wear grade is a comparative rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.

Traction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent
the tire’s ability to stop on wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt and concrete. A tire marked C may have poor
traction performance.

Temperature-A, B, C
The temperature grades are A (the highest), B, and C, represent the tire’s resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory test wheel than the minimum required by
law.
Uniform Tire Quality Grading System (UTQGS)
The traction grade assigned to this tire is based on braking (straight ahead) traction
tests and does not include acceleration cornering (turning), hydroplaning, or peak
traction characteristics.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 15 Saturday, April 26, 2003 1:48 PM

9-16
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
Form No. 8R65-EA-03C
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicle may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.

Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A

The temperature grade for this tire is established for a tire that is properly inflated
and not overloaded. Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible tire failure.
WARNING
UTQGS MARK (example)
TREADWEAR 200 TRACTION AA
TEMPERATURE A
J60E_8R65-EA-03C_Edition2.book Page 16 Saturday, April 26, 2003 1:48 PM

9-17
Customer Information and Reporting Safety Defects
Form No. 8R65-EA-03C
Reporting Safety Defects
Reporting Safety Defects
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755, Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-7) in this booklet.
J60E_8R65-EA-03C_Edition2.book Page 17 Saturday, April 26, 2003 1:48 PM
