6-16
Interior Comfort
Au di o S ys t em
Form No. 8R65-EA-03C
•Be sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.
•Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label).
•Dust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.
•Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
•CDs, like traditional audio records, are
made of plastic. To avoid warping,
keep the CDs in their cases and do not
store them where they will be exposed
to direct sunlight.
•The CD player/changer ejects the CD if
the CD is inserted upside down. Also
dirty and/or defective CDs may be
ejected.
•8 cm (3 in) CDs and CD accessories
(e.g. 8 cm disc adapter) cannot be used
in the CD player/changer.•Do not insert cleaning discs in the CD
player/changer.
•Do not insert any disc with a peel-off
or seal on it.
J60E_8R65-EA-03C_Edition2.book Page 16 Saturday, April 26, 2003 1:48 PM

6-37
Interior Comfort
Form No. 8R65-EA-03C
Interior Equipment
When you need a sunvisor, lower it for use
in front or swing it to the side.

Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
pull the cover up.

Illuminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:
•About 30 seconds after the driver’s
door is unlocked and the ignition key is
removed.
•About 15 seconds after all doors are
closed.
•About 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
•The ignition switch is turned to the ON
position and all doors are closed.
•The driver’s door is locked.
Sunvisors
Sunvisor
Interior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
J60E_8R65-EA-03C_Edition2.book Page 37 Saturday, April 26, 2003 1:48 PM

6-38
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Overhead Lights
Front
Rear
OFF Light off
DOOR•
Light on when any door is open
•
Light on or off when the
illuminated entry system is on
DOOR
OFF
With sunroof
DOOR
OFF
Without sunroof
OFF Light off
DOOR•
Light on when any door is open
•
Light on or off when the
illuminated entry system is on
ON Light on
DOOR OFF
ON
J60E_8R65-EA-03C_Edition2.book Page 38 Saturday, April 26, 2003 1:48 PM

6-39
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Map Lights
The map lights are switched on or off by
pressing the switches.

Courtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
With sunroof
Without sunroof
Courtesy Light
J60E_8R65-EA-03C_Edition2.book Page 39 Saturday, April 26, 2003 1:48 PM

6-42
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Climate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to "Climate Control System"
(page 6-2).

Audio Display
The audio system status is displayed. To
operate the audio system, refer to "Audio
System" (page 6-10).The ignition switch must be in the ACC or
ON position.
1. Open the cover.
2. Press the lighter in and release it. When
ready for use, it automatically pops out.
Lighter
J60E_8R65-EA-03C_Edition2.book Page 42 Saturday, April 26, 2003 1:48 PM

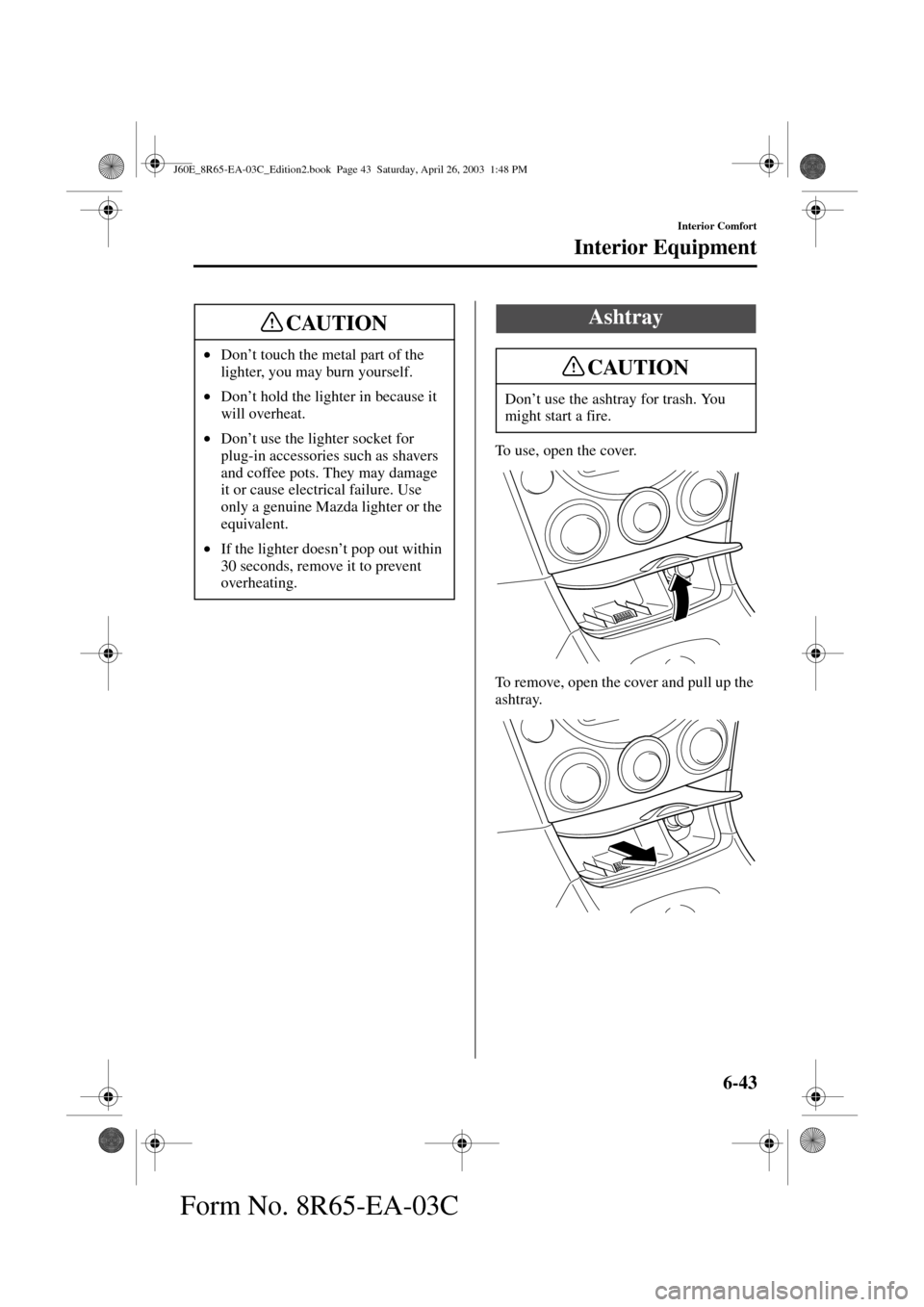

6-43
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C
To use, open the cover.
To remove, open the cover and pull up the
ashtray. •Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTIONAshtray
Don’t use the ashtray for trash. You
might start a fire.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 43 Saturday, April 26, 2003 1:48 PM

6-45
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Overhead Console
This console box is designed to store
accessories. Push and release to open.

Coin Box
To open, press the release catch down and
pull the lid downward.

Glove Box
To open the glove box, pull the latch
toward you.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don’t leave
combustible materials such as lighters
or objects which will deform in
extreme heat such as eye glasses in the
vehicle.
WARNING
CAUTION
Don’t leave eyeglasses or lighters in
the overhead console while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
CAUTION
Unlock
Lock
J60E_8R65-EA-03C_Edition2.book Page 45 Saturday, April 26, 2003 1:48 PM

7-2
In Case of an Emergency
Form No. 8R65-EA-03C
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all four turn signals will flash at once.
Parking in an Emergency
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

7-4
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C

Jack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.

Spare Tire
A temporary spare tire is not equipped with
your Mazda. If an emergency tire repair is
needed, repair the flat tire with the
emergency flat tire repair kit (page 7-5). If
you require a temporary spare tire, consult
an Authorized Mazda Dealer.When
installing a temporary spare tire, follow
the manufacturer’s instructions for the
temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
Jack screw
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the rear
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the front axle and move a
regular tire to the rear.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

7-5
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface. To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•Don’t exceed 80 km/h (50 mph).
•Avoid driving over obstacles.
Also, don’t drive through an
automatic car wash. This tire’s
diameter is smaller than a
conventional tire’s, so the ground
clearance is reduced about 25 mm
(1 in).
•Don’t use a tire chain on this tire
because it won’t fit properly.
•Don’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
•Use only one temporary spare tire
on your vehicle at the same time.
(With limited slip differential)

When using the temporary spare tire
on the rear axle, replace it with a
standard tire as soon as possible. The
size difference between the spare and
the standard tire will cause the limited
slip differential to malfunction.
NOTE
(With Tire Pressure Monitoring
System)

A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used (page 5-25).
CAUTIONInstant Mobility System
(IMS) Emergency Flat Tire
Repair Kit
NOTE
Your vehicle is not equipped with a
spare tire. In the event of a flat tire, use
the emergency flat tire repair kit to
repair the tire temporarily. When doing
the repair, refer to the instructions
included in the emergency flat tire
repair kit. After temporarily repairing a
tire with the emergency flat tire repair
kit, take your vehicle to an Authorized
Mazda Dealer to have the tire replaced.
