Your Mazda has two kinds of keys.
Here’s what the keys are used for:
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box, storage box and trunk lid with
the master key. Keep that key and give the
other person only the valet key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
•To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
•When starting the engine, do not let
the following materials touch or
come near the key grip. The engine
may not start:
Spare keys.
Keys for other vehicles equipped
with an immobilizer system.
Metal objects that touch or pass
through the hole in the key.
Devices for electronic purchases,
and security passage.
WARNING
CAUTION
Lock Operates Master key
Va l e t k e y
Ignition switch
and steering
column lockYe s Ye s
Doors Yes Yes
Glove box Yes No
Storage box Yes No
Trunk lid Yes No
Key code number plate
Master key
(Black)
Valet key
(Gray)
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM

3-21
Knowing Your Mazda
Form No. 8R65-EA-03C
Security System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.

Operation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Immobilizer System
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
NOTE
This device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
NOTE
This device complies with RSS-210 of
I n du st ry CA NA DA. Op erati on is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference,
including interference that may cause
undesired operation of the device.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 21 Saturday, April 26, 2003 1:48 PM

3-22
Knowing Your Mazda
Security System
Form No. 8R65-EA-03C

Maintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
•If the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the
engine will not start.
•Signals from a TV or radio station,
or from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the warning light. If it
is flashing, remove the ignition key
and wait 2 seconds or more, then
reinsert it and try starting the engine
again. If it doesn’t start after 3 or
more tries, contact an Authorized
Mazda Dealer.
•If the warning light flashes
continuously while you are driving,
don’t shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the
engine while the light is flashing
you won’t be able to restart it.
•To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
•When starting the engine, do not let
the following materials touch or
come near the key grip. The engine
may not start:
Spare keys.
Keys for other vehicles equipped
with an immobilizer system.
Metal objects that touch or pass
through the hole in the key.
Devices for electronic purchases,
and security passage.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 22 Saturday, April 26, 2003 1:48 PM

3-23
Knowing Your Mazda
Security System
Form No. 8R65-EA-03C

Modification and Add-On
Equipment
Mazda cannot guarantee the system’s
operation if the system has been modified
or if any add-on equipment has been
installed to it.The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all the
doors, hood, and trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
The system won’t function unless it’s
properly armed. So when you leave the
vehicle, lock all the doors, close all the
windows, take your key, your transmitter.

Operation
What turns it on:
•Forcing open a door, the hood or the
trunk lid.
•Opening a door, the hood or the trunk
lid by operating an inside door-lock
knob, the hood release handle or the
trunk lid release button.
What it does:
•The horn sounds intermittently and the
hazard warning lights flash.
•The alarm continues for about 3 minutes,
then stops.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
NOTE
•The keys carry a unique electronic
code. For this reason, and to assure
your safety, replacement keys
require some waiting time to obtain.
They are only available through an
Authorized Mazda Dealer.
•Always keep a replacement key, in
case one is lost. If a key is lost,
contact an Authorized Mazda
Dealer as soon as possible.
•If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
Theft-Deterrent System*
NOTE
The theft-deterrent system operates
with the key or the keyless entry
system transmitter.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 23 Saturday, April 26, 2003 1:48 PM

5-43
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.
Vehicles with Instant Mobility System
(IMS) emergency flat tire repair kit
If an emergency tire repair is needed,
repair the punctured tire with the
emergency flat tire repair kit (page 7-5).
Vehicles with optional temporary spare
tire
If you have bought the optional temporary
spare tire, replace the punctured tire with
the temporary spare tire . Refer to the
manufacturer’s instructions.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.

Security Indicator Light
This indicator light starts flashing every
2 seconds when the ignition switch is
turned from the ON to the ACC position
and the immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

Headlight High-Beam Indicator
Light
This light indicates one of two things:
•The high-beam headlights are on.
•The turn signal lever is in the flash-to-
pass position. When replacing/repairing the tires or
wheels or both, have the work done by
an Authorized Mazda Dealer, or the
tire pressure sensors may be damaged.
Do not use non-genuine tire sealant. It
may damage the tire pressure sensor.
NOTE
A tire pressure sensor is not installed
to the temporary spare tire. The
warning light will flash continuously
while the temporary spare tire is being
used.
CAUTION
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 43 Saturday, April 26, 2003 1:48 PM

9-14
Customer Information and Reporting Safety Defects
Form No. 8R65-EA-03C

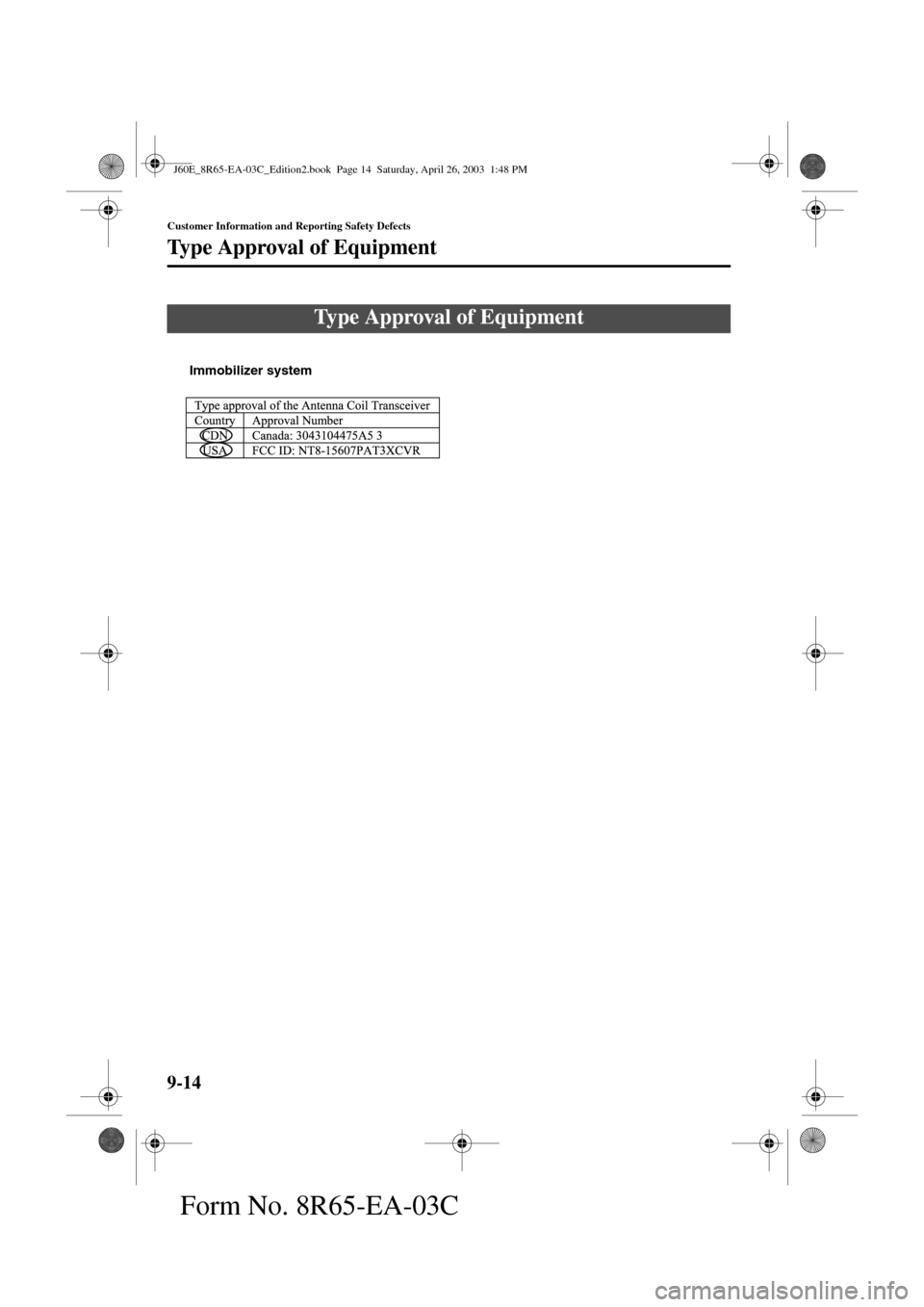

Type Approval of Equipment
Type Approval of Equipment
Immobilizer system
J60E_8R65-EA-03C_Edition2.book Page 14 Saturday, April 26, 2003 1:48 PM

11-4
Index
Form No. 8R65-EA-03C
H
Hazard Warning Flasher .................. 5-55
Hazardous Driving
............................. 4-8
Headlight Washer
............................ 5-53
Headlights
Control
...................................... 5-48
Flashing
.................................... 5-49
High-low beam
......................... 5-48
Leveling
.................................... 5-49
On reminder
.............................. 5-48
HomeLink Wireless Control
System
.............................................. 5-55
Hood Release
................................... 3-18
Horn
................................................. 5-54
I
Ignition
Keys
............................................ 3-2
Switch
......................................... 5-2
Illuminated Entry System
................ 6-37
Immobilizer System
......................... 3-21
Indicator Lights
................................ 5-35
Cruise Main
.............................. 5-45
Cruise set
.................................. 5-45
DSC OFF
.................................. 5-44
Headlight auto-leveling
malfunction
............................... 5-46
Headlight high-beam
................ 5-43
Power steering malfunction
...... 5-45
Security
..................................... 5-43
Shift position
............................ 5-44
TCS/DSC
.................................. 5-44
Turn-signal/hazard warning
...... 5-46
Information Display
......................... 6-40
Ambient temperature display
... 6-41
Audio display
............................ 6-42
Climate control display
............. 6-42
Clock
......................................... 6-41
I
Information display
functions
.................................... 6-40
Instrument Cluster
............................ 5-29
Interior Care
..................................... 8-44
Interior Lights
.................................. 6-37
J
Jump-Starting ................................... 7-20
K
Keyless Entry System ........................ 3-3
Keys
................................................... 3-2
L
Label Information ............................ 10-2
Lane-Change Signals
....................... 5-50
Light Bulbs
Replacement
.............................. 8-27
Specifications
............................ 10-6
Lighter
.............................................. 6-42
Lighting Control
............................... 5-48
Lubricant Quality
............................. 10-5
M
Maintenance
Introduction
................................. 8-2
Owner maintenance
precautions
.................................. 8-7
Owner maintenance schedule
..... 8-6
Scheduled
.................................... 8-3
Manual Transmission Operation
........ 5-8
Recommendations for shifting
....5-9
Map Lights
....................................... 6-39
Meters and Gauges
........................... 5-29
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

11-5
Index
Form No. 8R65-EA-03C
M
Mirrors
Outside mirrors
......................... 3-25
Rearview mirror
........................ 3-26
Money-Saving Suggestions
............... 4-7
O
Odometer and Trip Meter ................ 5-30
Outside Mirrors
................................ 3-25
Overhead Console
............................ 6-45
Overhead Lights
............................... 6-38
Overheating
...................................... 7-18
Overloading
...................................... 4-11
P
Paint Damage ................................... 8-39
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
............................. 3-8
Power Steering
................................. 5-16
Power steering malfunction
indicator light
............................ 5-16
Power Windows
............................... 3-14
Push-Starting
.................................... 7-22
R
Rear Quarter Windows .................... 3-16
Rear Seat
............................................ 2-7
Rear Window Defroster
................... 5-53
Rearview Mirror
............................... 3-26
Recreational Towing
........................ 7-26
Registering Your Vehicle in
A Foreign Country
........................... 9-11
Rocking the Vehicle
........................... 4-8
S
Safety Defects, Reporting ................9-17
Seat Belt System
3-point type
...............................2-11
Automatic locking
.....................2-10
Emergency locking
...................2-10
Extender
....................................2-14
Pregnant women
........................2-10
Pretensioner and load
limiting
......................................2-12
Seat belt precautions
...................2-8
Warning beep
............................2-16
Warning light
............................2-15
Seats
Front seat
.....................................2-2
Rear seat
......................................2-7
Security System
Immobilizer system
...................3-21
Theft-deterrent system
..............3-23
Service Publications
.........................9-18
Spare Tire and Tool Storage
...............7-3
Specifications
...................................10-4
Speed Unit Selector
..........................5-30
Speedometer
.....................................5-30
SRS Air Bags
Air bag system description
........2-32
Supplemental restraint systems
precautions
................................2-27
Warning light
............................2-38
Starting the Engine
.............................5-3
Steering Wheel
.................................3-25
Horn
..........................................5-54
Storage Box
......................................6-46
Storage Compartments
.....................6-45
Center console
...........................6-46
Coin box
....................................6-45
Glove box
..................................6-45
Overhead console
......................6-45
Storage box
...............................6-46
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM
