qClosing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Fuel-Filler Lid and Cap
WARNING
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-19
RX-8_8T69-EA-04G_Edition1 Page71
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (72,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn't tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer as
soon as possible.
3-20
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page72
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (78,1)
NOTE
lIf the security indicator light comes
on and stays on when the ignition
switch is turned to the ON position,
the engine will not start.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the security indicator
light. If it is flashing, remove the
ignition key and wait 2 seconds or
more, then reinsert it and try starting
the engine again. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.
lSince the electronic codes are reset
when repairing the immobilizer
system, the keys are needed. Bring
all the existing keys to the
Authorized Mazda Dealer.
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare key, in case one
is lost. If a key is lost, contact an
Authorized Mazda Dealer as soon as
possible.
lIf you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to the
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
3-26
Knowing Your Mazda
Security System
RX-8_8T69-EA-04G_Edition1 Page78
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (90,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
a leak.
lIf you plan to back up, make sure
nothing will be in your way.
NOTE
Engine oil, engine coolant, brake/clutch
fluid, washer fluid, and other fluid
levels should be inspected. See
Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?
lIs the seat adjusted properly?
lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?
lCheck all gauges.
lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
4-6
Before Driving Your Mazda
Before Starting the Engine
RX-8_8T69-EA-04G_Edition1 Page90
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (99,1)
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-36).
NOTE
(With headlight auto-leveling)
When the ignition switch is turned to
the ON position, the sound of the
headlight leveling motors operating at
the front of the engine compartment can
be heard. This does not indicate an
abnormality.
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-36).
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when the driver's door is opened.
Starting the Engine
NOTE
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio
noise.
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4.(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch
pedal isnotpushed down all the way.
(Automatic transmission)
The starter will not operate if the shift
lever isnotin P or N.
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at
a time) until the engine starts.
Driving Your Mazda
Starting and Driving
5-3
RX-8_8T69-EA-04G_Edition1 Page99
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (102,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-18).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-41).
WARNING
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or
that they could completely fail at any
time. If this light remains on, after
checking that the parking brake is
fully released, have the brakes
inspected immediately. Don't drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
5-6
Driving Your Mazda
Starting and Driving
RX-8_8T69-EA-04G_Edition1 Page102
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (121,1)
NOTE
lWhen DSC is on and you attempt to
free the vehicle when it is stuck, or
drive it out of freshly fallen snow,
the TCS (part of the DSC system)
will activate. Depressing the
accelerator will not increase engine
power and freeing the vehicle may
be difficult.
When this happens, turn off the TCS/
DSC.
lIf the TCS/DSC is off when the
engine is turned off, it automatically
activates when the ignition switch is
turned on.
lLeaving the TCS/DSC on will
provide the best stability. When the
TCS/DSC is off, the TCS/DSC does
not activate but the brake LSD
function remains.
lIf the DSC OFF switch is pressed
and held for a second or more, the
TCS/DSC system may become
inoperative due to the system
detecting switch trouble. If the TCS/
DSC system becomes inoperative,
the TCS/DSC and the DSC OFF
indicator lights illuminate
simultaneously. In this case, turn off
the engine and restart it to restore the
TCS/DSC.

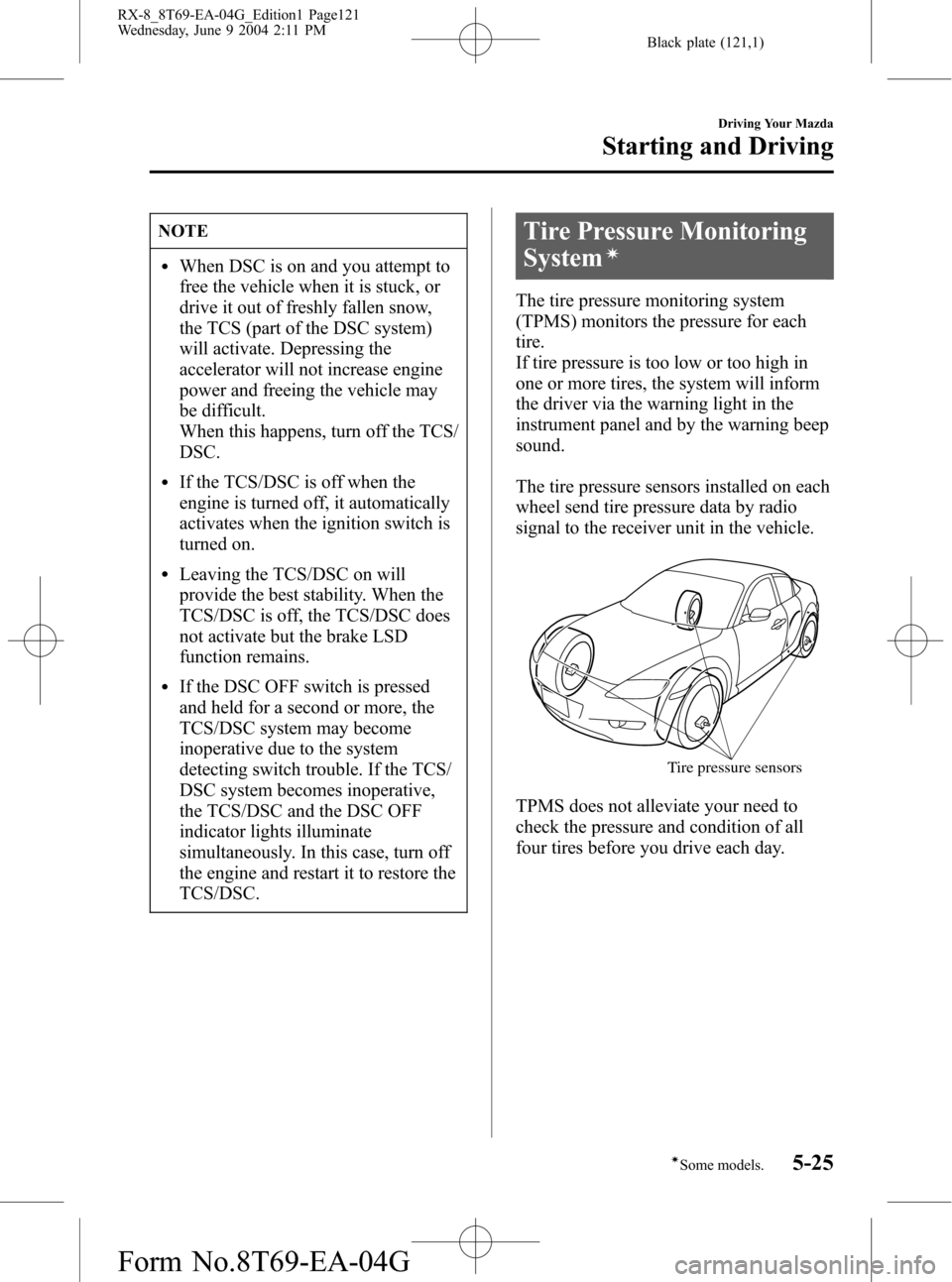

Tire Pressure Monitoring
System
í
The tire pressure monitoring system
(TPMS) monitors the pressure for each
tire.
If tire pressure is too low or too high in
one or more tires, the system will inform
the driver via the warning light in the
instrument panel and by the warning beep
sound.
The tire pressure sensors installed on each
wheel send tire pressure data by radio
signal to the receiver unit in the vehicle.
Tire pressure sensors
TPMS does not alleviate your need to
check the pressure and condition of all
four tires before you drive each day.
Driving Your Mazda
Starting and Driving
5-25íSome models. RX-8_8T69-EA-04G_Edition1 Page121
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (130,1)
qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel warning light
qEngine Oil Pressure Gauge
Engine oil pressure is normal when the
engine oil pressure gauge needle points
halfway between L and H with the engine
running.
If the needle on the gauge doesn't move
after starting the engine, follow steps 1
through 3.If the engine oil pressure gauge moves to
L (low) while you are driving, drive to the
side of the road and park off the right-of-
way. Set the parking brake. Then follow
steps 1 through 3.
1. Turn off the engine and inspect the
engine oil level (page 8-13). If it's low,
add oil.
2. Start the engine.
3. If the needle still doesn't move, have
your vehicle checked at an Authorized
Mazda Dealer.
CAUTION
Don't run the engine if the oil pressure
is low. It could result in extensive
engine damage.
NOTE
The Mazda RX-8 requires regular
checking of the engine oil level. The
compact, high performance RENESIS
rotary engine in your vehicle consumes
a small amount of engine oil due to its
structural design. An oil pump
optimizes the amount of oil injected to
lubricate the rotor seals in the
combustion cycle. Although your
vehicle is equipped with an engine oil
level warning light and an engine oil
pressure gauge, it is best to keep the
engine oil level in the range between
full and low by checking the oil
dipstick regularly. Mazda recommends
checking the oil level at every second
fuel filling. The oil consumption of the
engine depends on engine speed and
engine load. Under extreme driving
conditions, oil consumption can be
higher.
5-34
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8T69-EA-04G_Edition1 Page130
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (132,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-38
Charging System Warning Light 5-39
Engine Oil Level Warning Light 5-39
Engine Coolant Level Warning Light 5-40
Check Engine Light 5-40
ABS Warning Light 5-41
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-41
Low Fuel Warning Light 5-42
Seat Belt Warning Light 5-42
5-36
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page132
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (134,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-18).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-41).
WARNING
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or
that they could completely fail at any
time. If this light remains on, after
checking that the parking brake is
fully released, have the brakes
inspected immediately. Don't drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
5-38
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page134
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G
