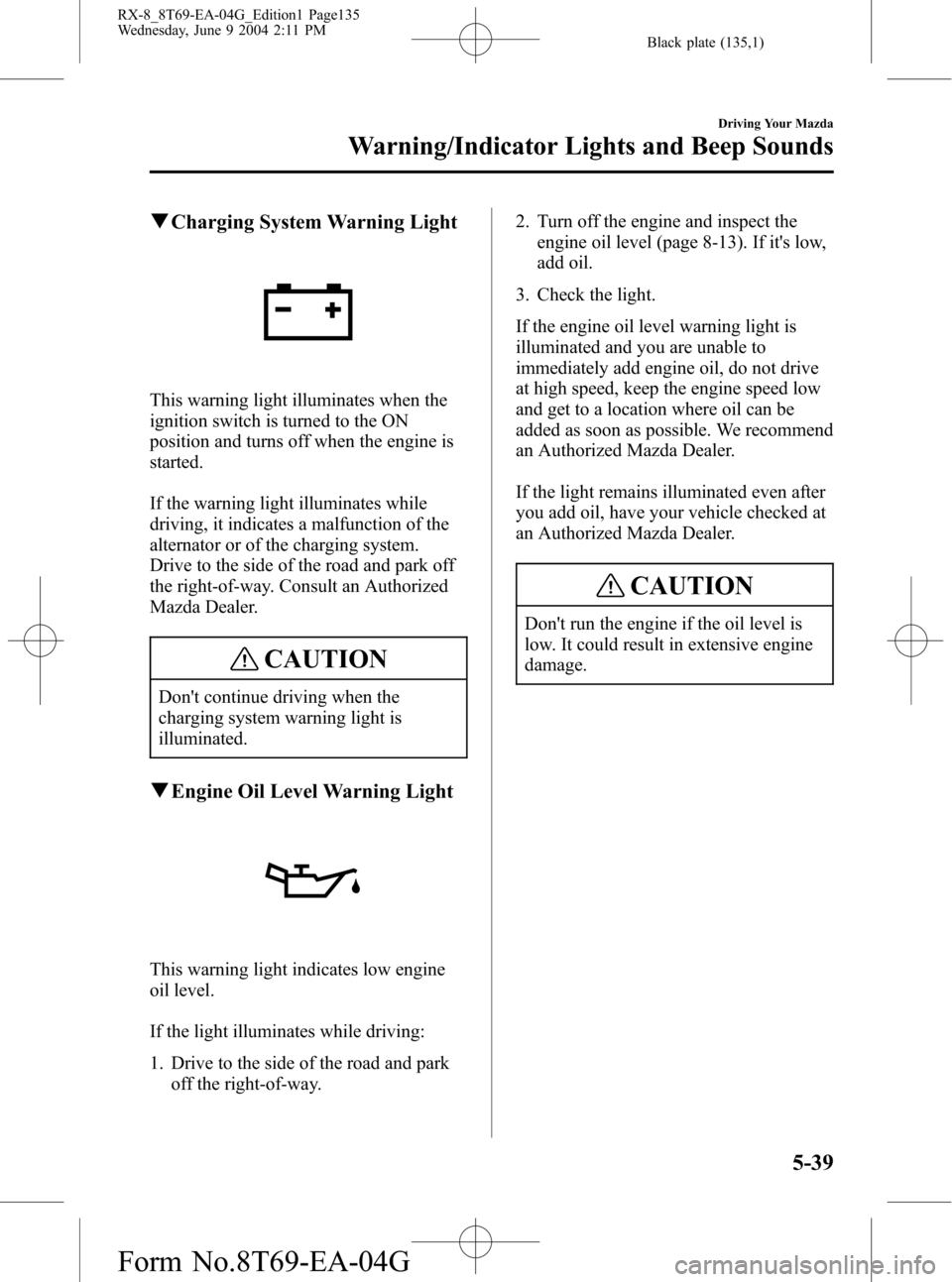

Black plate (135,1)
qCharging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Don't continue driving when the
charging system warning light is
illuminated.
qEngine Oil Level Warning Light
This warning light indicates low engine
oil level.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.2. Turn off the engine and inspect the
engine oil level (page 8-13). If it's low,
add oil.
3. Check the light.
If the engine oil level warning light is
illuminated and you are unable to
immediately add engine oil, do not drive
at high speed, keep the engine speed low
and get to a location where oil can be
added as soon as possible. We recommend
an Authorized Mazda Dealer.
If the light remains illuminated even after
you add oil, have your vehicle checked at
an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the oil level is
low. It could result in extensive engine
damage.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-39
RX-8_8T69-EA-04G_Edition1 Page135
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (136,1)
NOTE
The Mazda RX-8 requires regular
checking of the engine oil level. The
compact, high performance RENESIS
rotary engine in your vehicle consumes
a small amount of engine oil due to its
structural design. An oil pump
optimizes the amount of oil injected to
lubricate the rotor seals in the
combustion cycle. Although your
vehicle is equipped with an engine oil
level warning light and an engine oil
pressure gauge, it is best to keep the
engine oil level in the range between
full and low by checking the oil
dipstick regularly. Mazda recommends
checking the oil level at every second
fuel filling. The oil consumption of the
engine depends on engine speed and
engine load. Under extreme driving
conditions, oil consumption can be
higher.
qEngine Coolant Level Warning
Light
This warning light indicates low engine
coolant level.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine coolant level (page 8-15). If it's
low, add engine coolant.3. Check the light.
If the light remains illuminated even after
you add engine coolant, have your vehicle
towed to an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the engine
coolant level is low. It could result in
extensive engine damage.
qCheck Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8T69-EA-04G_Edition1 Page136
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (158,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time when
the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air
Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
RX-8_8T69-EA-04G_Edition1 Page158
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (246,1)
Engine Oil
NOTE
The Mazda RX-8 requires regular
checking of the engine oil level. The
compact, high performance RENESIS
rotary engine in your vehicle consumes
a small amount of engine oil due to its
structural design. An oil pump
optimizes the amount of oil injected to
lubricate the rotor seals in the
combustion cycle. Although your
vehicle is equipped with an engine oil
level warning light and an engine oil
pressure gauge, it is best to keep the
engine oil level in the range between
full and low by checking the oil
dipstick regularly. Mazda recommends
checking the oil level at every second
fuel filling. The oil consumption of the
engine depends on engine speed and
engine load. Under extreme driving
conditions, oil consumption can be
higher.
qRecommended Oil
Use SAE 5W-20 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
U.S.A. and CANADA
(ILSAC)
Only use oils“Certified For Gasoline
Engines”by the American Petroleum
Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
5W-20
120 100 80
60 40
20
0 –20
50 40 30
20 10
0 –10
–20 –30
8-12
Maintenance and Care
Owner Maintenance
RX-8_8T69-EA-04G_Edition1 Page246
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (320,1)
S
Steering Wheel .................................. 3-29
Horn ........................................... 5-55
Storage Box ...................................... 6-48
Storage Compartments ...................... 6-47
Center console ............................ 6-48
Coin box ..................................... 6-47
Glove box ................................... 6-47
Overhead console ....................... 6-47
Storage box ................................ 6-48
Sunshade ........................................... 3-23
Sunvisors .......................................... 6-39
T
Tachometer ........................................ 5-32
Temporary Spare Tire ....................... 8-31
Theft-Deterrent System ..................... 3-27
Tiedown
Hook .......................................... 7-26
Tire Pressure Monitoring System ...... 5-25
System error activation .............. 5-27
Tire pressure monitoring system
warning light .............................. 5-26
Tires and wheels ......................... 5-28
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-28
Replacement ............................... 8-30
Rotation ...................................... 8-29
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-3
T
Towing
Description ................................. 7-25
Emergency towing ..................... 7-25
Recreational towing ................... 7-27
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-21
TCS/DSC indicator light ............ 5-22
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-31
Trunk Lid .......................................... 3-12
Trunk Light ....................................... 3-14
Trunk Release Slide Lever ................ 3-15
Turn and Lane-Change Signals ......... 5-51
V
Vanity Mirrors ................................... 6-39
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-36
ABS ............................................ 5-41
Air bag system ........................... 5-41
Automatic transmission .............. 5-42
Brake system .............................. 5-38
Charging system ......................... 5-39
Check engine .............................. 5-40
Door-ajar .................................... 5-42
Engine coolant level ................... 5-40
Engine oil level .......................... 5-39
Front seat belt pretensioner
system ........................................ 5-41
Low fuel ..................................... 5-42
Low washer fluid level ............... 5-42
Seat belt ...................................... 5-42
Tire pressure monitoring
system ........................................ 5-43
11-6
Index
RX-8_8T69-EA-04G_Edition1 Page320
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G
