qLATCH Child-Restraint System
Installation Procedure (Rear Seats)
1. Expand the open seams on the rear of
the seat bottom slightly to verify the
locations of the LATCH lower anchors.
NOTE
The markings above the LATCH lower
anchors indicate the locations of
LATCH lower anchors for the
attachment of a child-restraint system.
2. Secure the child-restraint system using
BOTH LATCH lower anchors,
following the child-restraint system
manufacturer's instruction.
3. If your child-restraint system came
equipped with a tether, that probably
means it is very important to properly
secure the tether for child safety, please
carefully follow the child-restraint
system manufacturer's instructions
when installing tethers.Anchor bracket location
Tether strap position
Tether strap
Anchor
bracket
WARNING
Use the tether and tether anchor only
for a child-restraint system:
Using the tether or tether anchor to
secure anything but a child-restraint
system is dangerous. This could
weaken or damage the tether or tether
anchor and result in injury.
Essential Safety Equipment
Child Restraint
2-29
RX-8_8U58-EA-05J_Edition1 Page41
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (43,1)
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
inflate only in the first collision with frontal, near frontal or side forces that are at
least moderate. Vehicle occupants should always wear seat belts.
Children should not ride in the front passenger seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. Even if the front
passenger air bag deactivation indicator light illuminates, always move the front
passenger seat as far back as possible. A sleeping child is more likely to lean against
the door and be hit by the side air bag in a moderate, right-side collision. Whenever
possible, always secure a child 12 years and under on the rear seat with an
appropriate child-restraint system for the child's age and size.
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child.
Do not sit too close to front air bags:
Sitting too close to the air bag modules or placing hands or feet on them is extremely
dangerous. Front air bags inflate with great force and speed. Serious injuries could
occur if someone is too close. The driver should always hold onto only the rim of the
steering wheel. The front seat passenger should keep both feet on the floor. Front seat
occupants should adjust their seats as far back as possible and always sit upright
against the seatbacks with seat belts worn properly.
Essential Safety Equipment
SRS Air Bags
2-31
RX-8_8U58-EA-05J_Edition1 Page43
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

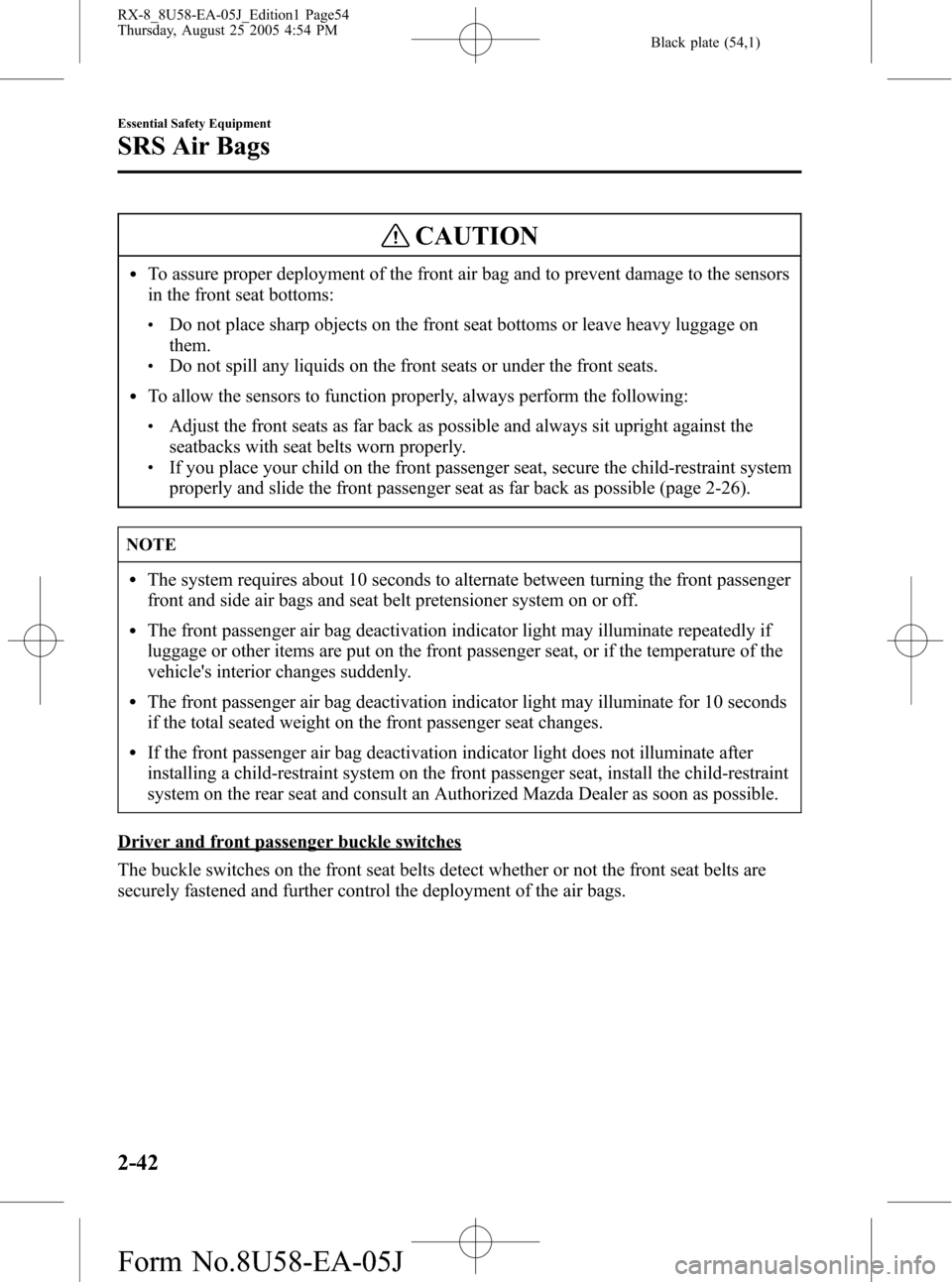

Black plate (54,1)
CAUTION
lTo assure proper deployment of the front air bag and to prevent damage to the sensors
in the front seat bottoms:
lDo not place sharp objects on the front seat bottoms or leave heavy luggage on
them.
lDo not spill any liquids on the front seats or under the front seats.
lTo allow the sensors to function properly, always perform the following:
lAdjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
lIf you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-26).
NOTE
lThe system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
lThe front passenger air bag deactivation indicator light may illuminate repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
lThe front passenger air bag deactivation indicator light may illuminate for 10 seconds
if the total seated weight on the front passenger seat changes.
lIf the front passenger air bag deactivation indicator light does not illuminate after
installing a child-restraint system on the front passenger seat, install the child-restraint
system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.
Driver and front passenger buckle switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
2-42
Essential Safety Equipment
SRS Air Bags
RX-8_8U58-EA-05J_Edition1 Page54
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (61,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2
Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-14
Advanced Key Suspend Function ........................................... 3-17
Warning and Beep Sounds ...................................................... 3-18
Setting Change (Function Customization) .............................. 3-20
User Mis-Operation Warning Indicators ................................. 3-21
Doors and Locks ......................................................................... 3-22
Keys (without Advanced Key) ................................................ 3-22
Keyless Entry System (with Retractable Type Key) ............... 3-23
Door Locks ............................................................................. 3-28
Trunk Lid ................................................................................ 3-33
Inside Trunk Release Lever ..................................................... 3-36
Power Windows ...................................................................... 3-37
Rear Quarter Windows ............................................................ 3-39
Fuel-Filler Lid and Cap ........................................................... 3-40
Hood ....................................................................................... 3-42
Moonroof
í............................................................................. 3-43
Security System ........................................................................... 3-45
Immobilizer System (with Advanced Key) ............................. 3-45
Immobilizer System (without Advanced Key) ........................ 3-48
Theft-Deterrent System
í........................................................ 3-51
Steering Wheel and Mirrors ...................................................... 3-53
Steering Wheel ........................................................................ 3-53
Mirrors .................................................................................... 3-53
3-1íSome models.
RX-8_8U58-EA-05J_Edition1 Page61
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (69,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that the doors are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed or turned off, refer to the
theft-deterrent system (page 3-51).
Front passenger door request switch
To unlock the doors, press the request
switch. A beep sound will be heard twice
and the hazard warning lights will flash
twice.
NOTE
lConfirm that all doors are securely
locked.
lAll doors cannot be locked when any
door is open.
lA beep sound is heard for
confirmation when the doors are
locked/unlocked using the request
switch. If your prefer, the beep sound
can be turned off (page 3-20).
NOTE
lThe setting can be changed so that
the doors are locked automatically
without pressing the request switch.
(Auto-lock function)
A beep sound is heard when all
doors are closed while the advanced
key is being carried. All doors are
locked automatically after about 3
seconds when the advanced key is
out of the operational range. Also,
the hazard warning lights flash once.
(Even if the driver is in the
operational range, all doors are
locked automatically after about 30
seconds.)
If you are out of the operational
range before the doors are
completely closed, the auto-lock
function will not work. Always make
sure that all doors are locked before
leaving the vehicle (page 3-20).
lAfter unlocking all doors by pressing
the request switch, all doors will
automatically lock if any of the
following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will flash for confirmation.
lA door is opened.lThe auxiliary key is inserted into
the ignition switch.
lThe start knob is pushed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
RX-8_8U58-EA-05J_Edition1 Page69
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (71,1)
NOTE
The Advanced Keyless Entry System
does not function in the ACC position,
and the doors will not lock/unlock even
if they have been locked manually or
the advanced key is carried away from
the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-38).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-38).
Starting the Engine
NOTE
lEngine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
lThe advanced key must be carried
because the advanced key carries an
immobilizer chip that must
communicate with the engine
controls at short range.
lWhen starting the engine, be sure the
start knob is securely attached before
trying to operate it. If the knob
becomes detached from the ignition
switch, re-attach it by pushing it on
to the ignition switch.
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
RX-8_8U58-EA-05J_Edition1 Page71
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (92,1)
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's head or
hands are away from the rear door. If
the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
lThe rear door cannot be opened
while the front door is closed.
lMake sure the front seatbelt is
unfastened before the rear door is
opened. The rear door can't be
opened with the front seatbelt
fastened because the front seatbelt
may lock.
lIf any door is left open for more than
about an hour, the front seatbelt will
lock, and the rear door cannot be
opened. If this happens, close all
doors and open the rear door again.
lThis vehicle is not equipped with
child safety locks due to the design
of the front and rear doors. The rear
doors must be closed before the front
doors, and the rear doors cannot be
opened until the front doors are
opened.
Closing the freestyle doors
1. Close the rear door first, and then close
the front door.
Front door
Rear door
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's head or
hands are away from the rear door. If
the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
The front door cannot latch or lock
while the rear door is opened.
2. Make sure the freestyle doors are
securely closed.
3-32
Knowing Your Mazda
Doors and Locks
RX-8_8U58-EA-05J_Edition1 Page92
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (93,1)

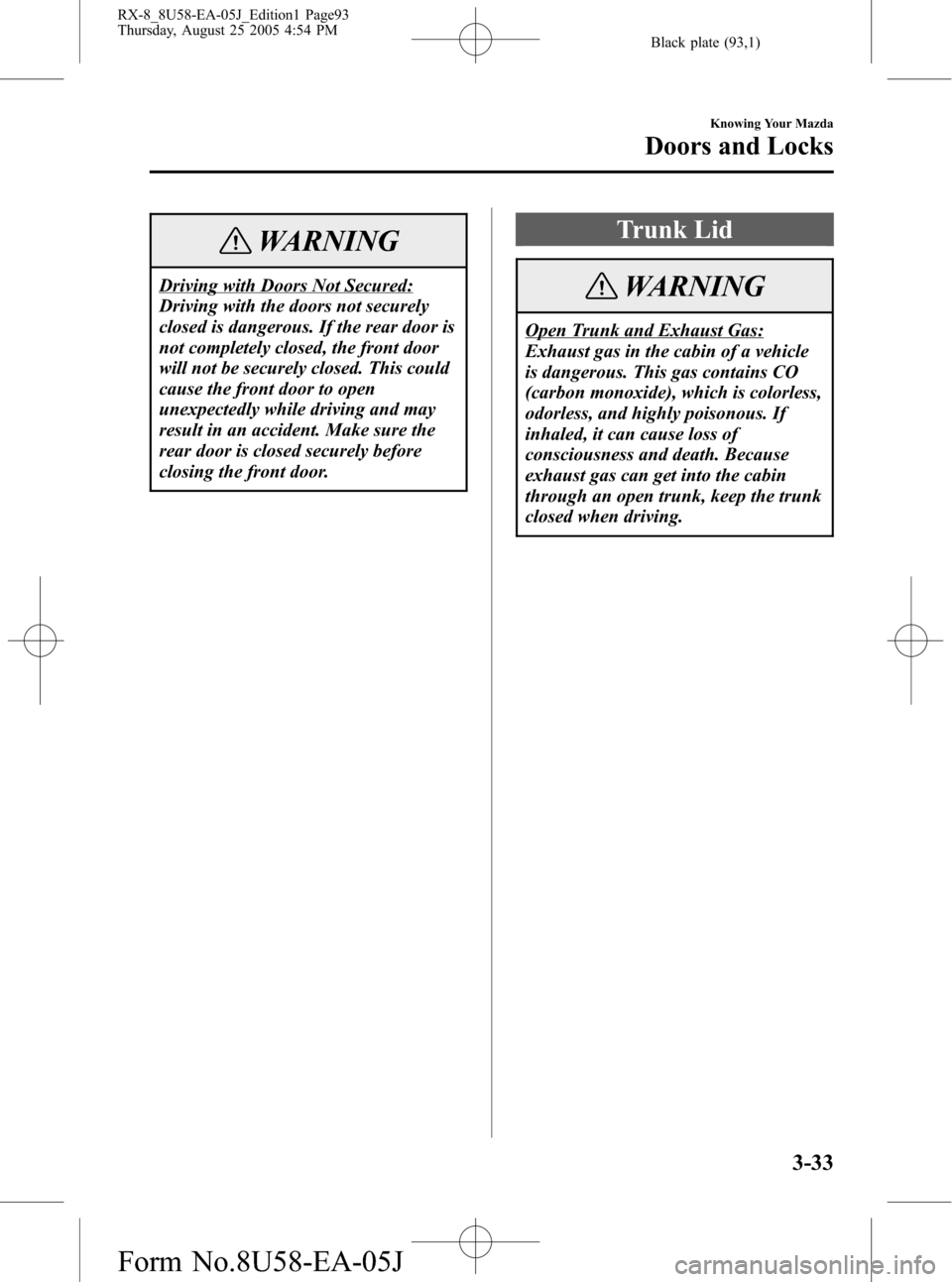

WARNING
Driving with Doors Not Secured:
Driving with the doors not securely
closed is dangerous. If the rear door is
not completely closed, the front door
will not be securely closed. This could
cause the front door to open
unexpectedly while driving and may
result in an accident. Make sure the
rear door is closed securely before
closing the front door.
Trunk Lid
WARNING
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open trunk, keep the trunk
closed when driving.
Knowing Your Mazda
Doors and Locks
3-33
RX-8_8U58-EA-05J_Edition1 Page93
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (95,1)
Opening the trunk lid with the remote
release button
Push the release button.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Knowing Your Mazda
Doors and Locks
3-35
RX-8_8U58-EA-05J_Edition1 Page95
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (99,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unintentional Window Operation:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury. Unless a passenger needs to
operate a power window, keep the
power window lock switch in the
locked position.
Rear Quarter Windows
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.
NOTE
When parked in public areas, it is best
to keep the rear quarter windows closed
for security.
qOpening a Window
Pull the latch inward and then push the
window outward.
Knowing Your Mazda
Doors and Locks
3-39
RX-8_8U58-EA-05J_Edition1 Page99
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J
