qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Doors and Locks
3-41
RX-8_8U58-EA-05J_Edition1 Page101
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (102,1)
Hood
WARNING
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Slide the hood latch to the right and lift
the hood.
3. Grasp the support rod and secure it in
the stay hole indicated by the arrow to
hold the hood open.
Clip
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
3-42
Knowing Your Mazda
Doors and Locks
RX-8_8U58-EA-05J_Edition1 Page102
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (103,1)
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Tilt switch Slide switch
WARNING
Extending the Head or Arms Through
the Moonroof:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death. Don't let
passengers stand up or extend
anything through the open moonroof
while the vehicle is moving.
Closing the Moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person
―especially a child―could be caught
in it as it closes, causing serious injury
or even death. Make sure the opening
is clear before closing the moonroof.
NOTE
After washing your Mazda or after a
rain, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, push the rear of
the tilt switch.
To stop tilting partway, push any part of
the tilt or slide switch.
To close to the desired position, push the
front of the tilt or slide switch.
CloseTilt up
Close
qSlide Operation
To fully open automatically, push the rear
of the slide switch.
To stop sliding partway, push any part of
the tilt or slide switch.
Knowing Your Mazda
Doors and Locks
3-43íSome models. RX-8_8U58-EA-05J_Edition1 Page103
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (104,1)

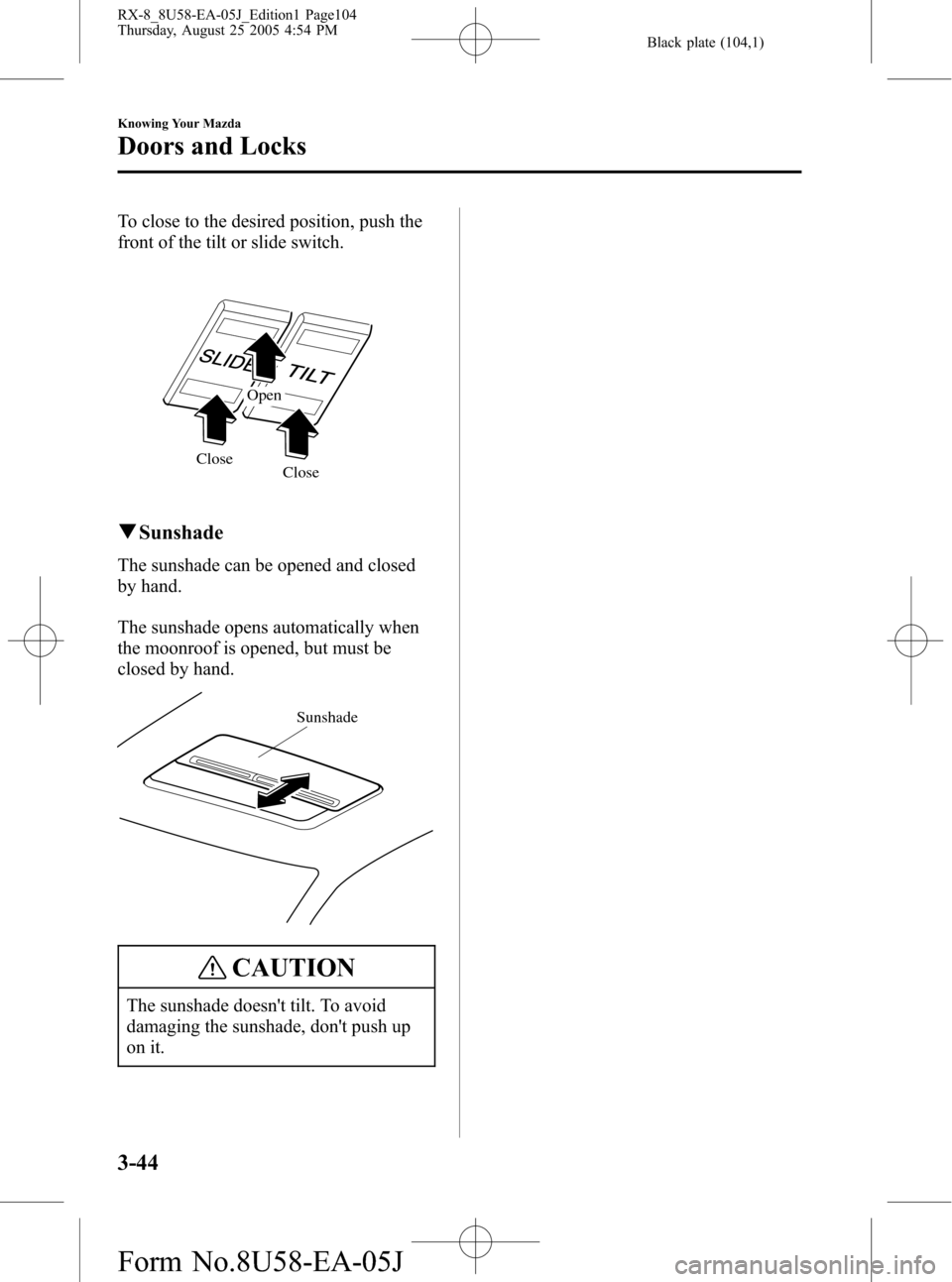

To close to the desired position, push the
front of the tilt or slide switch.
Close CloseOpen
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
The sunshade doesn't tilt. To avoid
damaging the sunshade, don't push up
on it.
3-44
Knowing Your Mazda
Doors and Locks
RX-8_8U58-EA-05J_Edition1 Page104
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (106,1)
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lThe engine may not start and the
security indicator light may
illuminate or flash if the advanced
key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard, or
in the glove box. Move the advanced
key to another place, turn the
ignition switch to the LOCK
position, and then restart the engine.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone could interfere with your
immobilizer system. If you are using
the proper advanced key and the
engine fails to start, check the
security indicator light. If the
indicator light is flashing, turn the
ignition switch to the ACC or LOCK
position and wait for a while, then
restart the engine. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If the engine is shut off
while the indicator light is flashing,
you won't be able to restart it.
lSince the electronic codes are reset
when repairing the immobilizer
system, the advanced key (including
auxiliary key) are needed. Bring all
the advanced keys (including
auxiliary keys) to an Authorized
Mazda Dealer.
3-46
Knowing Your Mazda
Security System
RX-8_8U58-EA-05J_Edition1 Page106
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (111,1)
Theft-Deterrent Systemí
The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all doors,
hood, and trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
l(With advanced key)
The theft-deterrent system can also
be operated using a request switch or
the start knob.
The system operates only when the
driver is in the vehicle or within
operational range while the advanced
key is being carried.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all windows are completely closed
and all doors and the trunk lid are
locked before leaving the vehicle.
Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid.
lUnlocking a door with the inside door-
lock knob.
lOpening the hood by operating the
hood release handle.
lOpening the trunk lid by operating the
trunk lid release button.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing a request switch.
qHow to Arm the System
1. Remove the key from the ignition
switch.
(With advanced key)
Turn the start knob to the LOCK
position.
2. Make sure the hood and the trunk lid
are closed. Close and lock all doors
from the outside using the key or press
the lock button on your keyless entry
system transmitter.
(With advanced key)
Press a request switch or the lock
button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
(Without advanced key)
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid . Press
the area on the door-lock switch
marked“LOCK”once. Close all doors.
Knowing Your Mazda
Security System
3-51íSome models. RX-8_8U58-EA-05J_Edition1 Page111
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (112,1)
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)
lPress a request switch or the unlock
button on the transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
The trunk lid can be opened with the
key or the transmitter even when the
system is armed. The alarm will not
come on and the system will remain
armed.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.
lOpen the trunk lid with the key.
lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
l(With advanced key)
lPress a request switch.lPress the unlock button or press and
hold the trunk button on the
transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-52
Knowing Your Mazda
Security System
RX-8_8U58-EA-05J_Edition1 Page112
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (113,1)
Steering Wheel
WARNING
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
qTilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, pull the tilt wheel release
lever under the steering column down,
adjust the wheel, then push the release
lever up to lock the column.
Tilt wheel release
lever
After adjusting, push the wheel up and
down to be certain it's locked before
driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Convex Mirror:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-53
RX-8_8U58-EA-05J_Edition1 Page113
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (114,1)
2. Depress the mirror switch in the
appropriate direction.
Mirror switchSelector switch Outside mirror
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
locked.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-59).
qRearview Mirror
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
3-54
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
RX-8_8U58-EA-05J_Edition1 Page114
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (121,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Carbon Monoxide:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Exhaust Gas in Enclosed Area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur. Don't run the engine when inside an
enclosed area.
Idling with the Windows Closed:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed and
the engine running for a long time even in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even
death could occur. Open the windows or adjust the heating or cooling system to draw
fresh air.
Snow Blocking the Exhaust Gas:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, anyone in the cabin could be
injured or killed. Clear the snow from underneath and around your vehicle,
particularly the tail pipe, before starting the engine.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-5
RX-8_8U58-EA-05J_Edition1 Page121
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J
