Black plate (155,1)
NOTE
If the battery is disconnected or a fuse is
replaced, the DSC will be inoperable. In
this case, the DSC OFF indicator light
flashes and the TCS/DSC indicator light
illuminates.
To make the DSC operable, do the
following procedure with the battery
connected.
1. Turn the ignition switch to the ON
position.
2. Turn the steering clockwise fully,
then turn it counterclockwise fully.
3. Make sure the DSC OFF indicator
goes off.
4. Turn the ignition switch to the OFF
position, then turn it to the ON
position again.
5. Make sure the TCS/DSC indicator
light goes off.
If the TCS/DSC indicator light and the
DSC OFF indicator light remain
illuminated even after turning the
ignition switch to the ON position,
consult an Authorized Mazda Dealer.
qDSC OFF Switch
Press the DSC OFF switch to turn off the
TCS/DSC. The DSC OFF indicator light
will illuminate.
Press the switch again to turn the TCS/
DSC back on. The DSC OFF indicator
light will go out.
NOTE
lWhen DSC is on and you attempt to
free the vehicle when it is stuck, or
drive it out of freshly fallen snow,
the TCS (part of the DSC system)
will activate. Depressing the
accelerator will not increase engine
power and freeing the vehicle may
be difficult.
When this happens, turn off the TCS/
DSC.
lIf the TCS/DSC is off when the
engine is turned off, it automatically
activates when the ignition switch is
turned on.
lLeaving the TCS/DSC on will
provide the best stability. When the
TCS/DSC is off, the TCS/DSC does
not activate but the brake LSD
(Limited Slip Differentials) function
remains.
Driving Your Mazda
Starting and Driving
5-25
RX-8_8U58-EA-05J_Edition1 Page155
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (164,1)
NOTE
When the ignition switch is in the ACC
or LOCK position, the odometer or trip
meters cannot be displayed, however,
pressing the selector button can
inadvertently switch the trip meters or
reset them during an approximate ten-
minute period in the following cases:
lAfter the ignition switch is turned to
the ACC or LOCK position from the
ON position.
lAfter any door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:
lThe power supply is interrupted
(blown fuse or the battery is
disconnected).
lThe vehicle is driven over 999.9
km (mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Automatic transmission
Red zone Striped zone
5-34
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8U58-EA-05J_Edition1 Page164
Thursday, August 25 2005 4:54 PM
Form No.8U58-EA-05J

Black plate (180,1)
qTCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-25).
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
NOTE
If the battery is disconnected or a fuse is
replaced, the DSC will be inoperable. In
this case, the DSC OFF indicator light
flashes and the TCS/DSC indicator light
illuminates.
To make the DSC operable, do the
following procedure with the battery
connected.
1. Turn the ignition switch to the ON
position.
2. Turn the steering clockwise fully,
then turn it counterclockwise fully.
3. Make sure the DSC OFF indicator
goes off.
4. Turn the ignition switch to the OFF
position, then turn it to the ON
position again.
5. Make sure the TCS/DSC indicator
light goes off.
If the TCS/DSC indicator light and the
DSC OFF indicator light remain
illuminated even after turning the
ignition switch to the ON position,
consult an Authorized Mazda Dealer.
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
5-50
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
RX-8_8U58-EA-05J_Edition1 Page180
Thursday, August 25 2005 4:56 PM
Form No.8U58-EA-05J

Black plate (218,1)
qOperating the Radio
Channel preset buttons
Scan button Band selector button
Seek tuning
buttonSatellite button*
*For reception of optional SIRIUS digital satellite radio.
Used on vehicles equipped with the separately sold SIRIUS digital satellite radio unit.
For information on use, read the manual accompanying the SIRIUS unit.
Subscription of SIRIUS digital satellite radio service is available in the U.S. (Except Alaska and Hawaii).Manual tuning dial
Auto memory button
Electric serial number button*
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM.
The selected mode will be indicated. If
FM stereo is being received,“ST”will be
displayed.
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the“ST”indicator will go
out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
6-22
Interior Comfort
Audio System
RX-8_8U58-EA-05J_Edition1 Page218
Thursday, August 25 2005 4:57 PM
Form No.8U58-EA-05J

Black plate (219,1)
Seek tuning
Pressing the seek tuning button (
,)
will cause the tuner to seek a higher or
lower frequency automatically.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press the scan button (
,)to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button (
,) again during this interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the desired station.
2. Depress a channel preset button for
about 2 seconds until a beep sound is
heard. The preset channel number and
station frequency will be displayed.
The station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
(
) for about 2 seconds until a beep
sound is heard; the system will
automatically scan and temporarily store
up to 6 stations with the strongest
frequencies in each selected band in that
area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(
) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after
scanning operations,“A”will be
displayed.
Interior Comfort
Audio System
6-23
RX-8_8U58-EA-05J_Edition1 Page219
Thursday, August 25 2005 4:57 PM
Form No.8U58-EA-05J

Black plate (275,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-11
Engine Oil ............................................................................... 8-12
Engine Coolant ....................................................................... 8-15
Brake/Clutch Fluid .................................................................. 8-18
Washer Fluid ........................................................................... 8-19
Body Lubrication .................................................................... 8-20
Air Filter .................................................................................. 8-21
Wiper Blades ........................................................................... 8-22
Battery ..................................................................................... 8-24
Tires ........................................................................................ 8-27
Light Bulbs ............................................................................. 8-32

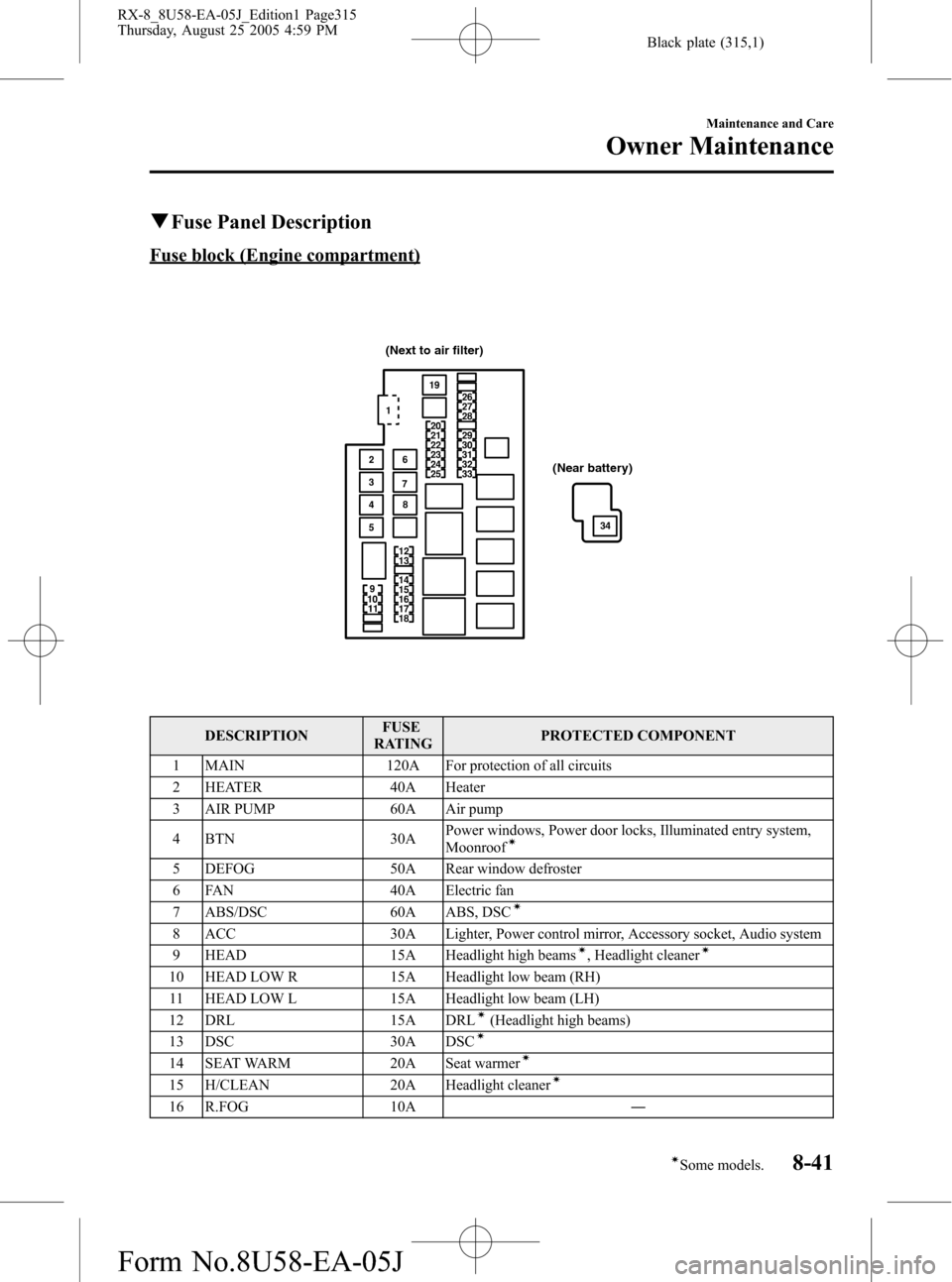

Fuses ....................................................................................... 8-39
Appearance Care ........................................................................ 8-44
How to Minimize Environmental Paint Damage .................... 8-44
Exterior Care ........................................................................... 8-46
Interior Care ............................................................................ 8-49
8-1
RX-8_8U58-EA-05J_Edition1 Page275
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (285,1)
Engine Compartment Overview
BatteryEngine oil dipstick Engine oil-filler cap
Air filter Engine coolant reservoir Cooling system cap
Brake/Clutch fluid
reservoir
Windshield washer
fluid reservoir
Fuse block (next
to air filter)
Fuse block
(near battery)
Maintenance and Care
Owner Maintenance
8-11
RX-8_8U58-EA-05J_Edition1 Page285
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (313,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
If the electrical system doesn't work, first
inspect fuses on the driver's side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Maintenance and Care
Owner Maintenance
8-39
RX-8_8U58-EA-05J_Edition1 Page313
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (314,1)
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
Next to air filter
Engine cover
Near battery
Batter
y cover
NOTE
Remove the engine and battery covers
before removing the fuse block cover
near the battery.3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
lTo replace the MAIN fuse, contact
an Authorized Mazda Dealer (page
8-41).
lVerify that the engine cover is
securely installed.
8-40
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page314
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (315,1)
qFuse Panel Description
Fuse block (Engine compartment)
(Next to air filter)
(Near battery)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 120A For protection of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4 BTN 30APower windows, Power door locks, Illuminated entry system,
Moonroof
í
5 DEFOG 50A Rear window defroster
6 FAN 40A Electric fan
7 ABS/DSC 60A ABS, DSC
í
8 ACC 30A Lighter, Power control mirror, Accessory socket, Audio system
9 HEAD 15A Headlight high beamsí, Headlight cleanerí
10 HEAD LOW R 15A Headlight low beam (RH)
11 HEAD LOW L 15A Headlight low beam (LH)
12 DRL 15A DRL
í(Headlight high beams)
13 DSC 30A DSCí
14 SEAT WARM 20A Seat warmerí
15 H/CLEAN 20A Headlight cleanerí
16 R.FOG 10A―
Maintenance and Care
Owner Maintenance
8-41íSome models. RX-8_8U58-EA-05J_Edition1 Page315
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J
