qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hoseCompressor
CaseInstruction
Repaired tire
stickerValve core
tool Spare valve
core
Speed restriction
sticker
WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is accidentally
swallowed, drink large amounts of
water immediately and seek medical
assistance.
Do not allow children to touch the tire
sealant:
Tire sealant that comes into contact
with the eyes and skin is dangerous. If
tire sealant enters the eyes or contacts
the skin, flush immediately with large
amounts of water and seek medical
assistance.
7-6
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page260
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (261,1)
NOTE
lThe tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer.
lThe emergency flat tire repair kit
cannot be used in the following
cases.
Consult an Authorized Mazda
Dealer.
lThe period of effective use for the
tire sealant has expired. (The
period of effectiveness is
indicated on the bottle label.)
lThe tear or puncture exceeds
about 4 mm (0.16 in).
lThe damage has occurred to an
area of the tire other than the
tread.
lThe vehicle has been driven with
nearly no air remaining in the tire.
lThe tire has come off the wheel
rim.
lDamage to the wheel rim has
occurred.
lThe tire has two or more
punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the injection
hose is screwed on, tire sealant could
spray out from the injection hose. Tire
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
In Case of an Emergency
Flat Tire
7-7
RX-8_8V89-EA-06F_Edition1 Page261
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (262,1)
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C.
In extremely cold temperatures (0°C
(32°F) or below), the tire sealant
hardens easily and injection of the
sealant will be difficult. Warm the
sealant inside the vehicle before doing
the injection work.
6. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.
Injection hose
Bottle
7. Remove the valve cap from the flat
tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool Valve
Valve cap
CAUTION
If there is air remaining in the tire when
the valve core is removed, the valve
core could fly out. Remove the valve
core carefully.
8. Turn the valve core counterclockwise
with the valve core tool and remove the
valve core.
Valve
Valve core
NOTE
Store the valve core in a place where it
won't get dirty.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
Injection hose Plug
7-8
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page262
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (263,1)
10. Hold the bottom of the bottle upright,
squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused.
Purchase a new tire sealant kit at an
Authorized Mazda Dealer.
11. Pull out the injection hose from the
valve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates
completion of the tire repair on a flat
outer surface of the repaired tire.
NOTE
Do not throw away the empty tire
sealant bottle after use. Return the
empty tire sealant bottle to an
Authorized Mazda Dealer when
replacing the tire. The empty tire sealant
bottle will need to be used to extract
and dispose of the used sealant from the
tire.
13. Attach the vehicle speed restriction
sticker in a place where the driver can
easily see it.
WARNING
Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:
Attaching the vehicle speed restriction
sticker to the steering wheel pad is
dangerous. The sticker could interfere
with air bag inflation and cause
serious injury.
In Case of an Emergency
Flat Tire
7-9
RX-8_8V89-EA-06F_Edition1 Page263
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (264,1)
14. Install the compressor hose to the tire
valve.
Valve
Compressor hose
15. Insert the compressor plug into the
interior accessory socket and turn the
ignition switch to the ACC position
(page 6-54).
Compressor
Center console Compressor
plug
CAUTION
lBefore pulling out the compressor
plug from the electrical socket, make
sure the compressor power switch is
off.
lThe compressor turns on and off
with the push-button switch.16. Turn the compressor switch on and
inflate the tire carefully to the correct
inflation pressure.
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of the
compressor and you could be burned.
CAUTION
If the compressor operates slowly or
becomes hot, it indicates overheating.
Turn the compressor off immediately
and leave it turned off for 30 minutes or
longer.
7-10
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page264
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (265,1)
NOTE
lCheck the tire inflation pressure label
(rear door on the driver's side) for the
correct tire inflation pressure.
lDo not use the compressor for longer
than 10 minutes because using the
compressor for long periods could
damage it.
lIf the tire does not inflate, repair of
the tire may not be possible. If the
tire does not reach the correct
inflation pressure within a 10-minute
period, it probably has received more
extensive damage. When this
happens, the emergency flat tire
repair kit cannot be used to repair the
tire. Contact an Authorized Mazda
Dealer.
lIf the tire has been over-inflated,
loosen the screw cap on the
compressor and bleed some of the air
out.
17. When the tire has been inflated to the
proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.
18. Install the tire valve cap.
19. Put the emergency flat tire repair kit
in the trunk and continue driving.
CAUTION
lDrive carefully to an Authorized
Mazda Dealer and keep the vehicle
speed below 80 km/h (50 mph).
lIf the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tire Pressure Monitoring
System)
If the tire is not properly inflated, the
tire pressure monitoring system warning
light will illuminate (page 5-28).
20. After driving the vehicle for 10
minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
lIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done with
the repair kit. Park the vehicle on a
level surface off the right-of-way and
contact an Authorized Mazda Dealer.
lIf the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
NOTE
When checking the tire inflation
pressure with the tire pressure gauge on
the compressor unit, make sure the
compressor switch is turned off.
In Case of an Emergency
Flat Tire
7-11
RX-8_8V89-EA-06F_Edition1 Page265
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (266,1)
21. If the tire inflation pressure remains
stable, the tire repair is complete.
Drive the vehicle with care to an
Authorized Mazda Dealer to have the
tire replaced.
CAUTION
lA tire that has been temporarily
repaired with the tire sealant cannot
be reused. Mazda recommends
replacing the tire with a new one.
lThe wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tire
sealant replaced at an Authorized
Mazda Dealer before the period of
effective use has expired.
Changing the Tire
WARNING
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation of
the tire pressure sensors. Do not use
non-genuine wheels, otherwise it may
not be possible to install the tire
pressure sensors.
NOTE
lMake sure the jack is well lubricated
before using it.
(With Tire Pressure Monitoring
System)
lBe sure to register the tire pressure
sensor ID signal code whenever tires
or wheels are changed (page 5-30).
7-12
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page266
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (267,1)
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, and tool (page 7-3).
6. Block the wheel diagonally opposite
the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
qRemoving the Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any until the tire has been
raised off the ground.
2. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
In Case of an Emergency
Flat Tire
7-13
RX-8_8V89-EA-06F_Edition1 Page267
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (268,1)
WARNING
Use only the front and rear jacking
positions recommended in this
manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
3. Insert the jack handle into the jack.4. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning them
counterclockwise, then remove the
wheel.
7-14
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page268
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (269,1)

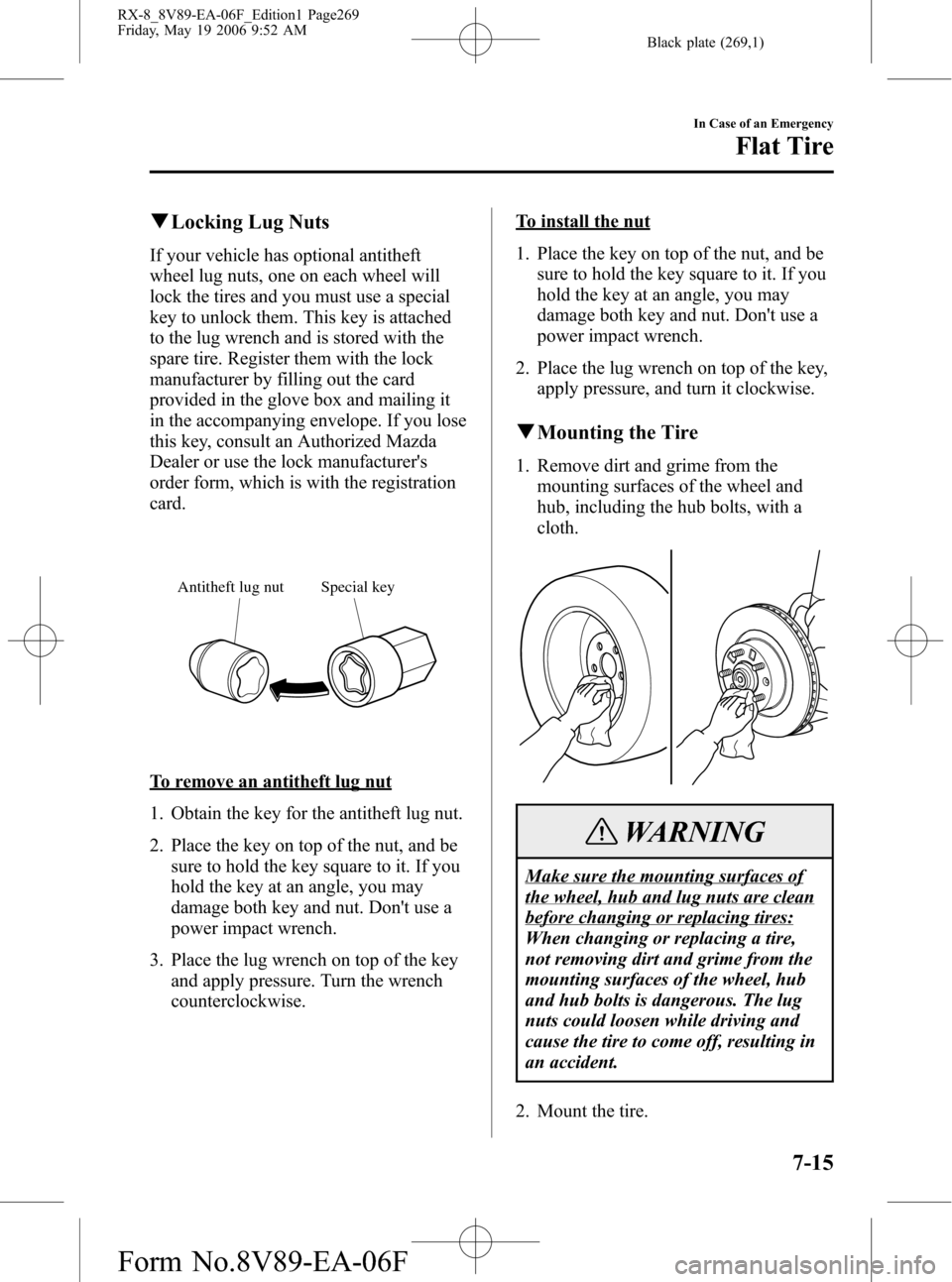

qLocking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
this key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the nut
1. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the tire.
In Case of an Emergency
Flat Tire
7-15
RX-8_8V89-EA-06F_Edition1 Page269
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F
