MAZDA MODEL RX 8 2007 Owners Manual (in English)

Black plate (250,1)

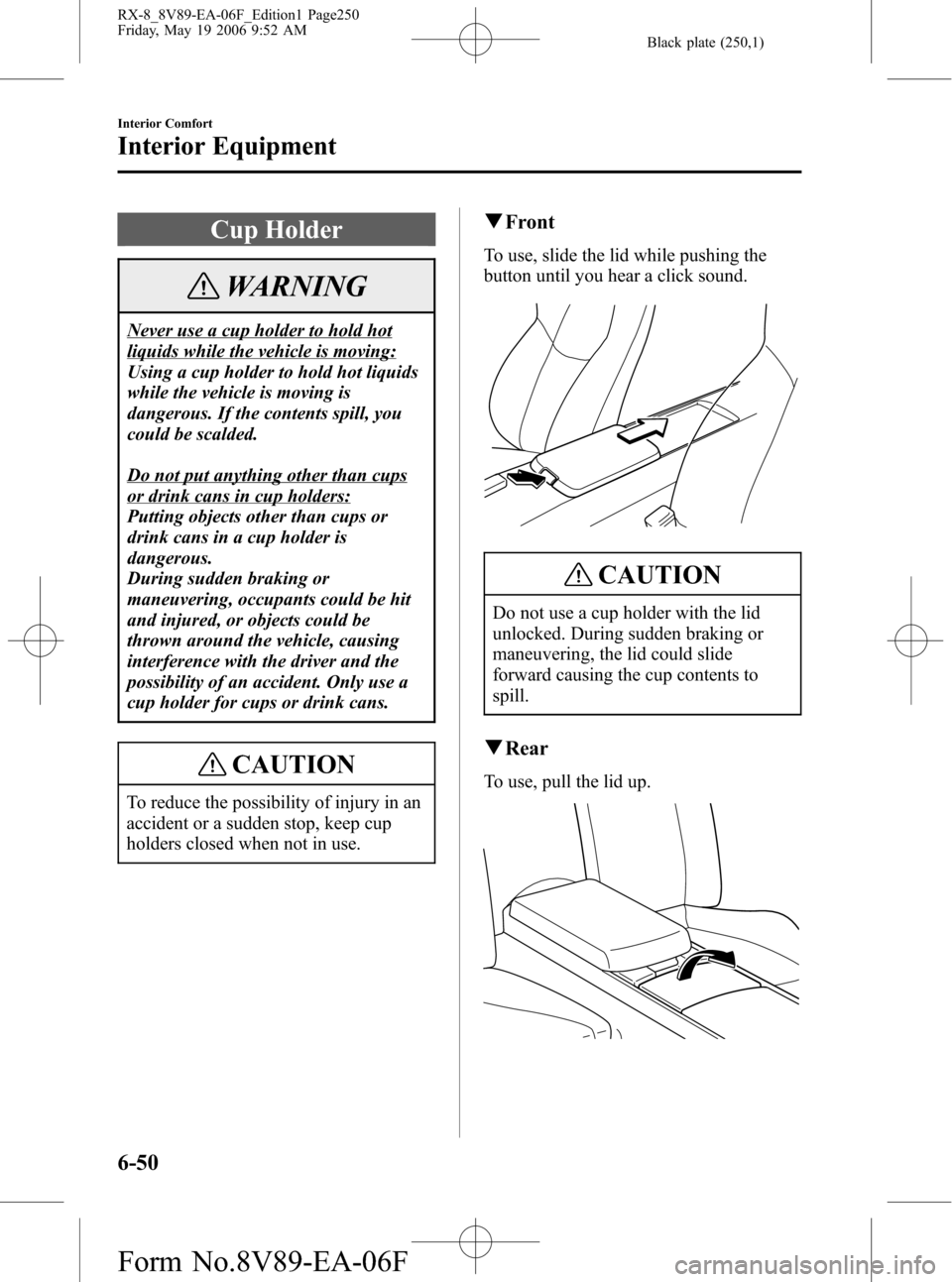

Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups
or drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
qFront
To use, slide the lid while pushing the
button until you hear a click sound.
CAUTION
Do not use a cup holder with the lid
unlocked. During sudden braking or
maneuvering, the lid could slide
forward causing the cup contents to
spill.
qRear
To use, pull the lid up.
6-50
Interior Comfort
Interior Equipment
RX-8_8V89-EA-06F_Edition1 Page250
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (251,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
accessories. Push and release to open.
qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Unlock
Lock
Interior Comfort
Interior Equipment
6-51
RX-8_8V89-EA-06F_Edition1 Page251
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (252,1)
qCenter Console
Front
1. Slide the lid while pushing the button
until you hear a click sound.
2. Open the lid.
Rear
To open, pull the release catch.
CAUTION
Do not place bottles filled with fluid
(e.g. cosmetic fragrance) in the console
box. If the fluid leaks, it could damage
the navigation system or the electrical
wiring, or both.
qStorage Box
The storage box is designed to store
accessories.
6-52
Interior Comfort
Interior Equipment
RX-8_8V89-EA-06F_Edition1 Page252
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (253,1)
To open, squeeze the latch and pull the lid
down.
When closing the storage box, put the
storage box back in its original position
until you hear a click sound.
NOTE
When using the storage box to store
heavy accessories, remove the storage
box before placing or removing the
accessories.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock Unlock
Loading long objects with storage box
removed
The storage box can be removed for
convenient loading of long objects such as
skis placed through the trunk.
WARNING
Secure long objects in the trunk so
that they cannot be thrown forward in
the cabin and avoid sudden breaking
or maneuvering:
Sudden braking or maneuvering while
long objects are loaded through the
removed storage box area and into the
trunk is dangerous. Operation of the
shift/selector lever could be obstructed
resulting in a serious accident.
Interior Comfort
Interior Equipment
6-53
RX-8_8V89-EA-06F_Edition1 Page253
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (254,1)
Accessory Socket
The ignition switch must be in the ACC
or ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The accessory socket is in the center
console.
CAUTION
To prevent accessory socket damage or
electrical failure, pay attention to the
following:
lDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
lDo not use accessories that are not
genuine Mazda accessories or the
equivalent.
lClose the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
lCorrectly insert the plug into the
accessory socket.
NOTE
To prevent discharging of the battery,
do not use the socket for long periods
with the engine off or idling.
6-54
Interior Comfort
Interior Equipment
RX-8_8V89-EA-06F_Edition1 Page254
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (255,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit ............................................................................................. 7-5
Changing the Tire .................................................................... 7-12
Overheating ................................................................................. 7-18
Overheating ............................................................................. 7-18
Emergency Starting .................................................................... 7-20
Starting a Flooded Engine ....................................................... 7-20
Jump-Starting .......................................................................... 7-21
Push-Starting ........................................................................... 7-24
Emergency Towing ..................................................................... 7-25
Towing Description ................................................................. 7-25
Tiedown Hooks ....................................................................... 7-26
Recreational Towing ............................................................... 7-27
7-1
RX-8_8V89-EA-06F_Edition1 Page255
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (256,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
7-2
In Case of an Emergency
Parking in an Emergency
RX-8_8V89-EA-06F_Edition1 Page256
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (257,1)
Spare Tire and Tool Storage
Tools are stored in the locations illustrated in the diagram.
Lug wrench
Tiedown eyelet Jack handle
JackInstant Mobility System (IMS) Emergency Flat Tire Repair Kit
Tool box
In Case of an Emergency
Flat Tire
7-3
RX-8_8V89-EA-06F_Edition1 Page257
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (258,1)
qJack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
A temporary spare tire is not equipped
with your Mazda. If an emergency tire
repair is needed, repair the flat tire with
the emergency flat tire repair kit (page
7-5). If you require a temporary spare tire,
consult an Authorized Mazda Dealer.
When installing a temporary spare tire,
follow the manufacturer's instructions for
the temporary spare tire.The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
in place of a driving wheel:
Driving with the temporary spare tire
on one of the driving wheels is
dangerous. Especially on ice or snow.
Handling will be affected. You could
lose control of the vehicle and have an
accident. Move a regular tire to a
driving wheel and install the
temporary spare tire to the non-driving
wheel.
CAUTION
lWhen using the temporary spare tire,
driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
7-4
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page258
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (259,1)
CAUTION
lTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
lDo not exceed 80 km/h (50 mph).lAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the ground
clearance is reduced about 25 mm
(1 in).
lDo not use a tire chain on this tire
because it won't fit properly.
lDo not use your temporary spare
tire on any other vehicle; it has
been designed only for your
Mazda.
lUse only one temporary spare tire
on your vehicle at the same time.
(With limited slip differential)
When using the temporary spare tire on
the rear axle, replace it with a standard
tire as soon as possible. The size
difference between the spare and the
standard tire will cause the limited slip
differential to malfunction.
NOTE
(With Tire Pressure Monitoring
System)
A tire pressure sensor is not installed to
the temporary spare tire. The warning
light will flash continuously while the
temporary spare tire is being used (page
5-28).
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a
spare tire. In the event of a flat tire, use
the emergency flat tire repair kit to
repair the tire temporarily. When doing
the repair, refer to the instructions
included in the emergency flat tire
repair kit. After temporarily repairing a
tire with the emergency flat tire repair
kit, take your vehicle to an Authorized
Mazda Dealer to have the tire replaced.
In Case of an Emergency
Flat Tire
7-5
RX-8_8V89-EA-06F_Edition1 Page259
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F
