MAZDA MODEL RX 8 2008 Owners Manual (in English)

Black plate (111,1)
2. Depress the mirror switch in theappropriate direction.
Mirror switchSelector switch
Outside mirror
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
locked.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-60).
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
Knowing Your Mazda
Steering Wheel and Mirrors
3-49íSome models.
RX-8_8X44-EA-07G_Edition1 Page111
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (112,1)
Auto-dimming mirror
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night
Day Day/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition switch is in the
ON position. Press the OFF button (
) to cancel the
automatic dimming function. The
indicator light will go off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
3-50
Knowing Your Mazda
Steering Wheel and Mirrors
RX-8_8X44-EA-07G_Edition1 Page112
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (113,1)

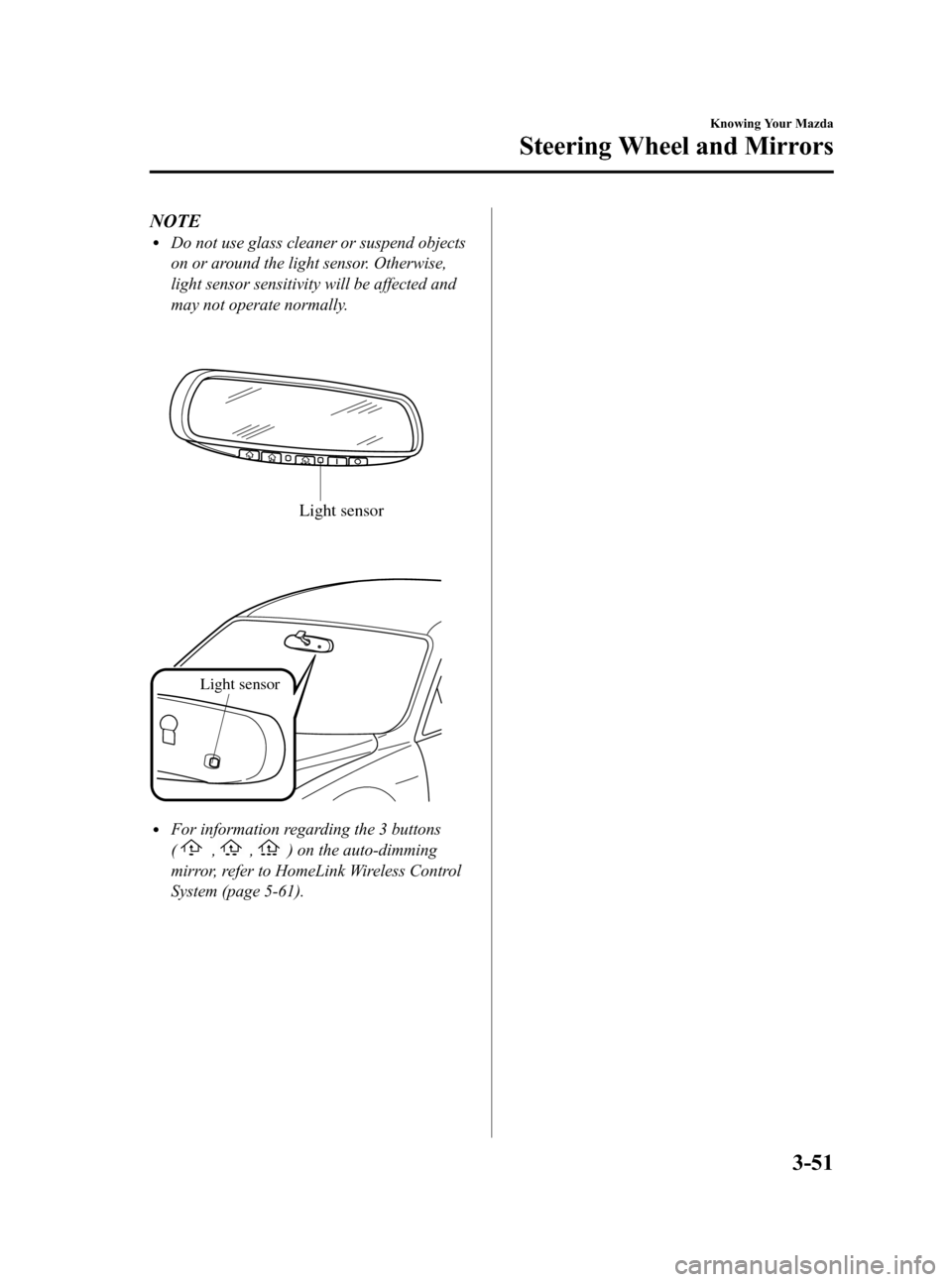

NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(
,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-61).
Knowing Your Mazda
Steering Wheel and Mirrors
3-51
RX-8_8X44-EA-07G_Edition1 Page113
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (114,1)
3-52
RX-8_8X44-EA-07G_Edition1 Page114
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (115,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-4
Before Starting the Engine ........................................................... 4-5 Before Getting In ...................................................................... 4-5
After Getting In ......................................................................... 4-5
Driving Tips ................................................................................... 4-6 Break-In Period ......................................................................... 4-6
Money-Saving Suggestions ...................................................... 4-6
Hazardous Driving .................................................................... 4-7
Rocking the Vehicle .................................................................. 4-7
Winter Driving .......................................................................... 4-8
Driving In Flooded Area ........................................................... 4-9
Overloading ............................................................................ 4-10
Towing .......................................................................................... 4-11 Trailer Towing ......................................................................... 4-11
4-1
RX-8_8X44-EA-07G_Edition1 Page115
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (116,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R+M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
This vehicle is designed to use 91[ (R+M)/2 method] (96RON) or higher gasoline for best
performance. If 91[ (R+M)/2 method] (96RON) is not available, gasoline from 87 to 90[ (R
+M)/2 method] (91 to 95RON) can be used temporarily for emergency purposes, but this
will slightly reduce performance. Fuel with gasoline from 87 to 90[ (R+M)/2 method] (91
to 95RON), driving in high temperature or low humidity conditions could cause engine
knocking.
Fuel with a rating lower than 87[ (R+M)/2 method] (lower than 91RON) could cause the
emission control system to lose effectiveness. It could also cause engine knocking and
serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10% ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
RX-8_8X44-EA-07G_Edition1 Page116
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (117,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
Ø Don't drive your Mazda with any sign of engine malfunction.
Ø Don't coast with the ignition switch turned off.
Ø Don't descend steep grades in gear with the ignition switch turned off.
Ø Don't operate the engine at high idle for more than 2 minutes.
Ø Don't tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
Ø Don't push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
NOTE
While the engine is off, the sound of a valve opening and closing can be heard from inside and
outside of the cabin interior, however this does not indicate an abnormality. Your vehicle has a self-
checking device and it operates while the engine is off.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
RX-8_8X44-EA-07G_Edition1 Page117
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (118,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
RX-8_8X44-EA-07G_Edition1 Page118
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (119,1)

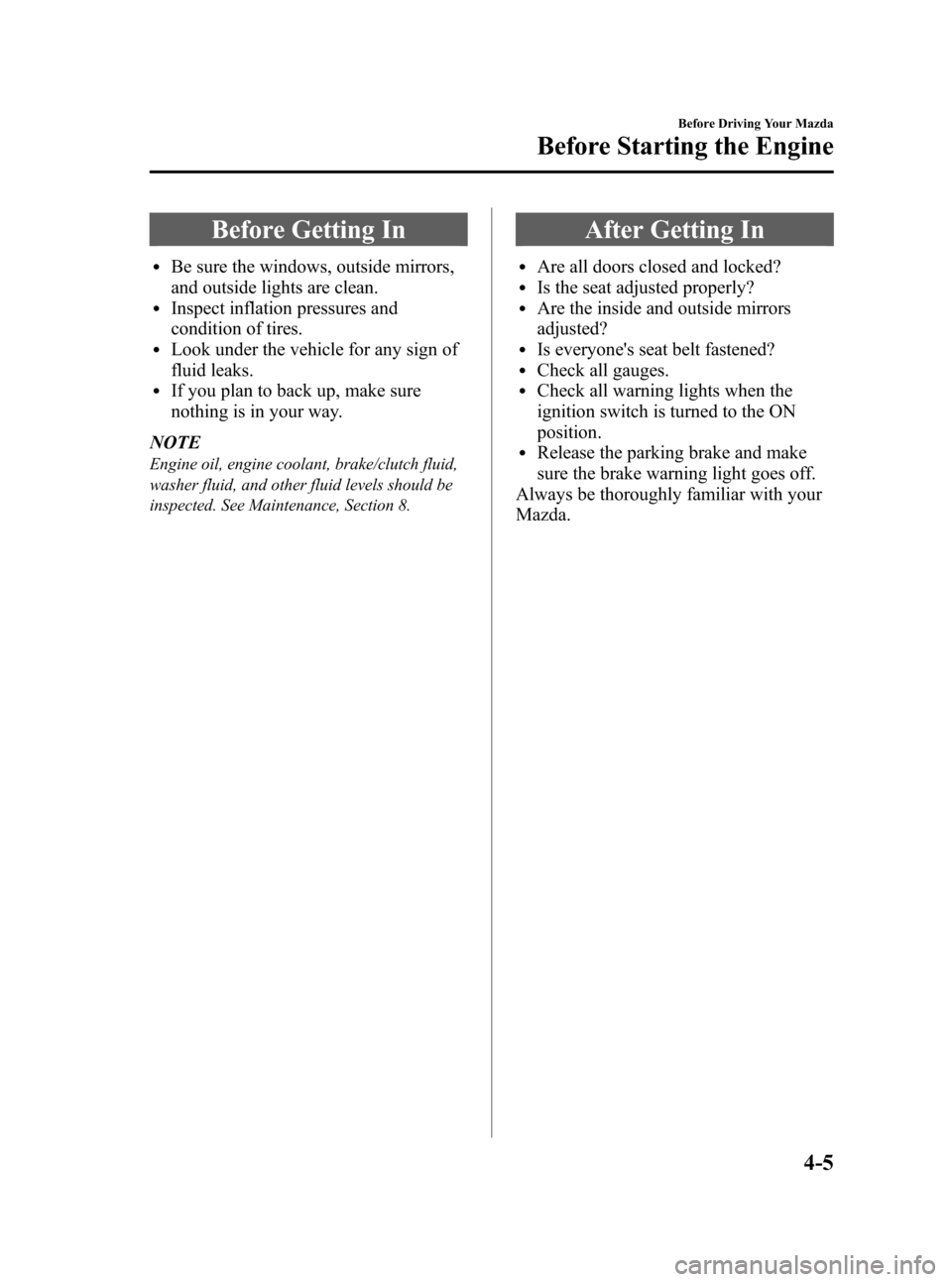

Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch fluid,
washer fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-5
RX-8_8X44-EA-07G_Edition1 Page119
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (120,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDon't race the engine.lDon't maintain one constant speed,
either slow or fast, for a long period of
time.
lDon't drive constantly at full-throttle or
high engine rpm (over 7,000 rpm) for
extended periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDon't carry unnecessary weight.lDon't rest your foot on the brake pedal
while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
4-6
Before Driving Your Mazda
Driving Tips
RX-8_8X44-EA-07G_Edition1 Page120
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G
