MAZDA MODEL RX 8 2008 (in English) Manual Online

Black plate (81,1)
Setting Change (Function Customization)
The following function settings are possible. These settings can only be changed by an
Authorized Mazda Dealer.
SettingFunctionAt Initial SettingAfter Setting
Change
Advanced key battery
dead indicator KEY indicator light (green) flashes to indicate
that the advanced key battery power is low.
Activated Deactivated
Lock/unlock operation
confirmation beep
sound
*1
A beep sound is heard to confirm that all doors or
the trunk lid have been locked/unlocked. Activated Deactivated
Autolock function
*2
When all doors are closed and the advanced key
is being carried and out of operational range, all
the doors automatically lock after 3 seconds.
(Even if the driver is in the operational range, all
doors are locked automatically after about 30 sec-
onds.) Deactivated Activated
*1: When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2: When Autolock function is enabled, windows will not automatically close. You must close before leaving vehicle.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
RX-8_8X44-EA-07G_Edition1 Page81
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (82,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-16).
WarningWhat to check
When a door is open, a continuous beep sound will be
heard. Check whether the start knob has been returned to the
LOCK position.
When a door is open, 6 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes. Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes. Check whether the advanced key has been removed
from the vehicle.
When attempting to lock the doors, a beep sound is
heard. Check whether the advanced key has been left in the
vehicle.
Check whether the start knob has been returned to the
LOCK position.
Check whether a door is open.
When the KEY indicator light (green) flashes in the
instrument cluster. The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster. The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8X44-EA-07G_Edition1 Page82
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (83,1)
Keys (without Advanced Key)
WARNING
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-43) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-46)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
Key code number plate
Retractable
type key
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep it in a
separate safe and convenient place, but not in
the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Knowing Your Mazda
Doors and Locks
3-21
RX-8_8X44-EA-07G_Edition1 Page83
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (84,1)
Keyless Entry System (with
Retractable Type Key)
This system remotely locks and unlocks
the doors and opens the trunk lid.
It can also help you signal for attention.
Operating the theft-deterrent system with
the keyless entry system transmitter is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight. NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system doesn't operate when the key is
in the ignition switch.
lDoors cannot be locked by pressing the
lock button while any other door is open.
Also, the hazard warning lights will not
flash.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-24).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
3-22
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page84
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (85,1)
qTransmitter
Lock button
Unlock button
Trunk button Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button
and the hazard warning lights will flash
once.
To confirm that all doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound. NOTE
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors are locked.
l(With theft-deterrent system)lThe hazard warning lights will not flash.lThe hazard warning lights only flash
when the theft deterrent system is armed
or turned off, refer to the theft-deterrent
system (page 3-46).
NOTElAll doors cannot be locked when any door
is open and the key is in the ignition switch.
lConfirm that all doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors, press the unlock
button again within 5 seconds.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors are unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-46).
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
will automatically lock if one of the doors is
not opened within about 30 seconds.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
Knowing Your Mazda
Doors and Locks
3-23
RX-8_8X44-EA-07G_Edition1 Page85
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (86,1)
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
q Transmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
Ø Install the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
Ø When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR1620 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-21).
3-24
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page86
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (87,1)
2. Insert a small screwdriver into the slotand push the tab to remove the key
from the transmitter.
Ta b
3. Insert a small screwdriver into the slotand gently pry open the transmitter.
4. Press the portion of the batteryindicated by A and remove the battery.
A
NOTE
If it is difficult to remove the battery by
pressing with a finger, use a small screwdriver
to press out the battery.
5. Put in the new battery (CR1620 orequivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and snap the transmitter shut.
7. Install the key to the transmitter.
q Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Knowing Your Mazda
Doors and Locks
3-25
RX-8_8X44-EA-07G_Edition1 Page87
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (88,1)

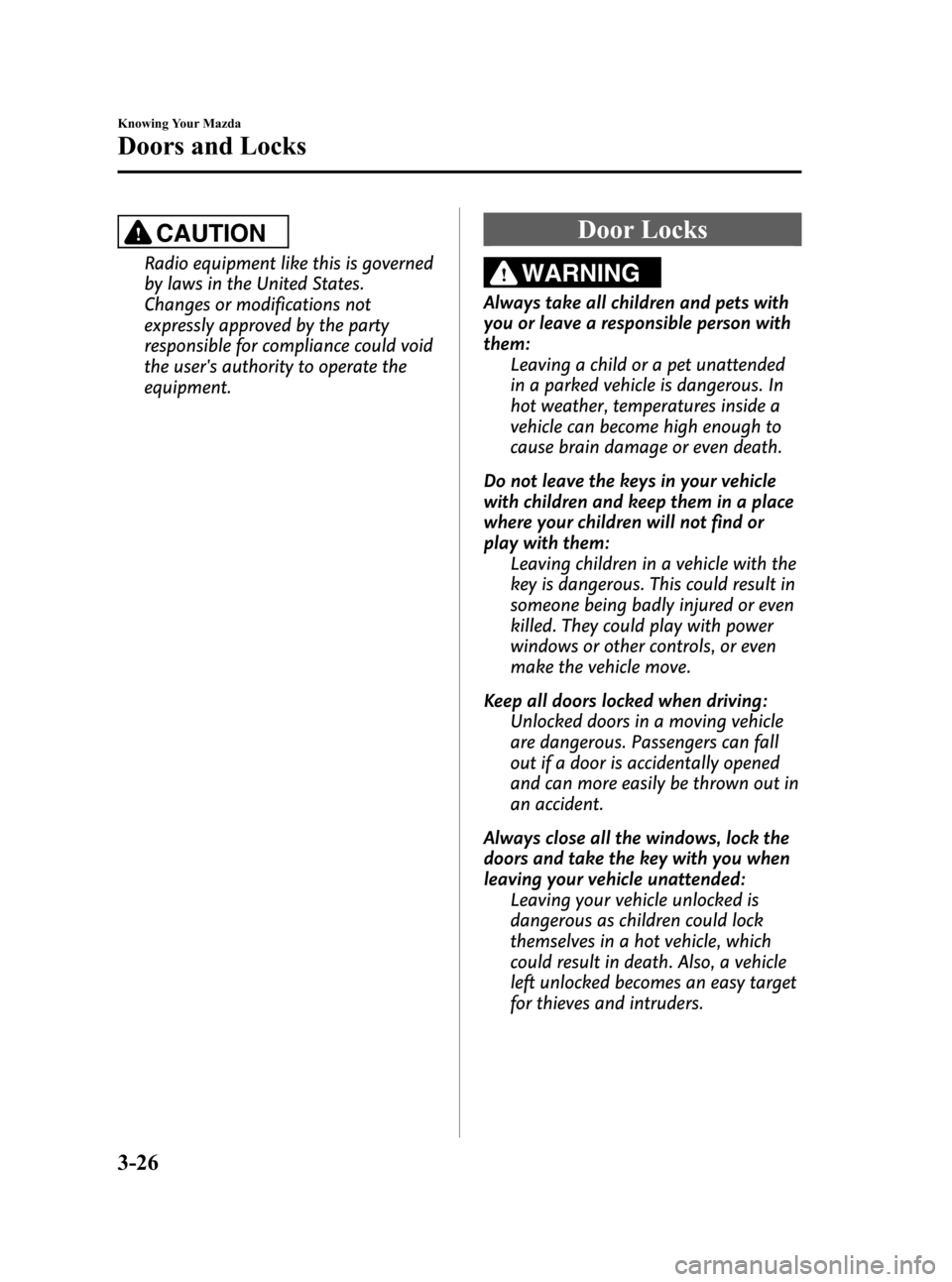

CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
3-26
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page88
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (89,1)
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Knob
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Door-lock knob
Lock
Unlock
To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door.
Door-lock knob
Knowing Your Mazda
Doors and Locks
3-27
RX-8_8X44-EA-07G_Edition1 Page89
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G

Black plate (90,1)
NOTEl(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
l(Without advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.
lWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors will automatically
unlock if they are locked using the power
door locks with any door open.
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors will automatically unlock
if they are locked using the power door
locks with any door open.
Locking, unlocking with key
All doors lock automatically when the
driver's door is locked with the key. All
doors unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors. To unlock only the driver's door,
insert the key into the driver's door lock and
turn the key briefly to the unlock position and
then immediately return it to the center
position.
Locking, unlocking with door-lock
switch
All doors lock automatically when LOCK
is pushed. They all unlock when the
unmarked part of the door-lock switch is
pushed.
3-28
Knowing Your Mazda
Doors and Locks
RX-8_8X44-EA-07G_Edition1 Page90
Friday, May 11 2007 5:3 PM
Form No.8X44-EA-07G
