MAZDA MODEL RX 8 2008 (in English) User Guide

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-31
Rear window defroster ....................................................................................... page 5-60
Antenna ............................................................................................................. page 6-10
Power windows ................................................................................................. page 3-34
Outside mirror .................................................................................................... page 3-48
Tires ................................................................................................................... page 8-22
Light bulbs ......................................................................................................... page 8-27
Hood .................................................................................................................. page 3-38
Windshield wiper blades .................................................................................... page 8-18
Moonroof ........................................................................................................... page 3-40
Fuel-filler lid ...................................................................................................... page 3-37
Doors and keys .................................................................................................. page 3-27
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
RX-8_8X44-EA-07G_Edition1 Page11
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (12,1)
1-6
RX-8_8X44-EA-07G_Edition1 Page12
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (13,1)

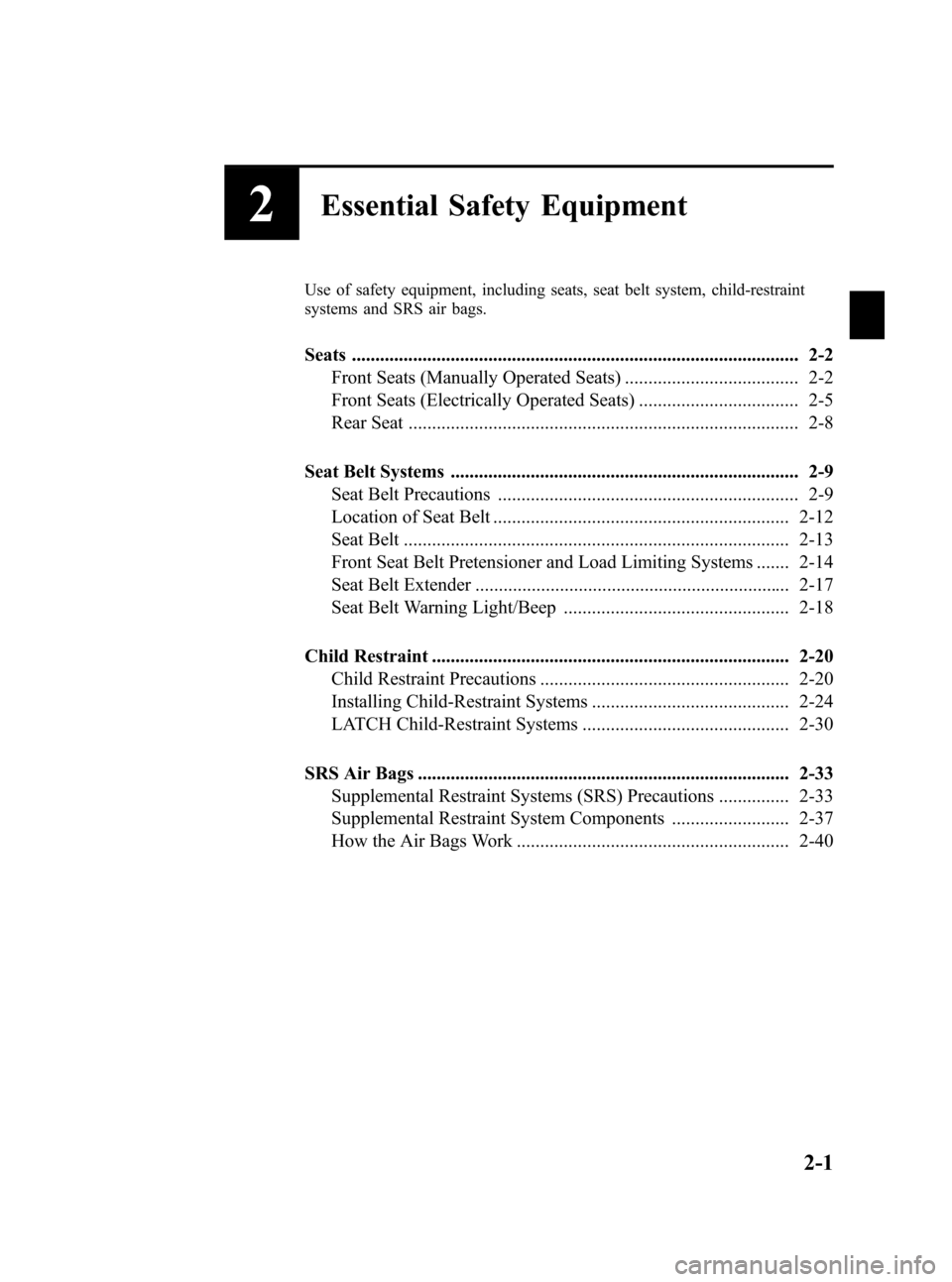

2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-5
Rear Seat ................................................................................... 2-8
Seat Belt Systems .......................................................................... 2-9 Seat Belt Precautions ................................................................ 2-9
Location of Seat Belt ............................................................... 2-12
Seat Belt .................................................................................. 2-13
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-14
Seat Belt Extender ................................................................... 2-17
Seat Belt Warning Light/Beep ................................................ 2-18
Child Restraint ............................................................................ 2-20 Child Restraint Precautions ..................................................... 2-20
Installing Child-Restraint Systems .......................................... 2-24
LATCH Child-Restraint Systems ............................................ 2-30
SRS Air Bags ............................................................................... 2-33 Supplemental Restraint Systems (SRS) Precautions ............... 2-33
Supplemental Restraint System Components ......................... 2-37
How the Air Bags Work .......................................................... 2-40
2-1
RX-8_8X44-EA-07G_Edition1 Page13
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision. Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
RX-8_8X44-EA-07G_Edition1 Page14
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor: If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor. Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
RX-8_8X44-EA-07G_Edition1 Page15
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
Up
Down
q Folding the Passenger's Seat
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place. To fold the seatback, pull the lever and
lower the seatback forward.
To return it to the upright position, lift the
seatback and push it into place. Rock the
seatback to make sure it is locked.
2-4
Essential Safety Equipment
Seats
RX-8_8X44-EA-07G_Edition1 Page16
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (17,1)
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
Ø To prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
Ø Don't use the switch to make more
than one adjustment at a time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
Essential Safety Equipment
Seats
2-5
RX-8_8X44-EA-07G_Edition1 Page17
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (18,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a front passenger seat
properly with the seatback upright and
feet on the floor: If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor. Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
q
Height Adjustment
Front of seat bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
2-6
Essential Safety Equipment
Seats
RX-8_8X44-EA-07G_Edition1 Page18
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (19,1)
Rear of seat bottom
Raise or lower the back of the switch to
adjust the rear height of the seat bottom.
qLumbar Support Adjustment
The amount of lumbar support can be
adjusted by pressing the switch.
To increase the seat firmness, press and
hold the front part of the switch to the
desired position, then release it.
Press the rear part of the switch to
decrease firmness.
qFolding the Passenger's Seat
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To fold the seatback, pull the lever and
lower the seatback forward.
To return it to the upright position, lift the
seatback and push it into place. Rock the
seatback to make sure it is locked.
Essential Safety Equipment
Seats
2-7
RX-8_8X44-EA-07G_Edition1 Page19
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (20,1)
qSeat Warmer
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
NOTE
The seat temperature is regulated
automatically by a thermostat. Other than
turning it on or off, it cannot be adjusted.
Rear Seat
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not allow anyone to sit on the
center console between the rear seats: Allowing someone to sit on the rear
center console between the rear seats
is dangerous. The rear center console
is not designed for occupant seating.
During a collision, occupants not
wearing a seat belt could be thrown
from the vehicle and seriously injured
or even killed.
2-8
Essential Safety Equipment
Seats
RX-8_8X44-EA-07G_Edition1 Page20
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G
