light MAZDA MODEL RX 8 2008 Owners Manual (in English)

Black plate (9,1)
Power door lock switch ..................................................................................... page 3-28
Outside mirror switch ........................................................................................ page 3-48
Dashboard illumination ..................................................................................... page 5-37
DSC OFF switch ............................................................................................... page 5-24
Lighting control/Turn signals ............................................................................ page 5-55
Audio control switch ......................................................................................... page 6-40
Instrument cluster .............................................................................................. page 5-33
Air bags ............................................................................................................. page 2-33
Wiper and washer lever ..................................................................................... page 5-58
Cruise control switches ...................................................................................... page 5-20
Information display ............................................................................................ page 6-45
Hazard warning flasher switch .......................................................................... page 5-61
Audio system ..................................................................................................... page 6-10
Glove box .......................................................................................................... page 6-50
Center console ................................................................................................... page 6-51
Cup holder ......................................................................................................... page 6-49
Parking brake ....................................................................................................... page 5-6
MT shift lever .................................................................................................... page 5-10
AT shift lever (Sport AT) ................................................................................... page 5-12
Lighter ............................................................................................................... page 6-47
Ashtray ............................................................................................................... page 6-48
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-48
Coin box ............................................................................................................ page 6-50
Hood release handle .......................................................................................... page 3-38
Trunk release button .......................................................................................... page 3-32
Power window lock switch ................................................................................ page 3-36
Power window switches .................................................................................... page 3-35
Interior light ....................................................................................................... page 6-43
Sunvisor ............................................................................................................. page 6-43
Rearview mirror ................................................................................................. page 3-49
Vanity mirror ...................................................................................................... page 6-43
Front seats ............................................................................................................ page 2-2
Rear seat .............................................................................................................. page 2-8
Seat belt ............................................................................................................... page 2-9
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
RX-8_8X44-EA-07G_Edition1 Page9
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-31
Rear window defroster ....................................................................................... page 5-60
Antenna ............................................................................................................. page 6-10
Power windows ................................................................................................. page 3-34
Outside mirror .................................................................................................... page 3-48
Tires ................................................................................................................... page 8-22
Light bulbs ......................................................................................................... page 8-27
Hood .................................................................................................................. page 3-38
Windshield wiper blades .................................................................................... page 8-18
Moonroof ........................................................................................................... page 3-40
Fuel-filler lid ...................................................................................................... page 3-37
Doors and keys .................................................................................................. page 3-27
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
RX-8_8X44-EA-07G_Edition1 Page11
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-5
Rear Seat ................................................................................... 2-8
Seat Belt Systems .......................................................................... 2-9 Seat Belt Precautions ................................................................ 2-9
Location of Seat Belt ............................................................... 2-12
Seat Belt .................................................................................. 2-13
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-14
Seat Belt Extender ................................................................... 2-17
Seat Belt Warning Light/Beep ................................................ 2-18
Child Restraint ............................................................................ 2-20 Child Restraint Precautions ..................................................... 2-20
Installing Child-Restraint Systems .......................................... 2-24
LATCH Child-Restraint Systems ............................................ 2-30
SRS Air Bags ............................................................................... 2-33 Supplemental Restraint Systems (SRS) Precautions ............... 2-33
Supplemental Restraint System Components ......................... 2-37
How the Air Bags Work .......................................................... 2-40
2-1
RX-8_8X44-EA-07G_Edition1 Page13
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor: If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor. Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
RX-8_8X44-EA-07G_Edition1 Page15
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (20,1)
qSeat Warmer
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
NOTE
The seat temperature is regulated
automatically by a thermostat. Other than
turning it on or off, it cannot be adjusted.
Rear Seat
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not allow anyone to sit on the
center console between the rear seats: Allowing someone to sit on the rear
center console between the rear seats
is dangerous. The rear center console
is not designed for occupant seating.
During a collision, occupants not
wearing a seat belt could be thrown
from the vehicle and seriously injured
or even killed.
2-8
Essential Safety Equipment
Seats
RX-8_8X44-EA-07G_Edition1 Page20
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (28,1)
Properly dispose of the pretensioner
system:Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. The pretensioner system for the
front passenger is designed to only deploy
in accordance with the total seated weight
on the front passenger seat. It will not
activate in most rollovers, side or rear
impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs: Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
2-16
Essential Safety Equipment
Seat Belt Systems
RX-8_8X44-EA-07G_Edition1 Page28
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (30,1)

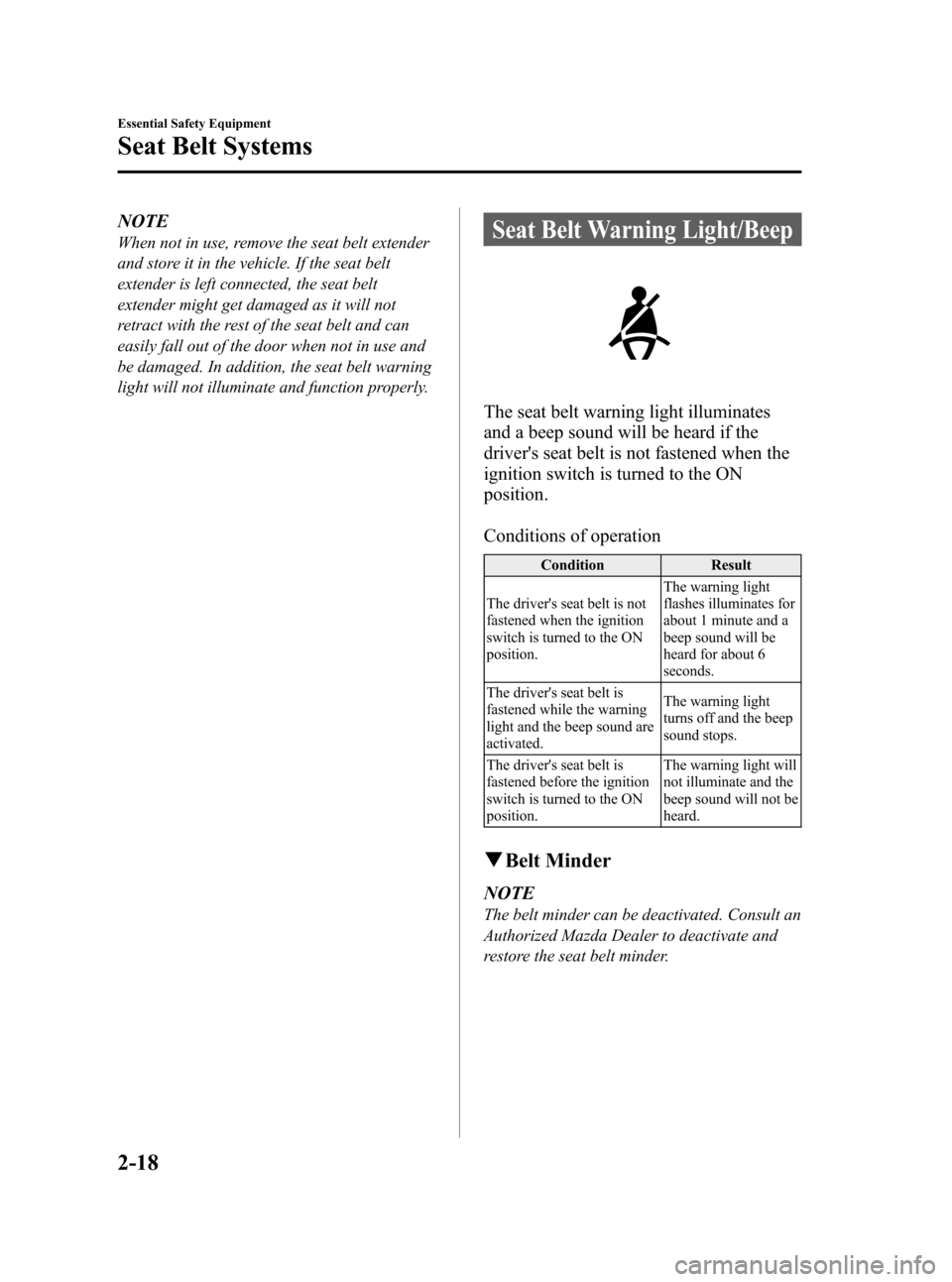

NOTE
When not in use, remove the seat belt extender
and store it in the vehicle. If the seat belt
extender is left connected, the seat belt
extender might get damaged as it will not
retract with the rest of the seat belt and can
easily fall out of the door when not in use and
be damaged. In addition, the seat belt warning
light will not illuminate and function properly.Seat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
ConditionResult
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position. The warning light
flashes illuminates for
about 1 minute and a
beep sound will be
heard for about 6
seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated. The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position. The warning light will
not illuminate and the
beep sound will not be
heard.
q
Belt Minder
NOTE
The belt minder can be deactivated. Consult an
Authorized Mazda Dealer to deactivate and
restore the seat belt minder.
2-18
Essential Safety Equipment
Seat Belt Systems
RX-8_8X44-EA-07G_Edition1 Page30
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (31,1)

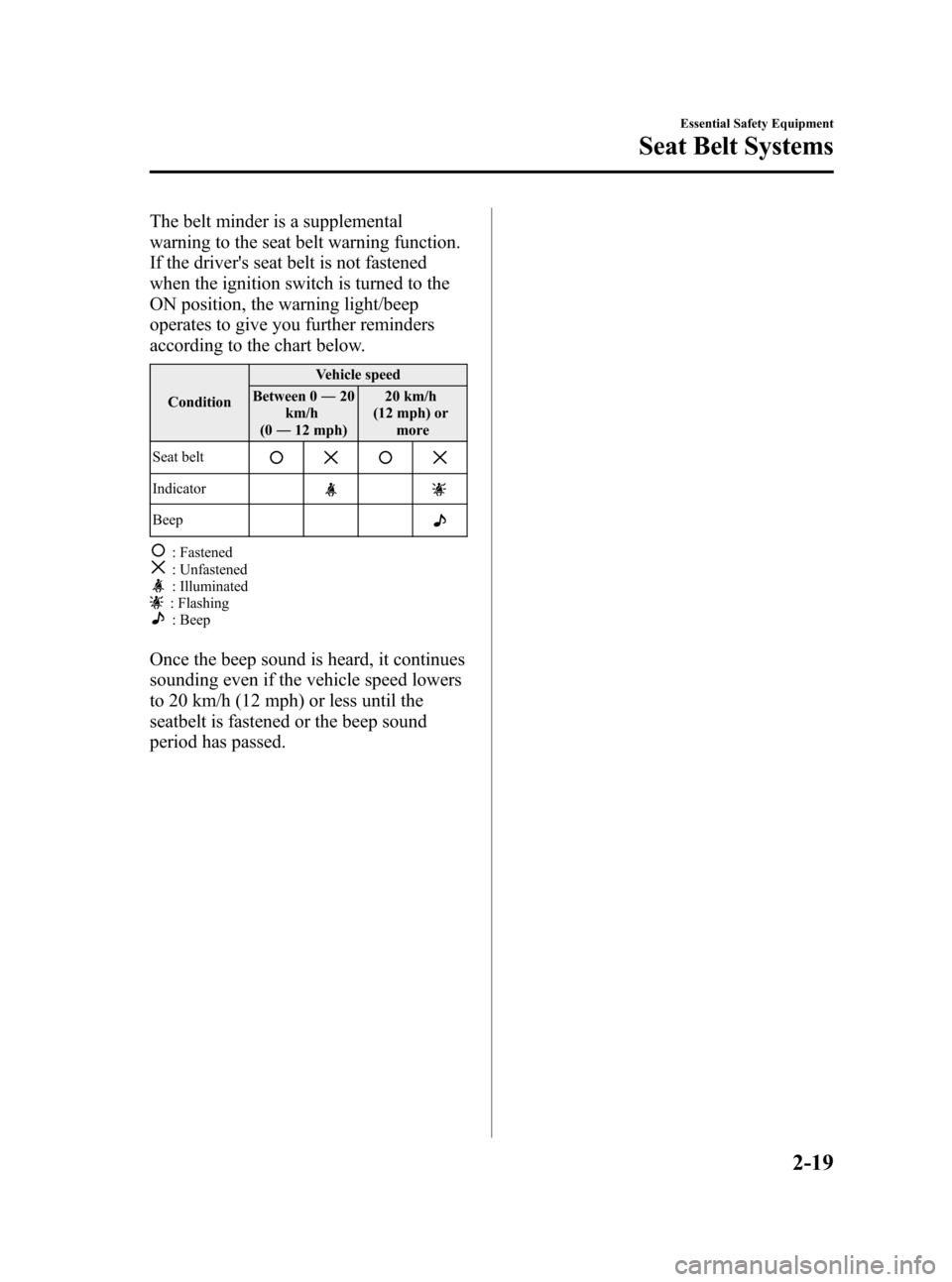

The belt minder is a supplemental
warning to the seat belt warning function.
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the warning light/beep
operates to give you further reminders
according to the chart below.
ConditionVehicle speed
Between 0 ―20
km/h
(0 ― 12 mph) 20 km/h
(12 mph) or
more
Seat belt
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
Essential Safety Equipment
Seat Belt Systems
2-19
RX-8_8X44-EA-07G_Edition1 Page31
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (32,1)
Child Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle.
Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system shouldNEVERbe used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger seat weight sensors work as a part of the supplemental restraint system.
This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the total seated weight on the front passenger
seat is less than approximately 30 kg (66 lb).
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to “Front passenger seat weight sensors ”(page 2-40).
2-20
Essential Safety Equipment
Child Restraint
RX-8_8X44-EA-07G_Edition1 Page32
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G

Black plate (33,1)
WARNING
Use the correct size child-restraint system:For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down: An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make
sure any child-restraint system is properly secured in place according to the child-
restraint system manufacturer's instructions. When not in use, remove it from the
vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors
for LATCH child-restraint systems and the corresponding tether anchor.
Always secure a child in a proper child-restraint system: Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a
sudden stop or collision and it could result in serious injury or death to the child or
other occupants. Even in a moderate accident, the child may be exposed to air bag
forces that could result in serious injury or death to the child, or the child may be
slammed into an adult, causing injury to both child and adult.
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy: Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child.
Essential Safety Equipment
Child Restraint
2-21
RX-8_8X44-EA-07G_Edition1 Page33
Friday, May 11 2007 5:2 PM
Form No.8X44-EA-07G
