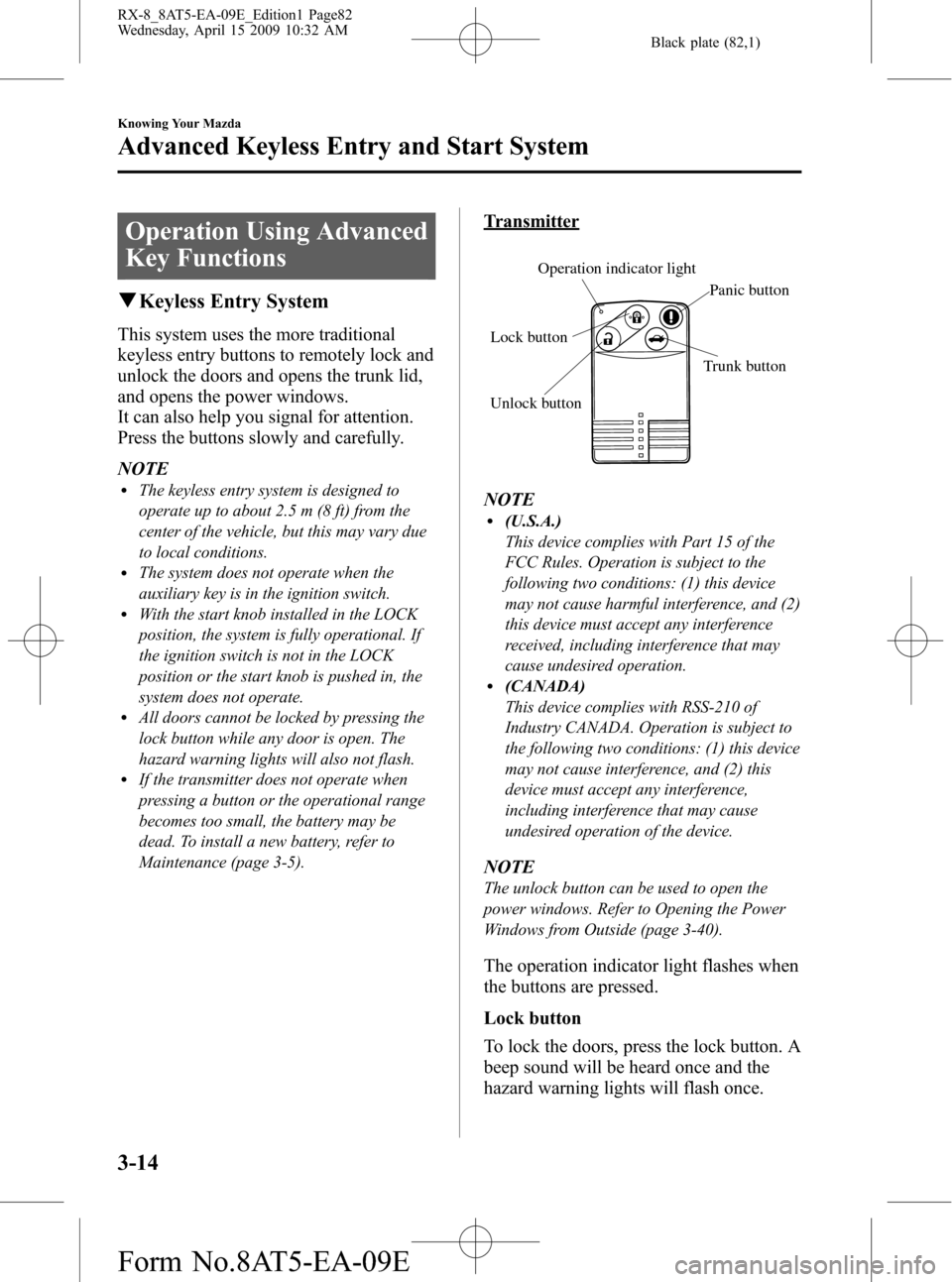

Black plate (82,1)
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and opens the trunk lid,
and opens the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob installed in the LOCK
position, the system is fully operational. If
the ignition switch is not in the LOCK
position or the start knob is pushed in, the
system does not operate.
lAll doors cannot be locked by pressing the
lock button while any door is open. The
hazard warning lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Transmitter
Panic button
Unlock buttonLock button
Trunk button
Operation indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-40).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8AT5-EA-09E_Edition1 Page82
Wednesday, April 15 2009 10:32 AM
Form No.8AT5-EA-09E

Black plate (108,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
qOpening/Closing the Power
Windows from Outside
Both power windows can be opened or
closed from outside the vehicle after the
doors are closed.
The power windows may be operated
remotely when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows cannot be opened or
closed from outside the vehicle under the
following condition:
lA door is opened.lThe key is inserted into the ignition
switch.
lThe start knob is in any position except
LOCK. (With advanced key)
lThe power windows may not close
completely. Make sure all the windows are
closed.
If the power windows cannot be closed
completely, operate each power window
switch from inside the vehicle. After closing
the windows from outside the vehicle, verify
that they are completely closed.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the both windows as you approach
the vehicle to get the air moving before
you get in.
3-40
Knowing Your Mazda
Doors and Locks
RX-8_8AT5-EA-09E_Edition1 Page108
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (112,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
3-44
Knowing Your Mazda
Doors and Locks
RX-8_8AT5-EA-09E_Edition1 Page112
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (432,1)
A
Accessory Socket .............................. 6-87
Add-On Non-Genuine Parts and
Accessories ....................................... 9-15
Advanced Key ..................................... 3-2
Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-17
Auxiliary key .............................. 3-17
Locking, unlocking with request
switch ........................................... 3-8
Opening the trunk lid with request
switch ........................................... 3-9
Operational range ......................... 3-7
Remote control function ............. 3-14
Service ......................................... 3-6
Air Bag Systems ............................... 2-38
Ambient Temperature Display .......... 6-80
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-8
Warning light ............................... 5-8
Appearance Care ............................... 8-42
Ashtray .............................................. 6-82
Audio System ................................... 6-15
Audio control switch .................. 6-52
Audio set .................................... 6-25
AUX mode ................................. 6-54
Operating tips for audio
system ........................................ 6-15
Safety certification ..................... 6-56
Automatic Transmission
Direct mode ................................ 5-19
Driving tips ................................ 5-20
Manual shift mode ..................... 5-15
Shift-lock system ....................... 5-15
Transmission ranges ................... 5-14
B
Battery
Emergency starting .................... 7-19
Maintenance ............................... 8-21
Specifications ............................. 10-4
Beep Sounds
Engine Oil Level Warning
Beep ........................................... 5-56
Engine overrev warning beep .... 5-56
Ignition key reminder ................. 5-56
Lights-on reminder ..................... 5-56
Seat belt warning beep ............... 5-56
Tire inflation pressure warning
beep ............................................ 5-56
Before Starting the Engine .................. 4-5
After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-57
Basic Bluetooth Hands-Free
Operation ................................... 6-61
Convenient Use of the Hands-Free
System ........................................ 6-65
Hands-Free Telephone Setting .... 6-70
Mazda Bluetooth Hands-Free
Customer Service ....................... 6-76
Safety certification ..................... 6-76
When Bluetooth Hands-Free cannot
be used ....................................... 6-75
Body Lubrication .............................. 8-18
Brake/Clutch
Fluid ........................................... 8-16
Brakes
Anti-lock brake system (ABS) ..... 5-8
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-28
11-2
Index
RX-8_8AT5-EA-09E_Edition1 Page432
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E
