Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
HomeLink Wireless
Control System
í
NOTE
HomeLink and HomeLink house are registered
trademarks of Johnson Controls.
The HomeLink system replaces up to 3
hand-held transmitters with a single built-
in component in the auto-dimming mirror.
Pressing the HomeLink button on the
auto-dimming mirror activates garage
doors, gates and other devices
surrounding your home.
Indicator light
HomeLink button
5-70
Driving Your Mazda
íSome models.
Switches and Controls
RX-8_8BQ7-EA-10H_Edition1 Page212
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (215,1)
HomeLink should now activate your
rolling code equipped device.
NOTE
To program the remaining two HomeLink
buttons, begin with“Programming”―step 2.
Do not repeat step 1.
For questions or comments, please contact
HomeLink atwww.homelink.comor1-
800-355-3515.
qGate operator/Canadian
Programming
Canadian radio-frequency laws require
transmitter signals to“time-out”(or quit)
after several seconds of transmission―
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are
designed to“time-out”in the same
manner.
If you live in Canada or you are having
difficulties programming a gate operator
by using the“Programming”procedures
(regardless of where you live),replace
“Programming HomeLink”step 3with
the following:
NOTE
If programming a garage door opener or gate
operator, it is advised to unplug the device
during the“cycling”process to prevent
possible overheating.
Continue to press and hold the HomeLink
button while youpress and release―
every two seconds(“cycle”) your hand-
held transmitter until the frequency signal
has successfully been accepted by
HomeLink. (The indicator light will flash
slowly and then rapidly.)
Proceed with“Programming”step 4 to
complete.
qOperating the HomeLink System
Press the programmed HomeLink button
to operate a programmed device. The
code will continue being transmitted for a
maximum of 20 seconds.
qReprogramming the HomeLink
system
To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink
button.DO NOTrelease the button.
2. The indicator light will begin to flash
after 20 seconds. Without releasing the
HomeLink button, proceed with
“Programming”- step 2.
qErasing Programmed HomeLink
Buttons
To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (
,)
on the auto-dimming mirror until the
HomeLink indicator light begins to flash
after approximately 20 seconds.
Verify that the programming has been
erased when you resell the vehicle.
Driving Your Mazda
Switches and Controls
5-73
RX-8_8BQ7-EA-10H_Edition1 Page215
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (294,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position)and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition is
switched off (with the ignition key
removed).
lAbout 15 seconds after all doors are
closed.
(With Advanced key)
About 5 seconds after all doors are
closed when the advanced key is
outside of the vehicle.
lAbout 15 seconds after the ignition is
switched off (with the ignition key
removed) with all doors closed.
The light also turns off when:
lThe ignition is switched ON and all
doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light turns off
after about 30 minutes to save the battery.
The light turns on again when the ignition is
switched ON, or when any door is opened after
all doors have been closed.
6-78
Interior Comfort
Interior Equipment
RX-8_8BQ7-EA-10H_Edition1 Page294
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (360,1)
Light Bulbs
Overhead light/Map lights (Front)
Headlights (High beam)
Fog lights
Headlights (Low beam)Parking lights/Front turn signal lightsSide turn signal lightsCourtesy lights Vanity mirror lights Rear turn signal lightsRear side-marker lightsOverhead light (Rear)
Brake lights/Taillights
Trunk light
High-mount brake light
License plate light
Reverse lights
Some models.
8-28
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page360
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (367,1)
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
1. Remove the screws with a Phillips
screwdriver.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Overhead light (Rear), Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.
2. Disconnect the bulb by pulling it out.
Maintenance and Care
Owner Maintenance
8-35
RX-8_8BQ7-EA-10H_Edition1 Page367
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (371,1)
qFuse Panel Description
Fuse block (Engine compartment)
1
2
3
4
5
1013
14
15
16
17
18
19 11
12620
21
2229
30
31
32
33
34
35
3637
38
28
23
24
25
26
27
7
8
9
(Next to air filter)
(Next to battery)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 120A For protection of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4 BTN 30A Power door locks, Illumination, Moonroof
í
5 DEFOG 50A Rear window defroster
6 FAN 1 30A Electric fan 1
7 ABS/DSC 40A ABS, DSC
í
8 ACC 30A Lighter, Power control mirror, Accessory socket, Audio system
9 FAN 2 30A Electric fan 2
10 HEAD 15A Headlight high beams
í, Headlight cleanerí
11 HEAD LOW R 15A Headlight low beam (RH)
12 HEAD LOW L 15A Headlight low beam (LH)
13 DRL 15A DRL
í(Headlight high beams)
14 DSC 30A DSCí
15 SEAT WARM 20A Seat warmerí
16 H/CLEAN 20A Headlight cleanerí
17 R.FOG――
Maintenance and Care
Owner Maintenance
8-39íSome models. RX-8_8BQ7-EA-10H_Edition1 Page371
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (373,1)

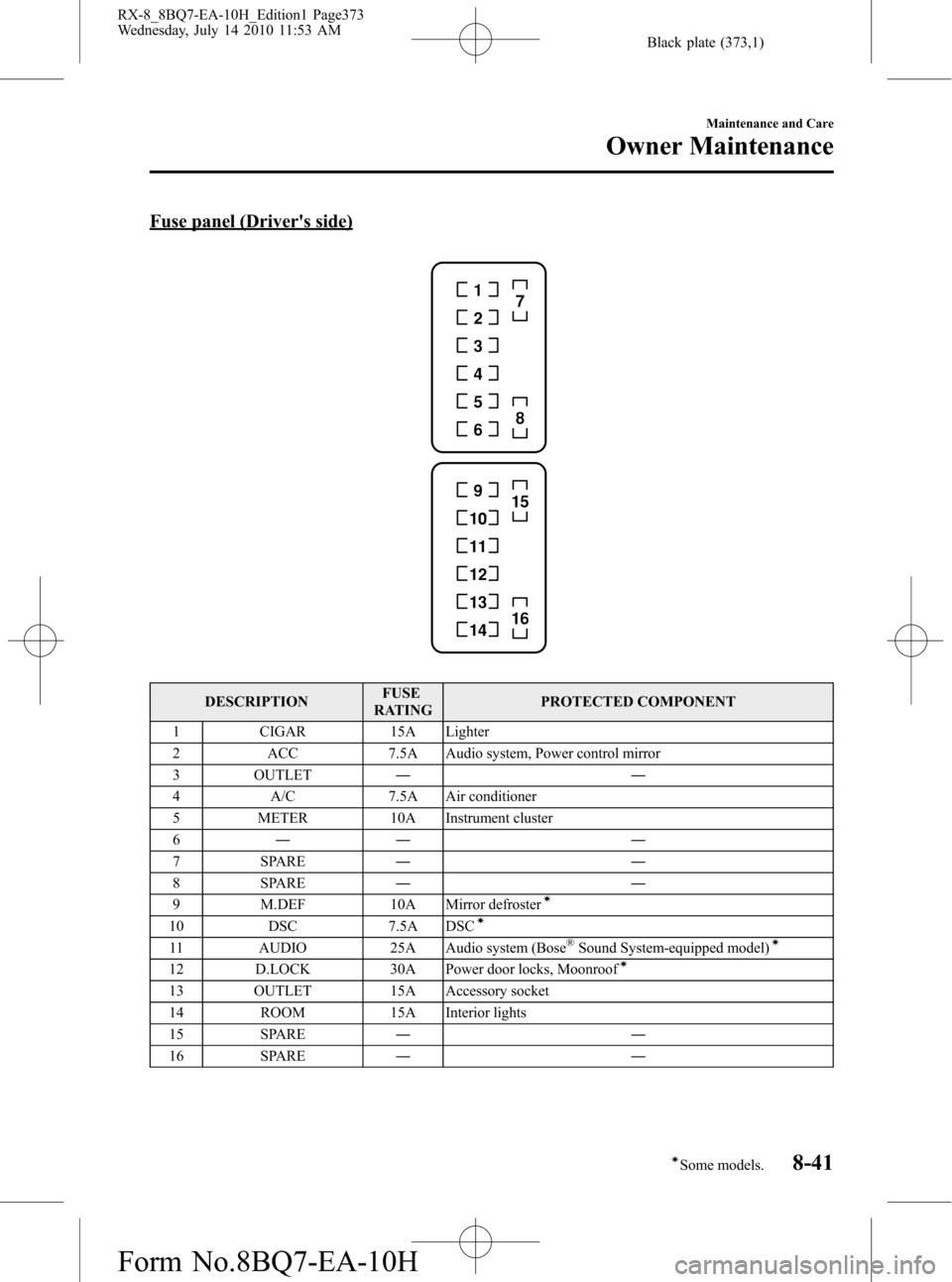

Fuse panel (Driver's side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 OUTLET――
4 A/C 7.5A Air conditioner
5 METER 10A Instrument cluster
6―― ―
7 SPARE――
8 SPARE――
9 M.DEF 10A Mirror defroster
í
10 DSC 7.5A DSCí
11 AUDIO 25A Audio system (Bose®Sound System-equipped model)í
12 D.LOCK 30A Power door locks, Moonroofí
13 OUTLET 15A Accessory socket
14 ROOM 15A Interior lights
15 SPARE――
16 SPARE――
Maintenance and Care
Owner Maintenance
8-41íSome models. RX-8_8BQ7-EA-10H_Edition1 Page373
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (432,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 65 H9 (H9)
Low beamHalogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights (Front side-marker lights) 27/8 B1157MA (―)
Fog lights
í51 HB4 (#9005)
Side turn signal lights*15―(―)
High-mount brake light 21 W21W (#7440)
Rear turn signal lights 21 WY21W (―)
Brake lights/Taillights LED
*2―(―)
Reverse lights 16 W16W (#921)
License plate lights 5 W5W (4CP)
Rear side-marker lights 5 W5W (4CP)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Trunk light 5 W5W
Overhead light/Map lights (Front) 5 W5W
Overhead light (Rear) 10―
Courtesy lights 5 W5W
Vanity mirror lights 2―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-24.
Tire sizeInflation pressure
Front Rear
225/45R18 91W
220 kPa (32 psi) 220 kPa (32 psi)
225/40R19 89W
Vehicle capacity weight: 308 kg (680 lbs)
10-6íSome models.
Specifications
RX-8_8BQ7-EA-10H_Edition1 Page432
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (437,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-16
Center Console .................................. 6-86
Child Restraint
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Cigarette Lighter ............................... 6-82
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ................................................. 6-81
Coin Box ........................................... 6-85
Courtesy Lights ................................. 6-79
Cruise Control ................................... 5-23
Cup Holder ........................................ 6-84
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-39
Daytime Running Lights ................... 5-62
Defroster
Mirror ......................................... 5-69
Rear window .............................. 5-68
Dimensions ....................................... 10-5
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-12
D
Driving Tips ........................................ 4-6
Automatic transmission .............. 5-21
Break-in period ............................ 4-6
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-12
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27
DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-29
TCS/DSC Indicator light ............ 5-28
E
Emergency Starting ........................... 7-19
Jump-starting .............................. 7-20
Push-starting .............................. 7-23
Emergency Towing ........................... 7-24
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-14
Exhaust gas .................................. 4-4
Hood release .............................. 3-43
Oil .............................................. 8-12
Overheating ................................ 7-17
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant
Overheating ................................ 7-17
Engine Coolant Temperature
Gauge ................................................ 5-39
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-44
Index
11-3
RX-8_8BQ7-EA-10H_Edition1 Page437
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (439,1)
I
Information Display .......................... 6-80
Audio display ............................. 6-82
Climate control display .............. 6-82
Clock .......................................... 6-81
Information display functions .... 6-80
Outside temperature display ....... 6-81
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-36
Interior Care ...................................... 8-48
Interior Lights ................................... 6-78
J
Jump-Starting .................................... 7-20
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-63
Light Bulbs
Replacement ............................... 8-28
Specifications ............................. 10-6
Lighter ............................................... 6-82
Lighting Control ............................... 5-59
Lubricant Quality .............................. 10-4
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-9
Owner maintenance schedule ....... 8-8
Scheduled ..................................... 8-3
M
Manual Transmission Operation ....... 5-11
Recommendations for shifting.... 5-12
Map Lights ........................................ 6-79
Meters and Gauges ........................... 5-36
Mirror Defroster ................................ 5-69
Mirrors
Outside mirrors .......................... 3-54
Rearview mirror ......................... 3-55
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-44
O
Odometer and Trip Meter .................. 5-37
Outside Mirrors ................................. 3-54
Outside Temperature Display ............ 6-81
Overhead Console ............................. 6-85
Overhead Lights ................................ 6-79
Overheating ....................................... 7-17
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-42
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-8
Power Door Locks ............................ 3-27
Power Steering .................................. 5-22
Power steering malfunction indicator
light ............................................ 5-22
Power Windows ................................ 3-34
Push-Starting ..................................... 7-23
R
Rear Quarter Windows ..................... 3-41
Rear Seat ........................................... 2-12
Index
11-5
RX-8_8BQ7-EA-10H_Edition1 Page439
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H
