cruise control MAZDA MODEL RX 8 2011 Owners Manual (in English)

Black plate (9,1)
Power door lock switch ..................................................................................... page 3-27
Outside mirror switch ........................................................................................ page 3-54
Dashboard illumination ..................................................................................... page 5-39
DSC OFF switch ............................................................................................... page 5-27
Lighting control/Turn signals ............................................................................ page 5-59
Audio control switch ......................................................................................... page 6-52
Instrument cluster .............................................................................................. page 5-36
Air bags ............................................................................................................. page 2-40
Wiper and washer lever ..................................................................................... page 5-64
Cruise control switches ...................................................................................... page 5-23
Information display ............................................................................................ page 6-80
Hazard warning flasher switch .......................................................................... page 5-70
Audio system ..................................................................................................... page 6-15
Glove compartment ........................................................................................... page 6-85
Center console ................................................................................................... page 6-86
Cup holder ......................................................................................................... page 6-84
Parking brake ....................................................................................................... page 5-7
MT shift lever ..................................................................................................... page 5-11
AT shift lever (Sport AT) ................................................................................... page 5-14
Lighter ............................................................................................................... page 6-82
Ashtray ............................................................................................................... page 6-83
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-54
Coin box ............................................................................................................ page 6-85
Hood release handle .......................................................................................... page 3-43
Trunk release button .......................................................................................... page 3-31
Power window lock switch ................................................................................ page 3-38
Power window switches .................................................................................... page 3-35
Interior light ....................................................................................................... page 6-78
Sunvisor ............................................................................................................. page 6-78
Rearview mirror ................................................................................................. page 3-55
Vanity mirror ...................................................................................................... page 6-78
Front seats ............................................................................................................ page 2-2
Rear seat ............................................................................................................ page 2-12
Seat belt ............................................................................................................. page 2-15
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle RX-8_8BQ7-EA-10H_Edition1 Page9
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (143,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-4
Turning the Engine Off ............................................................. 5-5
Brake System ............................................................................ 5-6
Manual Transmission Operation ............................................. 5-11
Automatic Transmission Controls ........................................... 5-14
Power Steering ........................................................................ 5-22
Cruise Control ......................................................................... 5-23
Traction Control System (TCS)
í........................................... 5-26
Dynamic Stability Control (DSC)í........................................ 5-27
Tire Pressure Monitoring Systemí......................................... 5-30
Instrument Cluster and Indicators ............................................ 5-36
Meters and Gauges .................................................................. 5-36
Warning/Indicator Lights and Beep Sounds ............................ 5-41
Warning/Indicator Lights ........................................................ 5-41
Beep Sounds ........................................................................... 5-57
Switches and Controls ................................................................ 5-59
Lighting Control ..................................................................... 5-59
Turn and Lane-Change Signals ............................................... 5-63
Fog Lights
í............................................................................ 5-63
Windshield Wipers and Washer .............................................. 5-64
Headlight Washer
í................................................................. 5-68
Rear Window Defroster ........................................................... 5-68
Horn ........................................................................................ 5-69
Hazard Warning Flasher .......................................................... 5-70
HomeLink Wireless Control System
í.................................... 5-70
5-1íSome models.
RX-8_8BQ7-EA-10H_Edition1 Page143
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (165,1)
Cruise Control
With cruise control, you can set and
automatically maintain any speed of more
than about 30 km/h (19 mph).
WARNING
Do not use the cruise control under the
following conditions:
Using the cruise control under the
following conditions is dangerous
and could result in loss of vehicle
control.
ØHilly terrain
ØSteep inclines
ØHeavy or unsteady traffic
ØSlippery or winding roads
ØSimilar restrictions that require
inconsistent speed
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON/OFF switch is pressed and
the cruise control system is activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qActivation/Deactivation
To activate the system, press the ON/OFF
switch.
The cruise main indicator light
illuminates.
To deactivate the system, press the switch
again.
The cruise main indicator light turns off.
WARNING
Keep the ON/OFF switch off when
cruise control is not in use:
Leaving the ON/OFF switch on when
not using the cruise control is
dangerous as you may hit one of the
other buttons and put the vehicle in
cruise control unexpectedly. This
could result in loss of vehicle control.
qTo Set Speed
1. Activate the cruise control system by
pressing the ON/OFF switch.
2. Accelerate to the desired speed, which
must be more than 30 km/h (19 mph).
Driving Your Mazda
Starting and Driving
5-23
RX-8_8BQ7-EA-10H_Edition1 Page165
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (166,1)

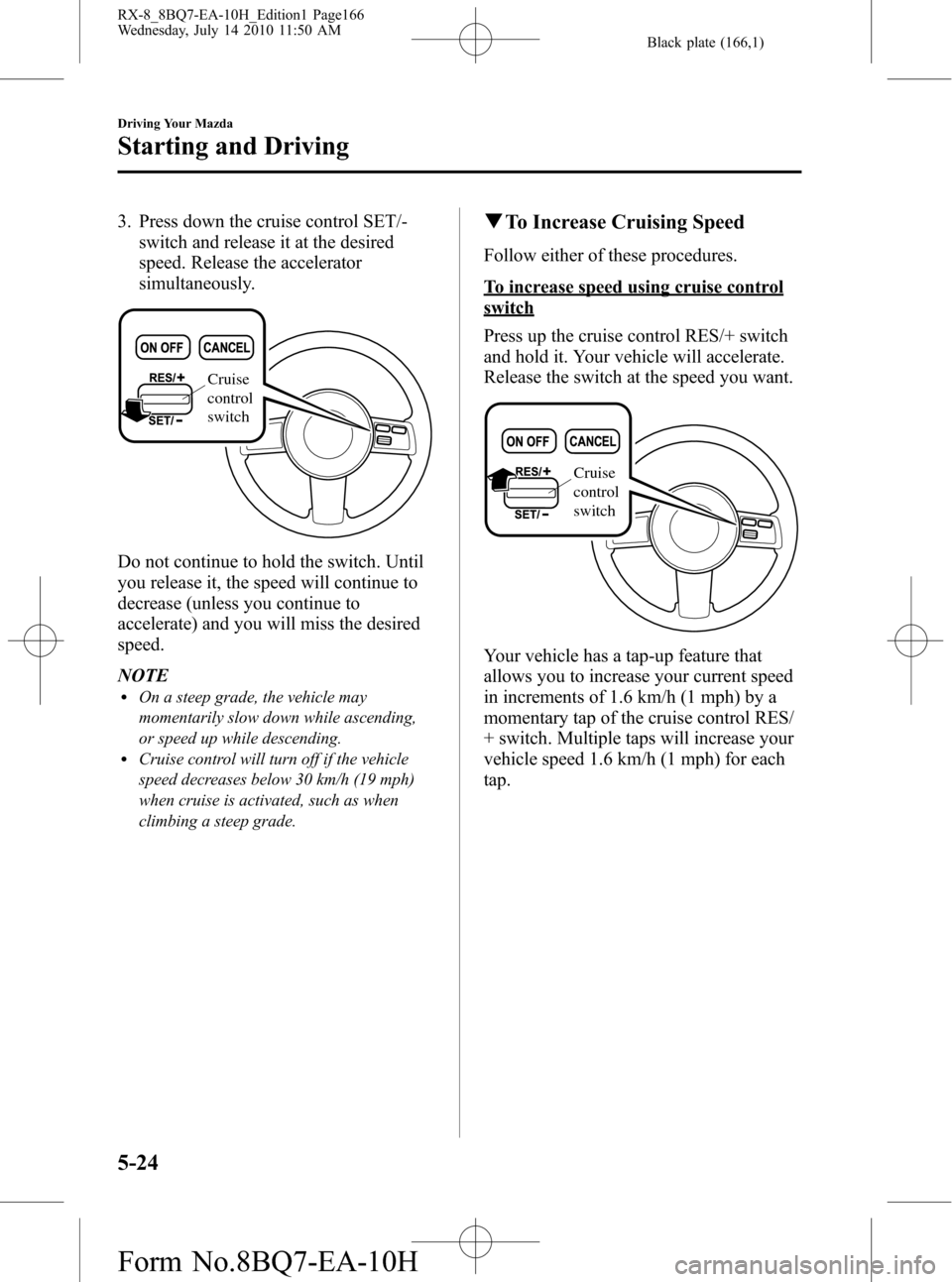

3. Press down the cruise control SET/-
switch and release it at the desired
speed. Release the accelerator
simultaneously.
Cruise
control
switch
Do not continue to hold the switch. Until
you release it, the speed will continue to
decrease (unless you continue to
accelerate) and you will miss the desired
speed.
NOTE
lOn a steep grade, the vehicle may
momentarily slow down while ascending,
or speed up while descending.
lCruise control will turn off if the vehicle
speed decreases below 30 km/h (19 mph)
when cruise is activated, such as when
climbing a steep grade.
qTo Increase Cruising Speed
Follow either of these procedures.
To increase speed using cruise control
switch
Press up the cruise control RES/+ switch
and hold it. Your vehicle will accelerate.
Release the switch at the speed you want.
Cruise
control
switch
Your vehicle has a tap-up feature that
allows you to increase your current speed
in increments of 1.6 km/h (1 mph) by a
momentary tap of the cruise control RES/
+ switch. Multiple taps will increase your
vehicle speed 1.6 km/h (1 mph) for each
tap.
5-24
Driving Your Mazda
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page166
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (167,1)
To increase speed using accelerator
pedal
Depress the accelerator pedal to accelerate
to the desired speed.
Press down the cruise control SET/-
switch and release it immediately.
Cruise
control
switch
NOTE
Accelerate if you want to speed up temporarily
when the cruise control is on. Greater speed
will not interfere with or change the set speed.
Take your foot off the accelerator to return to
the set speed.
qTo Decrease Cruising Speed
Press down the cruise control SET/-
switch and hold it. The vehicle will
gradually slow.
Release the switch at the desired speed.
Cruise
control
switch
Your vehicle has a tap-down feature that
allows you to decrease your current speed
in decrements of 1.6 km/h (1 mph) by a
momentary tap of the cruise control SET/-
switch. Multiple taps will decrease your
vehicle speed 1.6 km/h (1 mph) for each
tap.
qTo Resume Cruising Speed at
More Than 30 km/h (19 mph)
If some other method besides the ON/
OFF switch was used to cancel cruising
speed (such as applying the brake pedal)
and the system is still activated, the most
recent set speed will automatically resume
when the cruise control RES/+ switch is
pressed up.
If vehicle speed is below 30 km/h (19
mph), increase the vehicle speed up to 30
km/h (19 mph) or more and press up the
cruise control RES/+ switch.
Cruise
control
switch
qTo Cancel
To cancel the system, useoneof these
methods:
lPress the ON/OFF switch.lSlightly depress the brake pedal.lDepress the clutch pedal (Manual
transmission only).
Driving Your Mazda
Starting and Driving
5-25
RX-8_8BQ7-EA-10H_Edition1 Page167
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (168,1)
lPress the CANCEL switch.
The system turns off when the ignition is
off.
NOTE
Cruise control will cancel at about 15 km/h (9
mph) below the preset speed (such as may
happen when climbing a long, steep grade).
Traction Control System
(TCS)
í
The Traction Control System (TCS)
enhances traction and safety by
controlling engine torque and braking.
When the TCS detects driving wheel
slippage, it lowers engine torque and
operates the brakes to prevent loss of
traction.
This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels,
limiting wheel spin and loss of traction.
WARNING
Do not rely on the traction control
system as a substitute for safe driving:
The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.
Use snow tires or tire chains and drive
at reduced speeds when roads are
covered with ice and/or snow:
Driving without proper traction
devices on snow and/or ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident.
NOTE
To turn off the TCS, press the DSC OFF switch
(page 5-29).
5-26
Driving Your Mazda
íSome models.
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page168
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (197,1)
qTCS/DSC Indicator Lightí
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-29).
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.NOTE
If the battery is disconnected or a fuse is
replaced, the DSC will be inoperable. In this
case, the DSC OFF indicator light flashes and
the TCS/DSC indicator light illuminates.
To make the DSC operable, do the following
procedure with the battery connected.
1. Switch the ignition ON.
2. Turn the steering clockwise fully, then turn
it counterclockwise fully.
3. Make sure the DSC OFF indicator turn off.
4. Switch the ignition off, then switch the
ignition to ON again.
5. Make sure the TCS/DSC indicator light
turns off.
If the TCS/DSC indicator light and the DSC
OFF indicator light remain illuminated even
after switching the ignition from ON to OFF,
and back to ON, attempt the procedure again.
If this still does not resolve the issue, consult
an Authorized Mazda Dealer.
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON/OFF switch is pressed and
the cruise control system is activated.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-55íSome models. RX-8_8BQ7-EA-10H_Edition1 Page197
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (437,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-16
Center Console .................................. 6-86
Child Restraint
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Cigarette Lighter ............................... 6-82
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ................................................. 6-81
Coin Box ........................................... 6-85
Courtesy Lights ................................. 6-79
Cruise Control ................................... 5-23
Cup Holder ........................................ 6-84
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-39
Daytime Running Lights ................... 5-62
Defroster
Mirror ......................................... 5-69
Rear window .............................. 5-68
Dimensions ....................................... 10-5
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-12
D
Driving Tips ........................................ 4-6
Automatic transmission .............. 5-21
Break-in period ............................ 4-6
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-12
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27
DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-29
TCS/DSC Indicator light ............ 5-28
E
Emergency Starting ........................... 7-19
Jump-starting .............................. 7-20
Push-starting .............................. 7-23
Emergency Towing ........................... 7-24
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-14
Exhaust gas .................................. 4-4
Hood release .............................. 3-43
Oil .............................................. 8-12
Overheating ................................ 7-17
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant
Overheating ................................ 7-17
Engine Coolant Temperature
Gauge ................................................ 5-39
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-44
Index
11-3
RX-8_8BQ7-EA-10H_Edition1 Page437
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H

Black plate (438,1)
F
Flasher
Hazard warning .......................... 5-70
Flat Tire ............................................... 7-3
Changing .................................... 7-11
Instant Mobility System
(IMS) Emergency Flat Tire Repair
Kit ................................................ 7-5
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ..................... 8-8
Fog Lights ......................................... 5-63
Foot Brake .......................................... 5-6
Front Seats
(Electrically Operated Seats) ............... 2-6
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-41
Gauge ......................................... 5-39
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-36
Panel description ........................ 8-39
Replacement ............................... 8-36
G
Gauges .............................................. 5-36
Glove Compartment .......................... 6-85
H
Hazard Warning Flasher .................... 5-70
Hazardous Driving .............................. 4-7
Headlight Washer .............................. 5-68
H
Headlights
Control ....................................... 5-59
Flashing ...................................... 5-62
High-low beam .......................... 5-61
Leveling ..................................... 5-62
On reminder ............................... 5-61
HomeLink Wireless Control
System .............................................. 5-70
Hood Release .................................... 3-43
Horn .................................................. 5-69
I
Ignition
Keys ........................................... 3-20
Switch .......................................... 5-2
Illuminated Entry System ................. 6-78
Immobilizer System
(with Advanced Key) ........................ 3-46
Immobilizer System
(without Advanced Key) ................... 3-49
Indicator Lights ................................. 5-41
Cruise ......................................... 5-55
DSC OFF .................................... 5-55
Headlight auto-leveling
malfunction ................................ 5-56
Headlight high-beam .................. 5-54
KEY ............................................ 5-52
Power steering malfunction ........ 5-56
Security ...................................... 5-53
Shift position .............................. 5-54
TCS/DSC ................................... 5-55
Turn-signal/hazard warning ....... 5-57
11-4
Index
RX-8_8BQ7-EA-10H_Edition1 Page438
Wednesday, July 14 2010 11:53 AM
Form No.8BQ7-EA-10H
