display MAZDA MODEL SPEED 6 2006 Owner's Manual

Black plate (213,1)

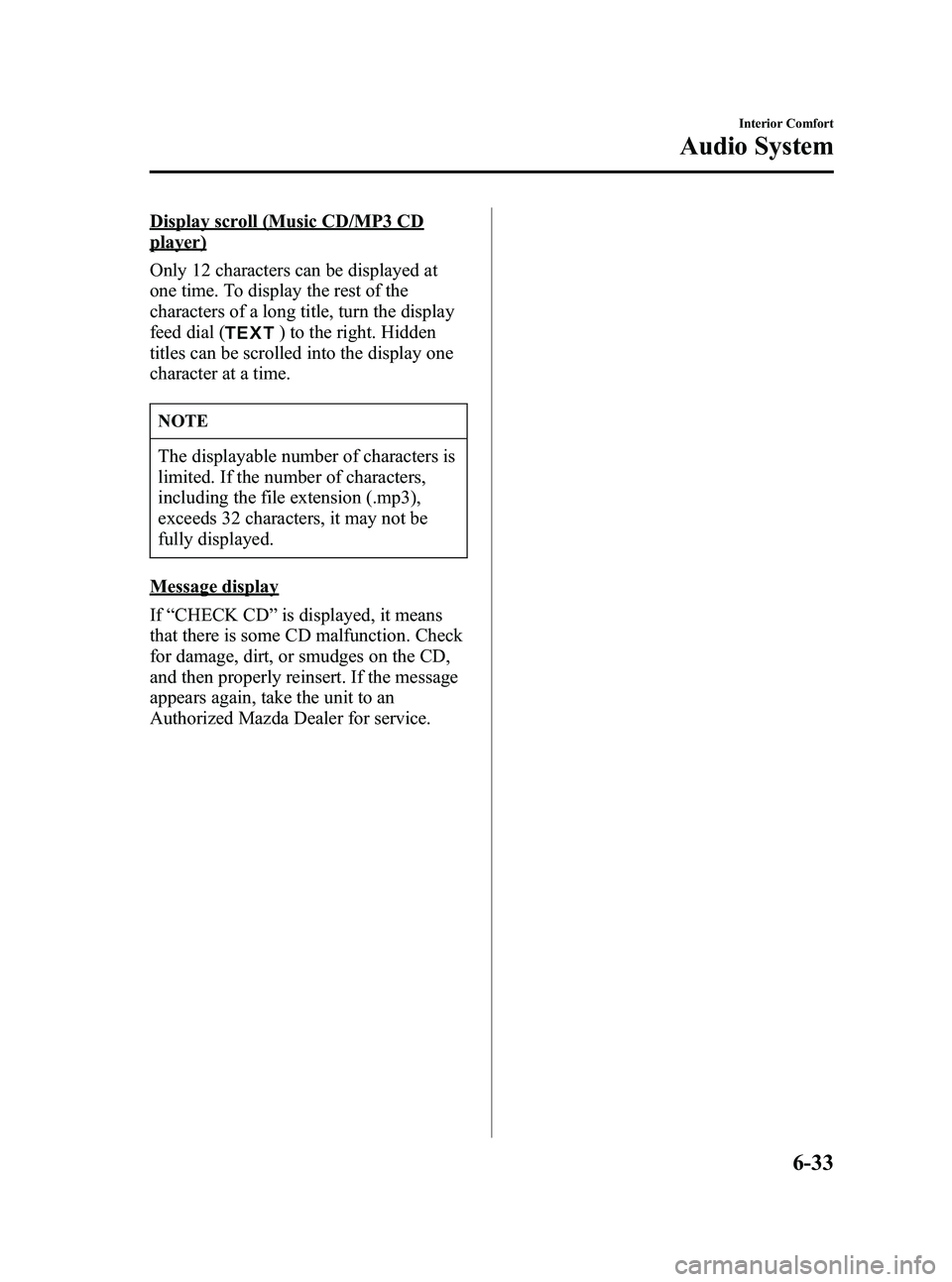

Display scroll (Music CD/MP3 CD
player)
Only 12 characters can be displayed at
one time. To display the rest of the
characters of a long title, turn the display
feed dial (
) to the right. Hidden
titles can be scrolled into the display one
character at a time.
NOTE
The displayable number of characters is
limited. If the number of characters,
including the file extension (.mp3),
exceeds 32 characters, it may not be
fully displayed.
Message display
If “CHECK CD ”is displayed, it means
that there is some CD malfunction. Check
for damage, dirt, or smudges on the CD,
and then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
Interior Comfort
Audio System
6-33
Mazdaspeed6_8U01-EA-05H_Edition2 Page213
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (214,1)
qError Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK CD CD is inserted upside down
Insert the CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CD is defective Insert another CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
6-34
Interior Comfort
Audio System
Mazdaspeed6_8U01-EA-05H_Edition2 Page214
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (221,1)
Information Display
OPEN/CLOSE button (with navigation system)
AMB button (with outside temperature display )
TILT button (with navigation system)
CLOCK/CLK button
SET button
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)
lClimate Control Display
lAudio Display
Interior Comfort
Interior Equipment
6-41
Mazdaspeed6_8U01-EA-05H_Edition2 Page221
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (222,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLK button until a beep
sounds, and “12Hr ”and “24Hr ”will be
displayed.
2. Press the SET button to switch between “12Hr ”and “24Hr ”displays. The
selected display will flash.
To select the desired clock setting,
press the CLK button again while the
preferred setting is flashing.
3. “Hr. ADJUST ”will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLK button.
4. “Min. ADJUST ”will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the CLK
button.
Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example) 12:01
―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the SET button is released, the
seconds are reset to “00 ”.
q Ambient Temperature Display
When the ignition switch is in the ON
position, press the AMB button to display
the ambient temperature.
NOTE
lThe displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
lPress the AMB button 2 seconds or
more to switch the display from
Fahrenheit to Centigrade or vice
versa.
lPress the AMB button again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.
6-42
Interior Comfort
Interior Equipment
Mazdaspeed6_8U01-EA-05H_Edition2 Page222
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (223,1)
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-10).
Lighter
The ignition switch must be in the ACC
or ON position.
1. Open the cover.
2. Press the lighter in and release it. When
ready for use, it automatically pops out.
Interior Comfort
Interior Equipment
6-43
Mazdaspeed6_8U01-EA-05H_Edition2 Page223
Thursday, September 29 2005 5:32 PM
Form No.8U01-EA-05H

Black plate (348,1)
A
Accessory Socket .............................. 6-49
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Advanced KeyAdvanced key maintenance ......... 3-5
Auxiliary key .............................. 3-15
Keyless entry system .................. 3-13
Locking, unlocking with request
switch ........................................... 3-8
Operational range ......................... 3-7
Service ......................................... 3-6
Air Bag Systems ............................... 2-38
Air Filter ............................................ 8-21
All-Wheel Drive
(AWD) Operation .............................. 5-11 AWD Warning light ................... 5-11
Ambient Temperature Display .......... 6-42
Antenna ............................................. 6-10
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-7
Appearance Care ............................... 8-41
Ashtray .............................................. 6-44
Audio System ................................... 6-10 Audio control switch .................. 6-35
Audio set .................................... 6-21
Operating tips for audio
system ........................................ 6-10
Safety certification ..................... 6-37
B
BatteryEmergency starting .................... 7-13
Maintenance ............................... 8-24
Specifications ............................. 10-3
B
Beep soundsIgnition key reminder ................. 5-35
Lights-on reminder ..................... 5-35
Seat belt warning beep ............... 5-35
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-20
Bottle Holder ..................................... 6-46
Brake/Clutch Fluid ........................................... 8-18
Brakes Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-30
C
Capacities .......................................... 10-4
Carbon Monoxide ............................... 4-5
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Box ........................................ 6-47
Center Console .................................. 6-48
Child Restraint Installing child-restraint
systems ....................................... 2-27
LATCH child-restraint
systems ....................................... 2-34
Child Safety Locks for Rear Doors ... 3-29
Cigarette Lighter ............................... 6-43
Climate Control System ...................... 6-2 Gas specifications ...................... 10-4
Clock ................................................. 6-42
11-2
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page348
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (350,1)
F
Fuses ................................................. 8-36Panel description ........................ 8-38
Replacement ............................... 8-36
G
Glove Box ......................................... 6-48
H
Hazard Warning Flasher .................... 5-42
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-36
Flashing ...................................... 5-37
High-low beam .......................... 5-37
Leveling ..................................... 5-37
On reminder ............................... 5-36
Hood Release .................................... 3-44
Horn .................................................. 5-41
I
Ignition Keys ........................................... 3-20
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
Immobilizer System
(with Advanced Key) ........................ 3-47
Immobilizer System
(without Advanced Key) ................... 3-50
I
Indicator Lights ................................. 5-24 Cruise Main ................................ 5-34
Cruise set .................................... 5-34
DSC OFF .................................... 5-34
Headlight high-beam .................. 5-33
Security ...................................... 5-33
TCS/DSC ................................... 5-33
Turn-signal/hazard warning ....... 5-34
Information Display .......................... 6-41 Ambient temperature display ..... 6-42
Audio display ............................. 6-43
Climate control display .............. 6-43
Clock .......................................... 6-42
Information display functions .... 6-41
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-20
Interior Care ...................................... 8-46
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-14
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-38
Light Bulbs
Replacement ............................... 8-30
Specifications ............................. 10-5
Lighter ............................................... 6-43
Lighting Control ............................... 5-36
Lubricant Quality .............................. 10-3
11-4
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page350
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H
