After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-40).
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night
Day Day/Night lever
3-56
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
Mazdaspeed6_8U01-EA-05H_Edition2 Page124
Thursday, September 29 2005 5:31 PM
Form No.8U01-EA-05H

Black plate (171,1)
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-18).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-33
Mazdaspeed6_8U01-EA-05H_Edition2 Page171
Thursday, September 29 2005 5:31 PM
Form No.8U01-EA-05H

Black plate (174,1)

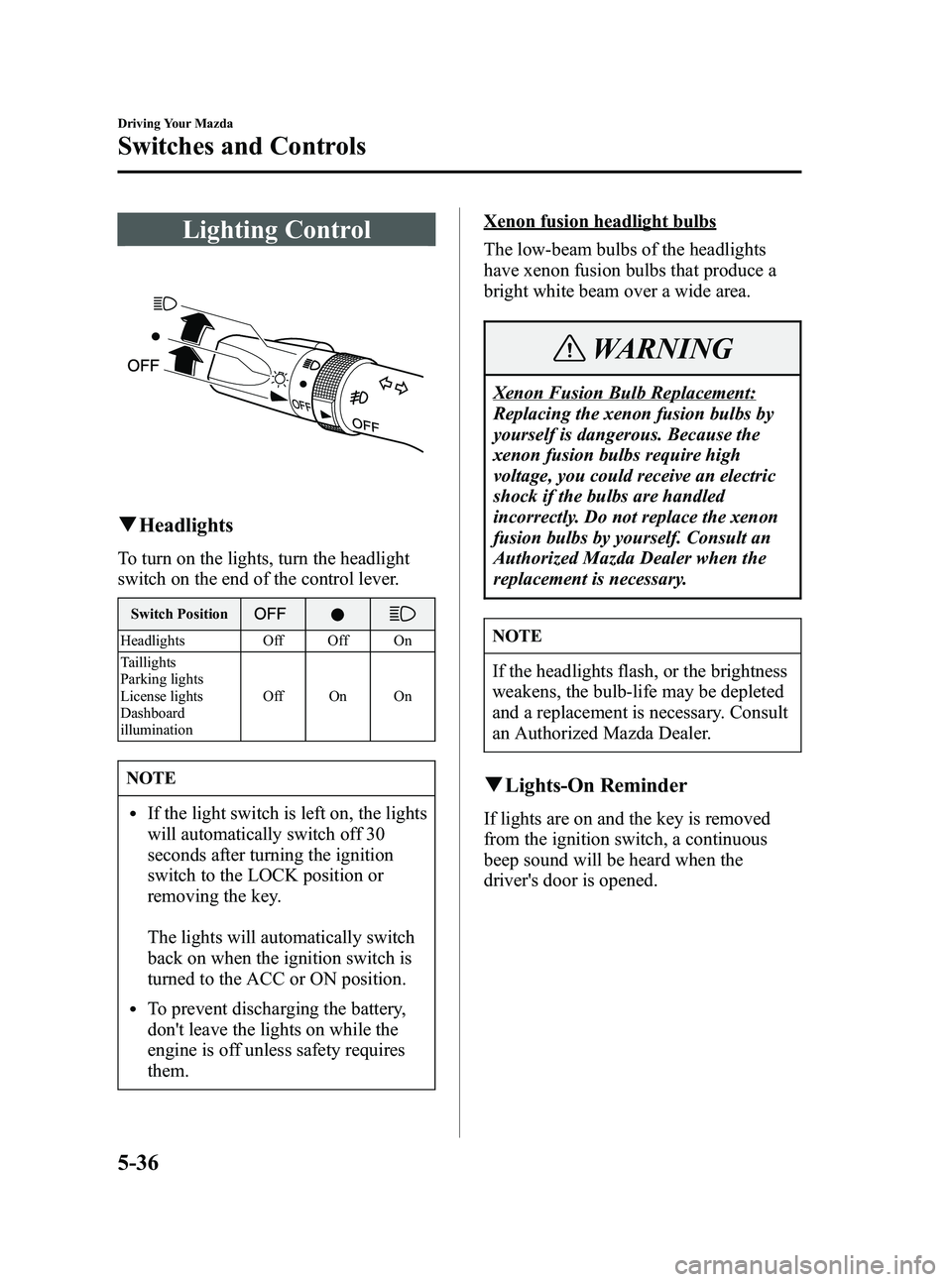

Lighting Control
qHeadlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Dashboard
illumination Off On On
NOTE
lIf the light switch is left on, the lights
will automatically switch off 30
seconds after turning the ignition
switch to the LOCK position or
removing the key.
The lights will automatically switch
back on when the ignition switch is
turned to the ACC or ON position.
lTo prevent discharging the battery,
don't leave the lights on while the
engine is off unless safety requires
them.
Xenon fusion headlight bulbs
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
q
Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
5-36
Driving Your Mazda
Switches and Controls
Mazdaspeed6_8U01-EA-05H_Edition2 Page174
Thursday, September 29 2005 5:31 PM
Form No.8U01-EA-05H

Black plate (175,1)
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
q Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
qHeadlight Leveling
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the following chart.
Front seat Rear
seat Load Switch
Position
Driver Passenger
× ――― 0
×× ――0
×× × ―1
×× ×× 2
× ―― ×3
×: Yes
― :No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Driving Your Mazda
Switches and Controls
5-37
Mazdaspeed6_8U01-EA-05H_Edition2 Page175
Thursday, September 29 2005 5:31 PM
Form No.8U01-EA-05H

Black plate (176,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn OFF
Right lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change ―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
Fog Lights
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
The fog lights will turn off when the
headlights are set at high beam.
5-38
Driving Your Mazda
Switches and Controls
Mazdaspeed6_8U01-EA-05H_Edition2 Page176
Thursday, September 29 2005 5:31 PM
Form No.8U01-EA-05H

Black plate (282,1)

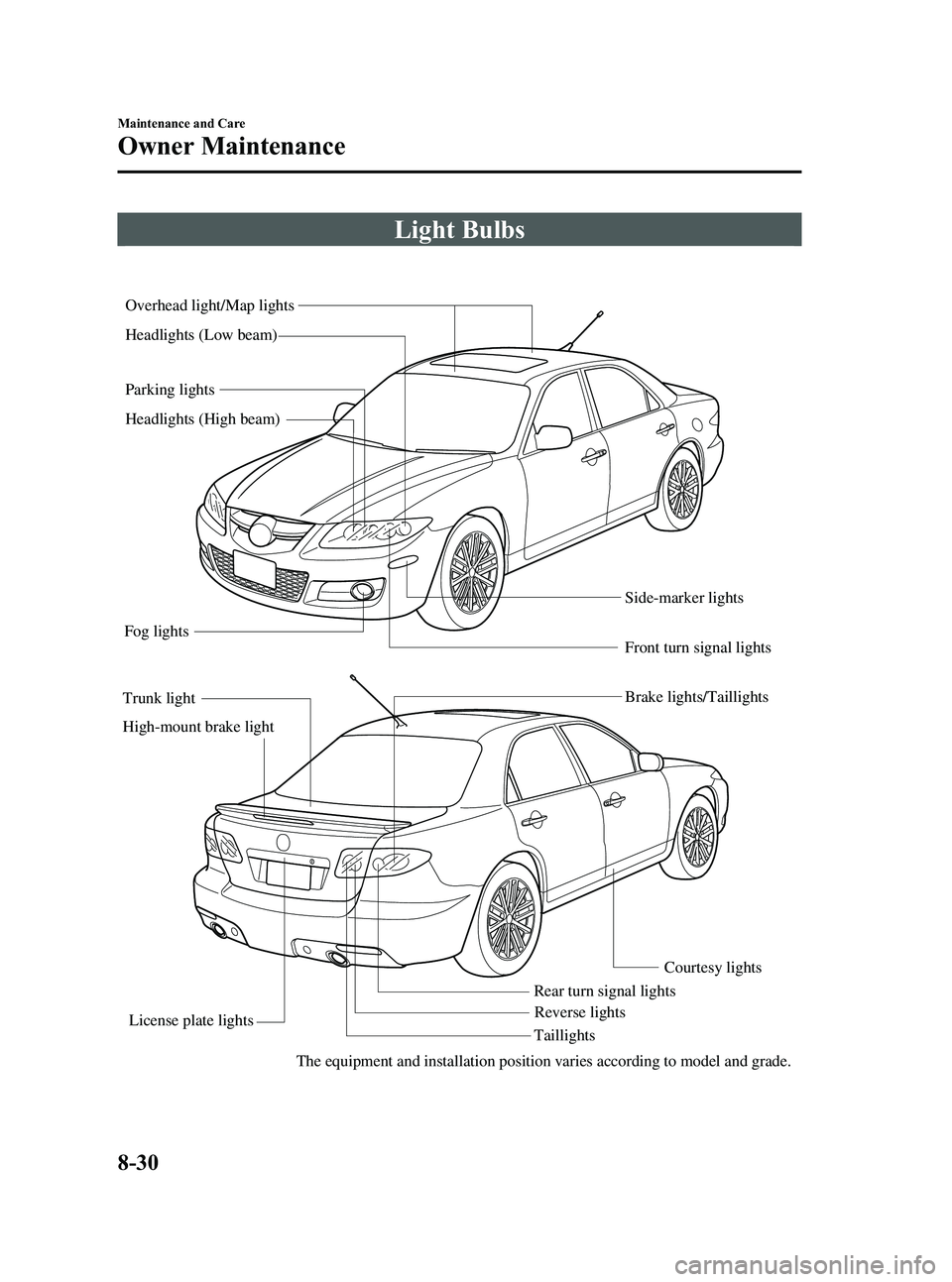

Light Bulbs
Overhead light/Map lights
Fog lights
High-mount brake light Trunk light Brake lights/Taillights
Rear turn signal lights Reverse lights
Parking lights
Front turn signal lights
Headlights (Low beam)
Headlights (High beam)
Courtesy lights
License plate lights
Side-marker lights
Taillights
The equipment and installation position varies according to model and grade.
8-30
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8U01-EA-05H_Edition2 Page282
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (289,1)
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new one of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-38).
Maintenance and Care
Owner Maintenance
8-37
Mazdaspeed6_8U01-EA-05H_Edition2 Page289
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (345,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R SAE
Headlights High beam 55 H1
―
Low beam 35 D2S ―
Front turn signal lights 27 ―#2357A
Parking lights 5 W5W ―
Fog lights 55 H11 H11
Side-marker lights 5 ――
High-mount brake light
*14 ――
Rear turn signal lights 21 WY21W ―
Brake lights/Taillights 21/5 W21/5W #7443
Taillights 5
*2W21/5W #7443
Reverse lights 18.4W16W #921
License plate lights 5W5W ―
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 Use a 21/5W type bulb.
Interior light
Light bulb Category
Wattage ECE R
Trunk light 3 ―
Overhead light/Map lights 5 W5W
Courtesy lights 5 W5W
Vanity mirror lights 1.2 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-26.
Standard tire Tire size Inflation pressure
Front Rear
215/45R18 93Y 260 kPa (38 psi) 260 kPa (38 psi)
Specifications
10-5
Mazdaspeed6_8U01-EA-05H_Edition2 Page345
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (349,1)
C
Courtesy Lights ................................. 6-40
Cruise Control ................................... 5-13
Cup Holder ........................................ 6-45
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-23
Daytime Running Lights ................... 5-37
DefrosterRear window .............................. 5-40
Dimensions ....................................... 10-4
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7 Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-11
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-18 DSC OFF indicator light ............ 5-19
DSC OFF switch ........................ 5-19
TCS/DSC Indicator light ............ 5-18
E
Emergency Starting ........................... 7-13Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-15
Exhaust gas .................................. 4-5
Hood release .............................. 3-44
Oil .............................................. 8-12
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant Overheating ................................ 7-11
Engine Coolant Temperature
Gauge ................................................ 5-22
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-43
F
Flasher Hazard warning .......................... 5-42
Headlights .................................. 5-36
Flat Tire ............................................... 7-3 Changing ...................................... 7-5
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-3
Owner maintenance ..................... 8-8
Fog Lights ......................................... 5-38
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-42
Gauge ......................................... 5-23
Requirements ............................... 4-2
Tank capacity ............................. 10-4
Index
11-3
Mazdaspeed6_8U01-EA-05H_Edition2 Page349
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (350,1)
F
Fuses ................................................. 8-36Panel description ........................ 8-38
Replacement ............................... 8-36
G
Glove Box ......................................... 6-48
H
Hazard Warning Flasher .................... 5-42
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-36
Flashing ...................................... 5-37
High-low beam .......................... 5-37
Leveling ..................................... 5-37
On reminder ............................... 5-36
Hood Release .................................... 3-44
Horn .................................................. 5-41
I
Ignition Keys ........................................... 3-20
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
Immobilizer System
(with Advanced Key) ........................ 3-47
Immobilizer System
(without Advanced Key) ................... 3-50
I
Indicator Lights ................................. 5-24 Cruise Main ................................ 5-34
Cruise set .................................... 5-34
DSC OFF .................................... 5-34
Headlight high-beam .................. 5-33
Security ...................................... 5-33
TCS/DSC ................................... 5-33
Turn-signal/hazard warning ....... 5-34
Information Display .......................... 6-41 Ambient temperature display ..... 6-42
Audio display ............................. 6-43
Climate control display .............. 6-43
Clock .......................................... 6-42
Information display functions .... 6-41
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-20
Interior Care ...................................... 8-46
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-14
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-38
Light Bulbs
Replacement ............................... 8-30
Specifications ............................. 10-5
Lighter ............................................... 6-43
Lighting Control ............................... 5-36
Lubricant Quality .............................. 10-3
11-4
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page350
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H
