Black plate (297,1)

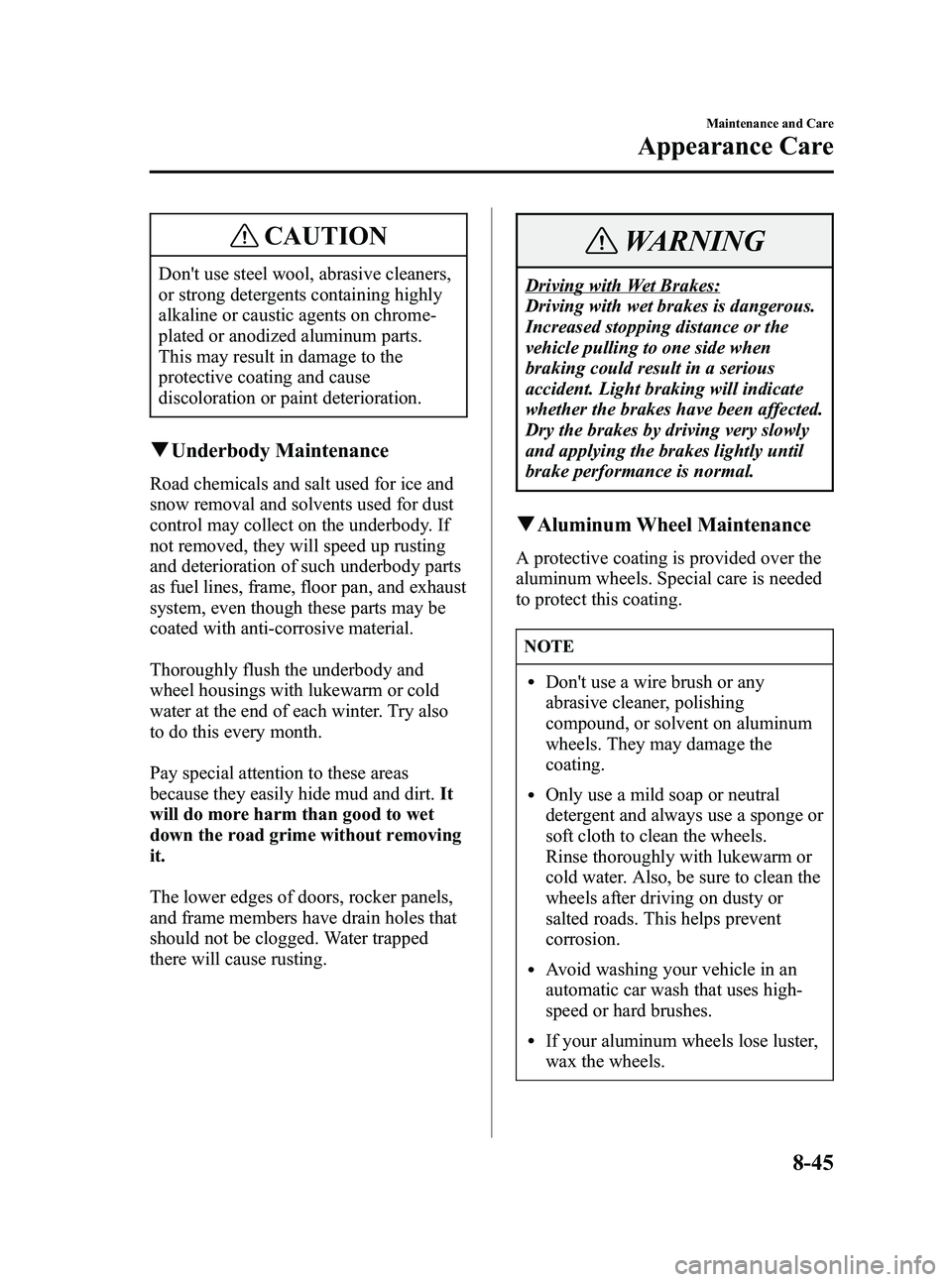

CAUTION
Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
q Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
Maintenance and Care
Appearance Care
8-45
Mazdaspeed6_8U01-EA-05H_Edition2 Page297
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (319,1)
11. Tread wear, traction and temperature grades
12. Max. permissible inflation pressure
13. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either
ETRTO (European Tire and Rim Technical Organization) or JATMA (Japan Tire
Manufacturing Association).
215
“215 ”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“ 65 ”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction ”.
15
“15 ”is the wheel rim diameter in inches.
95
“95 ”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-19
Mazdaspeed6_8U01-EA-05H_Edition2 Page319
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (348,1)
A
Accessory Socket .............................. 6-49
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Advanced KeyAdvanced key maintenance ......... 3-5
Auxiliary key .............................. 3-15
Keyless entry system .................. 3-13
Locking, unlocking with request
switch ........................................... 3-8
Operational range ......................... 3-7
Service ......................................... 3-6
Air Bag Systems ............................... 2-38
Air Filter ............................................ 8-21
All-Wheel Drive
(AWD) Operation .............................. 5-11 AWD Warning light ................... 5-11
Ambient Temperature Display .......... 6-42
Antenna ............................................. 6-10
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-7
Appearance Care ............................... 8-41
Ashtray .............................................. 6-44
Audio System ................................... 6-10 Audio control switch .................. 6-35
Audio set .................................... 6-21
Operating tips for audio
system ........................................ 6-10
Safety certification ..................... 6-37
B
BatteryEmergency starting .................... 7-13
Maintenance ............................... 8-24
Specifications ............................. 10-3
B
Beep soundsIgnition key reminder ................. 5-35
Lights-on reminder ..................... 5-35
Seat belt warning beep ............... 5-35
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-20
Bottle Holder ..................................... 6-46
Brake/Clutch Fluid ........................................... 8-18
Brakes Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-30
C
Capacities .......................................... 10-4
Carbon Monoxide ............................... 4-5
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Box ........................................ 6-47
Center Console .................................. 6-48
Child Restraint Installing child-restraint
systems ....................................... 2-27
LATCH child-restraint
systems ....................................... 2-34
Child Safety Locks for Rear Doors ... 3-29
Cigarette Lighter ............................... 6-43
Climate Control System ...................... 6-2 Gas specifications ...................... 10-4
Clock ................................................. 6-42
11-2
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page348
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (349,1)
C
Courtesy Lights ................................. 6-40
Cruise Control ................................... 5-13
Cup Holder ........................................ 6-45
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-23
Daytime Running Lights ................... 5-37
DefrosterRear window .............................. 5-40
Dimensions ....................................... 10-4
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7 Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-11
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-18 DSC OFF indicator light ............ 5-19
DSC OFF switch ........................ 5-19
TCS/DSC Indicator light ............ 5-18
E
Emergency Starting ........................... 7-13Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-15
Exhaust gas .................................. 4-5
Hood release .............................. 3-44
Oil .............................................. 8-12
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant Overheating ................................ 7-11
Engine Coolant Temperature
Gauge ................................................ 5-22
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-43
F
Flasher Hazard warning .......................... 5-42
Headlights .................................. 5-36
Flat Tire ............................................... 7-3 Changing ...................................... 7-5
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-3
Owner maintenance ..................... 8-8
Fog Lights ......................................... 5-38
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-42
Gauge ......................................... 5-23
Requirements ............................... 4-2
Tank capacity ............................. 10-4
Index
11-3
Mazdaspeed6_8U01-EA-05H_Edition2 Page349
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (350,1)
F
Fuses ................................................. 8-36Panel description ........................ 8-38
Replacement ............................... 8-36
G
Glove Box ......................................... 6-48
H
Hazard Warning Flasher .................... 5-42
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-36
Flashing ...................................... 5-37
High-low beam .......................... 5-37
Leveling ..................................... 5-37
On reminder ............................... 5-36
Hood Release .................................... 3-44
Horn .................................................. 5-41
I
Ignition Keys ........................................... 3-20
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
Immobilizer System
(with Advanced Key) ........................ 3-47
Immobilizer System
(without Advanced Key) ................... 3-50
I
Indicator Lights ................................. 5-24 Cruise Main ................................ 5-34
Cruise set .................................... 5-34
DSC OFF .................................... 5-34
Headlight high-beam .................. 5-33
Security ...................................... 5-33
TCS/DSC ................................... 5-33
Turn-signal/hazard warning ....... 5-34
Information Display .......................... 6-41 Ambient temperature display ..... 6-42
Audio display ............................. 6-43
Climate control display .............. 6-43
Clock .......................................... 6-42
Information display functions .... 6-41
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-20
Interior Care ...................................... 8-46
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-14
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-38
Light Bulbs
Replacement ............................... 8-30
Specifications ............................. 10-5
Lighter ............................................... 6-43
Lighting Control ............................... 5-36
Lubricant Quality .............................. 10-3
11-4
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page350
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (351,1)
M
MaintenanceIntroduction .................................. 8-2
Owner maintenance precautions ... 8-9
Owner maintenance schedule ....... 8-8
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-39
Mirrors Outside mirrors .......................... 3-55
Rearview mirror ......................... 3-56
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-45
O
Odometer and Trip Meter .................. 5-21
Outside Mirrors ................................. 3-55
Overhead Console ............................. 6-47
Overhead Lights ................................ 6-39
Overheating ....................................... 7-11
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-41
Parking Brake ..................................... 5-5
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-27
Power Steering .................................. 5-11 Fluid ........................................... 8-19
Power Windows ................................ 3-34
Push-Starting ..................................... 7-17
R
Rear Door Child Safety Locks .......... 3-29
Rear Seat ............................................. 2-9
R
Rear Window Defroster .................... 5-40
Rearview Mirror ................................ 3-56
Recreational Towing ......................... 7-21
Registering Your Vehicle in A Foreign
Country ............................................. 9-12
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-38
Seat Belt System Automatic locking ...................... 2-13
Belt minder ................................. 2-21
Center-rear lap/shoulder ............. 2-18
Emergency locking .................... 2-13
Except center-rear position ......... 2-14
Extender ..................................... 2-20
Pregnant women ........................ 2-12
Pretensioner and load limiting .... 2-16
Seat belt precautions .................. 2-11
Warning light/beep ..................... 2-21
Seats Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-9
Security System Immobilizer system
(with advanced key) ................... 3-47
Immobilizer system
(without advanced key) .............. 3-50
Theft-deterrent system ............... 3-53
Service Publications .......................... 9-40
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-3
Speedometer ...................................... 5-21
Index
11-5
Mazdaspeed6_8U01-EA-05H_Edition2 Page351
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (352,1)
S
SRS Air BagsHow the Air Bags Work ............. 2-46
Supplemental restraint systems
precautions ................................. 2-38
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-55 Horn ........................................... 5-41
Storage Compartments ...................... 6-47 Center box .................................. 6-47
Center console ............................ 6-48
Glove box ................................... 6-48
Overhead console ....................... 6-47
Storage pocket ............................ 6-47
Storage Pocket .................................. 6-47
Sunshade ........................................... 3-46
Sunvisors .......................................... 6-38
T
Tachometer ........................................ 5-22
Temporary Spare Tire ....................... 8-28
Theft-Deterrent System ..................... 3-53
Tiedown Hook .......................................... 7-19
Tire Information ................................ 9-18
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-26
Replacement ............................... 8-28
Rotation ...................................... 8-27
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-5
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-3
T
Towing Description ................................. 7-18
Emergency towing ..................... 7-18
Recreational towing ................... 7-21
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-17 TCS/DSC indicator light ............ 5-17
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-21
Trunk Lid .......................................... 3-29 Inside trunk release lever ............ 3-33
Trunk Light ....................................... 3-32
Turn and Lane-Change Signals ......... 5-38
V
Vanity Mirrors ................................... 6-38
Vehicle Information Labels ............... 10-2
W
Warning Light KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-31
11-6
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page352
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (353,1)

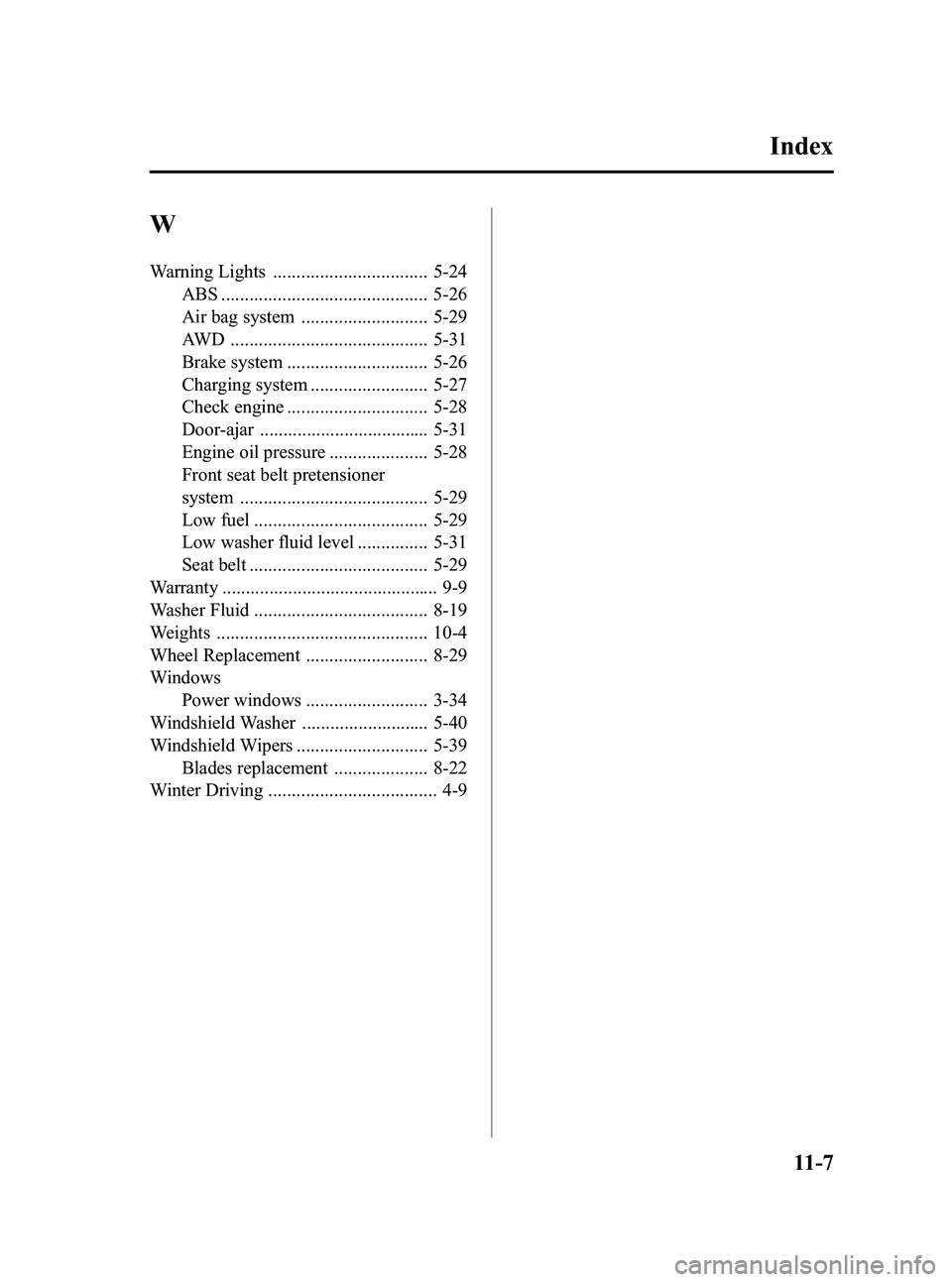

W
Warning Lights ................................. 5-24ABS ............................................ 5-26
Air bag system ........................... 5-29
AWD .......................................... 5-31
Brake system .............................. 5-26
Charging system ......................... 5-27
Check engine .............................. 5-28
Door-ajar .................................... 5-31
Engine oil pressure ..................... 5-28
Front seat belt pretensioner
system ........................................ 5-29
Low fuel ..................................... 5-29
Low washer fluid level ............... 5-31
Seat belt ...................................... 5-29
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-19
Weights ............................................. 10-4
Wheel Replacement .......................... 8-29
Windows
Power windows .......................... 3-34
Windshield Washer ........................... 5-40
Windshield Wipers ............................ 5-39 Blades replacement .................... 8-22
Winter Driving .................................... 4-9
Index
11-7
Mazdaspeed6_8U01-EA-05H_Edition2 Page353
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H
