engine oil MAZDA MODEL SPEED MX-5 MIATA 2004 User Guide

8-11
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn’ t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 11 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-12
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Engine Compartment Overview
Fuse blockEngine oil-filler cap Cooling system cap Power steering fluid filler cap/dipstick Air filterClutch fluid reservoir
(Only for manual
transmission model)
Automatic transmission fluid-level dipstick
(Only for automatic transmission model)
Engine oil dipstickBrake fluid reservoir
Washer fluid reservoir
(TypeA)
The battery is in the trunk
Engine coolant
reservoirWasher fluid reservoir (TypeB)
J07S_8T02-EA-03L_Edition1.book Page 12 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-13
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L

Recommended Oil
Oil container labels provide important
information.
The quality designation SG, SH, SJ,
SL,

or ILSAC
must be on the label.
Engine oil viscosity, or thickness, has an
effect on fuel economy and cold-weather
operation (starting and oil flow).
Low-viscosity engine oils can provide
improved fuel economy and cold-weather
performance.
But high-temperature weather conditions
require higher-viscosity engine oils for
satisfactory lubrication. When choosing an oil, consider the
temperature range your vehicle will
operate in before the next oil change.
Then select the recommended viscosity
from this chart.
Energy conserving oils are recommended.
A chief contribution they make to fuel
economy is reducing the amount of fuel
necessary to overcome engine friction.


Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and reinsert it fully.
Engine Oil
SAEFORGASOLINEENGINES10W-30
(ILSAC)
–30 –20–100 1020304050
–20 0 20 40 60 80 100 120
5W-30
10W-30
Using oils of viscosity besides those
recommended for specific temperature
ranges could result in engine damage.
CAUTION
Full
Low OK
J07S_8T02-EA-03L_Edition1.book Page 13 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-14
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
5. Pull it out again and examine the level.It’s OK between L and F.
But if it ’s near or below L, add enough
oil to bring the level to F.
6. Make sure the O-ring is positioned properly before reinserting the
dipstick.
The distance between L and F on the
dipstick represents the following:

Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly
—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information. Changing engine oil
1. Warm up the engine for a few minutes
and turn it off. Remove the oil-filler
cap.
2. Remove the drain plug and drain the oil into a suitable container.
3. Replace the drain plug washer after the oil has thoroughly drained.
4. Reinstall the plug tightly.
5. Fill the engine with new oil to the F mark on the dipstick.
6. Securely reinstall the oil-filler cap.
7. Start the engine and inspect around the drain plug for leaks.
8. Turn it off and wait 5 minutes for the oil to return to the oil pan.
Don
’t add engine oil over F. This may
cause engine damage.
L (US qt, Imp qt) 0.8 (0.85, 0.70)
Handling Used Engine Oil:
Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
CAUTION
WARNING
Checking or Changing Engine Oil:
Hot engine oil is dangerous. If the
engine has been running, the engine
oil becomes very hot. You could be
seriously burned. Don ’t check or
change the engine oil when the
engine is hot.
WARNING
Tighten
Loosen
Drain plug
J07S_8T02-EA-03L_Edition1.book Page 14 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-15
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Check the oil level and fill to the F mark if
necessary.
Oil capacity (General reference only,
refer to Specifications section for
capacities.)
Changing oil filter
Because you need a special tool to
retighten the filter, an Authorized Mazda
Dealer should do the work.

Inspecting Coolant Level
NOTE
• The indicated engine oil capacities
are for general reference purposes
only. When adding or changing oil,
verify the engine oil level with the
oil dipstick.
• Use only specified engine oil (page
10-4).
Engine Coolant
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in
the engine compartment. DO NOT
ADD COOLANT WHEN THE
ENGINE IS HOT.
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn ’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’ t remove the
cooling system cap when the engine
and radiator are hot.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 15 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-20
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L

Inspecting Power Steering Fluid
Level
Inspect the fluid level at each engine oil
change. Add fluid if necessary; it does not
require periodic changing.
The level must be kept between the H and
L marks.
Visually examine the lines and hoses for
leaks and damage.
1. Park on a level surface, well off the
right-of-way, and set the parking brake
firmly.
2. Turn off the engine and allow it to cool. 3. Remove the filler cap and attached
dipstick.
4. Wipe them clean and put them back.
5. Remove again and inspect the level.
6. It must be between H and L. Add fluid if necessary.
Don ’t overfill.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Power Steering Fluid
To avoid damage to the power steering
pump, don ’t operate the vehicle for
long periods when the power steering
fluid level is low.
NOTE
Use specified power steering fluid
(page 10-4).
CAUTION
Full
Low
OK
Loosen
Tighten
J07S_8T02-EA-03L_Edition1.book Page 20 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-23
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the engine hood
’s secondary
latch keeps the hood from opening when
the primary latch is released.
Type A
Type B
Body Lubrication
J07S_8T02-EA-03L_Edition1.book Page 23 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

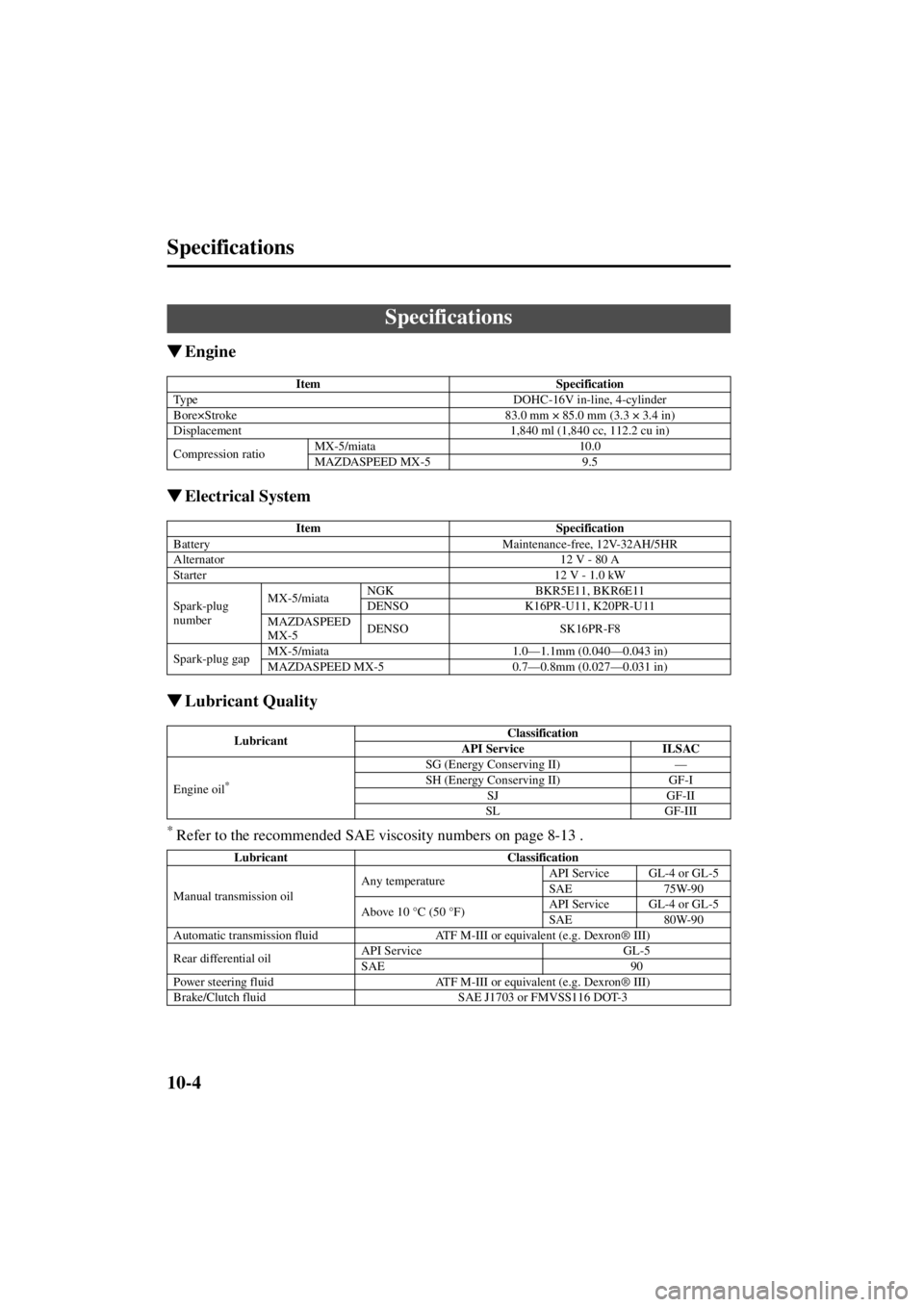

10-4
Form No. 8T02-EA-03L
Specifications

Engine

Electrical System

Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-13 .
Specifications
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore ×Stroke 83.0 mm × 85.0 mm (3.3 × 3.4 in)
Displacement 1,840 ml (1,840 cc, 112.2 cu in)
Compression ratio MX-5/miata
10.0
MAZDASPEED MX-5 9.5
Item Specification
Battery Maintenance-free, 12V-32AH/5HR
Alternator 12 V - 80 A
Starter 12 V - 1.0 kW
Spark-plug
number MX-5/miata
NGK
BKR5E11, BKR6E11
DENSO K16PR-U11, K20PR-U11
MAZDASPEED
MX-5 DENSO
SK16PR-F8
Spark-plug gap MX-5/miata
1.0—1.1mm (0.040 —0.043 in)
MAZDASPEED MX-5 0.7—0.8mm (0.027 —0.031 in)
Lubricant Classification
API Service ILSAC
Engine oil
*
SG (Energy Conserving II) —
SH (Energy Conserving II) GF-I
SJ GF-II
SL GF-III
Lubricant Classification
Manual transmission oil Any temperature
API Service GL-4 or GL-5
SAE
75W-90
Above 10 °C (50 °F) API Service GL-4 or GL-5
SAE
80W-90
Automatic transmission fluid ATF M-III or equivalent (e.g. Dexron® III)
Rear differential oil API Service
GL-5
SAE 90
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
J07S_8T02-EA-03L_Edition1.book Page 4 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

10-5
Specifications
Form No. 8T02-EA-03L

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
* With license plate holder

We i g h t s

Air Conditioner
Item Unit
L US qt Imp qt
Engine oil With oil filter
3.843.3
Without oil filter 3.63.8 3.2
Coolant MX-5/miata
6.06.3 5.3
MAZDASPEED MX-5 6.26.6 5.5
Manual transmission oil 5-Speed transmission
2.02.1 1.8
6-Speed transmission 1.81.9 1.6
Automatic transmission fluid 6.77.1 5.9
Rear differential oil MX-5/miata
1.01.1 0.9
MAZDASPEED MX-5 0.80.85 0.7
Fuel tank 48.012.7
(US gal) 10.6
(Imp gal)
Item Vehicle specification
Overall length MX-5/miata
3,945 mm (155.3 in), 3,963 mm (156.0 in)
*
MAZDASPEED MX-53,964 mm (156.1 in), 3,983 mm (156.8 in)*
Overall width 1,678 mm (66.1 in)
Overall height 1,228 mm (48.4 in)
Front tread 1,415 mm (55.7 in)
Rear tread 1,440 mm (56.7 in)
Wheelbase 2,265 mm (89.2 in)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,337 kg (2,948 lb)
GAWR (Gross Axle Weight Rating) Front
685 kg (1,510 lb)
Rear 675 kg (1,488 lb)
Gas complies with SAE J639 Maximum operating charge
HFC134a (R134a) 0.4 kg (14.1 oz)
J07S_8T02-EA-03L_Edition1.book Page 5 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

11-3
Index
Form No. 8T02-EA-03L
D
Door Locks ......................................... 3-7
Driving In Flooded Area
.................. 4-11
Driving Tips
....................................... 4-7
Automatic transmission
............ 5-14
Break-in period
........................... 4-7
Driving in flooded area
............. 4-11
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-8
Turbocharged vehicles
.............. 4-12
Winter driving
............................. 4-9
E
Emergency Starting .......................... 7-13
Flooded engine
.......................... 7-13
Jump-starting
............................ 7-13
Push-starting
............................. 7-15
Emergency Towing
.......................... 7-16
Emission Control System
................... 4-4
Engine Coolant
...................................... 8-15
Exhaust gas
................................. 4-5
Hood release
............................. 3-17
Oil
............................................. 8-13
Overheating
............................... 7-11
Starting
........................................ 5-3
Engine Compartment Overview
...... 8-12
Engine Coolant Overheating
............................... 7-11
Engine Coolant Temperature
Gauge
............................................... 5-20
Exhaust Gas
....................................... 4-5
Exterior Care
.................................... 8-42
F
Flasher Hazard warning
.........................5-36
Headlights
.................................5-31
Flat Tire
..............................................7-3
Changing
.....................................7-5
Spare tire and tool storage
...........7-3
Fluids Classification
.............................10-4
Owner maintenance
...................8-10
Fog Lights
........................................5-32
Foot Brake
..........................................5-4
Front seats
..........................................2-2
Fuel Filler lid and cap
.......................3-15
Gauge
........................................5-21
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-36
Panel description
.......................8-38
Replacement
..............................8-36
G
Gauges ..............................................5-18
Glove Box
........................................6-62
H
Hazard Warning Flasher ...................5-36
Hazardous Driving
.............................4-8
Headlights Control
......................................5-31
Flashing
.....................................5-31
High-low beam
..........................5-31
On reminder
..............................5-31
Hood Release
....................................3-17
Horn
..................................................5-35
J07S_8T02-EA-03L_Edition1.book Page 3 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
