Before Driving Your Mazda
Form No. 8T02-EA-03L
Before Starting the Engine
•Be sure the windows, outside mirrors,
and outside lights are clean.
• Inspect inflation pressures and
condition of tires.
• Look under the vehicle for any sign of
a leak.
• If you plan to back up, make sure
nothing will be in your way. •
Are all doors closed and locked?
• Is the seat adjusted properly?
• Are the inside and outside mirrors
adjusted?
• Is everyone’
s seat belt fastened?
• Do all the lights work?
• Check all gauges.
• Check all warning lights when the
ignition switch is turned to the ON
position.
• Release the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake/
clutch fluid, washer fluid, and other
fluid levels should be inspected. See
Maintenance, Section 8.
After Getting In
J07S_8T02-EA-03L_Edition1.book Page 6 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8T02-EA-03L
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
• Have the proper ratio of antifreeze in
the radiator.
• Inspect the battery and its cables. Cold
reduces battery capacity.
• Use only cold-weather engine oil
(page 8-13).
• Inspect the ignition system for damage
and loose connections.
• Use washer fluid made with
antifreeze—but don
’t use engine
coolant antifreeze for washer fluid
(page 8-22).
• Don
’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transmission and to 1 or R
with a manual transmission. Block the
rear wheels.

Snow Tires
Use snow tires on all four wheels
Don
’t go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm2, 4.3 psi)
more than recommended on the tire
pressure label (driver ’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Your vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, you may find it necessary
to replace the original equipment tires
with snow tires, during the winter months.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle ’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 9 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

4-12
Before Driving Your Mazda
Driving Tips
Form No. 8T02-EA-03L
The turbocharger greatly enhances engine power. Its advanced design provides better
operation and requires minimum additional maintenance. To get maximum performance
from your turbocharged engine, take note of the following tips:
•The turbocharged engine is designed for optimal operation with premium unleaded
gasoline (page 4-2). Do not use fuel with a lower octane rating. Extra fuel additives are
NOT recommended.
• Change the engine oil and filter using the turbo engine interval outlined in the
maintenance schedule (for your driving condition).
• Use only the recommended engine oil (page 8-13).Extra oil additives are NOT
recommended.
• After driving at freeway speeds or up a long hill, idle the engine at least 30 seconds to
cool the turbo. Avoid simply shutting the engine off abruptly after a hard or long drive.
Damage to the turbocharger may result.
• Don
’t race or over-rev the engine when starting. This should not be done with ANY
engine, especially not with one that ’s turbocharged.
• Do not add any aftermarket devices to alter the engine
’s ignition timing, fuel delivery, or
turbo boost pressure. This may lead to serious engine damage and may void your
warranty.
Turbocharger Information (MAZDASPEED MX-5)
J07S_8T02-EA-03L_Edition1.book Page 12 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-18
Driving Your Mazda
Form No. 8T02-EA-03L
Instrument Cluster and Indicators
1 Speedometer ............................................................................................................. 5-19
2 Odometer, Trip Meter and Selector .......................................................................... 5-19
3 Tachometer ............................................................................................................... 5-20
4 Engine Coolant Temperature Gauge ........................................................................ 5-20
5 Fuel Gauge ............................................................................................................... 5-21
6 Engine Oil Pressure Gauge ...................................................................................... 5-21
Meters and Gauges
J07S_8T02-EA-03L_Edition1.book Page 18 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-21
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8T02-EA-03L

Fuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.

Engine Oil Pressure Gauge
Engine oil pressure is normal when the
engine oil pressure gauge needle points
halfway between L and H with the engine
running.
If the needle on the gauge doesn
’t move
after starting the engine, follow steps 1
through 3. If the engine oil pressure gauge moves to
L (low) while you are driving, drive to the
side of the road and park off the right-of-
way. Set the parking brake. Then follow
steps 1 through 3.
1. Turn off the engine and inspect the
engine oil level (page 8-13). If it ’s low,
add oil.
2. Start the engine.
3. If the needle still doesn ’t move, have
your vehicle checked at an Authorized
Mazda Dealer.
Don ’t run the engine if the oil pressure
is low. It could result in extensive
engine damage.
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 21 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-1
Form No. 8T02-EA-03L
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction ................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-7
Owner Maintenance .................................................................... 8-10
Owner Maintenance Schedule ................................................. 8-10
Owner Maintenance Precautions ............................................. 8-11
Engine Compartment Overview .............................................. 8-12
Engine Oil ................................................................................ 8-13
Engine Coolant ........................................................................ 8-15
Brake Fluid .............................................................................. 8-18
Clutch Fluid ............................................................................. 8-19
Power Steering Fluid ............................................................... 8-20
Automatic Transmission Fluid (ATF) ...................................... 8-21
Washer Fluid ............................................................................ 8-22
Body Lubrication ..................................................................... 8-23
Air Filter .................................................................................. 8-24
Wiper Blades ........................................................................... 8-25
Battery ..................................................................................... 8-27
Tires ......................................................................................... 8-28
Light Bulbs .............................................................................. 8-32
Fuses ........................................................................................ 8-36
Appearance Care ......................................................................... 8-40
How to Minimize Environmental Paint Damage ..................... 8-40
Exterior Care ........................................................................... 8-42
Interior Care ............................................................................ 8-47
J07S_8T02-EA-03L_Edition1.book Page 1 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8T02-EA-03L

Schedule 1
I:
Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R: Replace
C: Clean
L: Lubricate
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
CHASSIS and BODY
* According to state / provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.Maintenance Interval
(Number of months or kilometers (miles),
whichever comes first) Months 6 12182430364248
× 1000 km 12 24 36 48 60 72 84 96
× 1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine valve clearance I
Engine timing belt Replace every 96,000km (60,000miles)
Drive belt (tension) II
Engine oil MX-5/miata
RRRRRRRR
MAZDASPEED MX-5 Replace every 8,000km (5,000miles) or 5 months
Engine oil filter MX-5/miata
RRRRRRRR
MAZDASPEED MX-5 Replace every 8,000km (5,000miles) or 5 months
Cooling system II
Engine coolant Replace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Idle speed II
Air filter CCRC
Fuel lines and hoses
*II
Hoses and tubes for emission
*I
Spark plugs MX-5/miata
RR
MAZDASPEED MX-5 Replace every 160,000km (100,000miles)
Brake lines, hoses and connections II
Disc brakes IIII
Tire (Rotation) Rotate every 12,000km (7,500miles)
Steering operation and linkages II
Manual transmission oil R
Rear differential oil R
Front and rear suspension ball joints II
Driveshaft dust boots II
Exhaust system and heat shields Inspect every 72,000km (45,000miles) or 60 months
All locks and hinges LLLLLLLL
J07S_8T02-EA-03L_Edition1.book Page 4 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8T02-EA-03L

Schedule 2
I:
Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R: Replace
C: Clean
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
ELECTRICAL SYSTEM
* According to state / provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.Maintenance Interval
(Number of months or kilometers (miles),
whichever comes first) Months 4 8 12 16 20 24 28 32 36 40 44 48
× 1000 km 8 1624324048566472808896
× 1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine valve clearance I
Engine timing belt Replace every 96,000km (60,000miles)
Drive belts (tension) II
Engine oil (Except Puerto Rico)MX-5/miataRRRRRRRRRRRR
MAZDASPEED MX-5 Replace every 5,000km (3,000miles) or 3 months
Engine oil (Puerto Rico) Replace every 5,000km (3,000miles) or 3 months
Engine oil filter MX-5/miata
RRRRRRRRRRRR
MAZDASPEED MX-5 Replace every 5,000km (3,000miles) or 3 months
Cooling system II
Engine coolant Replace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Engine coolant level IIIIIIIIIIII
Idle speed II
Air filter CCRC
Fuel lines and hoses
*II
Hoses and tubes for emission*I
Spark plugs MX-5/miata
RR
MAZDASPEED MX-5 Replace every 160,000km (100,000miles)
Function of all lights IIIIIIIIIIII
J07S_8T02-EA-03L_Edition1.book Page 5 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-8

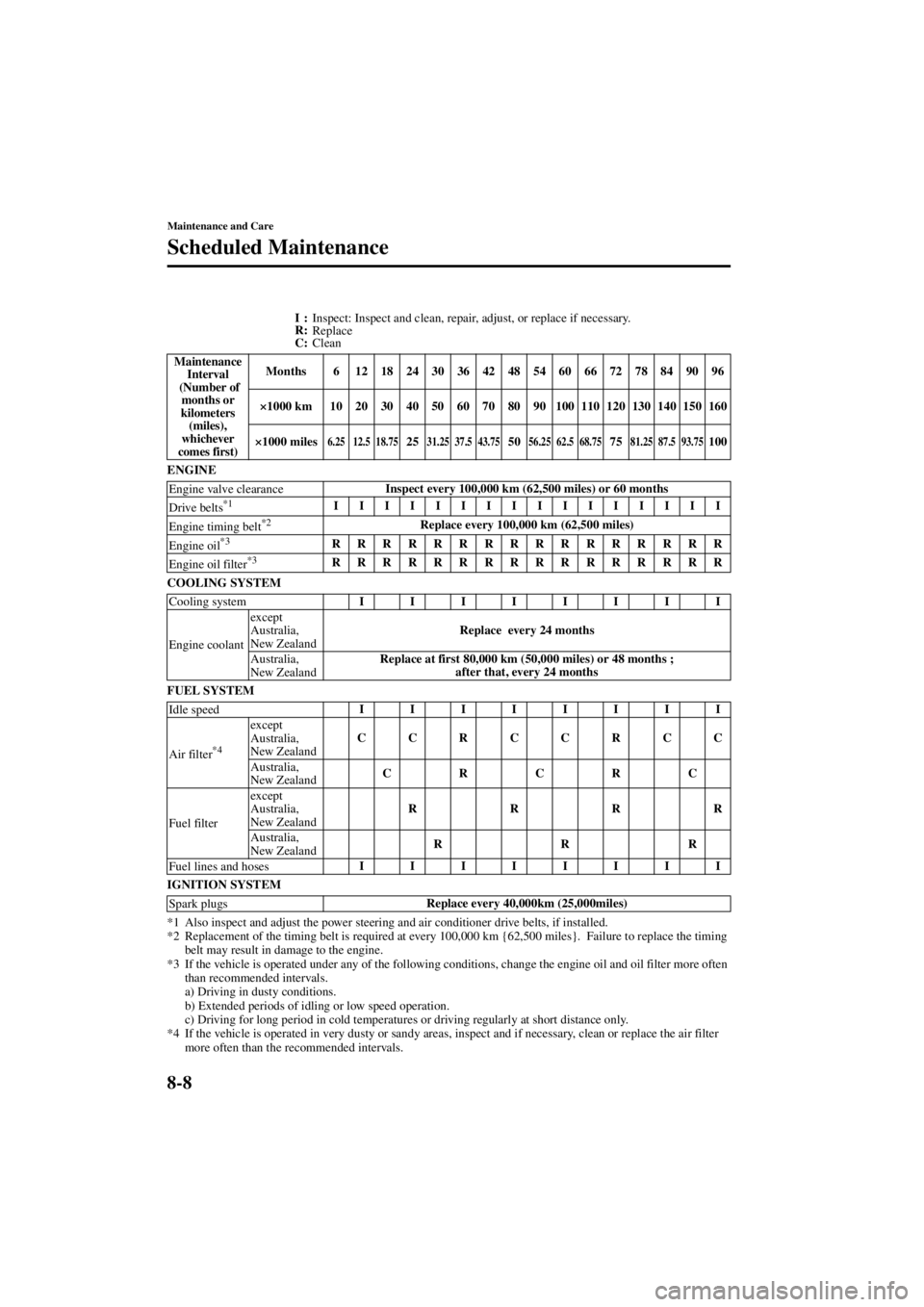

Maintenance and Care
Scheduled Maintenance
Form No. 8T02-EA-03L
I:Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R: Replace
C: Clean
ENGINE
COOLING SYSTEM
FUEL SYSTEM
IGNITION SYSTEM
*1 Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2 Replacement of the timing belt is required at every 100,000 km {62,500 miles}. Failure to replace the timing belt may result in damage to the engine.
*3 If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often than recommended intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*4 If the vehicle is operated in very dusty or sandy areas, inspect and if necessary, clean or replace the air filter more often than the recommended intervals.
Maintenance
Interval
(Number of
months or
kilometers (miles),
whichever
comes first) Months 6 121824303642485460667278849096
× 1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
× 1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
Engine valve clearance Inspect every 100,000 km (62,500 miles) or 60 months
Drive belts
*1IIIIIIIIIIIIIIII
Engine timing belt
*2Replace every 100,000 km (62,500 miles)
Engine oil*3RRRRRRRRRRRRRRRR
Engine oil filter*3RRRRRRRRRRRRRRRR
Cooling system IIIIIIII
Engine coolant except
Australia,
New Zealand
Replace every 24 months
Australia,
New Zealand Replace at first 80,000 km (50,000 miles) or 48 months ;
after that, every 24 months
Idle speed IIIIIIII
Air filter
*4
except
Australia,
New Zealand CCRCCRCC
Australia,
New Zealand CRCRC
Fuel filter except
Australia,
New Zealand
RRRR
Australia,
New Zealand RRR
Fuel lines and hoses IIIIIIII
Spark plugs Replace every 40,000km (25,000miles)
J07S_8T02-EA-03L_Edition1.book Page 8 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-10
Maintenance and Care
Form No. 8T02-EA-03L
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
• Brake and clutch fluid level (page 8-18)
• Engine coolant level (page 8-15)
• Engine oil level (page 8-13)
• Washer fluid level (page 8-22)


At Least Monthly
• Tire inflation pressures (page 8-28)


At Least Twice a Year (For Example, Every Spring and Fall)
• Automatic transmission fluid level (page 8-21)
• Power steering fluid level (page 8-20)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
• Air filter (page 8-24)
• Engine coolant (page 8-15)
• Engine oil (page 8-14)
Owner Maintenance Schedule
J07S_8T02-EA-03L_Edition1.book Page 10 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
