In Case of an Emergency
Flat Tire
Form No. 8T02-EA-03L
To remove the spare tire
Turn the tire hold-down bolt
counterclockwise with the lug wrench.If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
Lug wrench
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
•Steering becomes difficult.
• The vehicle begins to vibrate
excessively.
• The vehicle pulls in one direction.
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Ja ck :
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 5 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-6
In Case of an Emergency
Flat Tire
Form No. 8T02-EA-03L
1. Park on a level surface off the right-of-way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.

Removing a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don ’t remove any lug nuts until the tire
has been raised off the ground.
2. Place the jack under the jacking position closest to the tire being
changed.
NOTE
Make sure the jack is well lubricated
before using it.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
Jacking position
J07S_8T02-EA-03L_Edition1.book Page 6 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-7
In Case of an Emergency
Flat Tire
Form No. 8T02-EA-03L
3. Insert the jack handle into the jack.4. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning them counterclockwise; then remove the
wheel.
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn ’t designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
WARNING
Jack handle
J07S_8T02-EA-03L_Edition1.book Page 7 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-8
In Case of an Emergency
Flat Tire
Form No. 8T02-EA-03L

Locking Lug Nuts*
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’
s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don ’t use a power
impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.

Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the spare tire.
Antitheft lug nut Special key
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 8 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-9
In Case of an Emergency
Flat Tire
Form No. 8T02-EA-03L
3. Install the lug nuts with the beveled edge inward; tighten them by hand. 4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you ’re unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque:
Don ’t Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
WARNING
N ·m (kgf ·m, ft· lbf) 88— 118 (9—12, 65—87)
J07S_8T02-EA-03L_Edition1.book Page 9 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-10
In Case of an Emergency
Flat Tire
Form No. 8T02-EA-03L
5. Store the damaged tire in the trunk.Have the damaged tire repaired as soon
as possible.
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip
off and cause an accident. Be sure to
reinstall the same nuts you removed
or replace them with metric nuts of
the same configuration.
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don ’t drive with any tires that have
incorrect air pressure. When you
check the regular tires ’ air pressure,
check the spare tire, too.
NOTE
To prevent the jack and tool from
rattling, store them properly.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 10 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-11
In Case of an Emergency
Form No. 8T02-EA-03L
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
If the temperature gauge indicates
overheating:1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic transmission in park (P), a manual
transmission in neutral.
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don ’t go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
5. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
Overheating
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn ’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don ’t remove the
cooling system cap when the engine
and radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 11 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-12
In Case of an Emergency
Overheating
Form No. 8T02-EA-03L
6. When cool, check the coolant level.If it ’s low, look for coolant leaks from
the radiator and hoses.
If you find a leak or other damage,
or if coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-15).
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
Cooling system cap
Engine coolant
reservoir
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 12 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-13
In Case of an Emergency
Form No. 8T02-EA-03L
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and hold it there.
2. Turn the ignition switch to the START position and hold it there —for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it without depressing the accelerator —
for up to 10 seconds. The battery is in the trunk.
Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
Starting a Flooded EngineJump-Starting
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Frozen Battery:
Jump-starting a frozen battery is
dangerous. It may rupture or explode,
causing serious injury.
Don
’t jump-start a frozen battery .
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or
a 24 V motor generator set).
WARNING
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 13 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

7-14
In Case of an Emergency
Emergency Starting
Form No. 8T02-EA-03L

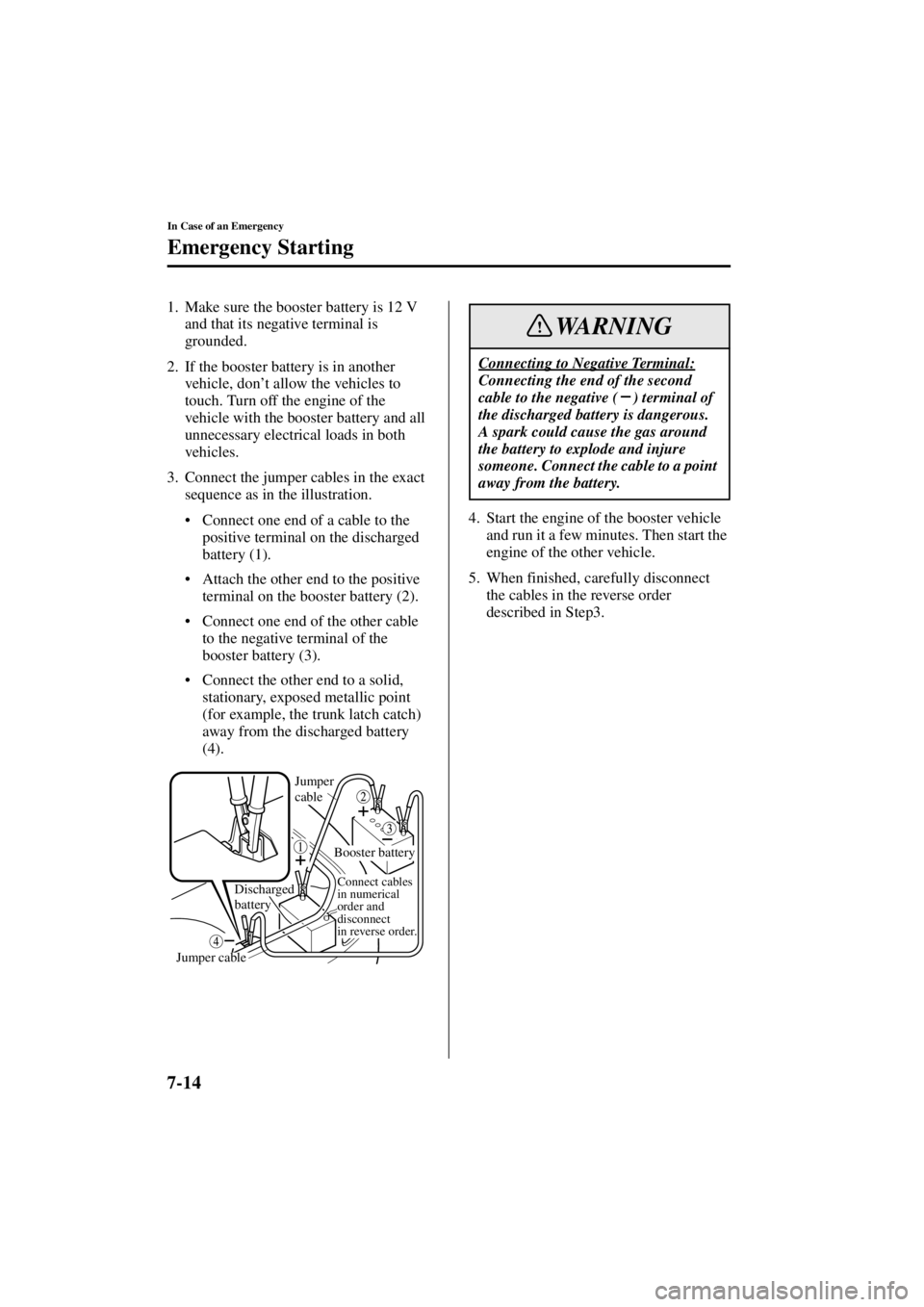

1. Make sure the booster battery is 12 V and that its negative terminal is
grounded.
2. If the booster battery is in another vehicle, don ’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact sequence as in the illustration.
Connect one end of a cable to the
positive terminal on the discharged
battery (1).
 Attach the other end to the positive
terminal on the booster battery (2).
 Connect one end of the other cable
to the negative terminal of the
booster battery (3).
 Connect the other end to a solid,
stationary, exposed metallic point
(for example, the trunk latch catch)
away from the discharged battery
(4). 4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect the cables in the reverse order
described in Step3.
Booster battery
Discharged
battery Jumper
cable
Connect cables
in numerical
order and
disconnect
in reverse order.
Jumper cable
Connecting to Negative Terminal:
Connecting the end of the second
cable to the negative ( ) terminal of
the discharged battery is dangerous.
A spark could cause the gas around
the battery to explode and injure
someone. Connect the cable to a point
away from the battery.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 14 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
