MAZDA MODEL SPEED MX-5 MIATA 2004 Repair Manual

3-23
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L

Detachable Hardtop Precautions
Detachable Hardtop*
Top latch assembly
Side latch assemblyRear deck latch
Rear deck stud
Rear window defroster coupler
Standing in a Moving Vehicle:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when it’ s moving is a
dangerous way to ride. During a
sudden maneuver or collision you
could be seriously injured or even
killed.
Sit in the seat with the seat belt on
when the vehicle is moving.
WARNINGHardtop and Rollover Accidents:
Rollover accidents on a hardtop
vehicle are dangerous. The hardtop is
not as strong as a regular steel roof.
Rollover accidents could dislodge or
crush the hardtop and cause serious
injuries or even death, just as with no
top or a soft top.
Always drive safely and observe the
speed limit.
WARNING
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 23 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-24
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L
•When removing the hardtop, make sure
the operation is performed by 2
persons.
• Before removing or installing the
hardtop, be sure you are parked out of
traffic in a flat area near the location
your top is to be stored.
• When removing the hardtop, make sure
objects inside the vehicle aren
’t blown
away by the wind.
• Secure all loose objects inside before
driving with the hardtop removed.
• Don
’t drive through an automatic car
wash; it may damage the hardtop.
• Don
’t remove or install the hardtop
when the wind is strong; the wind
could damage the hardtop.
• Before removing the hardtop, lower the
antenna.
• Removing the hardtop while it
’s wet
can cause water to drip into the
passenger compartment.

Removing the Detachable
Hardtop
1. Park the vehicle on a level surface and
firmly set the parking brake.
2. Lower the side windows, then turn off the ignition.
3. Pull down the sunvisors.
4. Push the unlock buttons and fully release the top latches.Fastening Mechanisms:
It is dangerous to place your hands or
fingers near the fastening
mechanisms. Your hands or fingers
could be caught and injured by the
mechanism. Always keep your hands
and fingers away from the fastening
mechanisms when moving the top.
WARNING
Sunvisor Sunvisor
Unlock button
Top latch
J07S_8T02-EA-03L_Edition1.book Page 24 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-25
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L
5. Push the unlock buttons and fully release the side latches.
6. Disconnect the rear window defroster coupler. 7. Slide the hardtop rearward while
pressing down on the rear deck latches
to unlock the latches.
8. Lift the hardtop straight off the body to prevent damage to the rear deck latches
and studs.
Unlock button
Side latch
Rear window defroster coupler
Windshield ’s Edges:
Not being careful of the windshield ’s
edges when getting into or out of the
vehicle is dangerous. The
windshield ’s edges could scratch and
cause injuries.
Be careful of the windshield ’s edges
when getting into or out of the
vehicle.
Rear deck latch
Hardtop
Rear deck stud
WARNING
J07S_8T02-EA-03L_Edition1.book Page 25 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-26
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L

Installing the Detachable
Hardtop
1. Park the vehicle on a level surface and
firmly set the parking brake.
2. Lower the side windows, then turn off the ignition.
3. Pull down the sunvisors.
•
Be careful not to strike the body
with any of the protruding hardtop
latches.
• Use extreme care when carrying the
hardtop to prevent scratching or
other damage to it.
NOTE
Points to remember when storing the
detachable hardtop.
•Do not place the hardtop on a hard
surface, such as concrete or asphalt.
Place it on a cushioning material,
such as an old blanket.
• Be sure the top and side latches are
locked.
• Do not lean the hardtop against a
wall or stand it in an unstable way.
• Store the hardtop in a dry clean
area, and cover it with a soft
material, such as an old blanket.
CAUTION
Do not attempt to install the hardtop
with the convertible top also up.
Lower the convertible top before
installing the hardtop, otherwise
damage will occur to the convertible
top.
NOTE
•Be sure to place the convertible top
latches in the locked position.
• Make sure the convertible top is
completely lowered before
installing the hardtop. Also confirm
that the rear window defroster
coupler is disconnected.
CAUTION
Sunvisor
Sunvisor
J07S_8T02-EA-03L_Edition1.book Page 26 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

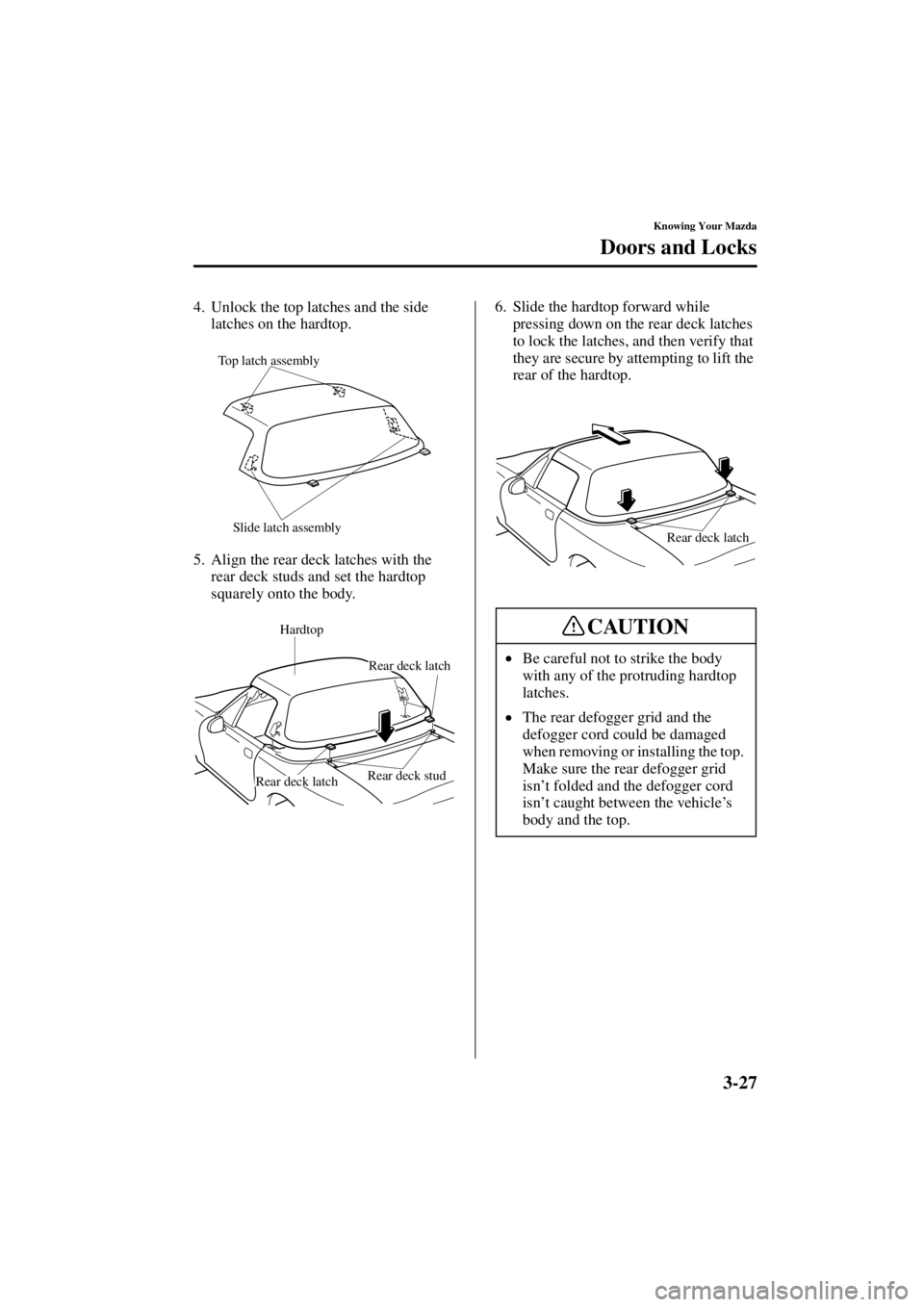

3-27
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L
4. Unlock the top latches and the side latches on the hardtop.
5. Align the rear deck latches with the rear deck studs and set the hardtop
squarely onto the body. 6. Slide the hardtop forward while
pressing down on the rear deck latches
to lock the latches, and then verify that
they are secure by attempting to lift the
rear of the hardtop.
Top latch assembly
Slide latch assembly
Rear deck stud
Hardtop Rear deck latch
Rear deck latch
• Be careful not to strike the body
with any of the protruding hardtop
latches.
• The rear defogger grid and the
defogger cord could be damaged
when removing or installing the top.
Make sure the rear defogger grid
isn
’t folded and the defogger cord
isn ’t caught between the vehicle ’s
body and the top.
Rear deck latch
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 27 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-28
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L
7. Push each top latch up with the palm of your hand until the lock buttons click
and the latches are locked.
8. Push each side latch down with the palm of your hand until the lock
buttons click and the latches are
locked. 9. Reconnect the rear window defroster
coupler.

Detachable Hardtop Appearance
Care
Refer to detachable hardtop maintenance
(page 8-46) for information on detachable
hardtop appearance care.
After installation, verify that all latches
are secure. Operating the vehicle with
unlocked latches may cause hardtop
damage or loss.
Side latch
CAUTION
NOTE
If the top rattles even when all latches
are secure, drive slowly and contact an
Authorized Mazda Dealer for
inspection.
Rear window defroster coupler
J07S_8T02-EA-03L_Edition1.book Page 28 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-29
Knowing Your Mazda
Form No. 8T02-EA-03L
Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System*
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user
’s authority to operate
the equipment.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
•When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not
being transmitted correctly.

A key ring rests on the key grip.
 Metal parts of other keys or
metal objects touch the key grip.
 Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or
come near the key grip.
 Devices for electronic purchases,
or security passage touch or
come near the key.
CAUTION
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 29 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-30
Knowing Your Mazda
Security System
Form No. 8T02-EA-03L

Immobilizer System Warning
Light
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
NOTE
• (U.S.A.)

This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2)
this device must accept any
interference received, including
interference that may cause
undesired operation.
• (CANADA)

This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may
cause undesired operation of the
device.
J07S_8T02-EA-03L_Edition1.book Page 30 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-31
Knowing Your Mazda
Security System
Form No. 8T02-EA-03L

Maintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system
’s operation if the system has been
modified or if any add-on equipment has
been installed to it.
NOTE
• If the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the
engine will not start.
• Signals from a TV or radio station,
or from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are
using the proper key and your
engine fails to start, check the
warning light. If it is flashing,
remove the ignition key and wait 2
seconds or more, then reinsert it and
try starting the engine again. If it
doesn
’t start after 3 or more tries,
contact an Authorized Mazda
Dealer.
• If the warning light flashes
continuously while you are driving,
don’
t shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the
engine while the light is flashing
you won ’t be able to restart it.
• Since the electronic codes are reset
when repairing the immobilizer
system, the keys are needed. Bring
all the existing keys to the
Authorized Mazda Dealer.
NOTE
•The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
• Always keep a spare key, in case
one is lost. If a key is lost, contact
an Authorized Mazda Dealer as
soon as possible.
• If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to the
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
CAUTION
J07S_8T02-EA-03L_Edition1.book Page 31 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-32
Knowing Your Mazda
Form No. 8T02-EA-03L
Mirrors

Outside Mirrors
Check the mirrors
’ angles before driving.
Power control mirror
The ignition switch must be in the ACC or
ON position.
To a d j u s t :
1. Move the selector switch to the left or right to choose the mirror.
2. Depress the mirror switch in the appropriate direction. Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.Mirrors
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
WARNING
Outside mirror
Selector switch
Mirror switch
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the
outside mirrors to the driving position
before you start driving.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 32 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
