bulb MAZDA MODEL SPEED MX-5 MIATA 2004 Owners Manual

3-12
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L

Trunk Light
The trunk light is on when the lid is open
and off when it's closed.
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don’t have such handles.
NOTE
• To prevent the battery from being
discharged, do not leave the trunk
open for a long period when the
engine is not running.
• The trunk and license plate lights
share the same light bulbs.
Inside Trunk Release
Handle
J07S_8T02-EA-03L_Edition1.book Page 12 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-30
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8T02-EA-03L

Turn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-32).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-36).

Seat Belt Warning Beep
If the driver
’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep sound will be heard
when any door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when any door is opened.
NOTE
If an indicator light remains
illuminated (does not flash) or if it
flashes abnormally, the turn signal bulb
may be burned out.
Beep Sounds
J07S_8T02-EA-03L_Edition1.book Page 30 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-32
Driving Your Mazda
Switches and Controls
Form No. 8T02-EA-03L

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes
— and hold it there. It
will return to the off position when
released. Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn the
headlight switch to the position.
Then press the fog light switch.
To turn the fog lights off:
(Type A)

Press the fog light switch again or turn the
headlight switch to the or OFF
position.
(Type B)
Press the left part of the fog light switch
or turn the headlight switch to the or
OFF position.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
change OFF
Fog Lights*
NOTE
The fog lights will turn off when the
headlights are set at high beam.
Type A
Type B
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 32 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-1
Form No. 8T02-EA-03L
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction ................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-7
Owner Maintenance .................................................................... 8-10
Owner Maintenance Schedule ................................................. 8-10
Owner Maintenance Precautions ............................................. 8-11
Engine Compartment Overview .............................................. 8-12
Engine Oil ................................................................................ 8-13
Engine Coolant ........................................................................ 8-15
Brake Fluid .............................................................................. 8-18
Clutch Fluid ............................................................................. 8-19
Power Steering Fluid ............................................................... 8-20
Automatic Transmission Fluid (ATF) ...................................... 8-21
Washer Fluid ............................................................................ 8-22
Body Lubrication ..................................................................... 8-23
Air Filter .................................................................................. 8-24
Wiper Blades ........................................................................... 8-25
Battery ..................................................................................... 8-27
Tires ......................................................................................... 8-28
Light Bulbs .............................................................................. 8-32
Fuses ........................................................................................ 8-36
Appearance Care ......................................................................... 8-40
How to Minimize Environmental Paint Damage ..................... 8-40
Exterior Care ........................................................................... 8-42
Interior Care ............................................................................ 8-47
J07S_8T02-EA-03L_Edition1.book Page 1 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-32
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Light Bulbs
Front turn signal lights/
Parking lights
Side-marker lights Overhead light
License plate lights/
Trunk lights
High-mount brake light
Rear turn signal lights Brake lights/Taillights Reverse lights
Headlights
Fog lights*
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 32 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

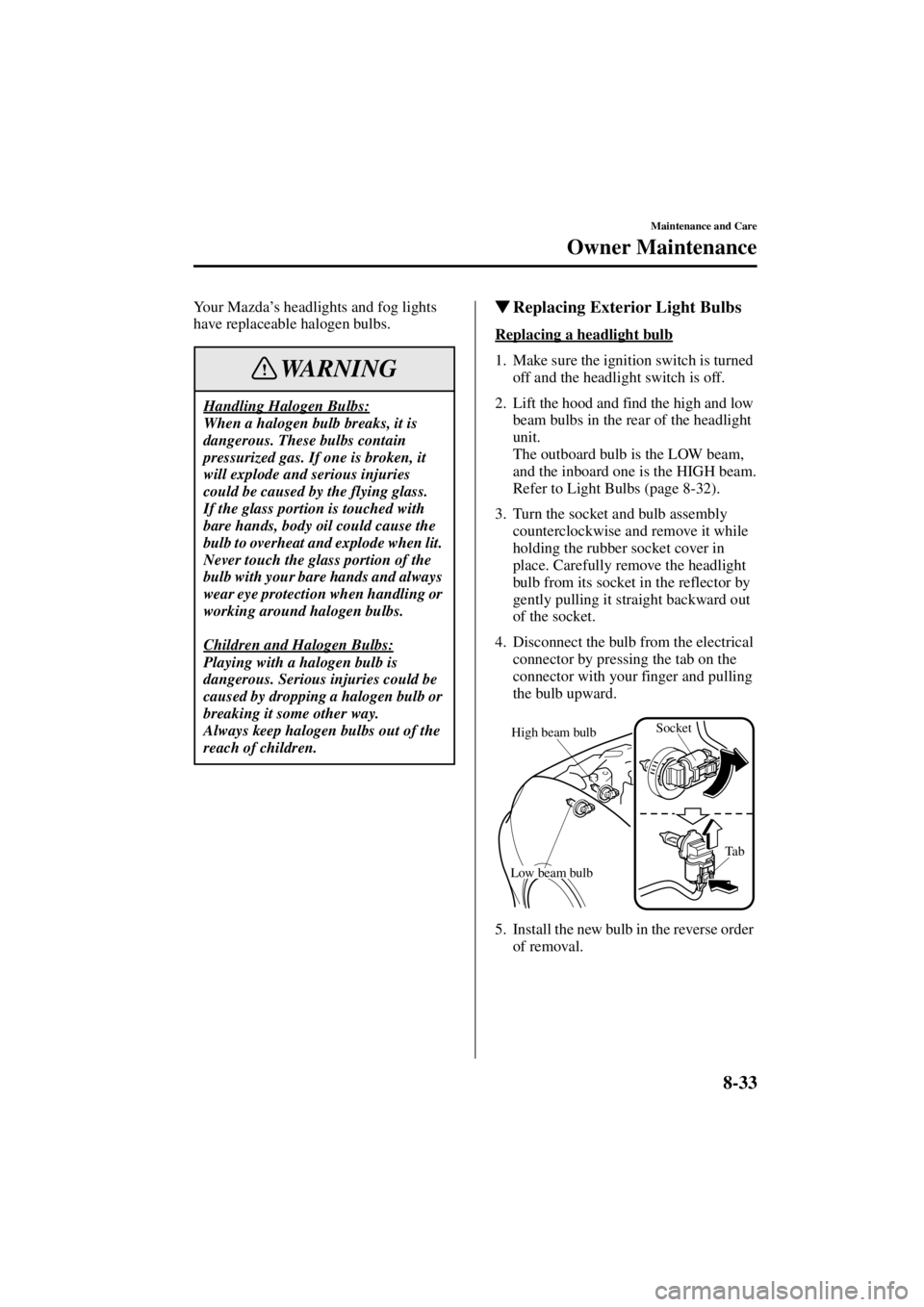

8-33
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Your Mazda’s headlights and fog lights
have replaceable halogen bulbs.
Replacing Exterior Light Bulbs
Replacing a headlight bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the high and low beam bulbs in the rear of the headlight
unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
Refer to Light Bulbs (page 8-32).
3. Turn the socket and bulb assembly counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order of removal.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
High beam bulb
Ta b
Low beam bulb
Socket
J07S_8T02-EA-03L_Edition1.book Page 33 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-34
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Replacing a fog light bulb*
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Front turn signal lights/Parking lights
1. Turn the socket and bulb assembly counterclockwise and remove it.
2. Remove the bulb by pushing it in slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse order of removal. Side-marker lights
1. Remove the bolts with a Phillips
screwdriver and remove the side-
marker light unit.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.NOTE
Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Socket
Socket
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 34 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-35
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Brake lights/Taillights, Rear turn signal
lights, Reverse lights
1. Pull the center section of the plastic retainer and remove the retainers and
remove the trunk end trim.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal. High-mount brake light
1. Turn the socket and bulb assembly
counterclockwise and remove it.
2. Remove the bulb by pushing it in slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse order of removal.
License plate lights/Trunk lights
1. Slide the unit as shown in the figure to remove it.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Trunk end trim
Removal
Installation
Rear turn signal lights
Brake lights/Taillights
Reverse lights
Socket
Socket
Socket
J07S_8T02-EA-03L_Edition1.book Page 35 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-36
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
4. Install the new bulb in the reverse order of removal.

Replacing Interior Light Bulbs
Overhead light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the cover.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal. Yo u r v e h i c l e
’s electrical system is
protected by fuses.
If any lights, accessories, or controls don ’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn
’t work, first
inspect fuses on the driver ’s side.
1. Turn off the ignition switch and other switches.
2. Open the fuse panel cover.
Edge
Fuses
Fuse panel cover
J07S_8T02-EA-03L_Edition1.book Page 36 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

10-6
Specifications
Form No. 8T02-EA-03L

Light Bulbs
Exterior light
Interior light

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-28
Standard tire
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-36
Light bulb
WattageCategory
ECE R SAE
Headlights High beam
60HB3 —
Low beam 51HB4 —
Front turn signal lights/Parking lights 27/8—#1157NA
Fog lights
*55 H11 —
Side-marker lights 3.8—#194
Rear turn signal lights 21 WY21W—
Brake lights/Taillights 21/5 W21/5W #7443
High-mount brake light 21 P21W—
Reverse lights 21 W21W #7440
License plate lights/Trunk lights 5W5W —
Light bulb Wattage
Overhead light 8
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Tire sizeInflation pressure
Front Rear
195/50 R15 82V 180 kPa (1.8 kgf/cm
2, 26 psi) 180 kPa (1.8 kgf/cm2, 26 psi)
205/45 R16 83W
205/40 R17 80W 200 kPa (2.0 kgf/cm
2, 29 psi) 220 kPa (2.2 kgf/cm2, 32 psi)
Tire size Inflation pressure
T115/70 D14 88M 420 kPa (4.2 kgf/cm
2, 60 psi)
T105/70 D15 85M 420 kPa (4.2 kgf/cm2, 60 psi)
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 6 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
