Page 1 of 272
Introduction 4
Instrument Cluster 14
Warning and control lights 14
Gauges 19
Entertainment Systems 21
AM/FM stereo with single CD 21
AM/FM stereo with in-dash six CD 25
Climate Controls 31
Manual heating and air conditioning 31
Lights 33
Headlamps 33
Turn signal control 37
Bulb replacement 38
Driver Controls 43
Windshield wiper/washer control 43
Steering wheel adjustment 45
Power windows 48
Mirrors 50
Speed control 51
Locks and Security 58
Keys 58
Locks 58
Anti-theft system 65
Table of Contents
1
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Table of Contents
Page 12 of 272
Instrument cluster
(pg. 14)Windshield wiper/washer
control
(pg. 43)
Driver air bag
(pg. 93) Speed controls*
(pg. 51)
Instrument panel
dimmer/dome light
control
(pg. 35)
Hood release handle
(pg. 223) Power mirror control*
(pg. 50)Headlamp and turn
signal control
(pg. 33)
Manual tilt steering
column lever
(pg. 45)
* if equipped
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Instrument Cluster
12

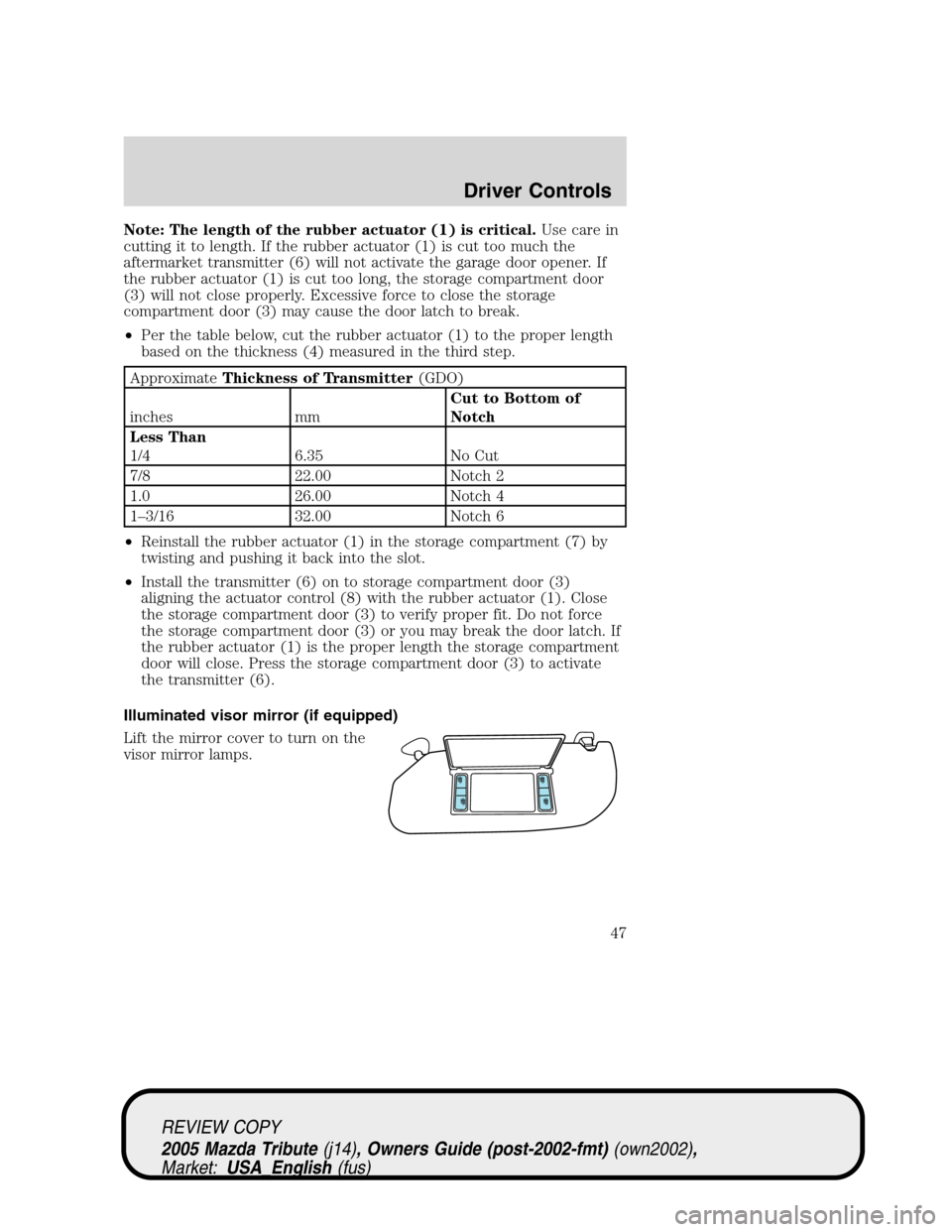

Page 47 of 272
Note: The length of the rubber actuator (1) is critical.Use care in
cutting it to length. If the rubber actuator (1) is cut too much the
aftermarket transmitter (6) will not activate the garage door opener. If
the rubber actuator (1) is cut too long, the storage compartment door
(3) will not close properly. Excessive force to close the storage
compartment door (3) may cause the door latch to break.
•Per the table below, cut the rubber actuator (1) to the proper length
based on the thickness (4) measured in the third step.
ApproximateThickness of Transmitter(GDO)
inches mmCut to Bottom of
Notch
Less Than
1/4 6.35 No Cut
7/8 22.00 Notch 2
1.0 26.00 Notch 4
1–3/16 32.00 Notch 6
•Reinstall the rubber actuator (1) in the storage compartment (7) by
twisting and pushing it back into the slot.
•Install the transmitter (6) on to storage compartment door (3)
aligning the actuator control (8) with the rubber actuator (1). Close
the storage compartment door (3) to verify proper fit. Do not force
the storage compartment door (3) or you may break the door latch. If
the rubber actuator (1) is the proper length the storage compartment
door will close. Press the storage compartment door (3) to activate
the transmitter (6).
Illuminated visor mirror (if equipped)
Lift the mirror cover to turn on the
visor mirror lamps.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
47
Page 50 of 272
WARNING: Do not leave children unattended in the vehicle and
do not let children play with the power windows or moon roof.
They may seriously injure themselves.
MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control, located on
the instrument panel left of the
steering wheel, clockwise to
adjust the right mirror and
rotate the control
counterclockwise to adjust the
left mirror.
2. Move the control in the
direction you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
REVIEW COPY
2005 Mazda Tribute(j14), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
50
