MAZDA MODEL TRIBUTE 2006 Owners Manual (in English)

Disposal of airbags and airbag equipped vehicles
For disposal of safety belt pretensioners, airbags, or airbag equipped
vehicles, see your authorized Mazda dealership. Airbags MUST BE
disposed of by qualified personnel.
WARNING: Disposing of an airbag can be dangerous. Unless all
safety procedures are followed, injury can result. Ask an
Authorized Mazda dealer how to safely dispose of an airbag or
how to scrap an airbag equipped vehicle.
SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to properly use safety
restraints for children. Also seeAirbag supplemental restraint system
(SRS)in this chapter for special instructions about using airbags.
Important child restraint precautions
NOTE:You are required to use safety restraints for children in the U.S.
and Canada. Check your local and state or provincial laws for specific
requirements regarding the safety of children in your vehicle.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
NOTE:Always follow the instructions and warnings that come with any
infant or child restraint you might use.
WARNING: When possible, always place children under age 12
in the rear seat of your vehicle. Accident statistics suggest that
children are safer when properly restrained in the rear seating
positions than in the front seating position.
Children and safety belts
If the child is the proper size, restrain the child in a safety seat.
A child that outgrows a child seat should then be put on a booster seat
which utilize the three point seat belts. A child that outgrows the booster
seat should of course wear still wear the three point seat belts and follow
all the important safety restraint and airbag precautions that apply to
adult passengers in your vehicle.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
111

If the shoulder belt portion of a combination lap and shoulder belt can
be positioned so it does not cross or rest in front of the child’s face or
neck, the child should wear the lap and shoulder belt. Moving the child
closer to the center of the vehicle may help provide a good shoulder belt
fit.
WARNING: Do not leave children, unreliable adults, or pets
unattended in your vehicle.
WARNING: Placing a child, 12 years or younger, in the front
seat is dangerous. The child could be hit by a deploying airbag
and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side airbag in a
moderate collision. Whenever possible, always secure a child, 12
years or younger, in the rear seat, with an appropriate child
restraint system for the child’s age and size. Never use a
rear-facing child restraint system in the front seat with an
airbag that could deploy.
Child booster seats
Children outgrow a typical convertible or toddler seat when they weigh
40 pounds and are around 4 years of age. Although the lap/shoulder belt
will provide some protection, these children are still too small for
lap/shoulder belts to fit properly, which could increase the risk of serious
injury.
To improve the fit of both the lap and shoulder belt on children who
have outgrown child safety seats, Mazda recommends use of a
belt-positioning booster seat.
Booster seats position a child so that safety belts fit better. They lift the
child up so that the lap belt rests low across the hips and the knees
bend comfortably. Booster seats also make the shoulder belt fit better
and more comfortably for growing children.
When children should use booster seats
Children need to use booster seats from the time they outgrow the
toddler seat until they are big enough for the vehicle seat and
lap/shoulder belt to fit properly. Generally this is when they weigh about
80 lb. (about 8 to 12 years old).
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
112

Booster seats should be used until you can answer YES to ALL of these
questions:
•Can the child sit all the way back
against the vehicle seat back with
knees bent comfortably at the
edge of the seat without
slouching?
•Does the lap belt rest low across the hips?
•Is the shoulder belt centered on the shoulder and chest?
•Can the child stay seated like this for the whole trip?
WARNING: Booster seats must be installed only in seating
positions equipped with a combination lap/shoulder belt.
Types of booster seats
There are two types of belt-positioning booster seats:
•Those that are backless.
If your backless booster seat has a
removable shield, remove the
shield and use the lap/shoulder
belt. If a seating position has a
low seat back and no head
restraint, a backless booster seat
may place your child’s head (top
of ear level) above the top of the
seat. In this case, use a
high-backed booster seat.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
113

•Those with a high back.
If, with a backless booster seat,
you cannot find a seating position
that adequately supports your
child’s head, a high back booster
seat would be a better choice.
Both can be used in any vehicle in a seating position equipped with
lap/shoulder belts if your child is over 40 lb.
Children and booster seats vary widely in size and shape. Choose a
booster that keeps the lap belt low and snug across the hips, never up
across the stomach, and lets you adjust the shoulder belt to cross the
chest and rest snugly near the center of the shoulder. The drawings
below compare the ideal fit (center) to a shoulder belt uncomfortably
close to the neck and a shoulder belt that could slip off the shoulder.
If the booster seat slides on the vehicle seat, placing a rubberized mesh
sold as shelf or carpet liner under the booster seat may improve this
condition.
The importance of shoulder belts
Using a booster without a shoulder belt increases the risk of a child’s
head hitting a hard surface in a collision. For this reason, you should
never use a booster seat with a lap belt only. It is best to use a booster
seat with lap/shoulder belts in the back seat- the safest place for children
to ride.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
114

WARNING: Follow all instructions provided by the
manufacturer of the booster seat.
WARNING: Never put the shoulder belt under a child’s arm or
behind the back because it eliminates the protection for the
upper part of the body and may increase the risk of injury or
death in a collision.
WARNING: Never use pillows, books, or towels to boost a
child. They can slide around and increase the likelihood of
injury or death in a collision.
SAFETY SEATS FOR CHILDREN
Child and infant or child safety seats
Use a safety seat that is recommended for the size and weight of the
child. Carefully follow all of the manufacturer’s instructions with the
safety seat you put in your vehicle. If you do not install and use the
safety seat properly, the child may be injured in a sudden stop or
collision.
When installing a child safety seat:
•Review and follow the information
presented in theAirbag
Supplemental Restraint System
section in this chapter.
•Use the correct safety belt buckle
for that seating position (the
buckle closest to the direction the
tongue is coming from).
•Insert the belt tongue into the
proper buckle until you hear a
snap and feel it latch. Make sure the tongue is securely fastened in the
buckle.
•Keep the buckle release button pointing up and away from the safety
seat, with the tongue between the child seat and the release button,
to prevent accidental unbuckling.
•Place seat back in upright position.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
115

•Put the safety belt in the automatic locking mode. Refer toAutomatic
locking mode.
Mazda recommends the use of a child safety seat having a top tether
strap. Install the child safety seat in a seating position which is capable
of providing a tether anchorage. For more information on top tether
straps, refer toAttaching child safety seats with tether straps.
WARNING: Carefully follow all of the manufacturer’s
instructions included with the safety seat you put in your
vehicle. If you do not install and use the safety seat properly,
the child may be injured in a sudden stop or collision.
The rear seat head restraint must be removed when using a child
seat.
WARNING: Air bags can kill or injure a child in a child seat.
NEVER place a rear-facing child seat in front of an active air
bag. If you must use a forward-facing child seat in the front
seat, move the seat all the way back.
1. Position the child safety seat in
a seat with a combination lap
and shoulder belt.
WARNING: Children 12 and under should be properly
restrained in the rear seat whenever possible.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
116

2. Pull down on the shoulder belt
and then grasp the shoulder
belt and lap belt together.
3. While holding the shoulder and
lap belt portions together, route
the tongue through the child
seat according to the child seat
manufacturer’s instructions. Be
sure the belt webbing is not
twisted.
4. Insert the belt tongue into the
proper buckle (the buckle
closest to the direction the
tongue is coming from) for that
seating position until you hear a
snap and feel the latch engage.
Make sure the tongue is latched
securely by pulling on it.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
117

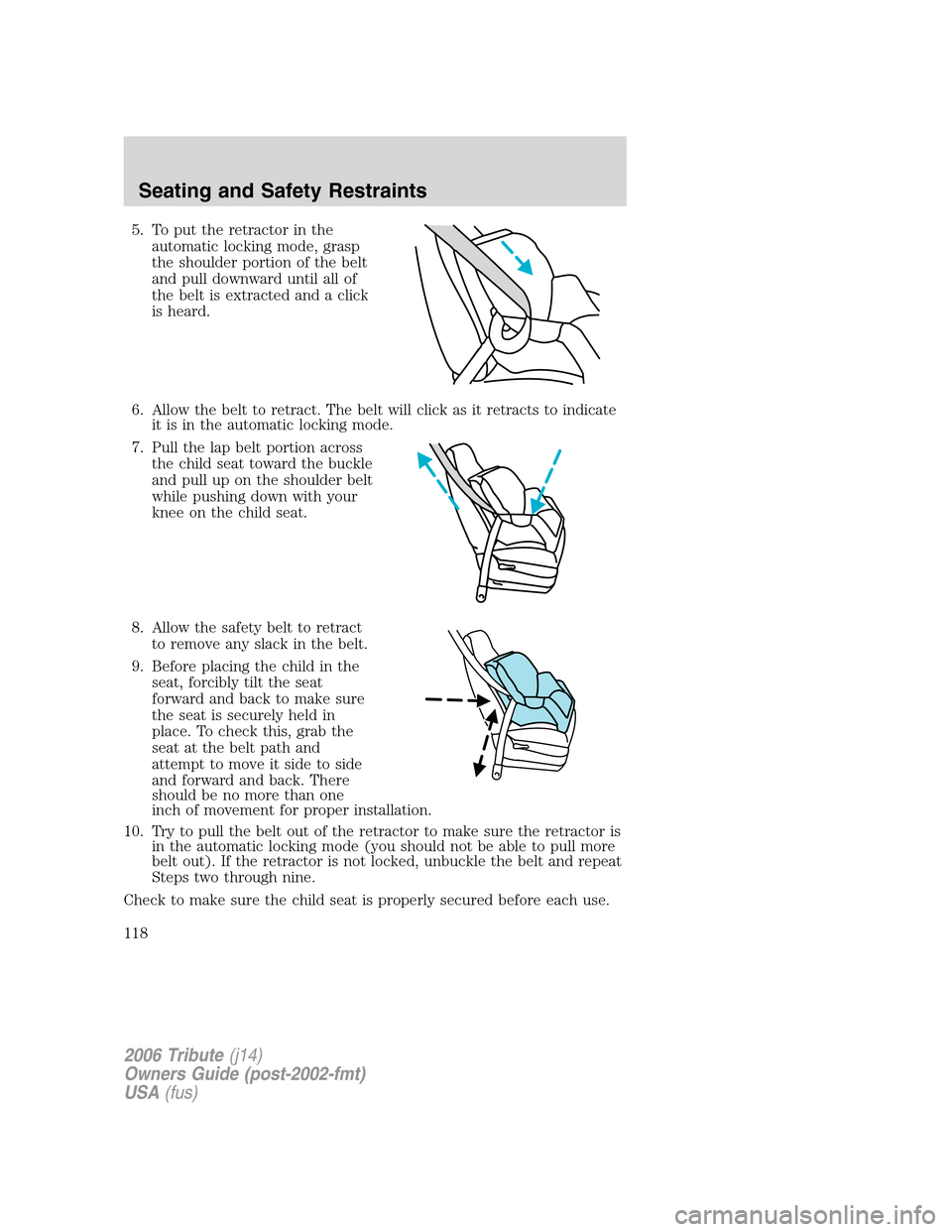

5. To put the retractor in the
automatic locking mode, grasp
the shoulder portion of the belt
and pull downward until all of
the belt is extracted and a click
is heard.
6. Allow the belt to retract. The belt will click as it retracts to indicate
it is in the automatic locking mode.
7. Pull the lap belt portion across
the child seat toward the buckle
and pull up on the shoulder belt
while pushing down with your
knee on the child seat.
8. Allow the safety belt to retract
to remove any slack in the belt.
9. Before placing the child in the
seat, forcibly tilt the seat
forward and back to make sure
the seat is securely held in
place. To check this, grab the
seat at the belt path and
attempt to move it side to side
and forward and back. There
should be no more than one
inch of movement for proper installation.
10. Try to pull the belt out of the retractor to make sure the retractor is
in the automatic locking mode (you should not be able to pull more
belt out). If the retractor is not locked, unbuckle the belt and repeat
Steps two through nine.
Check to make sure the child seat is properly secured before each use.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
118

Attaching child safety seats with tether straps
Most new forward-facing child safety seats include a tether strap which
goes over the back of the seat and hooks to an anchoring point. Tether
straps are available as an accessory for many older safety seats. Contact
the manufacturer of your child seat for information about ordering a
tether strap.
The rear seating positions of your vehicle are equipped with built-in
tether strap anchors located behind the seats as described below.
The tether anchors in your vehicle are located on the roof panel in the
cargo area.
The tether strap anchors in your vehicle are in the following positions:
WARNING: Attach the tether
strap only to the appropriate
tether anchor as shown. The
tether strap may not work
properly if attached
somewhere other than the
correct tether anchor.
1. Position the child safety seat on the passenger seat cushion.
2. Route the child safety seat tether strap over the back of the seat.
NOTE:For vehicles with adjustable head restraints, route the tether
strap under the head restraint and between the head restraint posts,
otherwise route the tether strap over the top of the seatback.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
119

3. Locate the correct anchor for
the selected seating position.
NOTE:There are three tether
anchors located on the headliner at
the rear of the vehicle.
WARNING: If the tether strap
is clipped incorrectly, the child
safety seat may not be
retained properly in the event
of a collision. If the safety seat
is not anchored properly, the
risk of a child being injured in
a collision greatly increases.
4. Clip the tether strap to the
anchor as shown.
The arrow in the above graphic
points toward the front of the
vehicle.
5. Refer to theInstalling child
safety seats in combination
lap and shoulder belt seating
positionssection of this chapter
for further instructions to
secure the child safety seat.
6. Tighten the child safety seat
tether strap according to the
manufacturer’s instructions.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
120
