Instrument Cluster
11

Instrument cluster
(pg. 14)Windshield wiper/washer
control
(pg. 45)
Driver air bag
(pg. 95) Speed controls*
(pg. 51)
Instrument panel
dimmer/dome light
control
(pg. 36)
Hood release handle
(pg. 236) Power mirror control*
(pg. 50)Headlamp and turn
signal control
(pg. 34)
Manual tilt steering
column lever
(pg. 46)
* if equipped
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
12

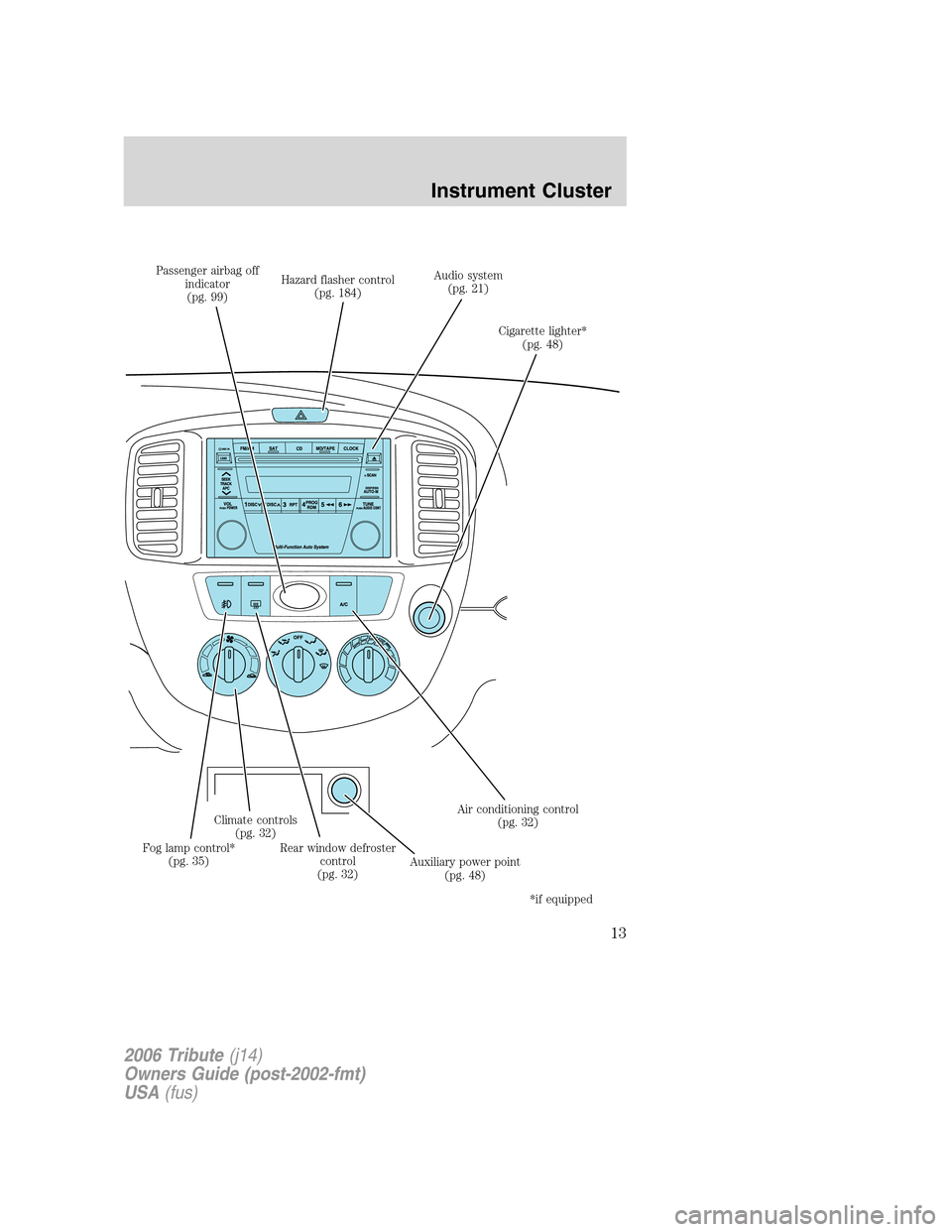

Passenger airbag off
indicator
(pg. 99)Hazard flasher control
(pg. 184)Audio system
(pg. 21)
Cigarette lighter*
(pg. 48)
Fog lamp control*
(pg. 35)Climate controls
(pg. 32)
Rear window defroster
control
(pg. 32)Auxiliary power point
(pg. 48)Air conditioning control
(pg. 32)
*if equipped
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
13

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:Your vehicle
is equipped with a computer that
monitors the engine’s emission
control system. This system is
commonly known as the On Board Diagnostics System (OBD II). The
OBD II system protects the environment by ensuring that your vehicle
continues to meet government emission standards. The OBD II system
also assists the service technician in properly servicing your vehicle.
The
indicator light illuminates when the ignition is first turned to
the RUN position to check the bulb. If it comes on after the engine is
started, one of the engine’s emission control systems may be
malfunctioning. The light may illuminate without a driveability concern
being noted. The vehicle will usually be drivable and will not require
towing.
What you should do if the
light illuminates
Light turns on (without blinking):
This means that the OBD II system has detected a malfunction.
Temporary malfunctions may cause your
light to illuminate.
Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14

2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely
tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with high quality fuel of the recommended octane and/or properly
installing and securely tightening the fuel cap. After three driving cycles
without these or any other temporary malfunctions present, the
light should turn off. (A driving cycle consists of a cold engine startup
followed by mixed city/highway driving.) No additional vehicle service is
required.
If the
light remains on, have your vehicle serviced at the first
available opportunity.
Note:The
light will illuminate if vehicle refueling is conducted
with the engine running.
WARNING: Never refuel vehicle with the engine running.
Light is blinking:
Engine misfire is occurring which could damage your catalytic converter.
You should drive in a moderate fashion (avoid heavy acceleration and
deceleration) and have your vehicle serviced at the first available
opportunity.
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components,
possibly causing a fire.
Check fuel cap:Momentarily
illuminates when the ignition is
turned to the ON position to ensure
your bulb is working. When the light
stays on, check the fuel filler cap. Continuing to operate the vehicle with
the check fuel cap light on, can activate the
warning light. When
the fuel filler cap is properly re-installed, the light(s) will turn off after a
period of normal driving. This period will vary depending on driving
conditions.
CHECK
FUEL CAP
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
15

It may take a long period of time for the system to detect an
improperly installed fuel filler cap.
For more information, refer toFuel filler capin theMaintenance and
Specificationschapter.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from an authorized Mazda dealer.
Illumination after releasing the parking brake indicates low brake fluid
level and the brake system should be inspected immediately by an
authorized Mazda dealer.
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the
vehicle. Have the vehicle checked immediately by an authorized
Mazda dealer.
Anti-lock brake system (ABS):If
the ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by an
authorized Mazda dealer. Normal braking is still functional unless the
brake system warning light also is illuminated.
WARNING: If the light remains on, continues to flash or fails
to illuminate, have the system serviced immediately by an
authorized Mazda dealer. With the ABS light on, the anti-lock
brake system is disabled but normal braking is still effective
unless the brake warning light also remains illuminated with
the parking brake released.
!
BRAKE
ABS
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
16

Airbag readiness:If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately by an authorized Mazda dealer. A chime will also sound when
a malfunction in the supplemental restraint system has been detected.
Safety belt:Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Charging system:Illuminates when
the battery is not charging properly.
Engine oil pressure:Illuminates
when the oil pressure falls below the
normal range, refer toEngine oilin
theMaintenance and
Specificationschapter.
Low fuel:Illuminates when the fuel
level in the fuel tank is at or near
empty (refer toFuel gaugein this
chapter).
Overdrive off:Illuminates when
the overdrive function of the
transmission has been turned off,
refer to theDrivingchapter.If the
light flashes steadily or does not illuminate, have the
transmission serviced soon, or damage may occur.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains ON at
start up or while driving, the tire
pressure should be checked. Refer
toInflating Your Tiresin theTires, Wheels and Loadingchapter.
When the ignition is first turned to ON, the light will illuminate for 3
seconds to ensure the bulb is working. If the light does not turn ON,
have the system inspected by your authorized dealer. For more
information on this system, refer toUnderstanding Your Tire Pressure
Monitoring Systemin theTires, Wheels and Loadingchapter.
O/D
OFF
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
17

Four wheel drive indicator (if
equipped):Illuminates when
ignition is first turned ON to check
bulb. Blinking indicator indicates
system has been disabled, refer to theDrivingchapter.
Note:If the light remains on, have the system serviced by an authorized
Mazda dealer.
Anti-theft system:Flashes when
the Securilock
Passive Anti-theft
System has been activated. Refer to
SecuriLock
passive anti-theft
systemin theLocks and Securitychapter.
Cruise control/Speed control:
Illuminates when the cruise
control/speed control is activated.
Turns off when the cruise control/speed control system is deactivated,
refer to theDriver Controlschapter.
Door ajar:Illuminates when the
ignition is in the ON position and
any door, liftgate, or liftgate window
is open.
Turn signals:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Safety belt warning chime:
Sounds to remind you to fasten your
safety belts.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
CRUISE
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
18

GAUGES
Speedometer:Indicates the
current vehicle speed.
Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”).If it enters the red section,
the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.Refer to
Engine coolantin theMaintenance and Specificationschapter.
WARNING: When the engine and radiator are hot, scalding
coolant and steam may shoot out under pressure and cause
serious injury. Do not remove the cooling system cap when the
engine and radiator are hot.
NOTE:This gauge indicates the temperature of the engine coolant, not
the coolant level. If the coolant is not at its proper level the gauge
indication will not be accurate.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
19

Odometer:Registers the total miles
(kilometers) of the vehicle.
Trip odometer:Registers the miles
(kilometers) of individual journeys.
Press and hold the button for 1 or
more seconds to reset. Press and
release the button in less than 1
second to toggle between odometer
and trip odometer.
Tachometer:Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Fuel gauge:Displays approximately
how much fuel is in the fuel tank.
The fuel gauge may vary slightly
when the vehicle is in motion or on
a grade.
When refueling the vehicle from
empty indication, the amount of fuel
that can be added will be less than
the advertised capacity due to the reserve fuel.
Note:The fuel filler door is located on the driver’s side of the vehicle.
