CD/CD player care:
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Insert more than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially pressed 12 cm (4.75
in) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Mazda CD players. Irregular
shaped CDs, CDs with a scratch protection film attached, and CDs
with homemade paper (adhesive) labels should not be inserted
into the CD player. The label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be
identified with permanent felt tip marker rather than adhesive
labels. Ball point pens may damage CDs. Please contact your
dealer for further information.
Audio system warranty and service:
Refer to theWarranty Guidefor audio system warranty information. If
service is necessary, see your authorized Mazda dealership.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
31
Page 32 of 288
MANUAL HEATING AND AIR
CONDITIONING SYSTEM
1.A/C:Press to activate A/C. The
indicator light will illuminate to
indicate A/C is functioning.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls
the direction of the airflow in
the vehicle. See the following
for a brief description on each
control.
:Distributes air through the instrument panel vents.
:Distributes air through the instrument panel vents and the floor
vents.
OFF:The fan will not operate.
:Distributes air through the floor vents.
:Distributes air through the windshield defroster vents and floor
vents.
:Distributes air through the windshield defroster vents.
4.Fan speed and recirculated/outside air control:Turned to the
right, controls the volume of outside air coming into the vehicle.
Turned to the left, recirculates air through the instrument panel
registers. This mode is more economical and efficient. May reduce
undesirable odors from entering the vehicle.
5.Rear defroster:Press to clear the rear window of thin ice and fog.
The indicator light will illuminate when the rear defroster is
activated. Ensure that the ignition is in the 3 (RUN) position to
operate. The defroster turns off automatically after 15 minutes or
when the ignition is turned to the 1 (LOCK) position. To manually
turn off the defroster before 15 minutes have passed, push the
control again.
WARNING: Extended operation of the climate control system
in a recirculated air mode may lead to a reduction in air quality
in the cabin. The air in the cabin should be periodically
refreshed by selecting settings other than recirculated air.
1
2
5
34
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
32
Page 33 of 288
WARNING: Under some weather conditions, use of the
recirculated air mode may lead to glass misting or fogging.
Switch the air conditioner on and select the fresh air mode.
Heated air can assist windscreen demisting.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the OFF position or place the fan control in the
recirculated air positions.
•The A/C system will be activated automatically when switching the air
flow selector in the
orposition.
•Under normal weather conditions, do not leave the air flow selector in
OFF when the vehicle is parked. This allows the vehicle to “breathe”
using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select A/C.
2. Adjust the temperature control to maintain comfort.
3. Set the fan speed to the highest setting on the right for outside air.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
WARNING: Do not place objects on top of the instrument panel
as these objects may become projectiles in a collision or sudden
stop.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
33
Page 34 of 288
HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Battery saver
Your vehicle is equipped with a battery saver feature which, if you leave
the headlamps on, automatically turns off the headlamps after 30
seconds when the ignition is in the OFF position.
High beams
After turning the headlamps on,
push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
34
Page 35 of 288
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position,
•the headlamp control is in the OFF or parking lamp position and
•the parking brake must be disengaged.
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally
may not provide adequate lighting during these conditions.
Failure to activate your headlamps under these conditions may
result in a collision.
Foglamp control (if equipped)
The foglamps can only be turned on
when:
•the headlamp control is in the
low beam or parking lamp
position, and
•the ignition key is in the ON
position.
When the ignition is in the OFF position, the fog lamp is deactivated,
even when the headlamp control is in the parking lamp or low beam
position.
When the highbeams are activated, the fog lamps will not operate.
Press the fog lamp control again to deactivate the fog lamps.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
35
Page 36 of 288
INSTRUMENT PANEL DIMMER CONTROL
Use to adjust the brightness of the instrument panel.
•Push and hold top of control to
brighten.
•Push and hold bottom of control
to dim.
VERTICAL AIM ADJUSTMENT
1. Park the vehicle directly in front of a wall or screen on a level
surface, approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meter)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot (2.4
meter) horizontal reference line
on the vertical wall or screen at
this height (a piece of masking tape works well). The center of the
lamp is marked by a 3.0 mm circle on the headlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen
and open the hood. Cover the left-hand headlamp with an opaque
cloth.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
36
Page 37 of 288
4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge of high
intensity light towards the right.
If this edge is not at the
horizontal reference line, the
beam will need to be adjusted.
5. Locate the vertical adjuster on
the headlamp, then usea7mm
hex socket or T20 Torx driver
to turn the adjuster either
counterclockwise (to adjust
down) or clockwise (to adjust
up) aligning the upper edge of
the light pattern up to the
horizontal line. Aftermarket
photometric aimers are not
recommended for use on Mazda
vehicles.
6. Move the opaque cloth to cover the right-hand headlamp and repeat
Steps 4 and 5 for the left-hand headlamp.
7. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
37
Page 38 of 288

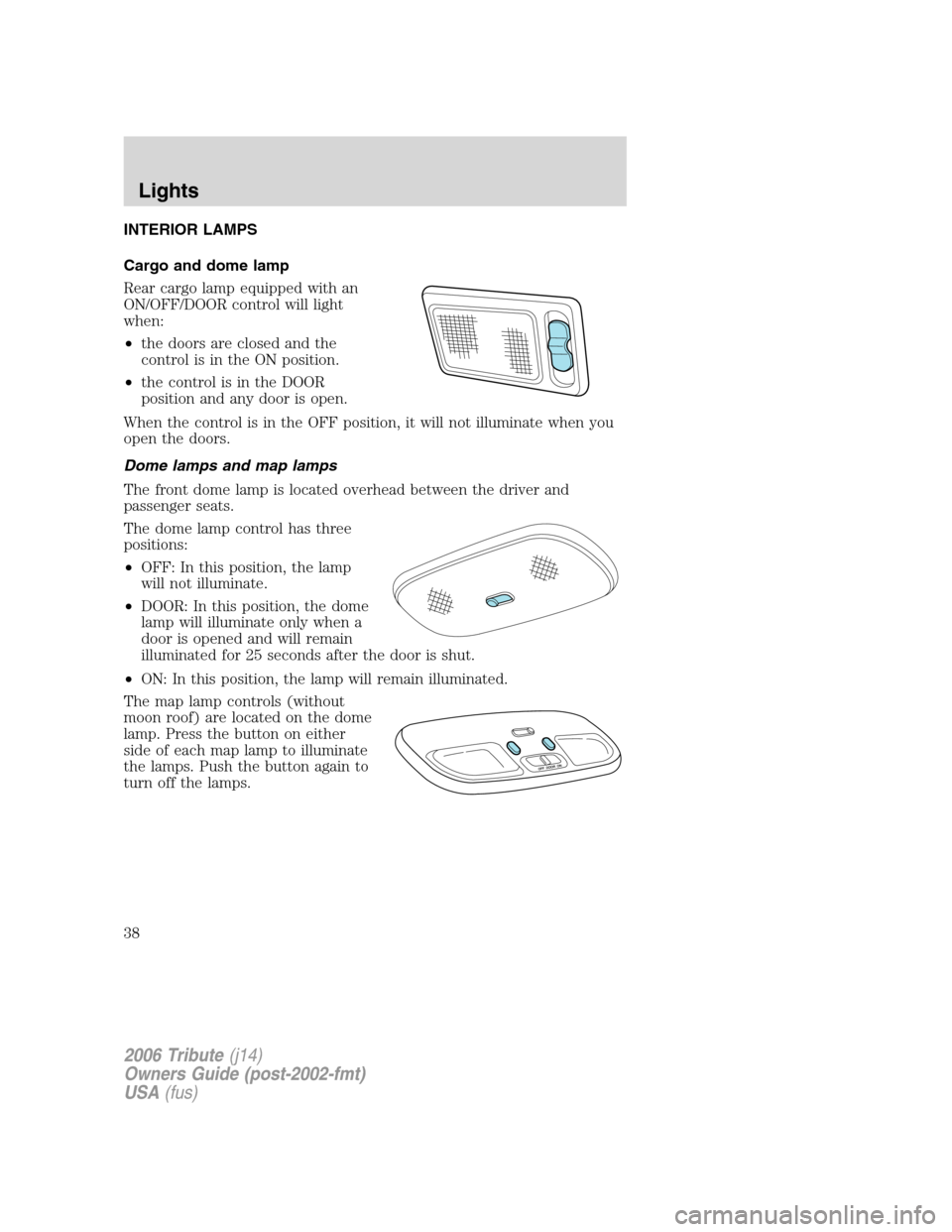

INTERIOR LAMPS
Cargo and dome lamp
Rear cargo lamp equipped with an
ON/OFF/DOOR control will light
when:
•the doors are closed and the
control is in the ON position.
•the control is in the DOOR
position and any door is open.
When the control is in the OFF position, it will not illuminate when you
open the doors.
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
The dome lamp control has three
positions:
•OFF: In this position, the lamp
will not illuminate.
•DOOR: In this position, the dome
lamp will illuminate only when a
door is opened and will remain
illuminated for 25 seconds after the door is shut.
•ON: In this position, the lamp will remain illuminated.
The map lamp controls (without
moon roof) are located on the dome
lamp. Press the button on either
side of each map lamp to illuminate
the lamps. Push the button again to
turn off the lamps.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
38
Page 39 of 288
For models equipped with a moon
roof, the map lamps are located on
the moon roof control panel. Press
the button on either side of each
map lamp to illuminate the lamps.
Push the button again to turn off
the lamps.
The map lamps will illuminate
whenever a door is opened. After
the door is shut, the lamps will remain illuminated for 25 seconds.
BULB REPLACEMENT
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing the interior bulbs
Check the operation of the following interior bulbs frequently:
•interior overhead lamp
•map lamp
For bulb replacement, see an authorized Mazda dealer.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility.
Note:The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
39
Page 40 of 288
Function Number of
bulbsTrade number
Park/turn lamps (front) 2 3157 AK (amber)
Headlamps 2 9003 (HB2)
Rear stop/tail lamps 2 W21/5W
Rear turn lamps 2 WY21W (amber)
Rear license plate lamps 2 W5W
Backup lamp 2 W21W
Side repeater lamp 2 WY5W (amber)
Fog lamp (if equipped) 2 H1
Cargo lamp 1 211-2
Center high-mount stop
lamp5
W5W
Interior overhead lamp 1 912 (906)
Map lamps 2 168 (T10)
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized Mazda
dealer.
Replacing headlamp bulbs
NOTE:This procedure can be difficult. Your Mazda dealer has the
proper tools, training and parts to perform this task. If you have
difficulty with this procedure, visit your local Mazda dealer.
WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its metal base
and do not touch the glass. The oil from your hand could cause
the bulb to break the next time the headlamps are operated.
Always wear safety glasses when handling halogen bulbs.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
40
