Introduction
9

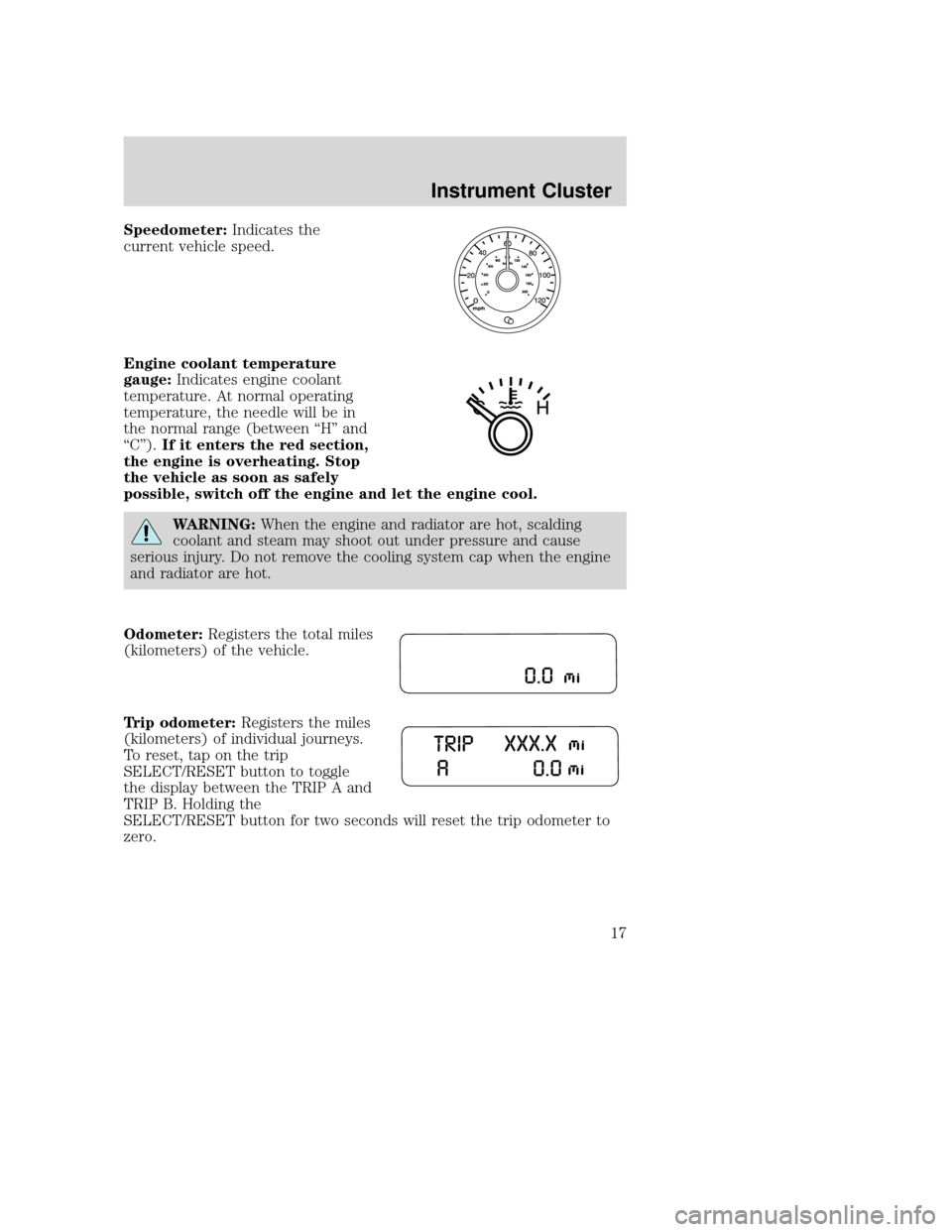

Speedometer:Indicates the
current vehicle speed.
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”). If it enters the red section,
the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING: When the engine and radiator are hot, scalding
coolant and steam may shoot out under pressure and cause
serious injury. Do not remove the cooling system cap when the engine
and radiator are hot.
Odometer: Registers the total miles
(kilometers) of the vehicle.
Trip odometer: Registers the miles
(kilometers) of individual journeys.
To reset, tap on the trip
SELECT/RESET button to toggle
the display between the TRIP A and
TRIP B. Holding the
SELECT/RESET button for two seconds will reset the trip odometer to
zero.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Instrument Cluster
17

Have the exhaust and body ventilation systems checked whenever:
•the vehicle is raised for service.
• the sound of the exhaust system changes.
• the vehicle has been damaged in a collision.
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
Important ventilating information
If the engine is idling while the vehicle is stopped in an open area for
long periods of time, open the windows at least once inch (2.5 cm).
Adjust the heating or air conditioning (if equipped) to bring in fresh air.
Note: Improve vehicle ventilation by
keeping all air inlet vents clear of
snow, leaves and other debris.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
the user to connect the system to a grounded 120 volt a/c electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-18°C).
WARNING: Failure to follow engine block heater instructions
could result in property damage or physical injury.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driving
182

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
OVERHEATING
If the temperature gauge indicates overheating and you experience
power loss, you hear a loud knocking or pinging noise, the engine is
probably too hot.
If this happens:
1. Drive safely to the side of the road and park off the right-of-way.
2. Shift the automatic transmission into P (Park) or the manual transmission into the neutral position, and apply the parking brake.
3. Turn off the air conditioner.
WARNING: Steam from an overheated engine is dangerous. The
escaping steam could seriously burn you. Open the hood ONLY
after steam is no longer escaping from the engine.
4. Check whether coolant or steam is escaping from under the hood or from the engine compartment.
• If steam is coming from the engine compartment: do not go near
the front of the vehicle. Stop the engine, then turn the ignition switch
to the ON position without starting the engine. The radiator cooling
fans will start to cool the engine.
• If neither coolant nor steam is escaping: open the hood and idle
the engine until it cools. If this does not lower the temperature, stop
the engine and let it cool.
5. Check the coolant level. If it is low, look for leaks in the radiator hoses and connections, heater hoses and connections, radiator and
water pump.
If you find a leak or other damage, or if coolant is still leaking, stop the
engine and call an authorized dealer.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
227

WARNING:When the engine and radiator are hot, scalding
coolant and steam may shoot out under pressure and cause
serious injury. Do not remove the cooling system cap when the engine
and radiator are hot.
See Adding coolant in theMaintenance and Specifications section. If
you find no problems, the engine is cool and no leaks are obvious,
carefully add coolant as required.
Note: If the engine continues to overheat or frequently overheats, have
the cooling system inspected. The engine could be seriously damaged
unless repairs are made.
RUNNING OUT OF FUEL
If you have run out of fuel and need to refill the vehicle with a portable
fuel container, see Running out of fuel in theMaintenance and
Specifications chapter for proper fuel filling method using a portable
fuel container and the included fuel filler funnel. Do notinsert the
nozzle of portable fuel containers or any type of aftermarket funnels into
the Easy Fuel™ no capfuel system as it can be damaged. You must use
the included funnel in such circumstances.
WARNING: Do not insert the nozzle of portable fuel containers
or aftermarket funnels into the Easy Fuel™ system. This could
damage the fuel system and its seal, and may cause fuel to run onto
the ground instead of filling the tank, all of which could result in
serious personal injury.
JUMP STARTING
WARNING: The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING: Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
228

SCHEDULE 1
I: Inspect and repair, clean, adjust, or replace if necessary
(Oil-permeated air filter cannot be cleaned using the air-blow method)
R: Replace
L: Lubricate
Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
x 1000 Miles 7.5 15 22.5 30 37.5 45 52.5 60 67.6 75 82.5 90
(x 1000 Km) (12) (24) (36) (48) (60) (72) (84) (96) (108) (120) (132) (144)
ENGINE
Engine valve clearance (for 2.5L
engine) Audible inspect every 75,000 miles (120,000 km), if
noisy, adjust
Engine oil RRRRRRRRRRRR
Oil filter RRRRRRRRRRRR
Drive belts (tension) 2.5L engine II
3.0L engine II I
PCV valve (for 3.0L
engine) *1 Replace every 100,000 miles (160,000 km)
IGNITION SYSTEM
Spark plugs 2.5L engine Replace every 75,000 miles (120,000 km) 3.0L engine Replace every 90,000 miles (145,000 km)
FUEL SYSTEM
Air cleaner filter RR
Fuel lines and hoses *1 II I
Hoses and tubes for
emission *1
I
COOLING SYSTEM
Cooling system and hoses II I
Engine coolant (yellow) Replace at first 100,000 miles (160,000 km) or
72 months; after that, every 50,000 miles (80,000 km) or 36 months
Engine coolant level IIIIIIIIIIII
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
254

Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
x 1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
(x 1000 Km) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
COOLING SYSTEM
Cooling system and hoses I I
Engine coolant (yellow) Replace at first 100,000 miles (160,000 km) or 72 months; after that, every 50,000 miles(80,000 km) or 36 months
Engine coolant level IIIIIIIIIIII
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections II
Brake fluid level IIIIIIIIIIII
Disc brakes IIII
Drum brakes II
Tire (rotation), check wheel lug
nut torque *4 Rotate every 5,000 miles (8,000 km)
Tire inflation pressure and tire
wear IIIIIIIIIII I
Steering operation and linkages II
Power steering fluid level IIIIIIIIIIII
Manual transmission oil Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 30,000 miles (48,000 km)
Rear differential
fluid (4WD only) *3 Replace every 100,000 miles (160,000 km)
Transfer case fluid
(4WD only) *3 Replace every 30,000 miles (48,000 km)
Front and rear suspension ball
joints II
Driveshaft dust boots II
Bolts and nuts on chassis and body IIII
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
257

Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
x 1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
(x 1000 Km) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
Exhaust system heat shields II
All locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
*1 According to state and federal regulations, failure to perform maintenance on these
items will not void your emissions warranties. However, Mazda recommends that all
maintenance services be performed at the recommended time or miles (kilometers)
period to ensure long-term reliability. Refer to Fuel filterin theMaintenance and
Specifications chapter for fuel filter replacement requirements.
*2 If the vehicle is operated under any of the following conditions, change the spark plugs every 60,000 miles (96,000 km) or shorter.
a) Repeated short-distance driving.
b) Extended periods of idling or low-speed operation.
c) Driving for long periods in cold temperatures or extremely humid climates.
*3 If this component has been submerged in water, the oil should be changed.
*4 The wheel lug nuts must be retightened to the proper specifications at 500 miles (800 km) of new vehicle operation, at any wheel change, or at any other time the wheel
lug nuts have been loosened. Refer to Wheel Lug Nut Torque Specification in the
Tires, Wheels and Loading chapter for the proper lug nut torque specification.
OWNER MAINTENANCE SCHEDULE
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and dependable
operation.
Bring any problem to the attention of an authorized Mazda Dealer or
qualified service technician as soon as possible.
When Refueling
•Brake and clutch fluid level
• Engine coolant level
• Engine oil level
• Washer fluid level
At Least Monthly
• Tire inflation pressures
At Least Twice a Year (For Example, Every Spring and Fall)
• Automatic transmission fluid level
• Power steering fluid level
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
258

Retightening lug nuts
•Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
• Refer to Wheel Lug Nut Torque Specification in theTires, Wheels
and Loading chapter for the proper lug nut torque specification.
SERVICE RECOMMENDATIONS
To help you service your vehicle, we provide scheduled maintenance
information which makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide necessary parts and service. Check your “Warranty Information”
to find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Genuine Mazda parts are designed and built
to provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
WARNING: A hot engine is dangerous. If the engine has been
running, parts of the engine compartment can become very hot.
You could be burned. Don’t inspect the coolant system or add coolant
when the engine is hot.
• Do not work on a hot engine.
• Make sure that nothing gets caught in moving parts.
• Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
• Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
• Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key.
3. Block the wheels.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
259
