Page 2 of 320

Seating and Safety Restraints 87
Seating 87
Safety restraints 99
Airbags 114
Child restraints 131
Tires, Wheels and Loading 149
Tire information 151
Tire inflation 154
Tire Pressure Monitoring System (TPMS) 167
Vehicle loading 172
Trailer towing 180
Recreational towing 184
Driving 186
Starting 186
Brakes 193
Electronic stability control 195
Transmission operation 203
Rear-view camera system 208
Roadside Emergencies 218
Hazard flasher control 218
Fuel pump shut-off switch 218
Fuses and relays 219
Changing tires 226
Wheel lug nut torque 236
Overheating 237
Jump starting 238
Wrecker towing 242
Customer Assistance 244
Reporting safety defects (U.S. only) 256
Reporting safety defects (Canada only) 257
Cleaning 258
Table of Contents
2
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 8 of 320

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Manual
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Power Windows
Front/RearPower Window Lockout
Introduction
8
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 55 of 320

The tray and inside bin can be
removed to open up space to fit a
laptop computer, MP3 players, CDs
or handbags. To remove, open the
console lid and pull the bin straight
up and out from the console
housing.
The sliding tray and inside bin can
be hooked on the side or rear of the
console for extra storage.
AUXILIARY POWER POINT (12V DC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•On the instrument panel
•On the rear side of the center console
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
Driver Controls
55
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 116 of 320

WARNING:Do not put anything on or over the airbag module
including hands or feet. Placing objects on or over the airbag
inflation area may cause those objects to be propelled by the airbag
into your face and torso causing serious injury.
WARNING:Do not attempt to service, repair, or modify the
Airbag Supplemental Restraint Systems or its fuses. See your
authorized Mazda dealership.
WARNING:Modifications to the front end of the vehicle,
including frame, bumper, front end body structure, tow hooks,
and snow plows may affect the performance of the airbag sensors
increasing the risk of injury. Do not modify the front end of the
vehicle.
WARNING:Additional equipment may affect the performance of
the airbag sensors increasing the risk of injury. Consult your
authorized Mazda dealership before installation of additional
equipment.
Children and airbags
For additional important safety
information, read all information on
safety restraints in this guide.
WARNING:Children must
always be properly
restrained. Accident statistics
suggest that children are safer
when properly restrained in the
rear seating positions rather than
in the front seating position.
Failure to follow these instructions
may increase the risk of injury in
a collision.
Seating and Safety Restraints
116
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 125 of 320

WARNING:Do not lean your head on the door. The side airbag
could injure you as it deploys from the side of the seatback.
WARNING:Do not attempt to service, repair, or modify the
airbag SRS, its fuses or the seat cover on a seat containing an
airbag. See an authorized dealer.
WARNING:All occupants of the vehicle should always wear
their seat belts even when an airbag SRS is provided.
How does the side airbag system work?
The design and development of the
side airbag system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags.
The side airbag system consists of
the following:
•An inflatable bag (airbag) with a
gas generator concealed behind
the outboard bolster of the driver
and front passenger seatbacks.
•A special seat cover designed to
allow airbag deployment.
•The same warning light, electronic control and diagnostic unit as used
for the front airbags.
•Two crash sensors located on the lower portion of the b-pillar (one on
each side of the vehicle).
Side airbags, in combination with seat belts, can help reduce the risk of
severe injuries in the event of a significant side impact collision.
Seating and Safety Restraints
125
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 127 of 320

•The readiness light will not illuminate immediately after ignition is
turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at an authorized dealer immediately. Unless serviced, the system may not
function properly in the event of a collision.
Side-curtain airbag system
WARNING:Do not place
objects or mount equipment
on or near the headliner at the
siderail that may come into
contact with a deploying
side-curtain airbags. Failure to
follow these instructions may
increase the risk of personal injury
in the event of a collision.
WARNING:Do not lean your head on the door or window glass.
The side-curtain airbags could injure you as it deploys from the
headliner.
WARNING:Do not attempt to service, repair, or modify the
side-curtain airbags, fuses, the A, B, or C pillar trim, or the
headliner on a vehicle containing side-curtain airbags. See your
authorized Mazda dealer.
WARNING:All occupants of the vehicle including the driver
should always wear their seat belts even when an airbag SRS and
side-curtain airbags are provided.
WARNING:To reduce risk of injury, do not obstruct or place
objects in the deployment path of the inflatable side-curtain
airbags.
Seating and Safety Restraints
127
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 202 of 320

WARNING:Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Do not overload
your vehicle and use extra precautions, such as driving at slower
speeds, avoiding abrupt steering changes and allowing for increased
stopping distance, when driving a heavily loaded vehicle. Over-loading
or loading the vehicle improperly can deteriorate handling capability
and contribute to loss of vehicle control and vehicle rollover.
BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake, turn the ignition to off, then remove the
key.
Driving
202
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 219 of 320

This switch is located in the front
passenger’s footwell, behind a
flip-up cover, by the kick panel
access cover.
To reset the switch:
1. Turn the ignition to the off
position.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset
the switch by pushing in on the
reset button.
4. Turn the ignition to the on
position.
5. Wait a few seconds and return
the key to the off position.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
219
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 220 of 320

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel is located on the
right-hand side of the center
console, by the instrument panel.
Remove the panel cover to access
the fuse cover. Press the tabs on the
top and bottom of the fuse cover to
remove.
Roadside Emergencies
220
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

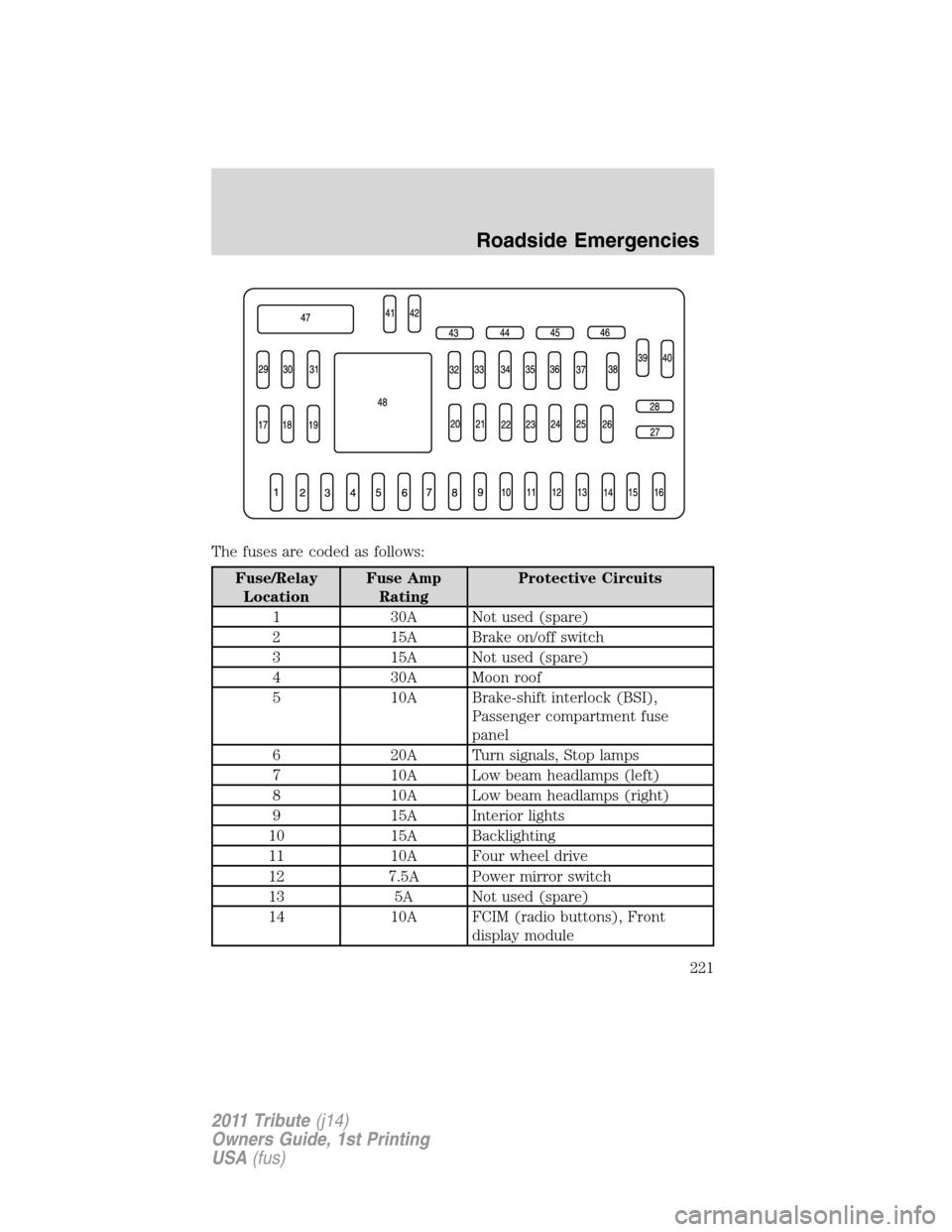

Page 221 of 320

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtective Circuits
1 30A Not used (spare)
2 15A Brake on/off switch
3 15A Not used (spare)
4 30A Moon roof
5 10A Brake-shift interlock (BSI),
Passenger compartment fuse
panel
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting
11 10A Four wheel drive
12 7.5A Power mirror switch
13 5A Not used (spare)
14 10A FCIM (radio buttons), Front
display module
Roadside Emergencies
221
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
