MAZDA MODEL TRIBUTE 2011 Owners Manual (in English)

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Entertainment Systems 19
AM/FM stereo with CD/MP3 19
Auxiliary input jack (Line in) 27
Satellite radio information 32
Climate Controls 36
Manual heating and air conditioning 36
Rear window defroster 38
Lights 40
Headlamps 40
Turn signal control 44
Bulb replacement 45
Driver Controls 51
Windshield wiper/washer control 51
Steering wheel adjustment 52
Power windows 56
Mirrors 57
Cruise control 59
Moon roof 61
Locks and Security 75
Keys 75
Locks 76
Anti-theft system 83
Table of Contents
1
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Seating and Safety Restraints 87
Seating 87
Safety restraints 99
Airbags 114
Child restraints 131
Tires, Wheels and Loading 149
Tire information 151
Tire inflation 154
Tire Pressure Monitoring System (TPMS) 167
Vehicle loading 172
Trailer towing 180
Recreational towing 184
Driving 186
Starting 186
Brakes 193
Electronic stability control 195
Transmission operation 203
Rear-view camera system 208
Roadside Emergencies 218
Hazard flasher control 218
Fuel pump shut-off switch 218
Fuses and relays 219
Changing tires 226
Wheel lug nut torque 236
Overheating 237
Jump starting 238
Wrecker towing 242
Customer Assistance 244
Reporting safety defects (U.S. only) 256
Reporting safety defects (Canada only) 257
Cleaning 258
Table of Contents
2
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

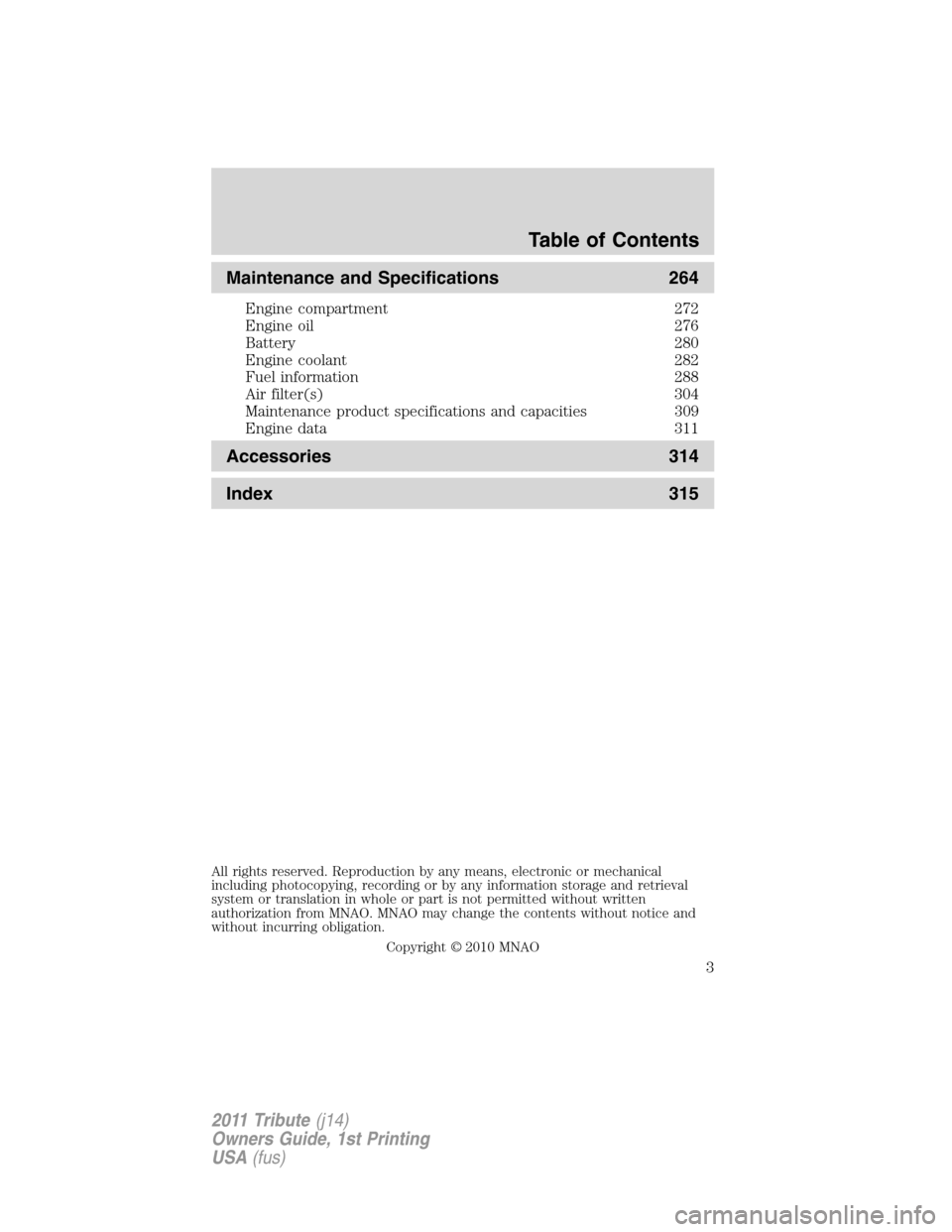

Maintenance and Specifications 264
Engine compartment 272
Engine oil 276
Battery 280
Engine coolant 282
Fuel information 288
Air filter(s) 304
Maintenance product specifications and capacities 309
Engine data 311
Accessories 314
Index 315
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from MNAO. MNAO may change the contents without notice and
without incurring obligation.
Copyright © 2010 MNAO
Table of Contents
3
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

CONGRATULATIONS
Congratulations on acquiring your new Mazda product. Please take the
time to get well acquainted with your vehicle by reading this handbook.
The more you know and understand about your vehicle, the greater the
safety and pleasure you will derive from driving it.
For more information on Mazda and its products visit the following
website:
•In the United States: www.mazdausa.com
•In Canada: www.mazda.ca
Additional owner information is given in separate publications or refer to
theMazda importers/distributorssection in theCustomer Assistance
chapter.
This Owner’s Manual describes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on the Owner’s Manual when reselling the vehicle. It
is an integral part of the vehicle.
WARNING:In the event of an accident the Fuel pump shut-off
switch will automatically cut off the fuel supply to the engine.
The switch can also be activated through sudden vibration (e.g.
collision when parking). To reset the switch, refer to theFuel pump
shut-off switchin theRoadside Emergencieschapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of
personal injury to yourself or
others? In this guide, answers to
such questions are contained in
comments highlighted by a bold
WARNINGstatement. These comments should be read and observed.
Introduction
4
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
Always dispose of used automotive fluids in a responsible manner. Follow
your community’s regulations and standards for recycling and disposing
of automotive fluids.
CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a
trailer. For more detailed information about towing a trailer, refer to
Trailer towingin theTires, Wheels and Loadingchapter.
Introduction
5
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Do not add friction modifier compounds or special break-in oils since these
additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specificationschapter for more information on oil usage.
SPECIAL NOTICES
Emission warranty
The New Vehicle Limited Warranty includes Bumper to Bumper
Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,
your vehicle is eligible for Emissions Defect and Emissions Performance
Warranties. For a detailed description of what is covered and what is not
covered, refer to theWarranty Guidethat is provided to you along with
yourOwner’s Manual.
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
WARNING:Please read the sectionAirbag Supplemental
Restraint System (SRS)in theSeating and Safety
Restraintschapter. Failure to follow the specific warnings and
instructions could result in personal injury.
WARNING:Front seat mounted rear-facing child or infant seats
should NEVER be placed in front of an active passenger airbag.
Notice to owners of pickup trucks and utility type vehicles
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Manual carefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate this vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.
Using your vehicle with a snowplow
WARNING:Do not use this vehicle for snowplowing.
Your vehicle is not equipped with a snowplowing package.
Introduction
6
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Using your vehicle as an ambulance
WARNING:Do not use this vehicle as an ambulance.
Your vehicle is not equipped with an ambulance preparation package.
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Mazda
North American Operations, Mazda Canada, and service and repair
facilities may access vehicle diagnostic information through a direct
connection to your vehicle when diagnosing or servicing your vehicle.
Event Data Recording
Other modules in your vehicle — event data recorders — are
capable of collecting and storing data during a crash or near
crash event. The recorded information may assist in the
investigation of such an event. The modules may record
information about both the vehicle and the occupants, potentially
including information such as:
•how various systems in your vehicle were operating;
•
whether or not the driver and passenger seatbelts were buckled;
•how far (if at all) the driver was depressing the accelerator
and/or the brake pedal;
•how fast the vehicle was traveling; and
•where the driver was positioning the steering wheel.
To access this information, special equipment must be directly
connected to the recording modules. Mazda North American
Operations and Mazda Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Mazda North American Operations and Mazda Canada.
Introduction
7
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Manual
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Power Windows
Front/RearPower Window Lockout
Introduction
8
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Child Safety Door
Lock/Unlock
Interior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
INFORMATION ABOUT THIS GUIDE
The information found in this guide was accurate at the time of printing.
Mazda may change the contents without notice.
Introduction
9
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Multi-function lever
(pg. 51)Instrument cluster
(pg. 12)
Hazard flasher control
(pg. 218)
Headlamp control
(pg. 40)
Parking brake release
(pg. 194)Speed controls*
(pg. 59)
Hood release
(pg. 271)Steering wheel controls*
(pg. 61)
* if equipped
Instrument Cluster
10
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
