MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Note:Heavy ice and snow can jam the wiper blades and overheat the
wiper motor. If this happens, the motor will automatically stop the
operation of the blades for a short period of time. If this happens while
driving, turn off the wiper switch, park off the right-of-way, and remove
the snow and ice. After a short period of time, turn the switch on and
the blades should operate normally. If they don’t resume functioning,
consult an authorized Mazda Dealer as soon as possible. Wait until the
weather clears before trying to drive with the wipers inoperative.
Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with
washer fluid.
•a long press and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Driver Controls
51
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtective Circuits
42 10A Not used (spare)
43 10A Rear wiper logic, Heated seats
relay, Instrument cluster
44 10A Not used (spare)
45 5A Front wiper logic, Blower motor
relay
46 7.5A Occupant classification system
(OCS), Passenger airbag
deactivation indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. Refer
to theIdentifying components in the engine compartmentsection of
theMaintenance and Specificationschapter for the location. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
Roadside Emergencies
223
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

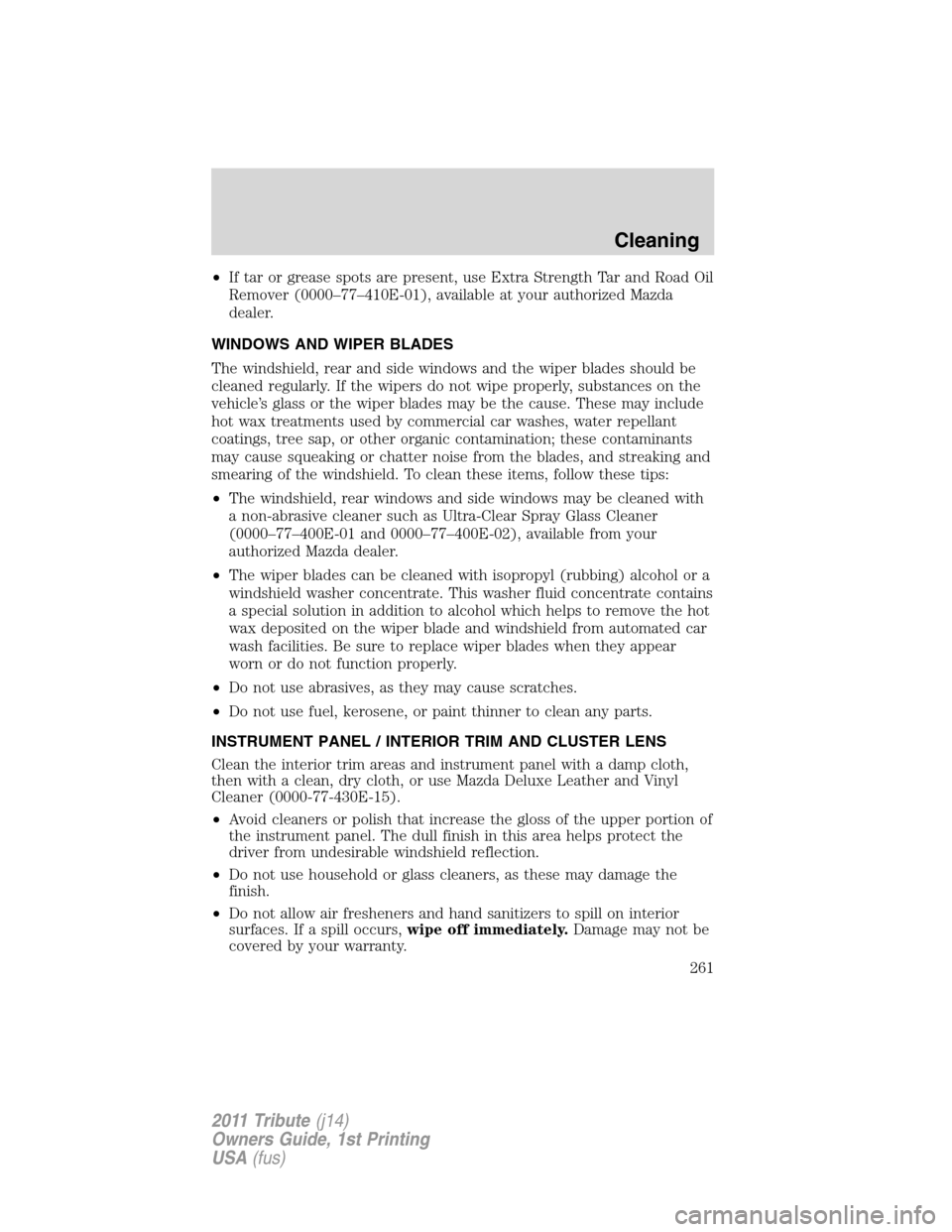

•If tar or grease spots are present, use Extra Strength Tar and Road Oil
Remover (0000–77–410E-01), available at your authorized Mazda
dealer.
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Ultra-Clear Spray Glass Cleaner
(0000–77–400E-01 and 0000–77–400E-02), available from your
authorized Mazda dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or a
windshield washer concentrate. This washer fluid concentrate contains
a special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
INSTRUMENT PANEL / INTERIOR TRIM AND CLUSTER LENS
Clean the interior trim areas and instrument panel with a damp cloth,
then with a clean, dry cloth, or use Mazda Deluxe Leather and Vinyl
Cleaner (0000-77-430E-15).
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Do not use household or glass cleaners, as these may damage the
finish.
•Do not allow air fresheners and hand sanitizers to spill on interior
surfaces. If a spill occurs,wipe off immediately.Damage may not be
covered by your warranty.
Cleaning
261
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

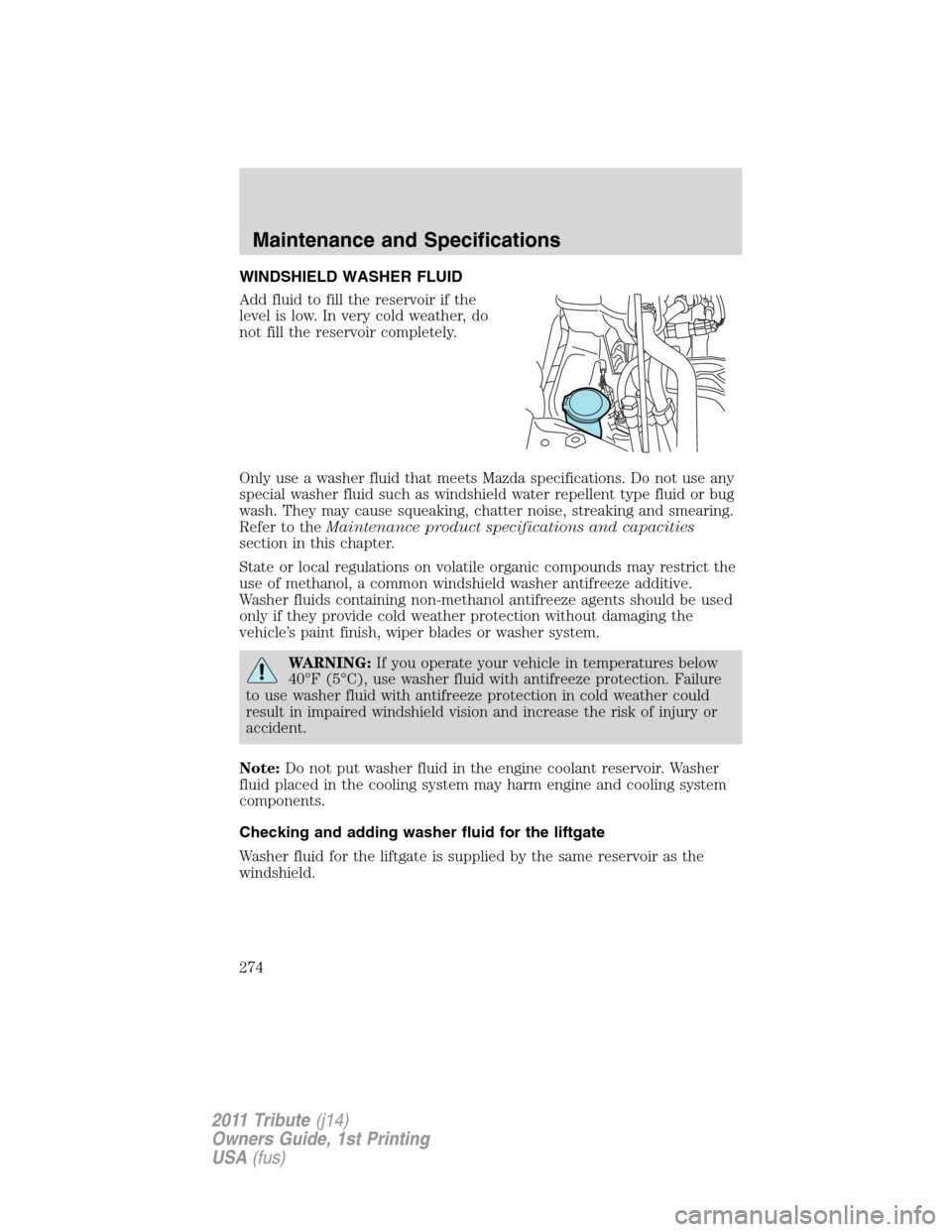

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets Mazda specifications. Do not use any
special washer fluid such as windshield water repellent type fluid or bug
wash. They may cause squeaking, chatter noise, streaking and smearing.
Refer to theMaintenance product specifications and capacities
section in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
Checking and adding washer fluid for the liftgate
Washer fluid for the liftgate is supplied by the same reservoir as the
windshield.
Maintenance and Specifications
274
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build up.
Maintenance and Specifications
307
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

recommendations ...................133
Child safety seats - booster
seats ...........................................144
Cleaning your vehicle
engine compartment ..............259
instrument panel ....................261
interior .....................................262
Mazda car care products
.......263
plastic parts
............................260
washing
....................................258
waxing
.....................................258
wheels
......................................259
wiper blades
............................261
Climate control (see Air
conditioning or Heating)
............36
Clock
............................................19
Clutch
fluid
..........................................301
operation while driving
..........206
recommended shift speeds
....207
Console
........................................54
overhead
..............................53–54
Controls
power seat
.................................91
steering column
........................61
Coolant
checking and adding
..............282
refill capacities
................285, 309
specifications
..........................309
Cruise control
.............................59
Cruise control (see Speed
control)
........................................59
Customer Assistance
.......244, 248,
251D
Daytime running lamps (see
Lamps) .........................................42
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................276
Driving under special
conditions ..................206, 211, 214
sand .........................................213
snow and ice ...........................215
through water .................213, 216
Dynamic Stability Control ........195
E
Emergencies, roadside
jump-starting ..........................238
running out of fuel .........238, 294
Emergency Flashers .................218
Emission control system ..........298
Engine ........................................311
cleaning ...................................259
coolant .....................................282
fail-safe cooling .......................286
idle speed control ...................280
lubrication specifications .......309
refill capacities ........................309
service points ..................272–273
starting after a collision .........218
Engine block heater .................191
Engine oil ..................................276
checking and adding ..............276
dipstick ....................................276
filter, specifications ................279
recommendations ...................279
refill capacities ........................309
specifications ..........................309
Index
316
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

T
Tilt steering wheel ......................52
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....167
Tires ...........................151–153, 226
alignment ................................160
care ..........................................156
changing ..................226, 229, 231
checking the pressure ............156
inflating ...................................154
label .........................................166
replacing ..................................157
rotating ....................................160
safety practices .......................159
sidewall information ...............162
snow tires and chains ............172
spare tire .........................227, 229
terminology .............................153
tire grades ...............................152
treadwear ........................152, 156
Towing .......................................180
recreational towing .................184
trailer towing ..........................180
wrecker ....................................242
Transmission
automatic operation ...............203
brake-shift interlock (BSI) ....202
fluid, checking and adding
(automatic) .............................301fluid, checking and adding
(manual) .........................301, 304
fluid, refill capacities ..............309
lubricant specifications ..........309
manual operation ....................206
Trunk ...........................................71
Turn signal ..................................44
U
Universal garage door opener ....63
V
Vehicle Identification Number
(VIN) ..........................................312
Vehicle loading ..........................172
Ventilating your vehicle ...........191
W
Warning lights (see Lights) .......12
Washer fluid ..............................274
Water, Driving through .............216
Windows
power .........................................56
rear wiper/washer .....................52
Windshield washer fluid and
wipers ..........................................51
checking and adding fluid .....274
liftgate reservoir .....................274
replacing wiper blades ...........275
Wrecker towing .........................242
Index
320
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
