MAZDA MODEL TRIBUTE 4WD 2001 Owner's Guide

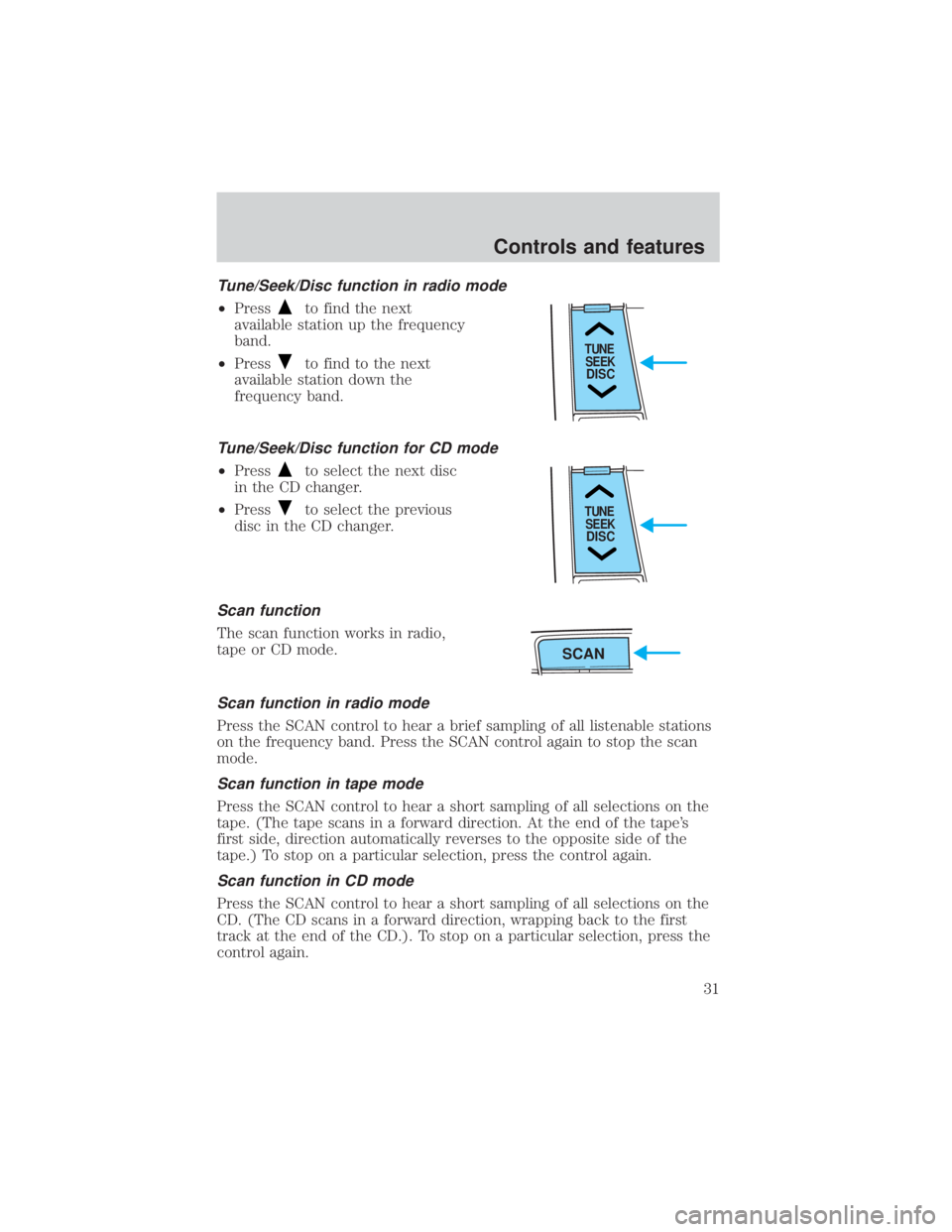

Tune/Seek/Disc function in radio mode
²Pressto find the next
available station up the frequency
band.
² Press
to find to the next
available station down the
frequency band.
Tune/Seek/Disc function for CD mode
² Pressto select the next disc
in the CD changer.
² Press
to select the previous
disc in the CD changer.
Scan function
The scan function works in radio,
tape or CD mode.
Scan function in radio mode
Press the SCAN control to hear a brief sampling of all listenable stations
on the frequency band. Press the SCAN control again to stop the scan
mode.
Scan function in tape mode
Press the SCAN control to hear a short sampling of all selections on the
tape. (The tape scans in a forward direction. At the end of the tape's
first side, direction automatically reverses to the opposite side of the
tape.) To stop on a particular selection, press the control again.
Scan function in CD mode
Press the SCAN control to hear a short sampling of all selections on the
CD. (The CD scans in a forward direction, wrapping back to the first
track at the end of the CD.). To stop on a particular selection, press the
control again.
TUNE SEEK
DISC
TUNESEEK
DISC
SCAN
Controls and features
31

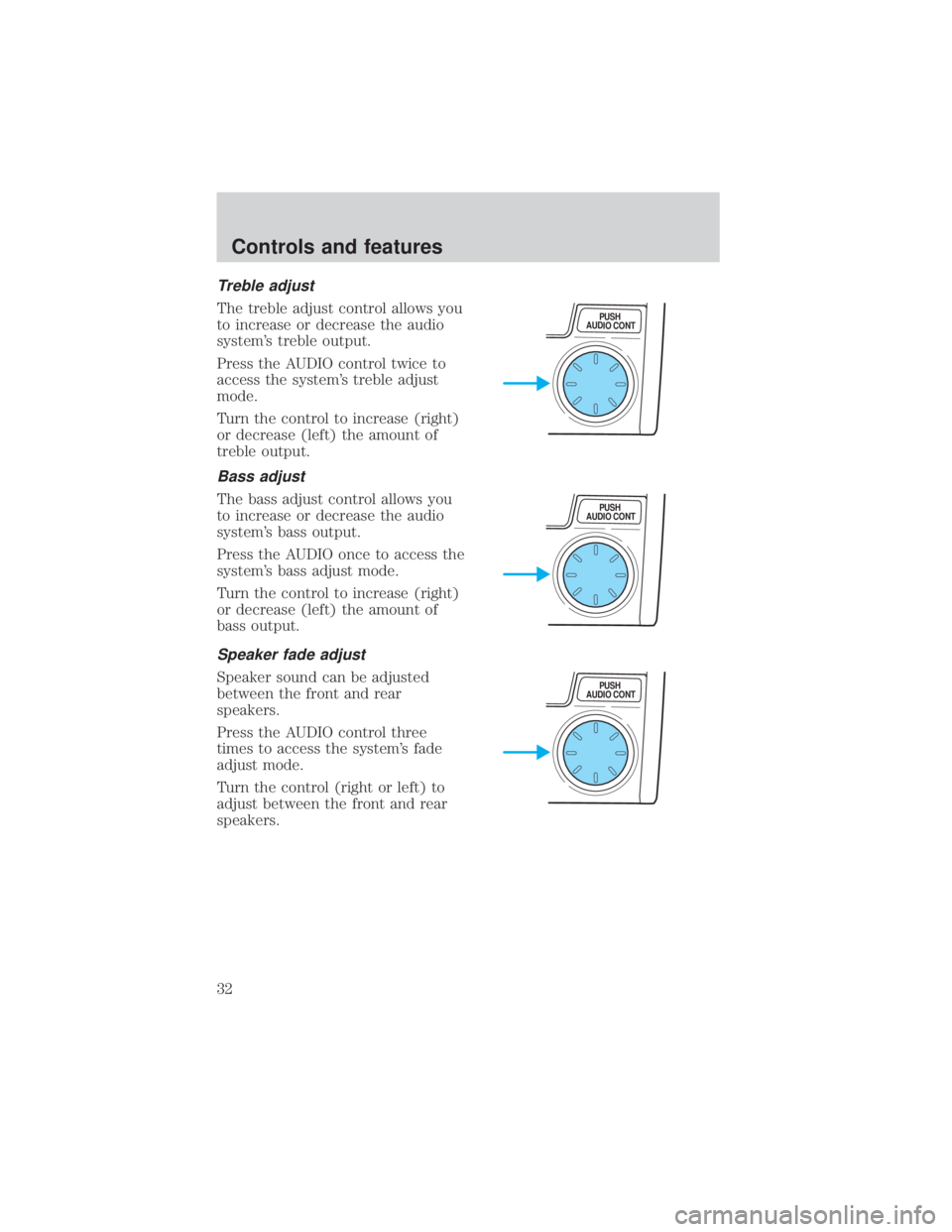

Treble adjust
The treble adjust control allows you
to increase or decrease the audio
system's treble output.
Press the AUDIO control twice to
access the system's treble adjust
mode.
Turn the control to increase (right)
or decrease (left) the amount of
treble output.
Bass adjust
The bass adjust control allows you
to increase or decrease the audio
system's bass output.
Press the AUDIO once to access the
system's bass adjust mode.
Turn the control to increase (right)
or decrease (left) the amount of
bass output.
Speaker fade adjust
Speaker sound can be adjusted
between the front and rear
speakers.
Press the AUDIO control three
times to access the system's fade
adjust mode.
Turn the control (right or left) to
adjust between the front and rear
speakers.
PUSH
AUDIO CONT
PUSH
AUDIO CONT
PUSH
AUDIO CONT
Controls and features
32

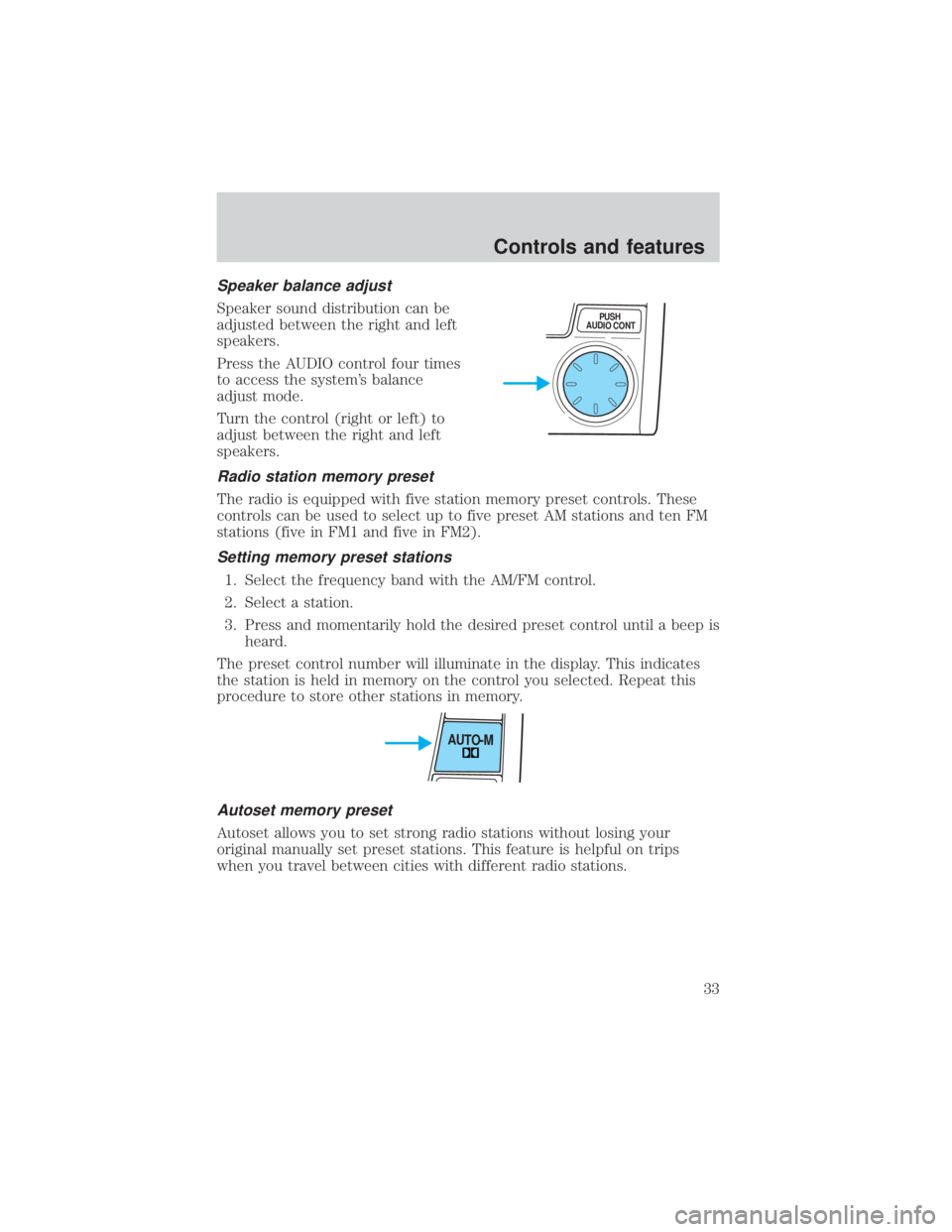

Speaker balance adjust
Speaker sound distribution can be
adjusted between the right and left
speakers.
Press the AUDIO control four times
to access the system's balance
adjust mode.
Turn the control (right or left) to
adjust between the right and left
speakers.
Radio station memory preset
The radio is equipped with five station memory preset controls. These
controls can be used to select up to five preset AM stations and ten FM
stations (five in FM1 and five in FM2).
Setting memory preset stations
1. Select the frequency band with the AM/FM control.
2. Select a station.
3. Press and momentarily hold the desired preset control until a beep isheard.
The preset control number will illuminate in the display. This indicates
the station is held in memory on the control you selected. Repeat this
procedure to store other stations in memory.
Autoset memory preset
Autoset allows you to set strong radio stations without losing your
original manually set preset stations. This feature is helpful on trips
when you travel between cities with different radio stations.
PUSH
AUDIO CONT
AUTO-M
Controls and features
33

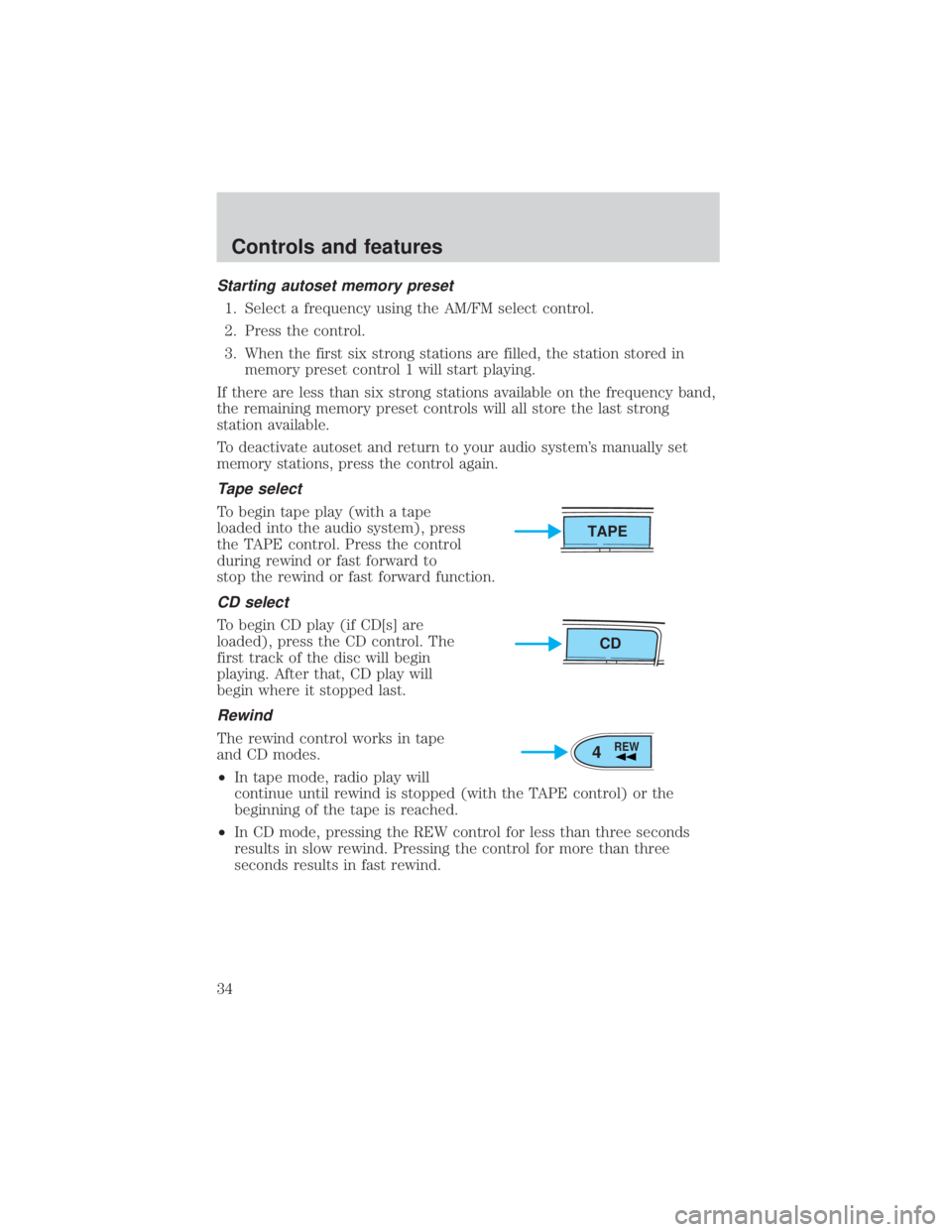

Starting autoset memory preset
1. Select a frequency using the AM/FM select control.
2. Press the control.
3. When the first six strong stations are filled, the station stored inmemory preset control 1 will start playing.
If there are less than six strong stations available on the frequency band,
the remaining memory preset controls will all store the last strong
station available.
To deactivate autoset and return to your audio system's manually set
memory stations, press the control again.
Tape select
To begin tape play (with a tape
loaded into the audio system), press
the TAPE control. Press the control
during rewind or fast forward to
stop the rewind or fast forward function.
CD select
To begin CD play (if CD[s] are
loaded), press the CD control. The
first track of the disc will begin
playing. After that, CD play will
begin where it stopped last.
Rewind
The rewind control works in tape
and CD modes.
² In tape mode, radio play will
continue until rewind is stopped (with the TAPE control) or the
beginning of the tape is reached.
² In CD mode, pressing the REW control for less than three seconds
results in slow rewind. Pressing the control for more than three
seconds results in fast rewind.
TAPE
CD
4REW
Controls and features
34

Fast forward
The fast forward control works in
tape and CD modes.
²In the tape mode, tape direction
will automatically reverse when the end of the tape is reached.
² In CD mode, pressing the control for less than three seconds results in
slow forward action. Pressing the control for more than three seconds
results in fast forward action.
Tape direction select
Press the PRO control to play the
alternate side of a tape.
When the end of the cassette is
reached, the audio system will
automatically reverse play.
Repeat play
The repeat play feature works in CD
mode and repeats the current CD
selection.
Repeat play in CD mode
Press the RPT control during play. RPT will illuminate in the display.
The current selection will be repeated.
To disengage repeat play, press the RPT control again.
Load
The load feature allows you to load
up to six single CDs into the audio
system.
This six disc CD player is equipped with a CD door. Compact
discs should only be inserted into the player after the door has
been opened by the player. When ready, ªINº will be indicated in
the display. Do not attempt to force the door open or to load
discs until the player is ready. Compact discs should only be
loaded by pressing the LOAD control.
6FF
PRO
2RPT
LOAD
Controls and features
35

²Press the LOAD control.
² WAIT will appear in the display as the system prepares to load the
CD.
² IN will appear in the display and the CD door will open when the
system is ready to receive a CD.
² Wait until the CD door opens.
² Load the CD into the player.
Multiple CD loading
This feature allows you to autoload
up to 6 discs into the multi disc CD
player internal to the radio.
Press and hold the LOAD control until a beep is heard. When IN is
displayed, insert the CD. When IN is displayed again, insert the next CD.
The first CD will automatically play when:
²there is not a CD inserted for 15 seconds after IN is displayed
² the CD tray is full
Eject function
Press the control to stop and eject a
tape.
Random play
The random play feature works in
CD mode and plays the selections
on the current CD in random order.
Random play in CD mode
Press the RDM control during play. RDM will illuminate in the display.
The next selection will be randomly selected.
To disengage random play, press the RDM control again.
LOAD
5RDM/BS
Controls and features
36

Setting the clock
Press the CLOCK control.
Press the TUNE control.
²Press
to adjust the hours.
² Press
to adjust the minutes.
Troubleshooting the CD changer (if equipped) WARNING: The laser beam used in the compact disc player is
harmful to the eyes. Do not attempt to disassemble the case.
If sound skips:
² You may be traveling on a rough road, playing badly scratched discs or
the disc may be dirty. Skipping will not scratch the discs or damage
the player.
If your changer does not work, it may be that:
² A disc is already loaded where you want to insert a disc.
² The disc is inserted with the label surface downward.
² The disc is dusty or defective.
² The player's internal temperature is above 60ÉC (140ÉF). Allow the
player to cool down before operating.
² A disc with format and dimensions not within industry standards is
inserted.
Cleaning compact discs
Inspect all discs for contamination before playing. If necessary, clean
discs only with an approved CD cleaner and wipe from the center out to
the edge. Do not use circular motion.
CD and CD changer care
² Handle discs by their edges only. Never touch the playing surface.
² Do not expose discs to direct sunlight or heat sources for extended
periods of time.
TUNE
SEEK
DISCCLOCK+
Controls and features
37

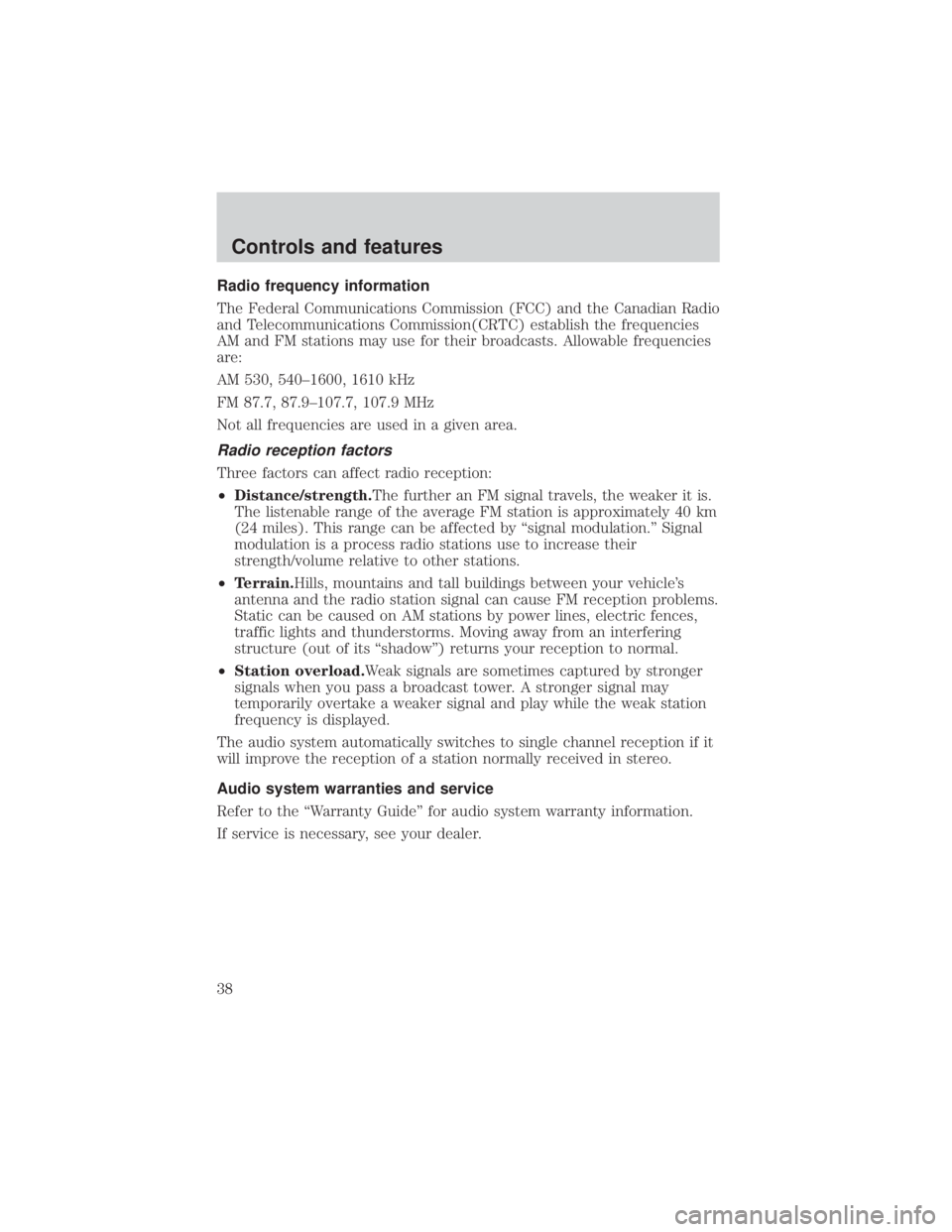

Radio frequency information
The Federal Communications Commission (FCC) and the Canadian Radio
and Telecommunications Commission(CRTC) establish the frequencies
AM and FM stations may use for their broadcasts. Allowable frequencies
are:
AM 530, 540±1600, 1610 kHz
FM 87.7, 87.9±107.7, 107.9 MHz
Not all frequencies are used in a given area.
Radio reception factors
Three factors can affect radio reception:
²Distance/strength. The further an FM signal travels, the weaker it is.
The listenable range of the average FM station is approximately 40 km
(24 miles). This range can be affected by ªsignal modulation.º Signal
modulation is a process radio stations use to increase their
strength/volume relative to other stations.
² Terrain. Hills, mountains and tall buildings between your vehicle's
antenna and the radio station signal can cause FM reception problems.
Static can be caused on AM stations by power lines, electric fences,
traffic lights and thunderstorms. Moving away from an interfering
structure (out of its ªshadowº) returns your reception to normal.
² Station overload. Weak signals are sometimes captured by stronger
signals when you pass a broadcast tower. A stronger signal may
temporarily overtake a weaker signal and play while the weak station
frequency is displayed.
The audio system automatically switches to single channel reception if it
will improve the reception of a station normally received in stereo.
Audio system warranties and service
Refer to the ªWarranty Guideº for audio system warranty information.
If service is necessary, see your dealer.
Controls and features
38

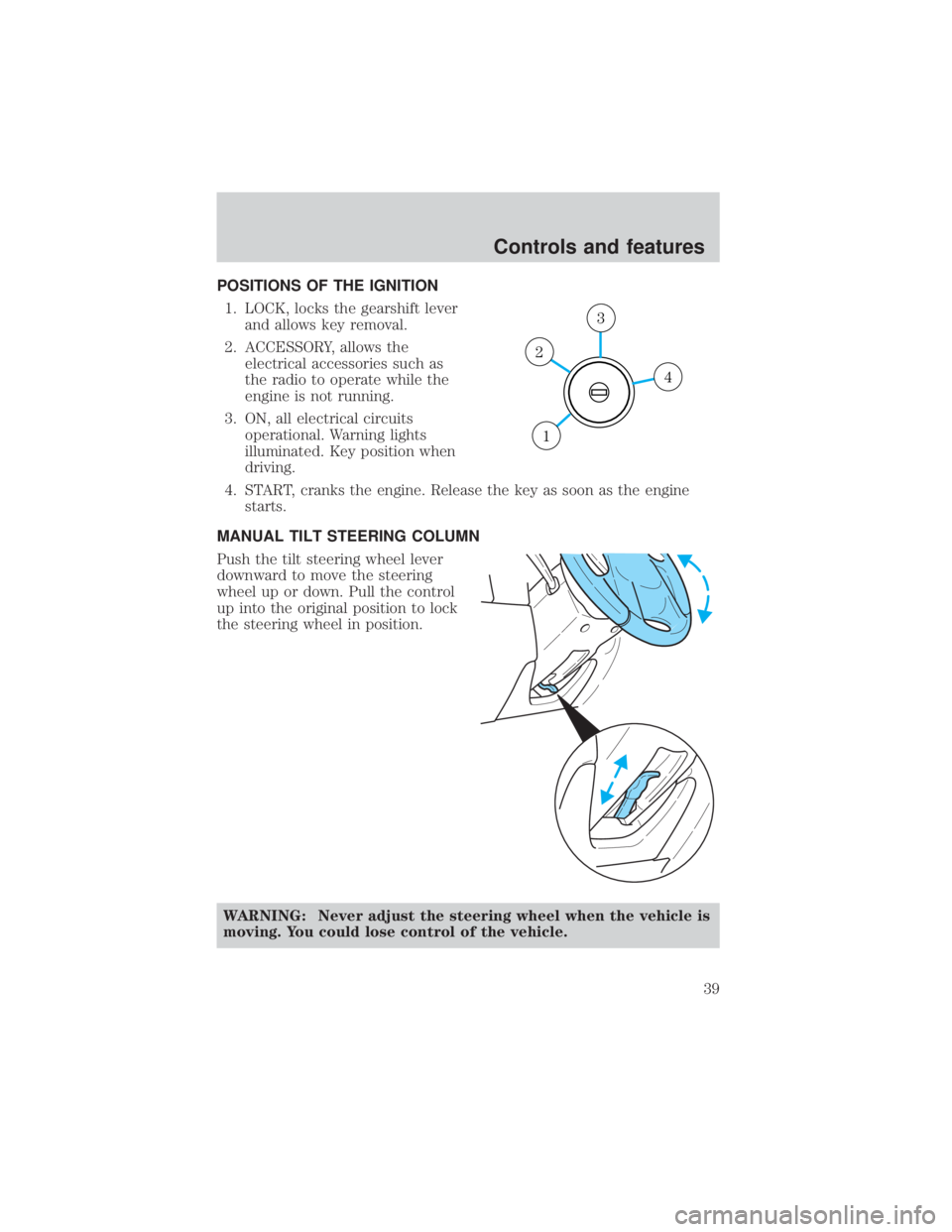

POSITIONS OF THE IGNITION1. LOCK, locks the gearshift lever and allows key removal.
2. ACCESSORY, allows the electrical accessories such as
the radio to operate while the
engine is not running.
3. ON, all electrical circuits operational. Warning lights
illuminated. Key position when
driving.
4. START, cranks the engine. Release the key as soon as the engine starts.
MANUAL TILT STEERING COLUMN
Push the tilt steering wheel lever
downward to move the steering
wheel up or down. Pull the control
up into the original position to lock
the steering wheel in position.
WARNING: Never adjust the steering wheel when the vehicle is
moving. You could lose control of the vehicle.
4
3
2
1
Controls and features
39

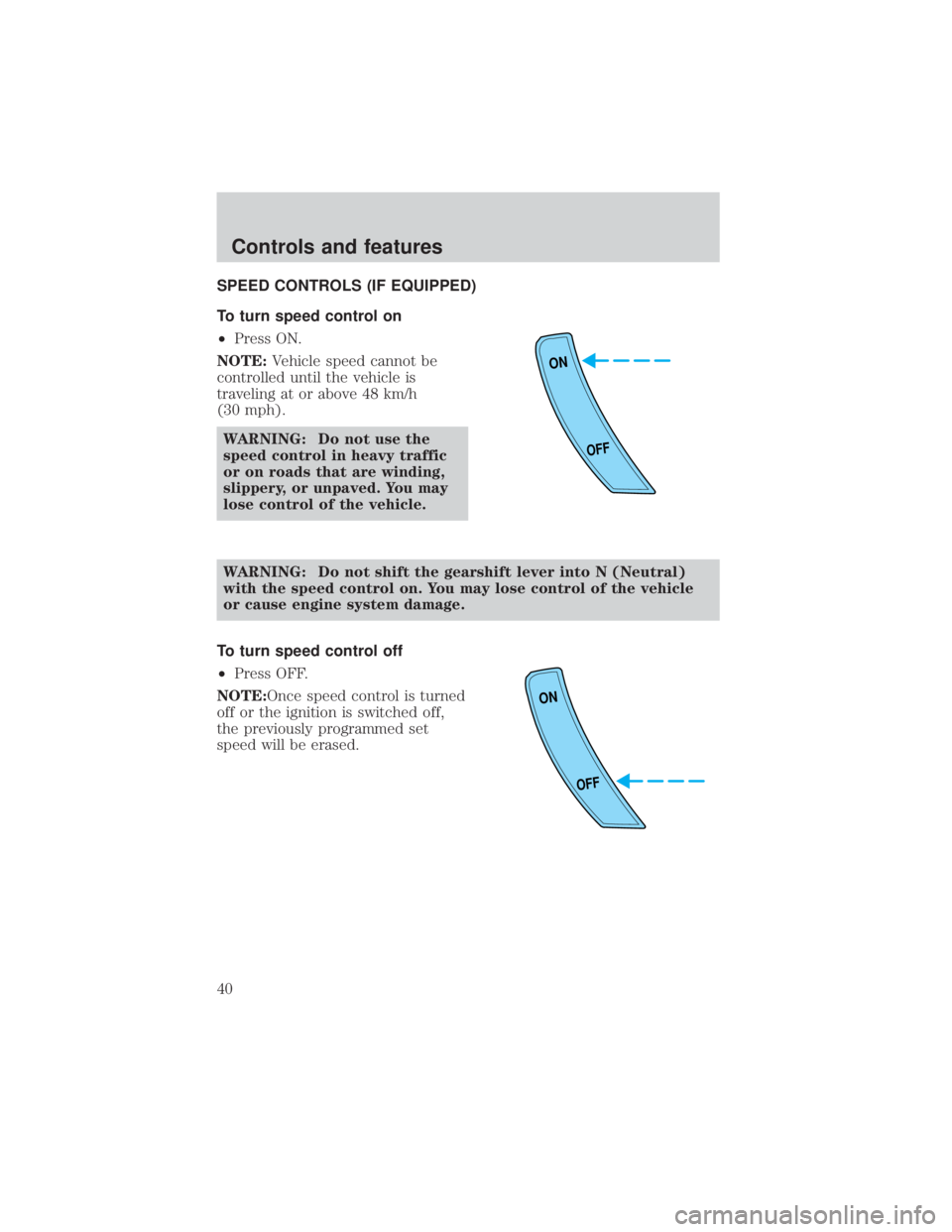

SPEED CONTROLS (IF EQUIPPED)
To turn speed control on
²Press ON.
NOTE: Vehicle speed cannot be
controlled until the vehicle is
traveling at or above 48 km/h
(30 mph).
WARNING: Do not use the
speed control in heavy traffic
or on roads that are winding,
slippery, or unpaved. You may
lose control of the vehicle.
WARNING: Do not shift the gearshift lever into N (Neutral)
with the speed control on. You may lose control of the vehicle
or cause engine system damage.
To turn speed control off
² Press OFF.
NOTE:Once speed control is turned
off or the ignition is switched off,
the previously programmed set
speed will be erased.
ON
OFF
ON
OFF
Controls and features
40
