MAZDA MODEL TRIBUTE 4WD 2001 Owner's Manual

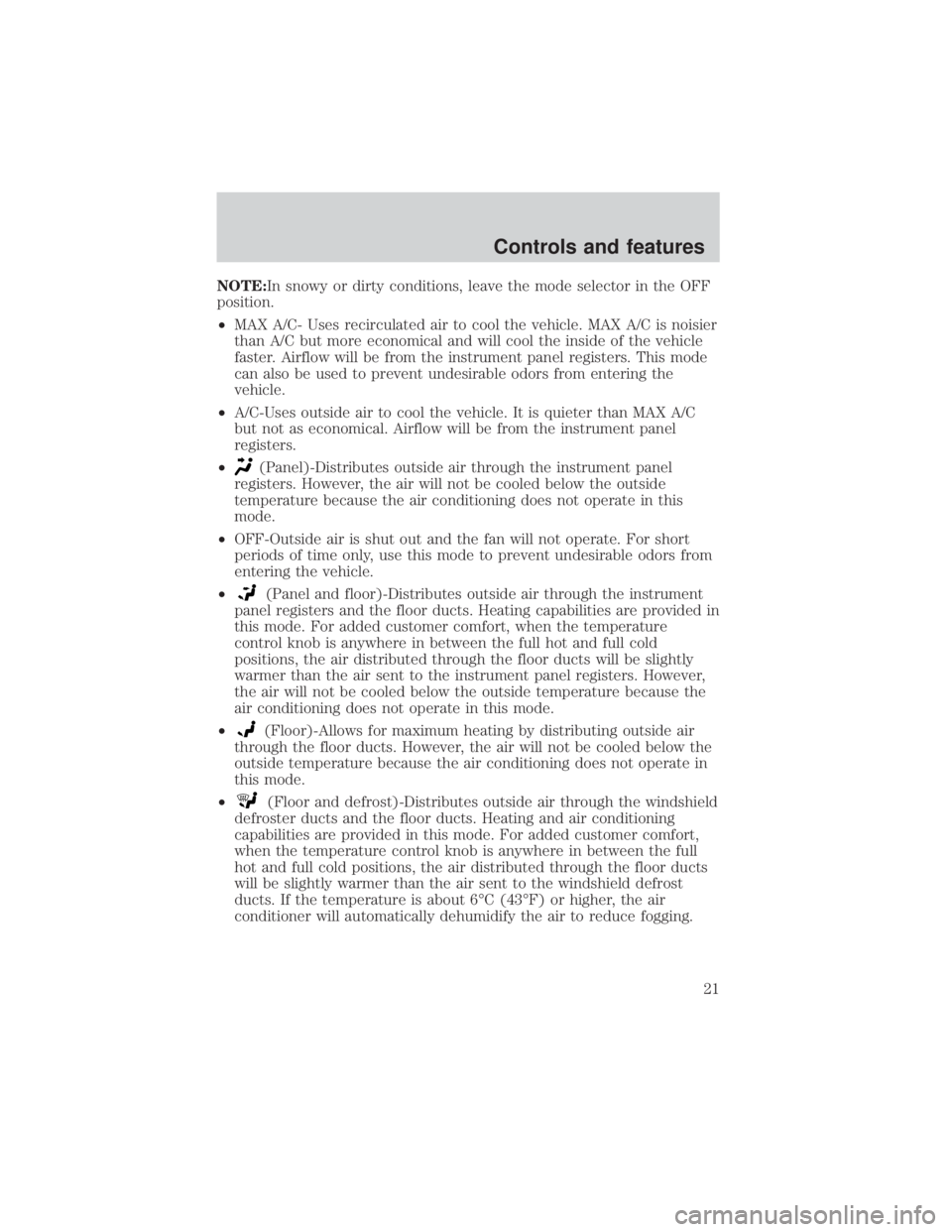

NOTE:In snowy or dirty conditions, leave the mode selector in the OFF
position.
²MAX A/C- Uses recirculated air to cool the vehicle. MAX A/C is noisier
than A/C but more economical and will cool the inside of the vehicle
faster. Airflow will be from the instrument panel registers. This mode
can also be used to prevent undesirable odors from entering the
vehicle.
² A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C
but not as economical. Airflow will be from the instrument panel
registers.
²
(Panel)-Distributes outside air through the instrument panel
registers. However, the air will not be cooled below the outside
temperature because the air conditioning does not operate in this
mode.
² OFF-Outside air is shut out and the fan will not operate. For short
periods of time only, use this mode to prevent undesirable odors from
entering the vehicle.
²
(Panel and floor)-Distributes outside air through the instrument
panel registers and the floor ducts. Heating capabilities are provided in
this mode. For added customer comfort, when the temperature
control knob is anywhere in between the full hot and full cold
positions, the air distributed through the floor ducts will be slightly
warmer than the air sent to the instrument panel registers. However,
the air will not be cooled below the outside temperature because the
air conditioning does not operate in this mode.
²
(Floor)-Allows for maximum heating by distributing outside air
through the floor ducts. However, the air will not be cooled below the
outside temperature because the air conditioning does not operate in
this mode.
²
(Floor and defrost)-Distributes outside air through the windshield
defroster ducts and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. For added customer comfort,
when the temperature control knob is anywhere in between the full
hot and full cold positions, the air distributed through the floor ducts
will be slightly warmer than the air sent to the windshield defrost
ducts. If the temperature is about 6ÉC (43ÉF) or higher, the air
conditioner will automatically dehumidify the air to reduce fogging.
Controls and features
21

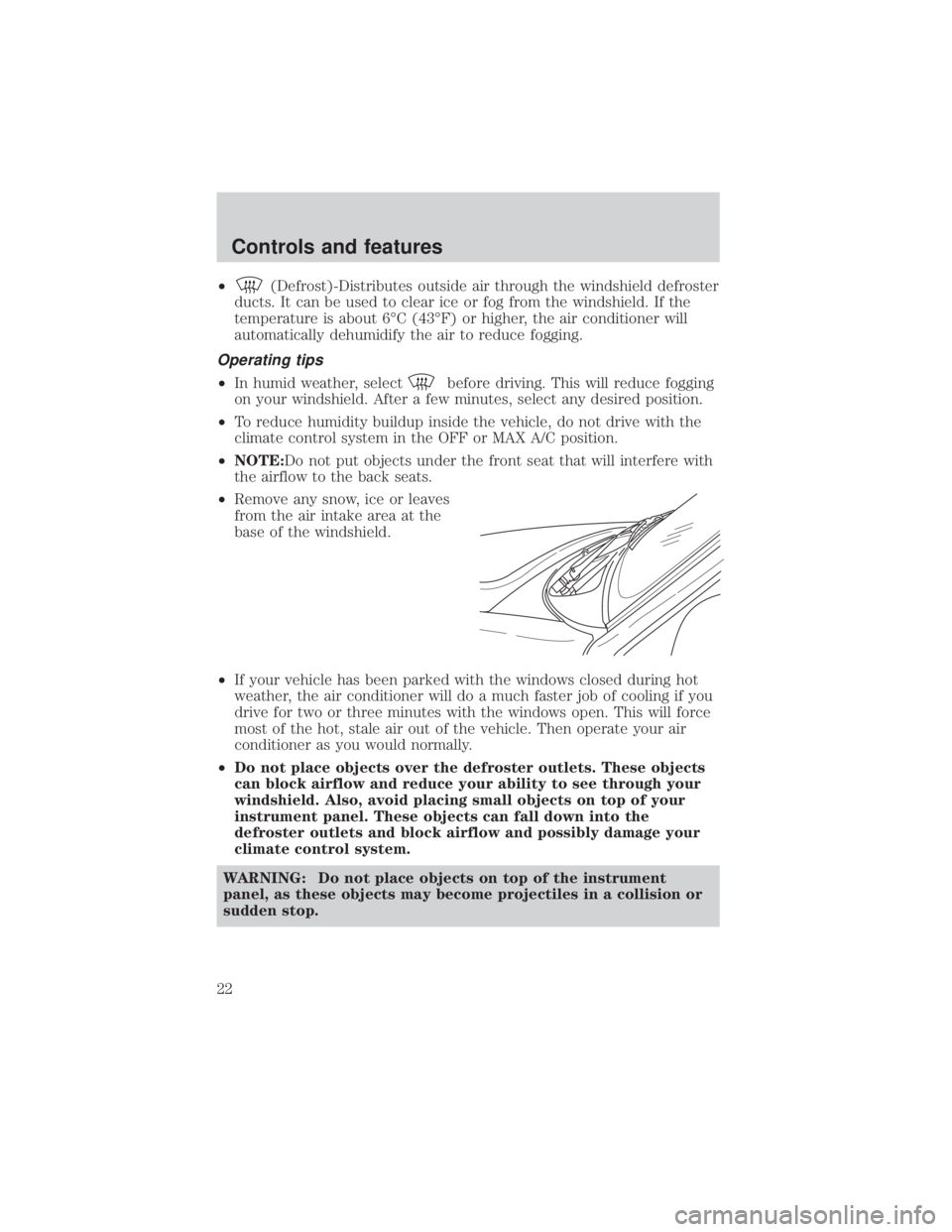

²(Defrost)-Distributes outside air through the windshield defroster
ducts. It can be used to clear ice or fog from the windshield. If the
temperature is about 6ÉC (43ÉF) or higher, the air conditioner will
automatically dehumidify the air to reduce fogging.
Operating tips
² In humid weather, selectbefore driving. This will reduce fogging
on your windshield. After a few minutes, select any desired position.
² To reduce humidity buildup inside the vehicle, do not drive with the
climate control system in the OFF or MAX A/C position.
² NOTE:Do not put objects under the front seat that will interfere with
the airflow to the back seats.
² Remove any snow, ice or leaves
from the air intake area at the
base of the windshield.
² If your vehicle has been parked with the windows closed during hot
weather, the air conditioner will do a much faster job of cooling if you
drive for two or three minutes with the windows open. This will force
most of the hot, stale air out of the vehicle. Then operate your air
conditioner as you would normally.
² Do not place objects over the defroster outlets. These objects
can block airflow and reduce your ability to see through your
windshield. Also, avoid placing small objects on top of your
instrument panel. These objects can fall down into the
defroster outlets and block airflow and possibly damage your
climate control system.
WARNING: Do not place objects on top of the instrument
panel, as these objects may become projectiles in a collision or
sudden stop.
Controls and features
22

USING YOUR AUDIO SYSTEM
AM/FM Radio with Compact Disc Player
Volume/power control
Ensure that the ignition switch is in
the ACC or ON position.
Press the control to turn the audio
system on. Turn the control to raise
or lower the volume.
Press the control again to turn the
audio system off.
NOTE:To prevent the battery from being discharged, do not leave the
audio system on for a long period when the engine is not running.
AM/FM select
The AM/FM control works in radio
mode.
AM/FM select in radio mode
This control allows you to select AM or FM frequency bands. Press the
control to toggle between AM, FM1 or FM2 memory preset stations. The
selected mode will be indicated in the display. If FM stereo is enabled,
ST will be illuminated in the display.
NOTE: If the FM broadcast signal becomes weak, reception
automatically changes from STEREO to MONO for reduced noise, and
the ST indicator will go out.
CLOCK
PUSH
POWER-VOL
AUDIODISC1RDM2RPT SCAN
AUTO
M
AM
FM CD H
M
TUNE
SEEK
TRACK345
DISC IN
PUSHPOWER-VOL
AM
FM
Controls and features
23

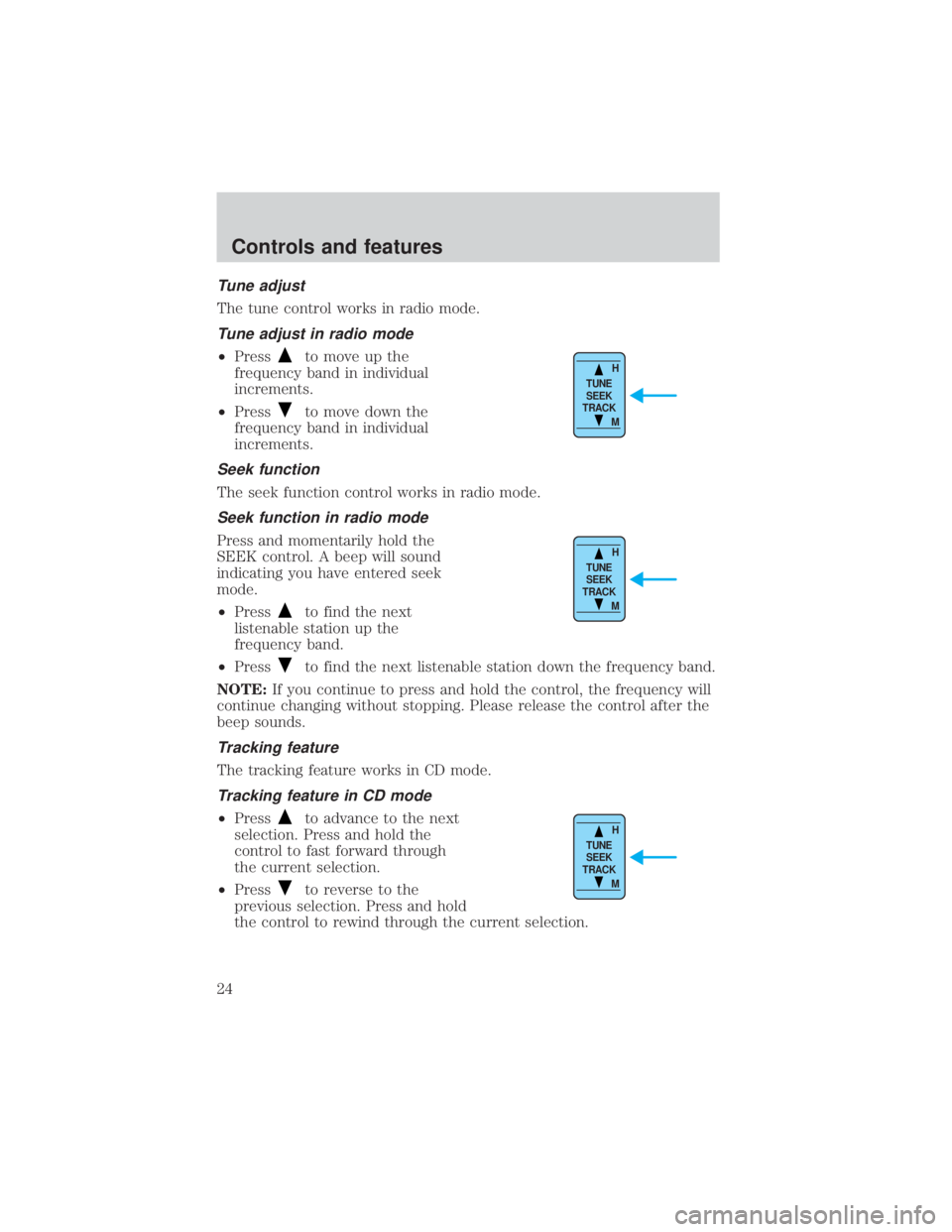

Tune adjust
The tune control works in radio mode.
Tune adjust in radio mode
²Pressto move up the
frequency band in individual
increments.
² Press
to move down the
frequency band in individual
increments.
Seek function
The seek function control works in radio mode.
Seek function in radio mode
Press and momentarily hold the
SEEK control. A beep will sound
indicating you have entered seek
mode.
² Press
to find the next
listenable station up the
frequency band.
² Press
to find the next listenable station down the frequency band.
NOTE: If you continue to press and hold the control, the frequency will
continue changing without stopping. Please release the control after the
beep sounds.
Tracking feature
The tracking feature works in CD mode.
Tracking feature in CD mode
² Pressto advance to the next
selection. Press and hold the
control to fast forward through
the current selection.
² Press
to reverse to the
previous selection. Press and hold
the control to rewind through the current selection.
H
M
TUNE
SEEK
TRACK
H
M
TUNE
SEEK
TRACK
H
M
TUNE
SEEK
TRACK
Controls and features
24

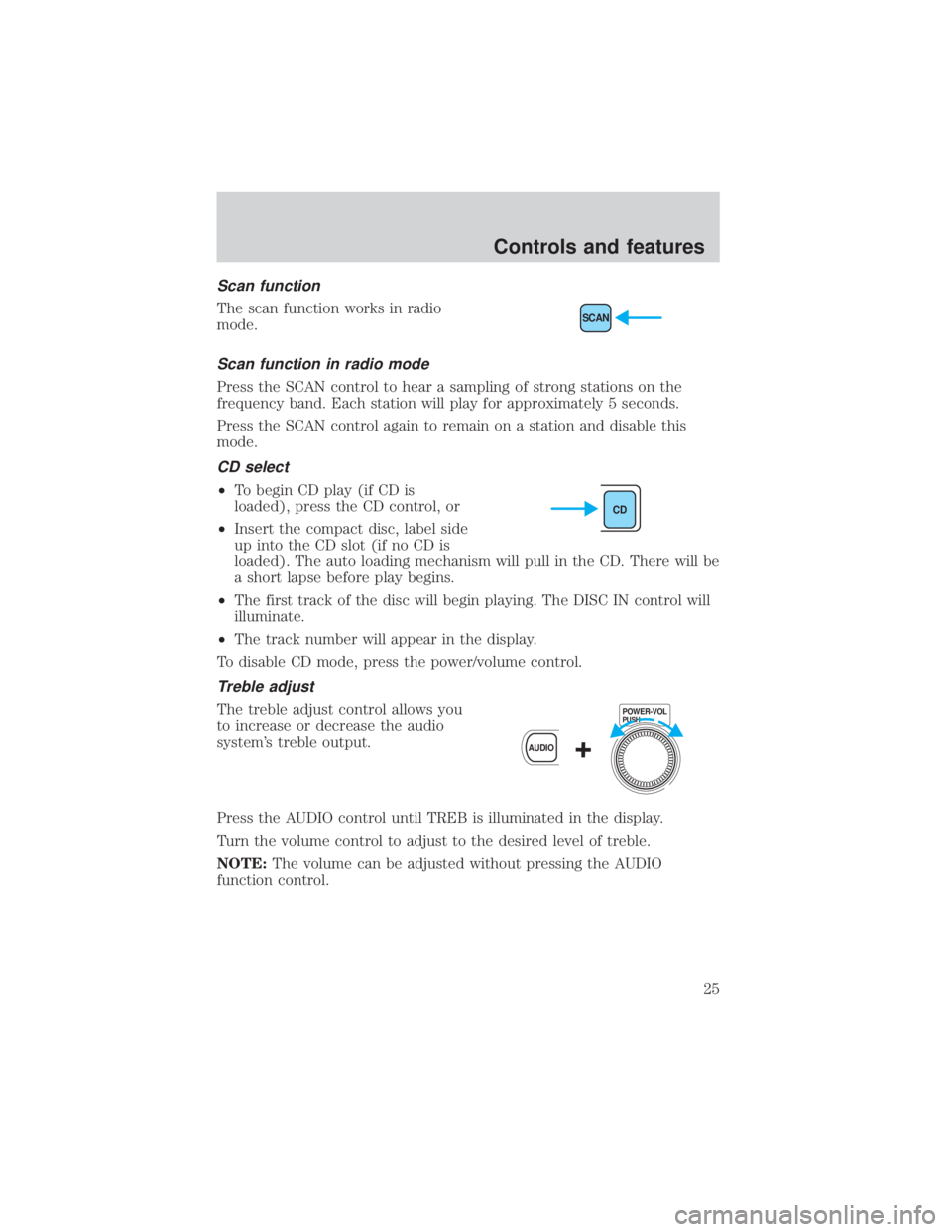

Scan function
The scan function works in radio
mode.
Scan function in radio mode
Press the SCAN control to hear a sampling of strong stations on the
frequency band. Each station will play for approximately 5 seconds.
Press the SCAN control again to remain on a station and disable this
mode.
CD select
²To begin CD play (if CD is
loaded), press the CD control, or
² Insert the compact disc, label side
up into the CD slot (if no CD is
loaded). The auto loading mechanism will pull in the CD. There will be
a short lapse before play begins.
² The first track of the disc will begin playing. The DISC IN control will
illuminate.
² The track number will appear in the display.
To disable CD mode, press the power/volume control.
Treble adjust
The treble adjust control allows you
to increase or decrease the audio
system's treble output.
Press the AUDIO control until TREB is illuminated in the display.
Turn the volume control to adjust to the desired level of treble.
NOTE: The volume can be adjusted without pressing the AUDIO
function control.
SCAN
CD
PUSHPOWER-VOL
+AUDIO
Controls and features
25

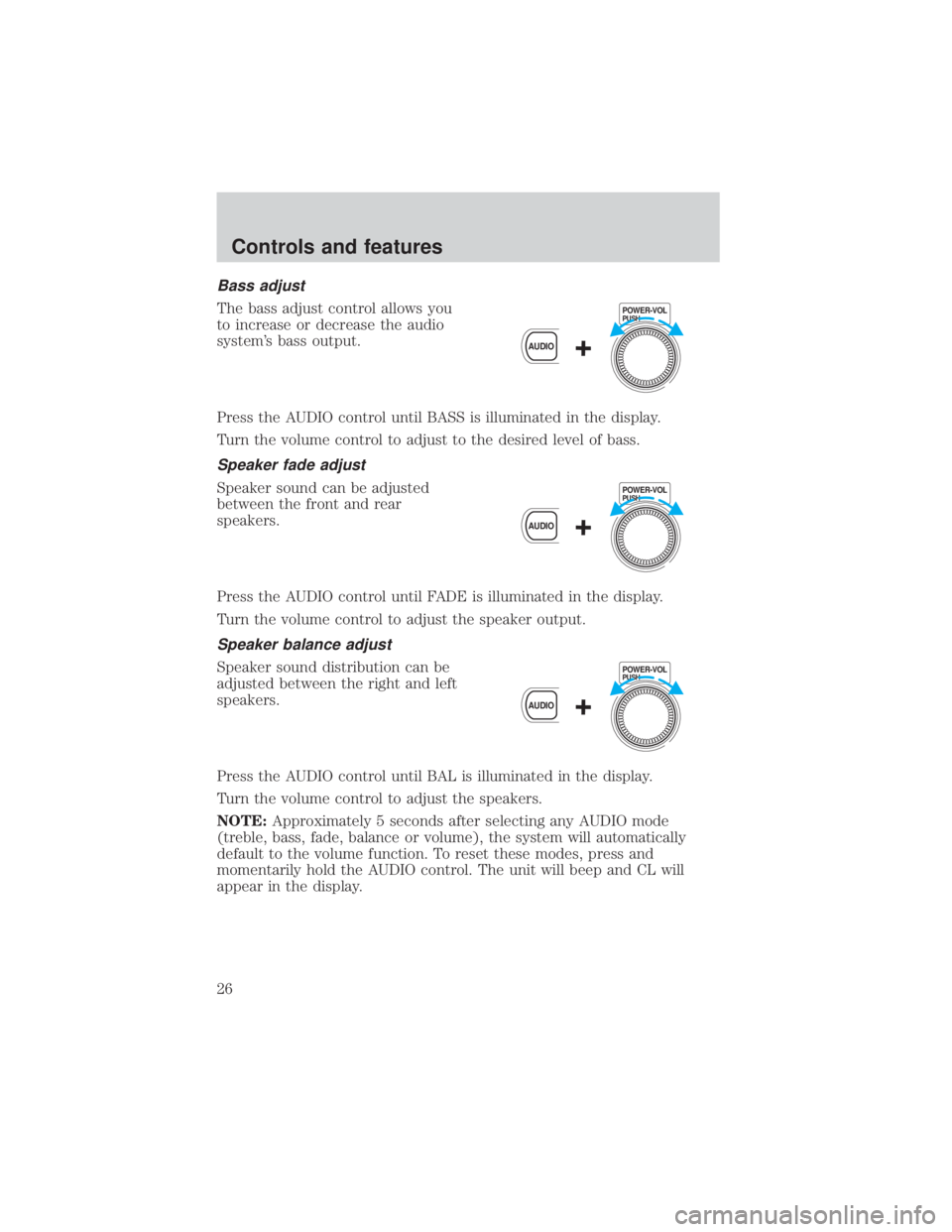

Bass adjust
The bass adjust control allows you
to increase or decrease the audio
system's bass output.
Press the AUDIO control until BASS is illuminated in the display.
Turn the volume control to adjust to the desired level of bass.
Speaker fade adjust
Speaker sound can be adjusted
between the front and rear
speakers.
Press the AUDIO control until FADE is illuminated in the display.
Turn the volume control to adjust the speaker output.
Speaker balance adjust
Speaker sound distribution can be
adjusted between the right and left
speakers.
Press the AUDIO control until BAL is illuminated in the display.
Turn the volume control to adjust the speakers.
NOTE:Approximately 5 seconds after selecting any AUDIO mode
(treble, bass, fade, balance or volume), the system will automatically
default to the volume function. To reset these modes, press and
momentarily hold the AUDIO control. The unit will beep and CL will
appear in the display.
PUSHPOWER-VOL
+AUDIO
PUSHPOWER-VOL
+AUDIO
PUSHPOWER-VOL
+AUDIO
Controls and features
26

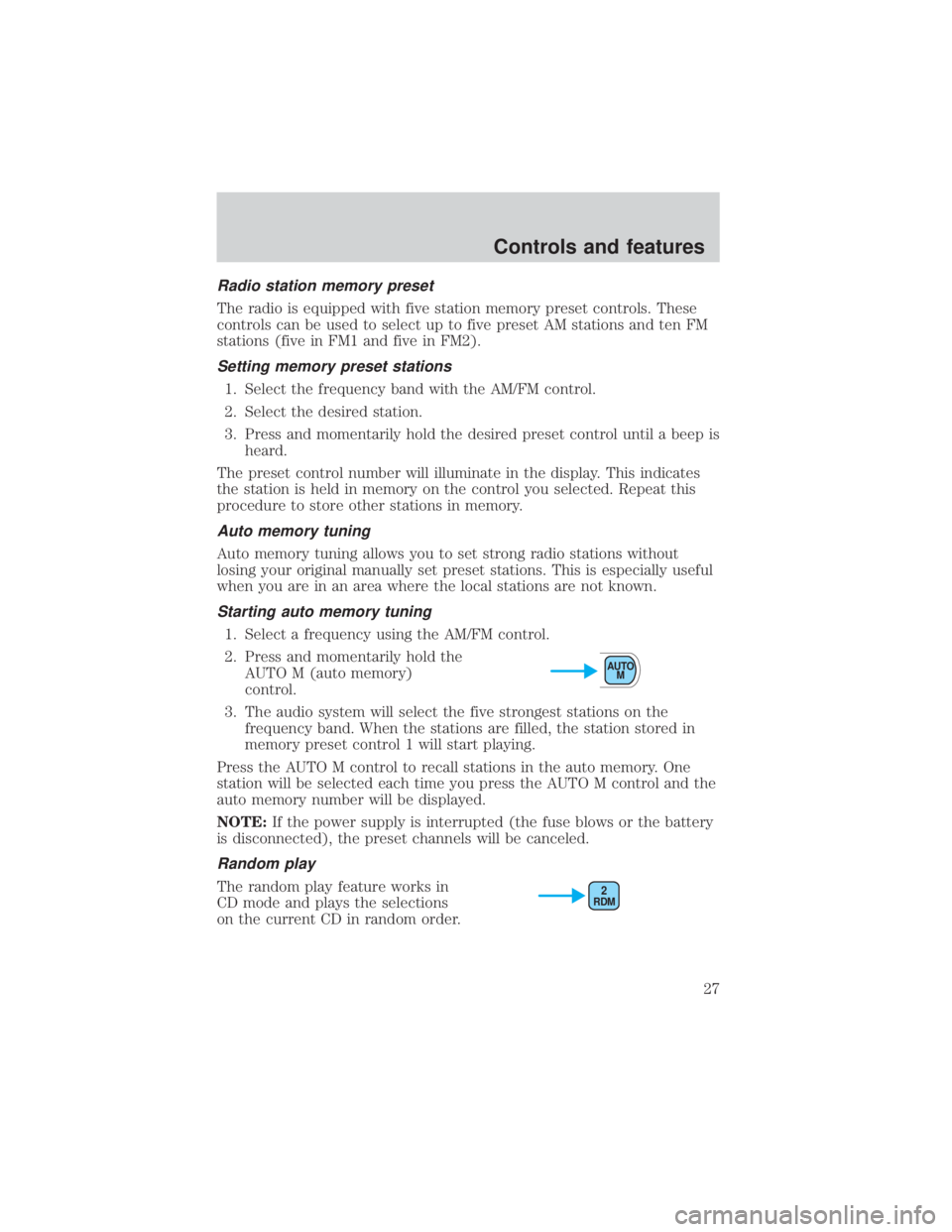

Radio station memory preset
The radio is equipped with five station memory preset controls. These
controls can be used to select up to five preset AM stations and ten FM
stations (five in FM1 and five in FM2).
Setting memory preset stations
1. Select the frequency band with the AM/FM control.
2. Select the desired station.
3. Press and momentarily hold the desired preset control until a beep isheard.
The preset control number will illuminate in the display. This indicates
the station is held in memory on the control you selected. Repeat this
procedure to store other stations in memory.
Auto memory tuning
Auto memory tuning allows you to set strong radio stations without
losing your original manually set preset stations. This is especially useful
when you are in an area where the local stations are not known.
Starting auto memory tuning
1. Select a frequency using the AM/FM control.
2. Press and momentarily hold the AUTO M (auto memory)
control.
3. The audio system will select the five strongest stations on the frequency band. When the stations are filled, the station stored in
memory preset control 1 will start playing.
Press the AUTO M control to recall stations in the auto memory. One
station will be selected each time you press the AUTO M control and the
auto memory number will be displayed.
NOTE: If the power supply is interrupted (the fuse blows or the battery
is disconnected), the preset channels will be canceled.
Random play
The random play feature works in
CD mode and plays the selections
on the current CD in random order.
AUTO M
RDM2
Controls and features
27

Random play in CD mode
Press the RDM control during play. RDM will illuminate in the display.
The next selection will be randomly selected.
To disengage random play, press the RDM control again.
Repeat play
The repeat play feature works in CD
mode and repeats the current CD
selection.
Repeat play in CD mode
Press the RPT control during play. RPT will illuminate in the display.
The current selection will be repeated.
To disengage repeat play, press the RPT control again.
Eject function
Press the control to stop and eject a
CD.
Setting the clock
²Ensure that the ignition is in the
ACC or ON position.
² Press and momentarily hold the
CLOCK control until a beep is
heard. The current time will flash
in the display.
² Press the
to increase the hours.
² Press the
to increase the minutes.
² Press the CLOCK control again when the desired time is set to
activate the clock.
NOTE: If the power supply to the unit is interrupted (if the fuse blows
or the vehicle's battery is disconnected), the clock will need to be reset.
NOTE: If the time is not adjusted while the clock's current time is
flashing (if neither
oris pressed), and the CLOCK control is
pressed a second time, the minutes will be set to 00. If the current time
setting is within the first half of the hour (01±29), the hour setting will
automatically reverse one hour. For example, if the original setting is
RPT3
+CLOCK
H
M
TUNE
SEEK
TRACK
Controls and features
28

3:24, the time will change to 3:00. If the clock's current time setting is
within the latter part of the hour (from 30 to 59 minutes), the hour
setting will automatically advance one hour. For example, if the original
setting is 3:45, the time will change to 4:00.
Changing the display mode
Press the CLOCK control to
alternate the display between time
and audio.
NOTE:If audio operation is selected while the time mode is on, the
selected audio mode will be displayed for 10 seconds, then the display
will revert to the time mode.
AM/FM Radio with Cassette and 6 Disc CD ChangerCLOCK
AM/FMTAPE CD
SCAN
12 3
45 6
LOAD
CLOCK
AUTO-M
PRO
RPT
RDM/BS
TR/APC TR/APC
FF
REW
TUNE
SEEK
DISC
PUSH
POWER VOLPUSH
AUDIO CONT
Controls and features
29

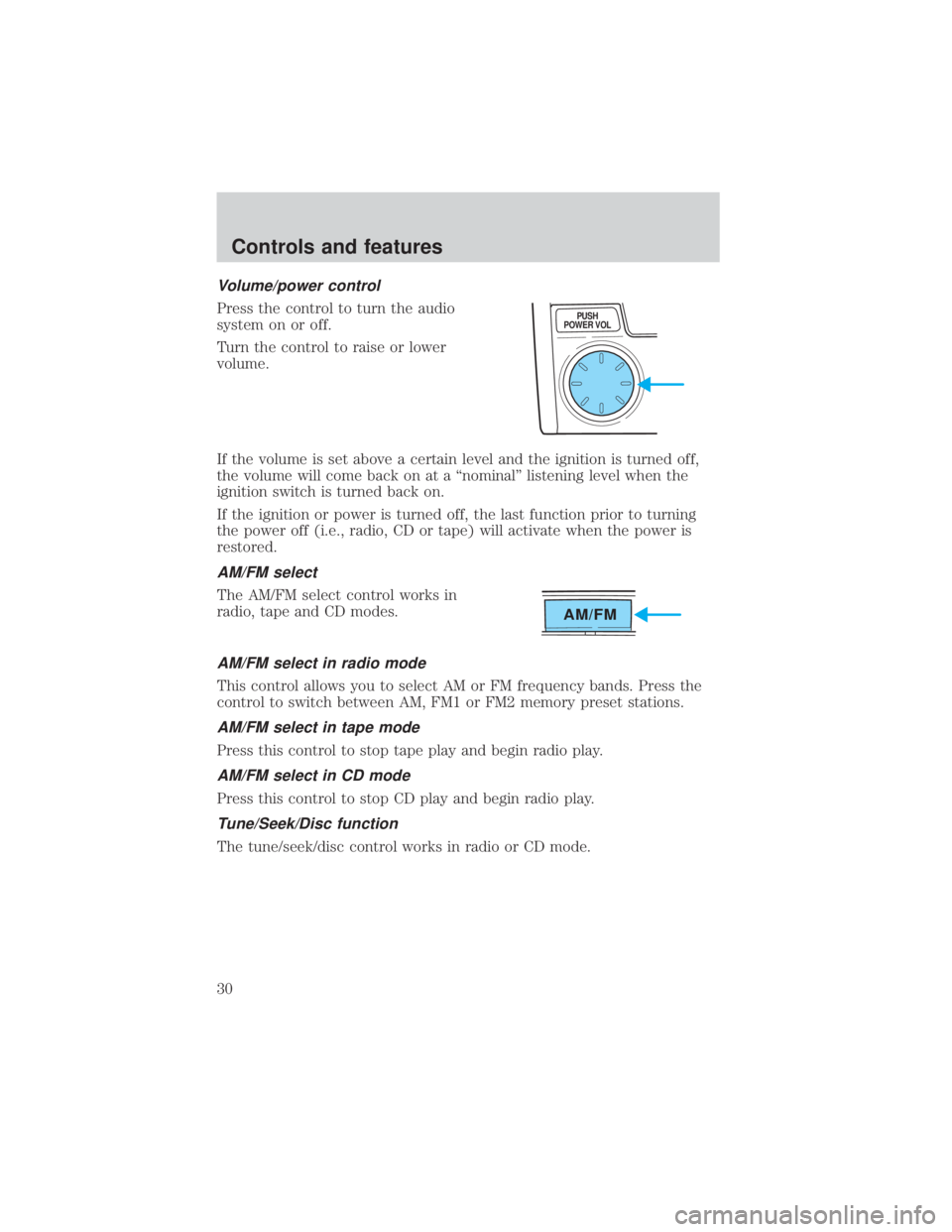

Volume/power control
Press the control to turn the audio
system on or off.
Turn the control to raise or lower
volume.
If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a ªnominalº listening level when the
ignition switch is turned back on.
If the ignition or power is turned off, the last function prior to turning
the power off (i.e., radio, CD or tape) will activate when the power is
restored.
AM/FM select
The AM/FM select control works in
radio, tape and CD modes.
AM/FM select in radio mode
This control allows you to select AM or FM frequency bands. Press the
control to switch between AM, FM1 or FM2 memory preset stations.
AM/FM select in tape mode
Press this control to stop tape play and begin radio play.
AM/FM select in CD mode
Press this control to stop CD play and begin radio play.
Tune/Seek/Disc function
The tune/seek/disc control works in radio or CD mode.
PUSH
POWER VOL
AM/FM
Controls and features
30
