QUICK REFERENCE CHART
Below is a quick listing of the functions of your steering wheel controls
and navigation system controls.
Navigation
bezel control Steering wheel
control Function
SEEK,
,
Press to access the previous/next
track.
N/A OK Press to confirm your selection.
MEDIA N/A Press repeatedly to access all available media sources in your
vehicle such as: CD, DVD, Jukebox
and Line In.
SYSTEM MENU FEATURES
Your system has many menu features such as allowing you to adjust the
touchscreen brightness, adjusting the time and languages, adjusting the
feedback and system settings. To access, press the MENU hard button on
the navigation system.
Setting the clock
1. Press the MENU hard button on
the navigation system.
2. Select the `Clock' tab on the
touchscreen. Select from the
following display options:
Time set buttons: To set the time,
press +, Ð to increase/decrease the
time and select AM or PM.
Display clock: Press to turn the
clock display on/off.
Format: Press to select between 12 hour and 24 hour format.
Auto time zone: If enabled, the system will automatically adjust the
time when you enter into a new time zone. If disabled, you will have to
manually adjust the time when entering different time zones.
Restore defaults: Select `Reset' to reset to the default settings.
CIMS #1683384
com_swchart.maz
itdseq=10
CIMS #1675935
com_menufts-intro
itdseq=11
CIMS #1658261
com_clock.ngn itdseq=12
art=expec264_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 15OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
System overview
15
Page 17 of 81
JOBNAME: No Job Name PAGE: 17 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi
System settings
1. Press the MENU hard button on
the navigation system.
2. Select the `System Settings' tab
on the touchscreen. Select from the
following display options:
Language:Select between `English',
`Francais' or `Espanol'.
Units: Select between `English' and
`Metric'.
Keyboard layout: Select `ABC' or `QWERTY' for the keyboard layout in
the display.
Delete stored items: Select `View' to see what areas contain stored
items. From each area, you can delete all of the entries.
Restore factory default settings: Press `Reset' to return to the factory
default settings.
Valet Mode: Press to access Valet Mode.
² Enable Valet Mode: Select to lock the system with a four digit PIN.
The same PIN must be entered to unlock the system and disable valet
mode.
Valet mode
1. Press the MENU hard button on the navigation system.
2. Select the `Valet Mode' tab on the
touchscreen. Press `Enable Valet
Mode'.CIMS #1658263
com_sys-sets.ngn
itdseq=14
CIMS #1675940
com_valetmode itdseq=15
art=expec275_a
art=expec300_a
REVIEW COPY ÐÐ 2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 17OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
System overview
17
Page 29 of 81
JOBNAME: No Job Name PAGE: 29 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi

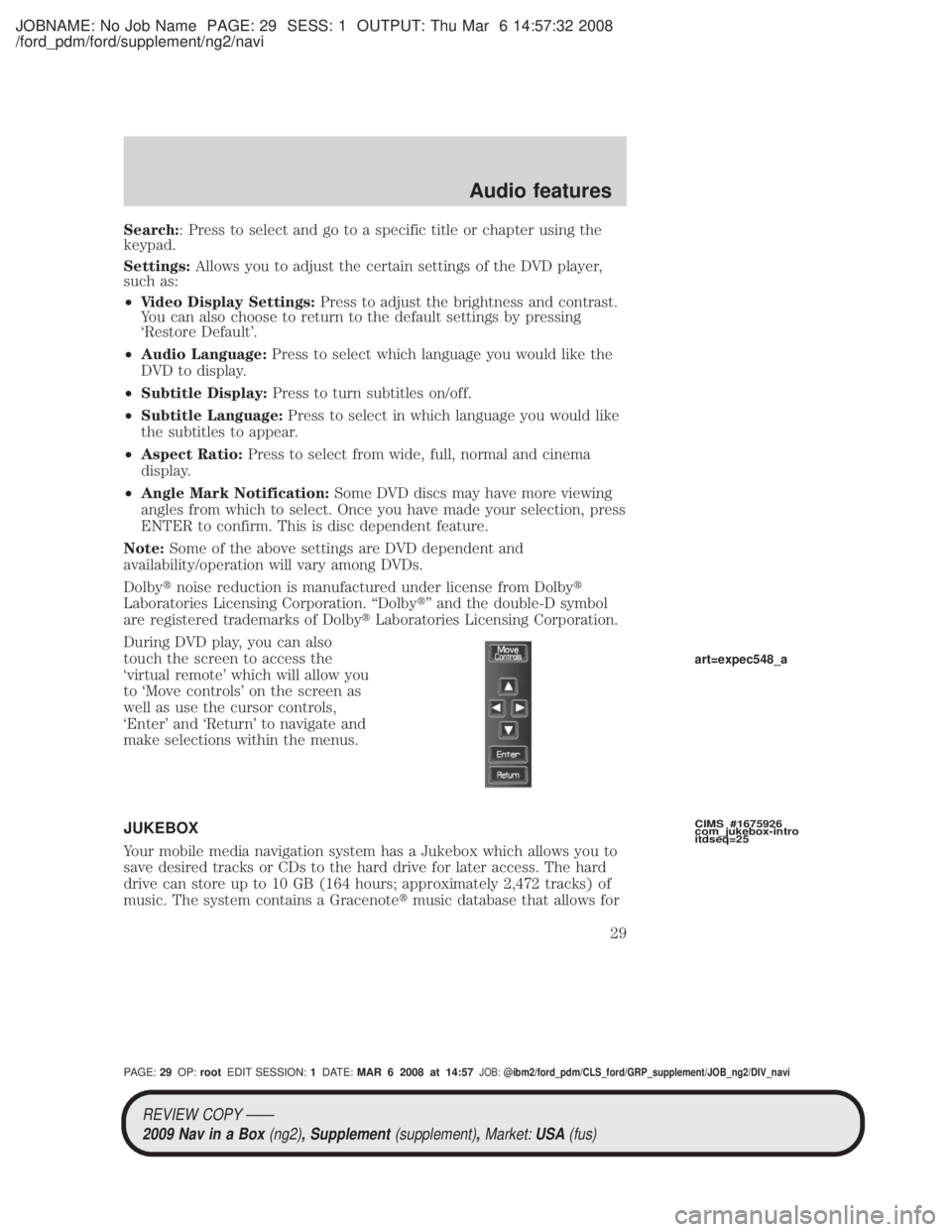

Search:: Press to select and go to a specific title or chapter using the
keypad.
Settings:Allows you to adjust the certain settings of the DVD player,
such as:
² Video Display Settings: Press to adjust the brightness and contrast.
You can also choose to return to the default settings by pressing
`Restore Default'.
² Audio Language: Press to select which language you would like the
DVD to display.
² Subtitle Display: Press to turn subtitles on/off.
² Subtitle Language: Press to select in which language you would like
the subtitles to appear.
² Aspect Ratio: Press to select from wide, full, normal and cinema
display.
² Angle Mark Notification: Some DVD discs may have more viewing
angles from which to select. Once you have made your selection, press
ENTER to confirm. This is disc dependent feature.
Note: Some of the above settings are DVD dependent and
availability/operation will vary among DVDs.
Dolbyt noise reduction is manufactured under license from Dolby t
Laboratories Licensing Corporation. ªDolby tº and the double-D symbol
are registered trademarks of Dolby tLaboratories Licensing Corporation.
During DVD play, you can also
touch the screen to access the
`virtual remote' which will allow you
to `Move controls' on the screen as
well as use the cursor controls,
`Enter' and `Return' to navigate and
make selections within the menus.
JUKEBOX
Your mobile media navigation system has a Jukebox which allows you to
save desired tracks or CDs to the hard drive for later access. The hard
drive can store up to 10 GB (164 hours; approximately 2,472 tracks) of
music. The system contains a Gracenote tmusic database that allows for
CIMS #1675926
com_jukebox-intro
itdseq=25
art=expec548_a
REVIEW COPY ÐÐ
2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 29OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
Audio features
29
Page 79 of 81
JOBNAME: No Job Name PAGE: 79 SESS: 1 OUTPUT: Thu Mar 6 14:57:32 2008
/ford_pdm/ford/supplement/ng2/navi
How do I hear the navigation voice prompts?
1. Press the MENU hard button on the navigation system.
2. Select the `Feedback settings' tab on the touchscreen.
3. Press + to increase or Ð to decrease the voice volume levels.
How do I recover after accidental language re-set?
1. Press the MENU hard button on the navigation system.
2. Select the `Feedback settings'/Retour/Reaccion tab on the touchscreen.
3. Press the `English'/Anglais/Ingles button to reset language to English.
4. Press the `Spanish'/Espanol/Espanol button to reset language to
Spanish.
5. Press the `French'/Francais/Frances button to reset language to
French.
Or, you can also turn vehicle off to restart system. Then from the
DISCLAIMER screen, select the desired language before pressing `Agree'.
TROUBLESHOOTING
Symptoms Possible CauseAction
Focus Error System unable to play
reproduced disc. Contact your dealer.
Bad Disc Disc was inserted
upside down or the system is unable to
read the information in the disc. The mechanism will
automatically eject disc.
Track Error The system is unable
to reproduce a corrupt MP3 file. The system will skip
the corrupted track.
Invalid Disc Detected Dirty CD/DVD or unsupported formatWipe the CD/DVD with
a dry, soft cloth from
the center to the outer edge of the disc.
CIMS #1678306
com_trbleshoot-ngn
itdseq=56
REVIEW COPY ÐÐ2009 Nav in a Box (ng2), Supplement(supplement),Market:USA(fus)
PAGE: 79OP: root EDIT SESSION: 1DATE: MAR 6 2008 at 14:57JOB:@ibm2/ford_pdm/CLS_ford/GRP_supplement/JOB_ng2/DIV_navi
General Information
