Page 351 of 514

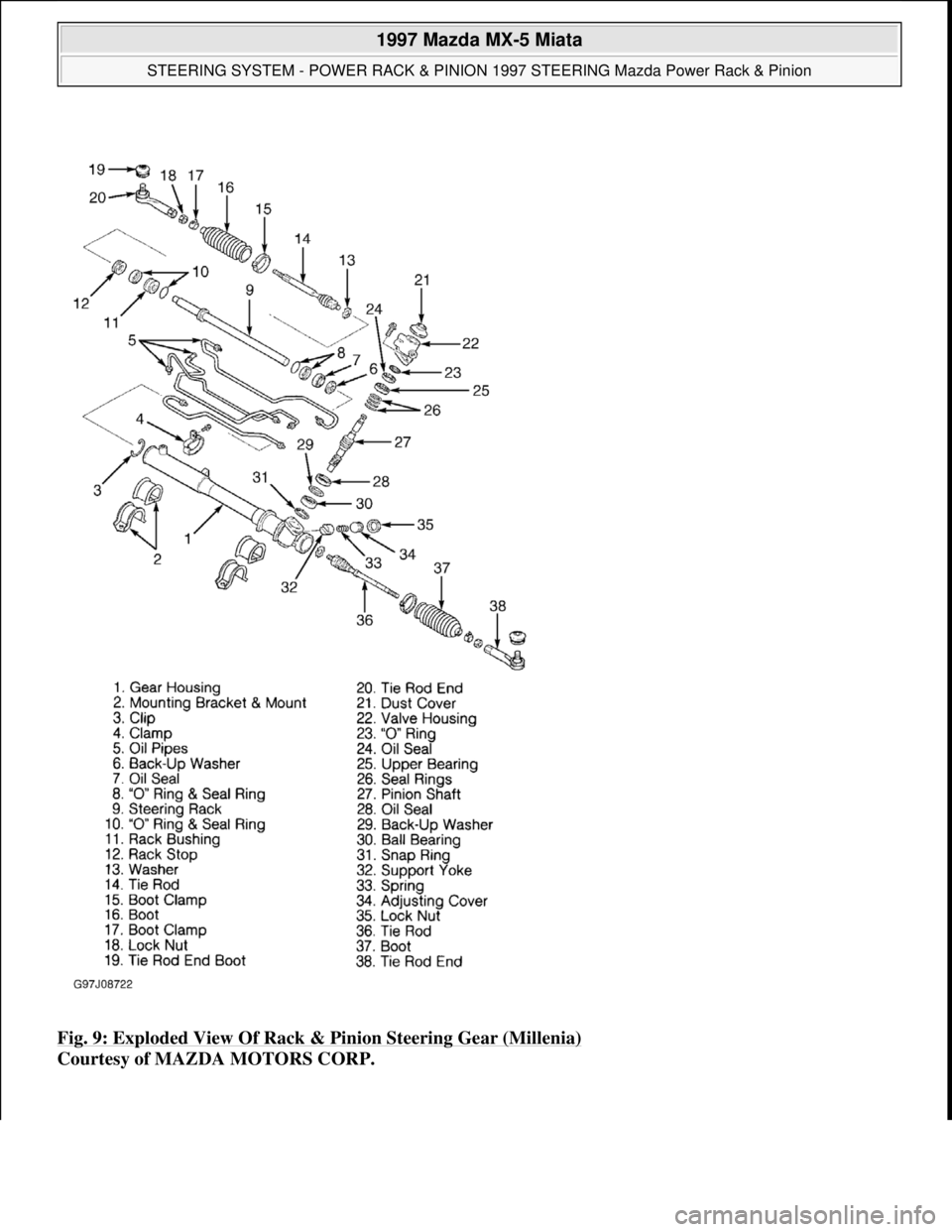

MAZDA MX-5 1997 Factory Repair Manual Fig. 9: Exploded View Of Rack & Pinion Steering Gear (Millenia) Courtesy of MAZDA MOTORS CORP. 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion

Page 352 of 514

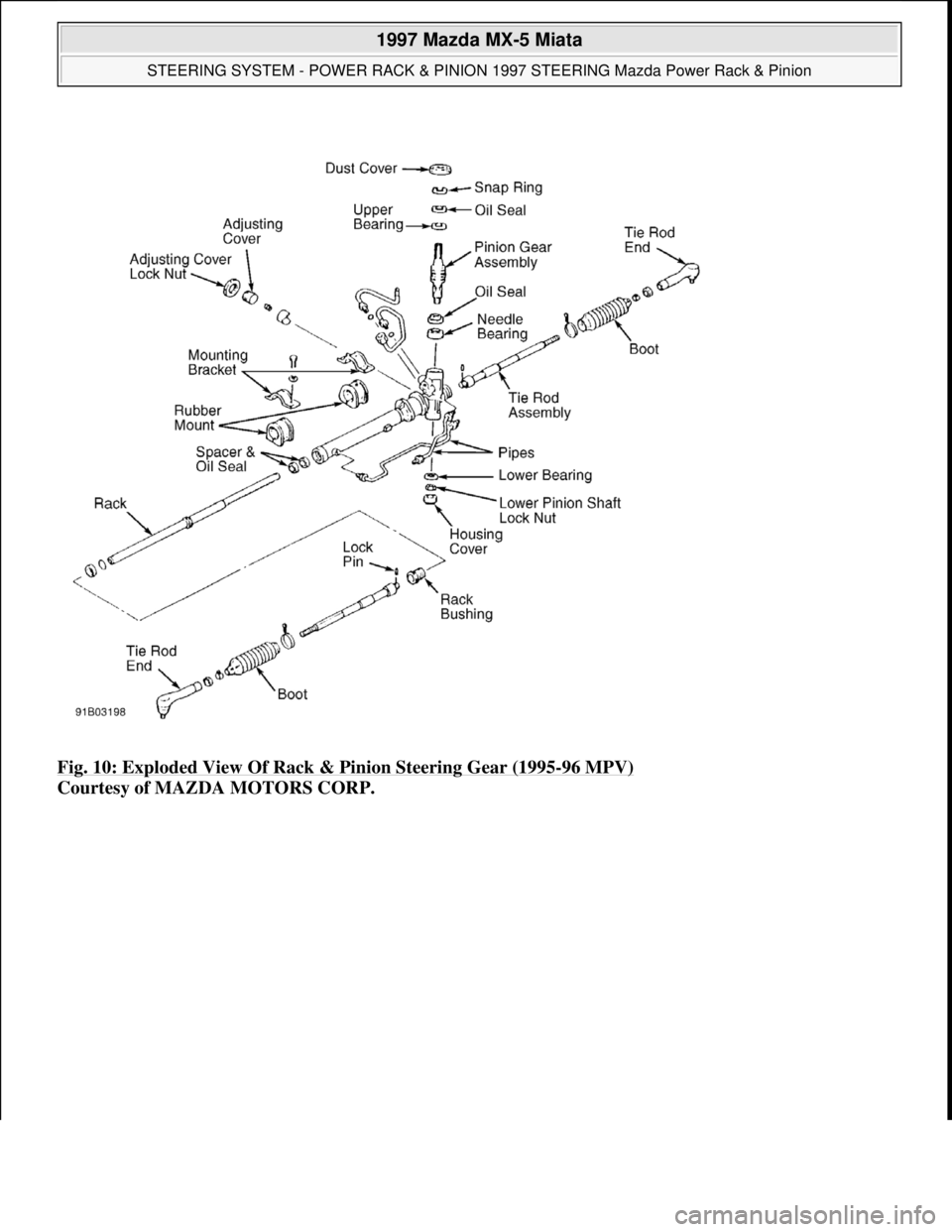

MAZDA MX-5 1997 Factory Repair Manual Fig. 10: Exploded View Of Rack & Pinion Steering Gear (1995-96 MPV) Courtesy of MAZDA MOTORS CORP. 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pin

Page 353 of 514

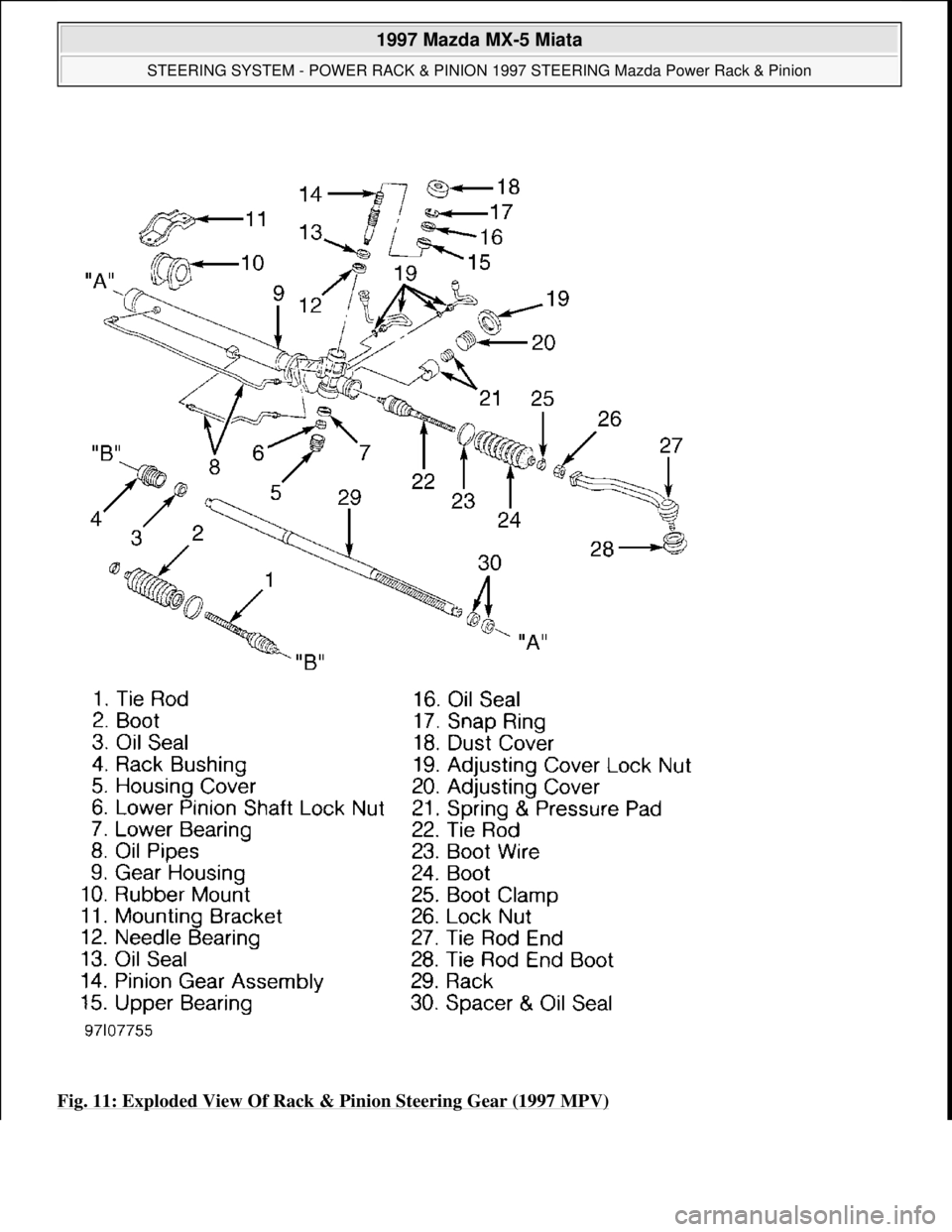

MAZDA MX-5 1997 Factory Repair Manual Fig. 11: Exploded View Of Rack & Pinion Steering Gear (1997 MPV) 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion Microsoft Sunday, July 05, 2

Page 354 of 514

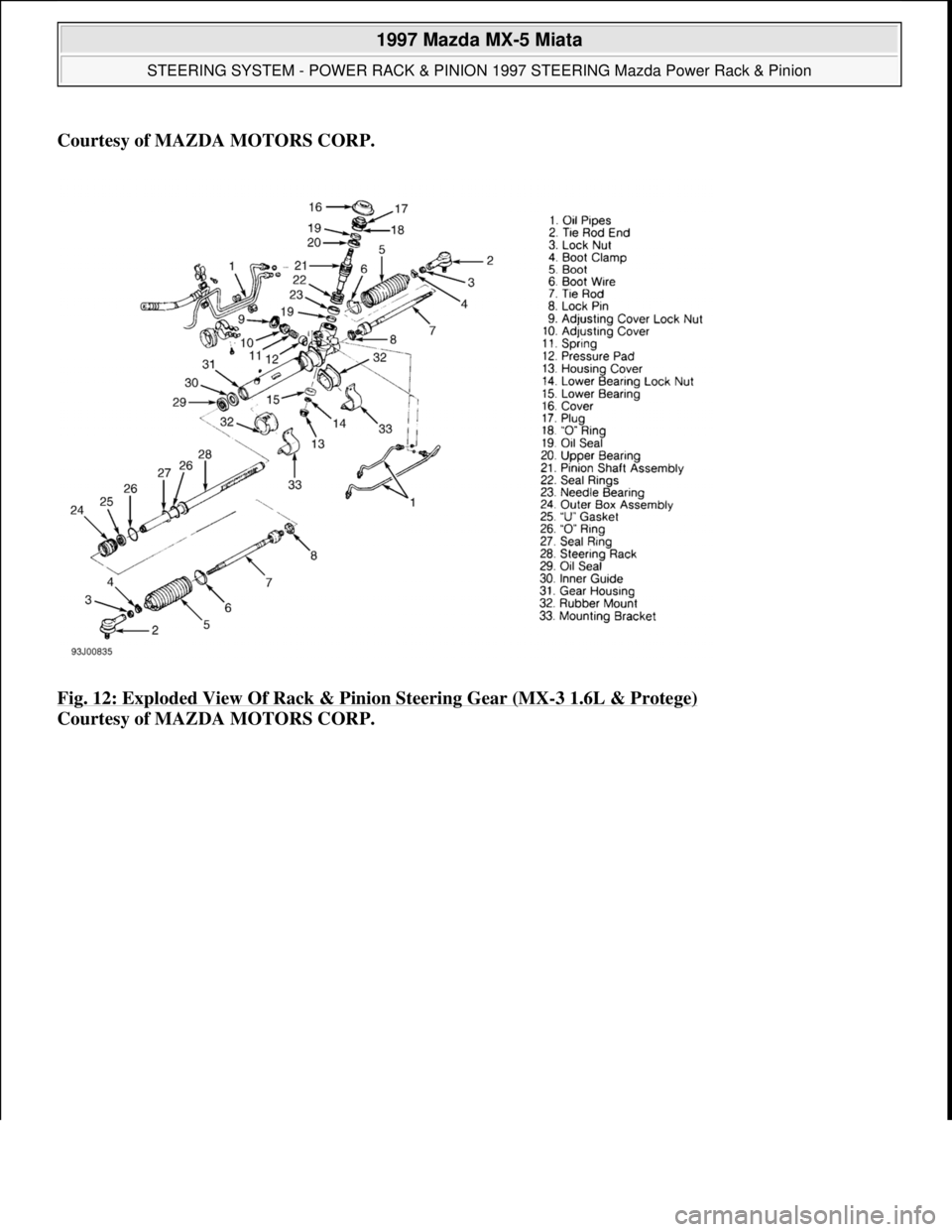

MAZDA MX-5 1997 Factory Repair Manual Courtesy of MAZDA MOTORS CORP. Fig. 12: Exploded View Of Rack & Pinion Steering Gear (MX -3 1.6L & Protege) Courtesy of MAZDA MOTORS CORP. 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PI

Page 355 of 514

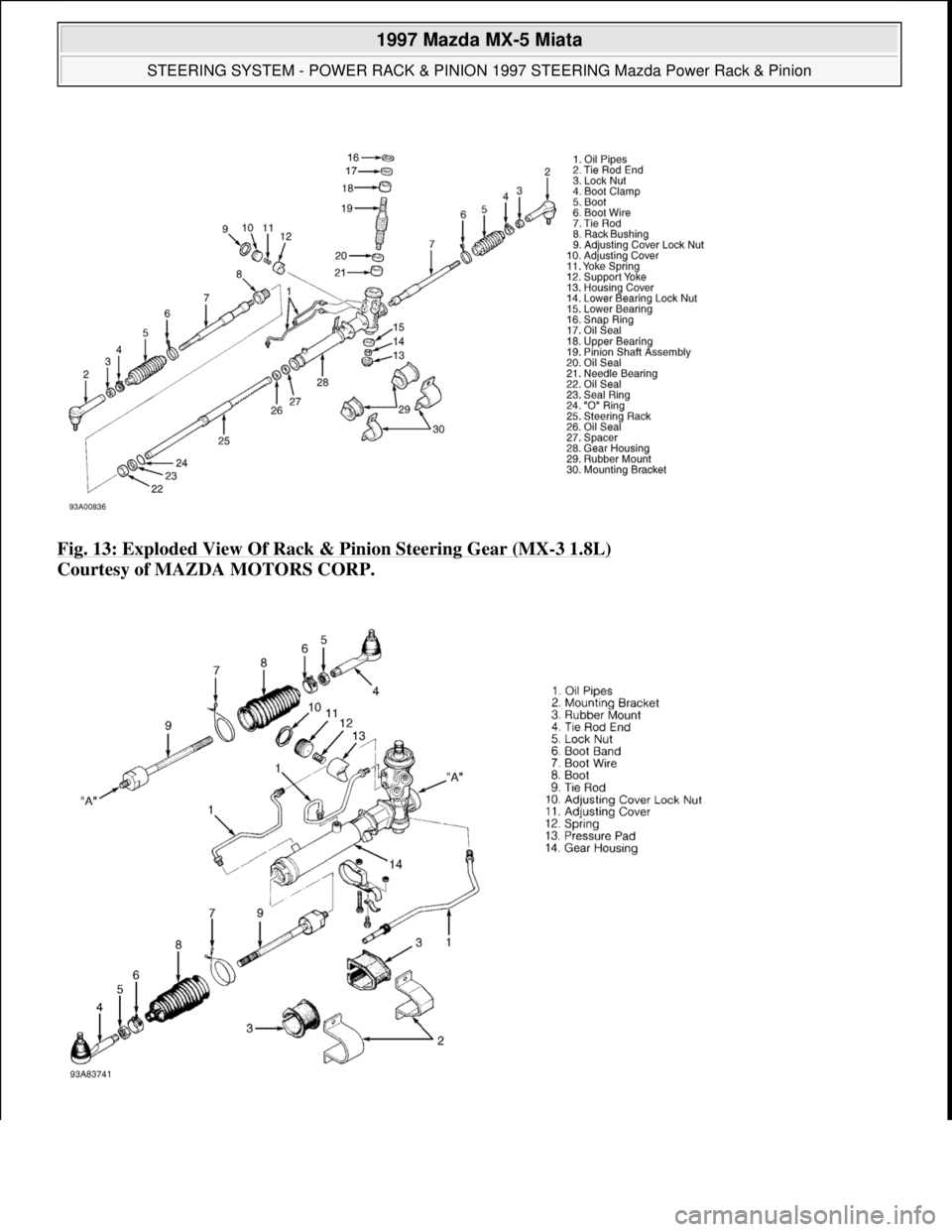

MAZDA MX-5 1997 Factory Repair Manual Fig. 13: Exploded View Of Rack & Pinion Steering Gear (MX-3 1.8L) Courtesy of MAZDA MOTORS CORP. 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinio

Page 356 of 514

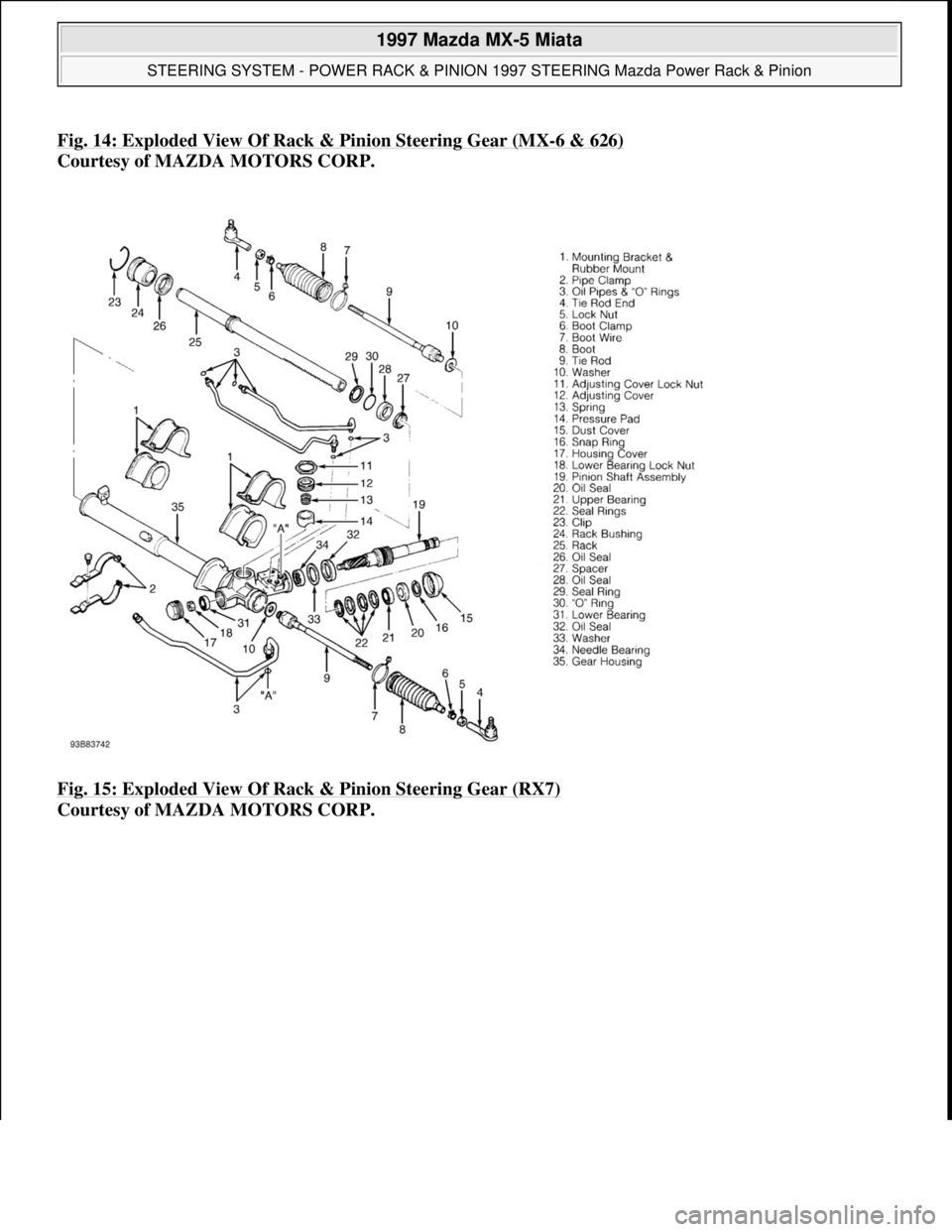

MAZDA MX-5 1997 Factory Repair Manual Fig. 14: Exploded View Of Rack & Pinion Steering Gear (MX-6 & 626) Courtesy of MAZDA MOTORS CORP. Fig. 15: Exploded View Of Rack & Pinion Steering Gear (RX7) Courtesy of MAZDA MOTORS CORP. 1997

Page 357 of 514

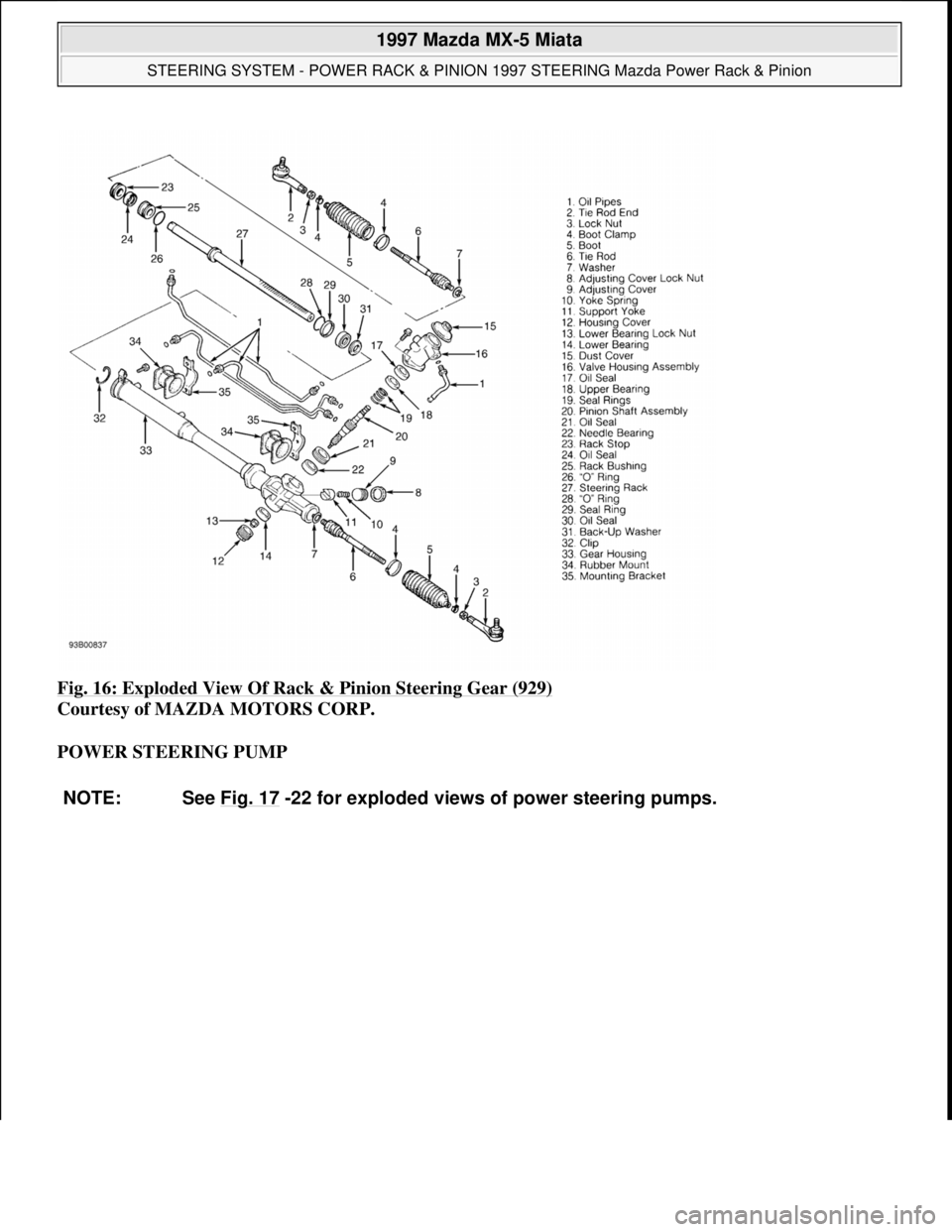

MAZDA MX-5 1997 Factory Repair Manual Fig. 16: Exploded View Of Rack & Pinion Steering Gear (929) Courtesy of MAZDA MOTORS CORP. POWER STEERING PUMP NOTE: See Fig. 17 -22 for exploded views of power steering pumps. 1997 Mazda MX-5 Mi

Page 358 of 514

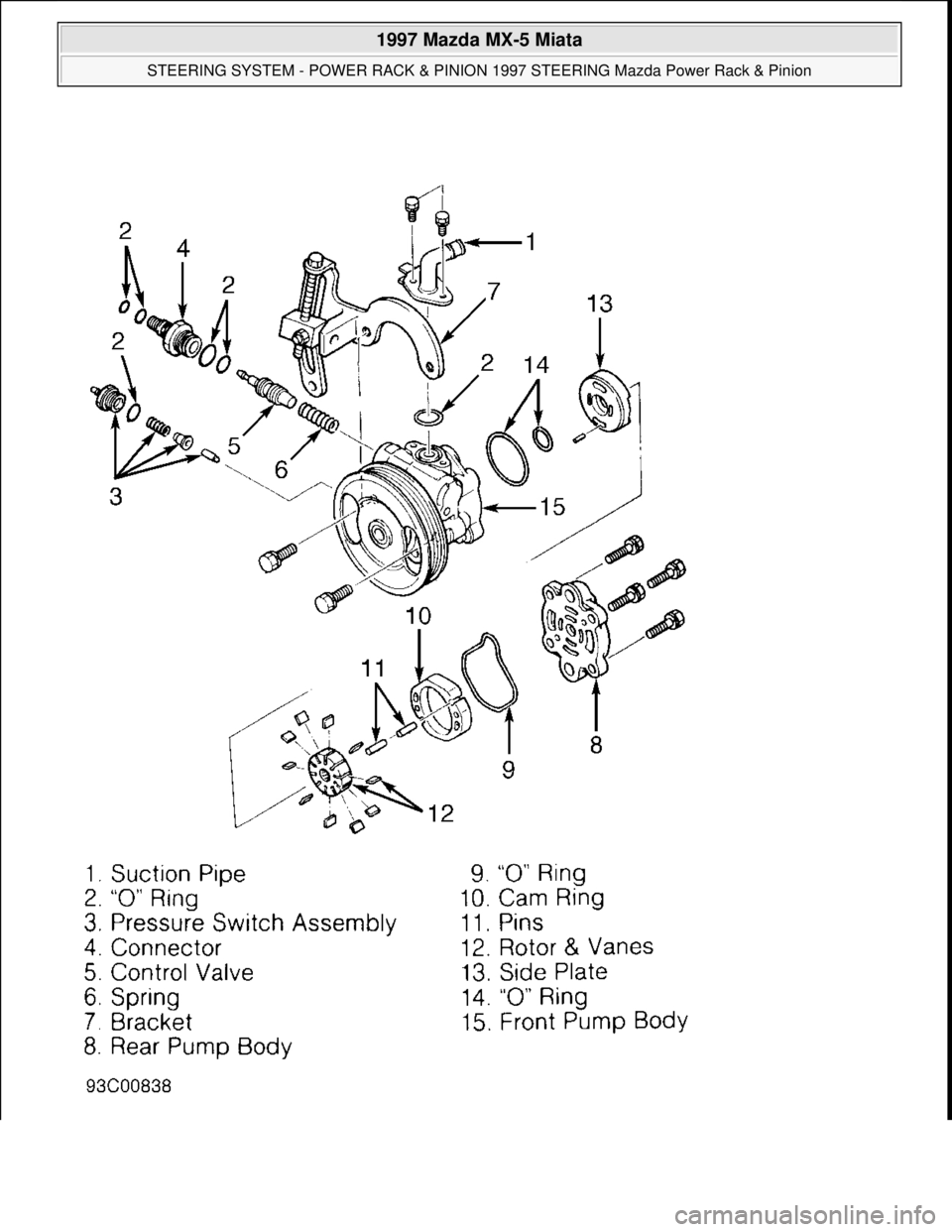

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion Microsoft Sunday, July 05, 2009 1:39:26 PMPage 23 © 2005 Mitchell Repair Information Company

Page 359 of 514

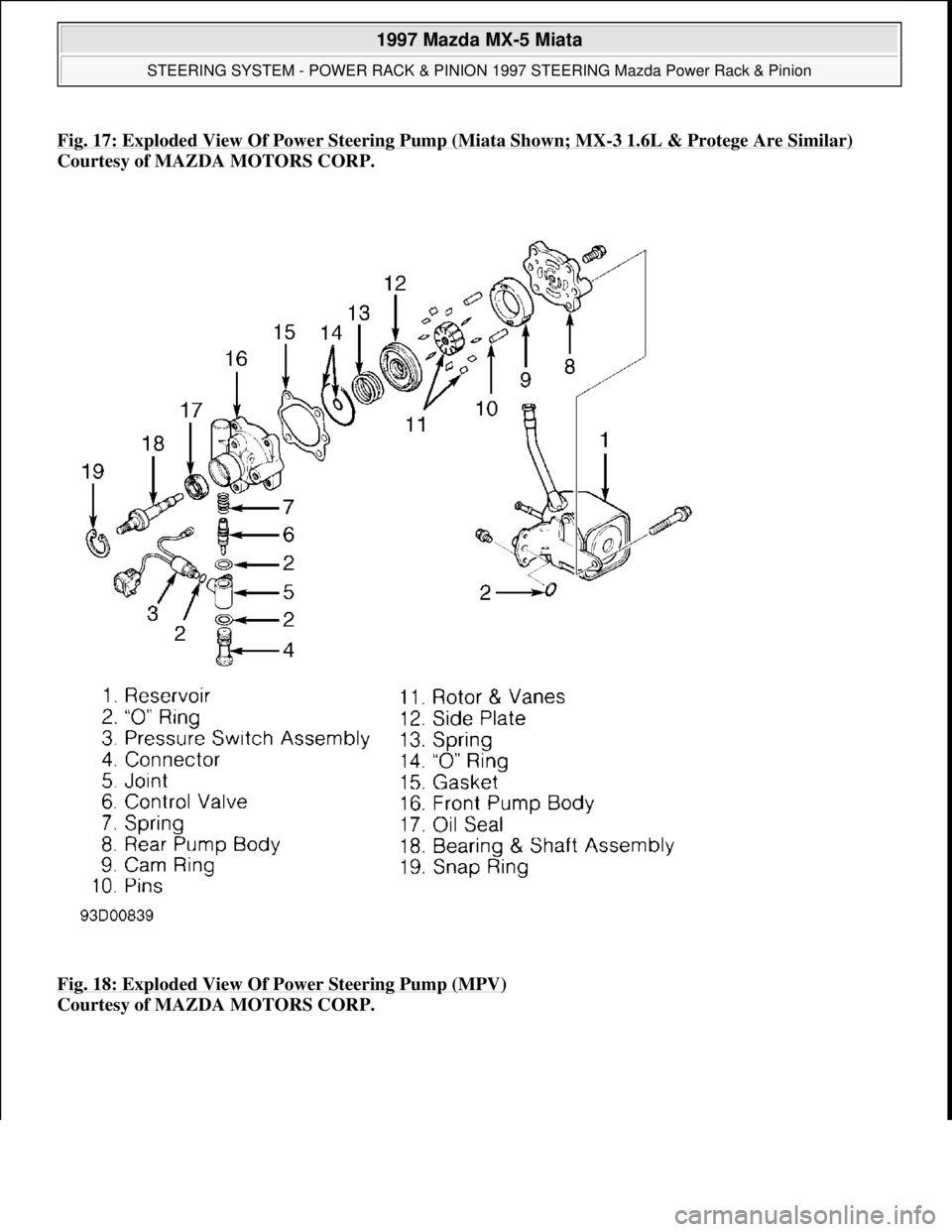

MAZDA MX-5 1997 Factory Repair Manual Fig. 17: Exploded View Of Power Steering Pump (Miata Shown; MX-3 1.6L & Protege Are Similar) Courtesy of MAZDA MOTORS CORP. Fig. 18: Exploded View Of Power Steering Pump (MPV) Courtesy of MAZDA MOT

Page 360 of 514

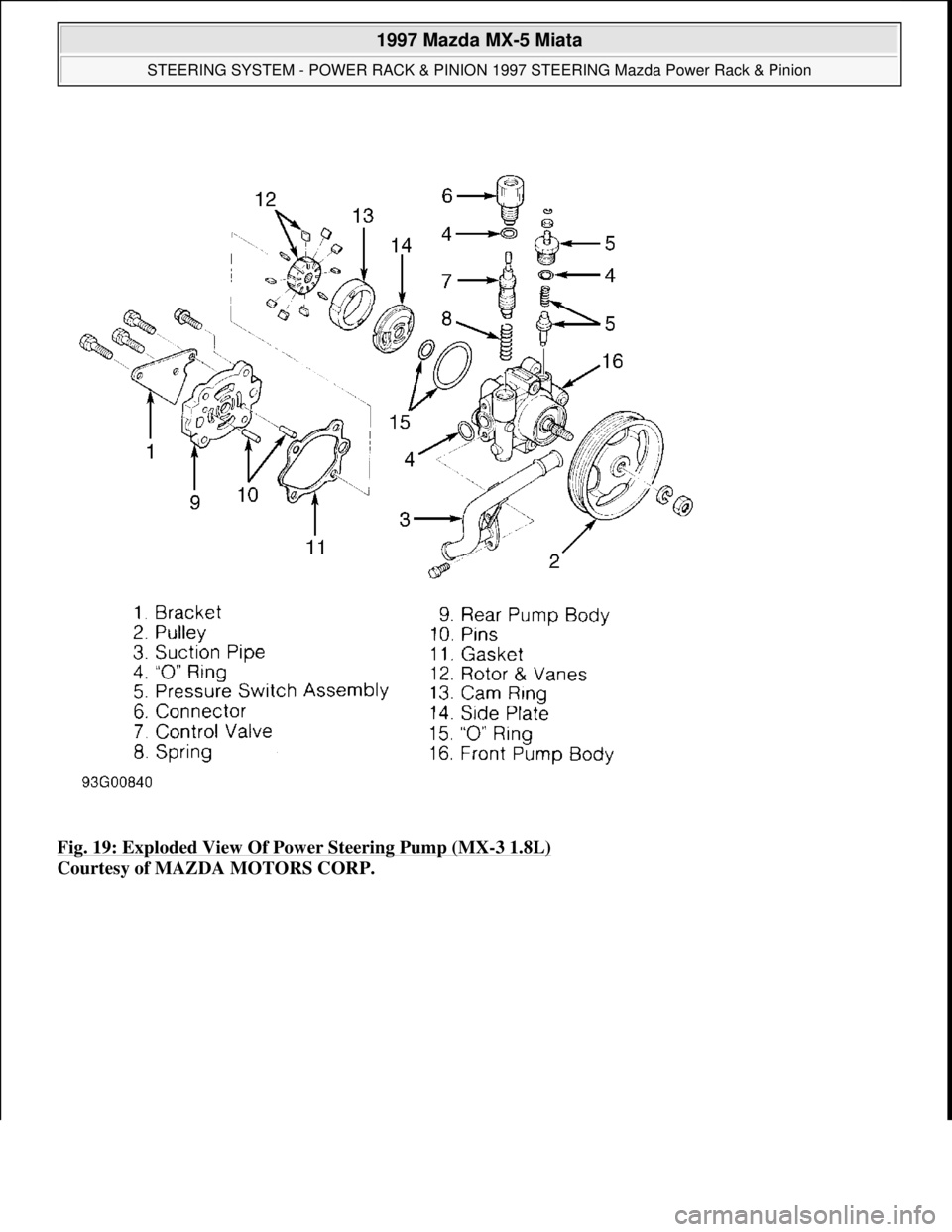

MAZDA MX-5 1997 Factory Repair Manual Fig. 19: Exploded View Of Power Steering Pump (MX-3 1.8L) Courtesy of MAZDA MOTORS CORP. 1997 Mazda MX-5 Miata STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion Micr
