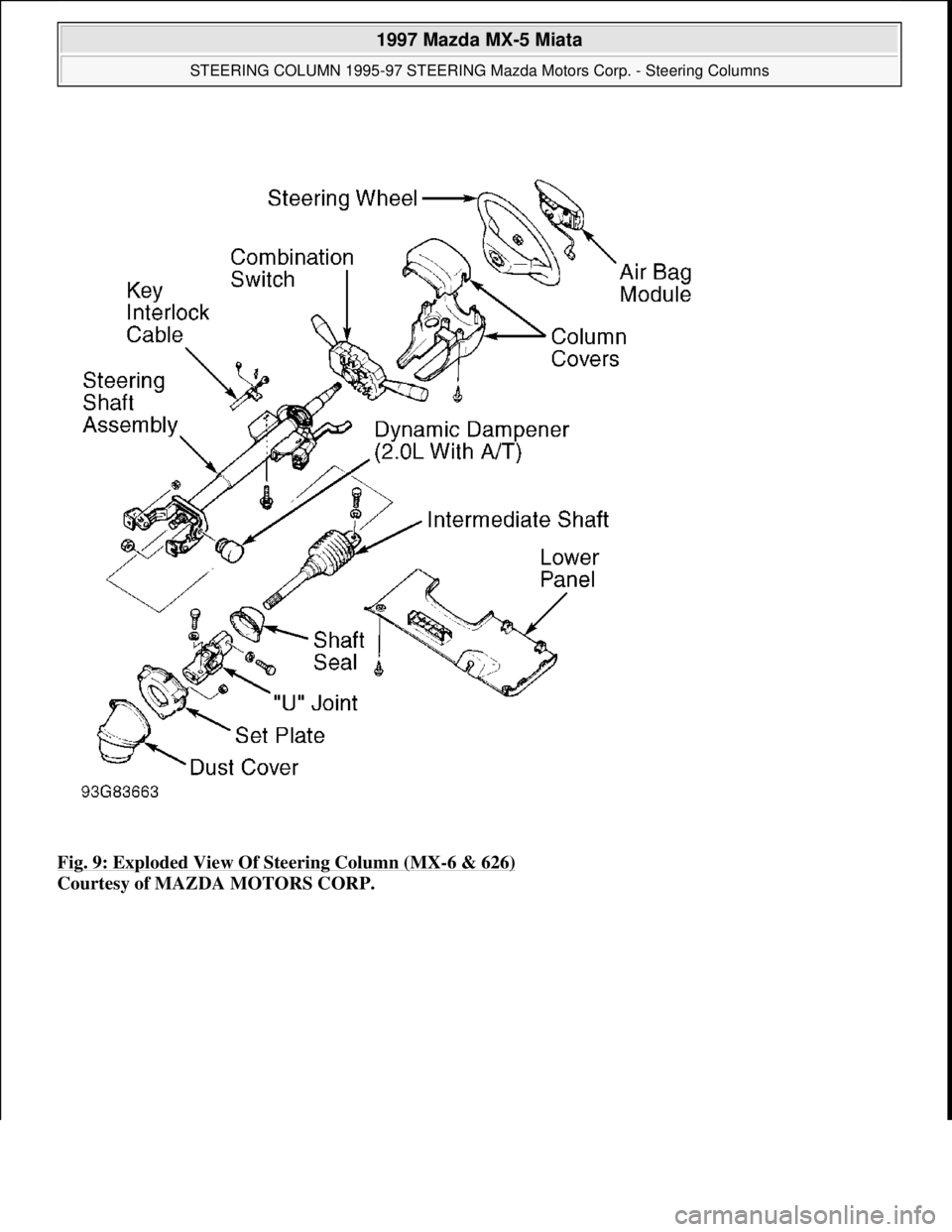

Fig. 9: Exploded View Of Steering Column (MX-6 & 626)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 13 © 2005 Mitchell Repair Information Company, LLC.

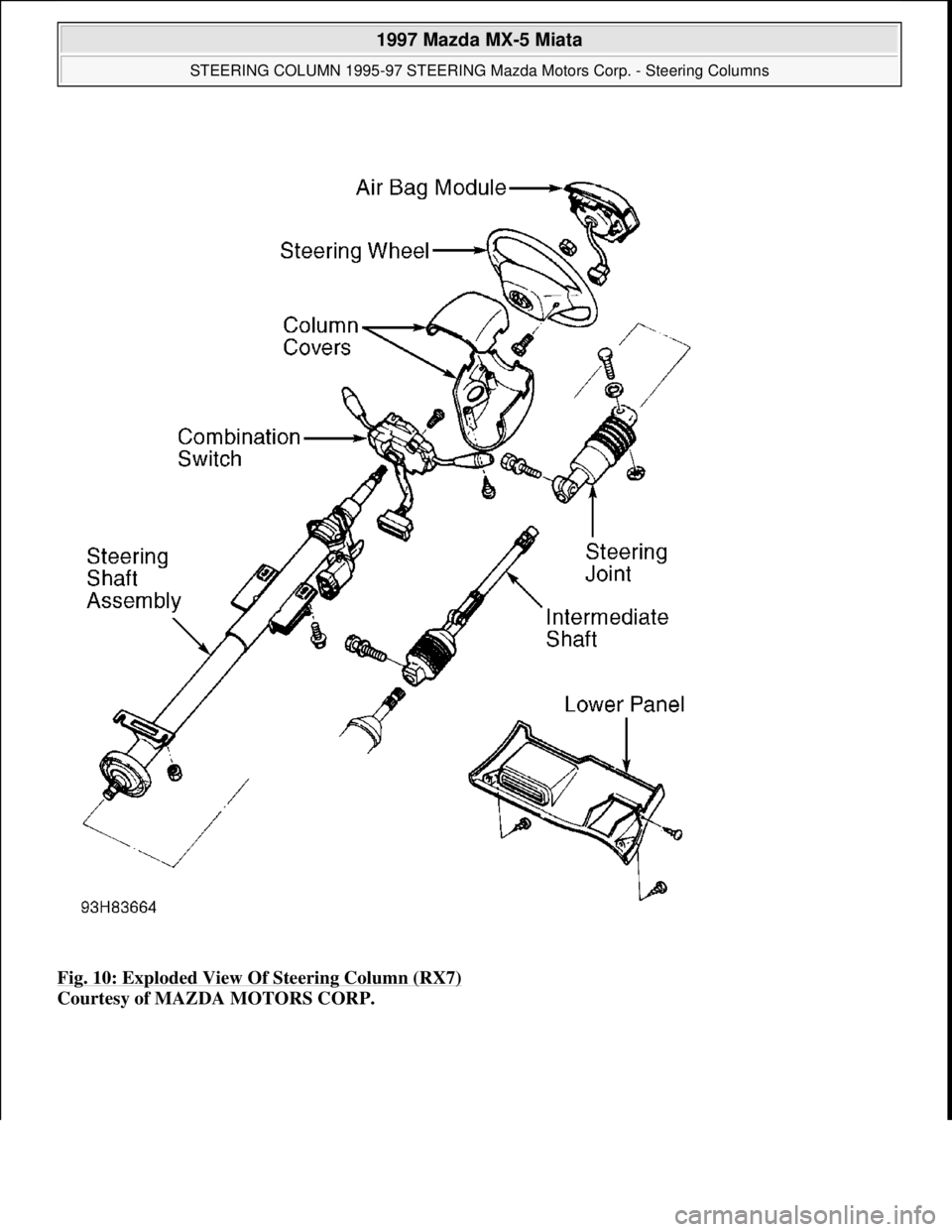

Fig. 10: Exploded View Of Steering Column (RX7)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 14 © 2005 Mitchell Repair Information Company, LLC.

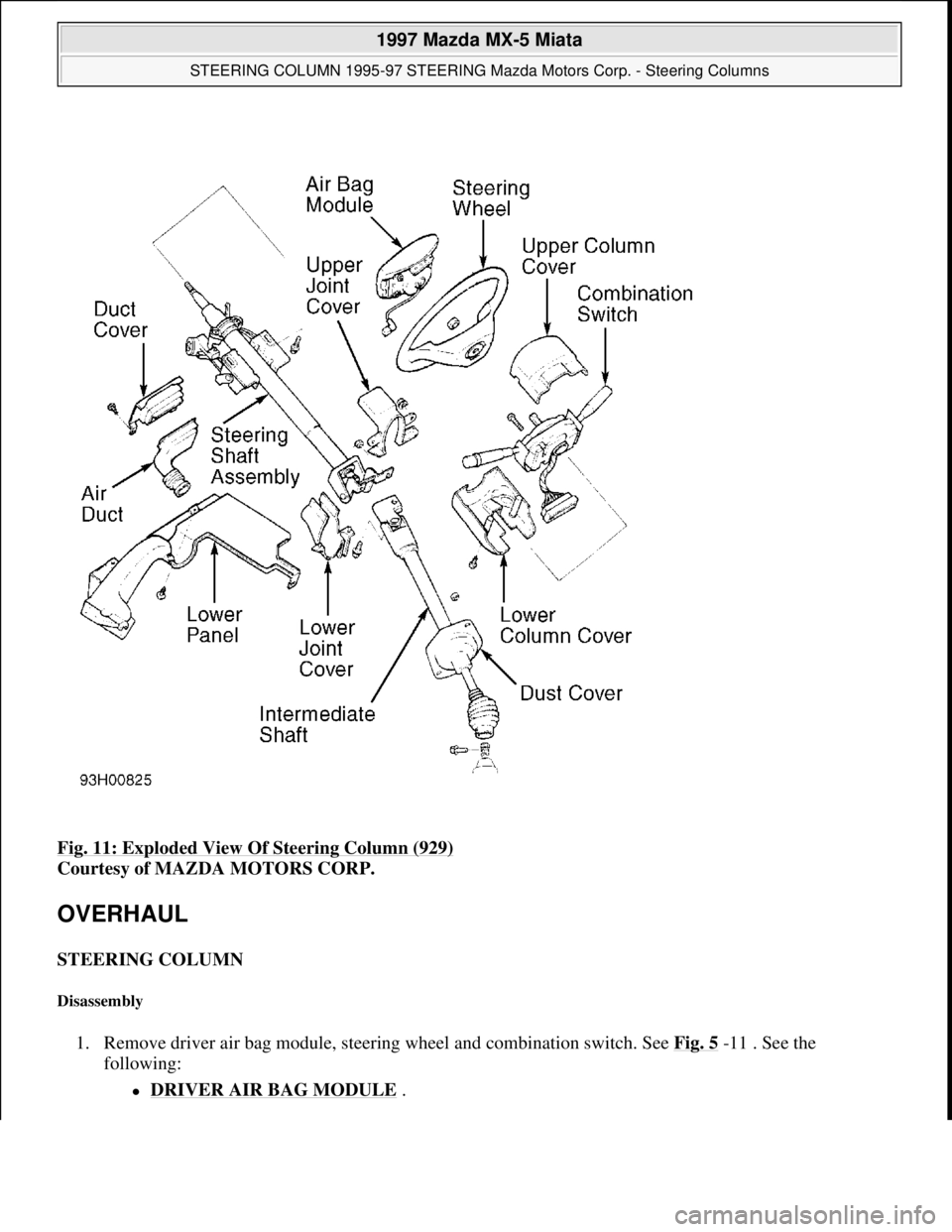

Fig. 11: Exploded View Of Steering Column (929)
Courtesy of MAZDA MOTORS CORP.
OVERHAUL
STEERING COLUMN
Disassembly
1. Remove driver air bag module, steering wheel and combination switch. See Fig. 5 -11 . See the
following:
DRIVER AIR BAG MODULE.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.

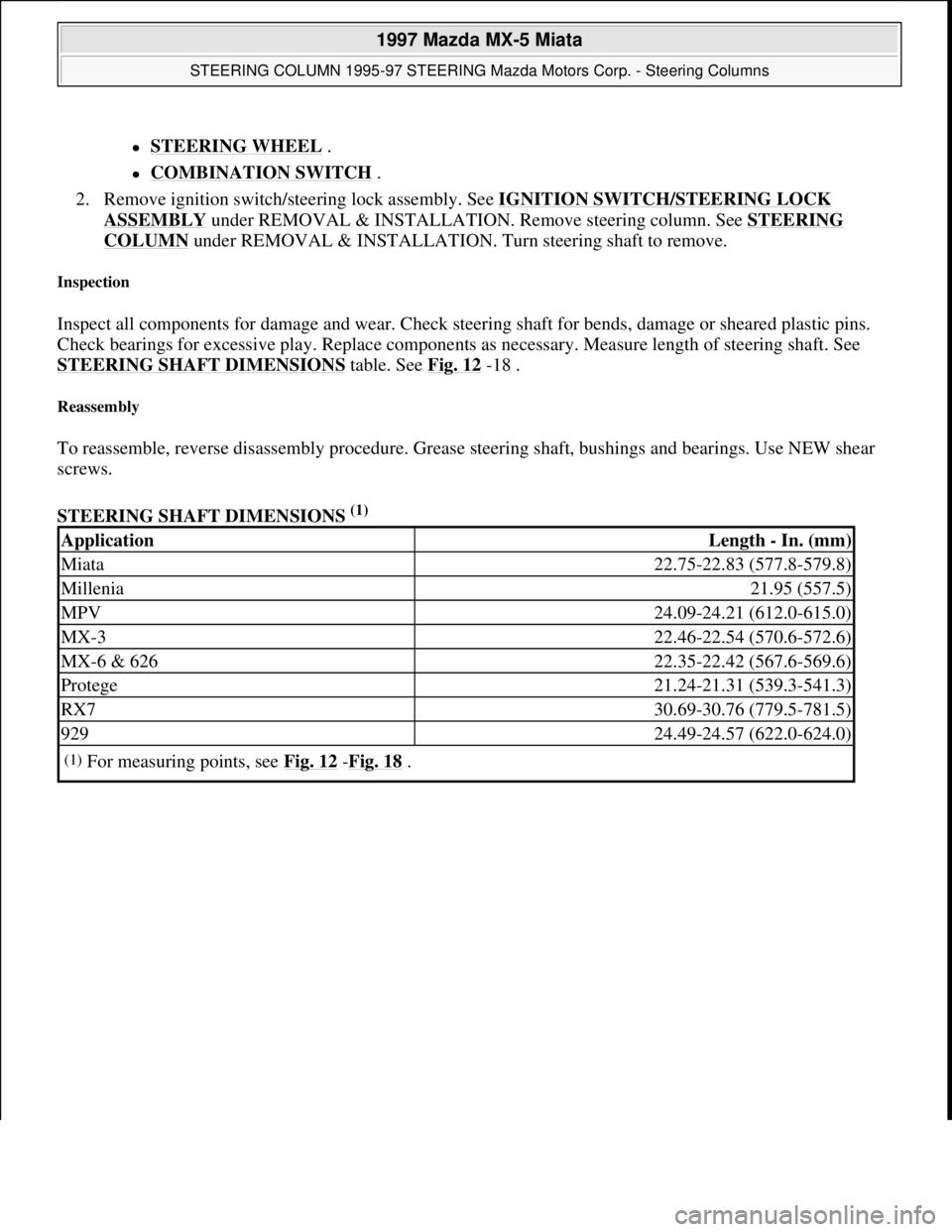

STEERING WHEEL .
COMBINATION SWITCH .
2. Remove ignition switch/steering lock assembly. See IGNITION SWITCH/STEERING LOCK
ASSEMBLY under REMOVAL & INSTALLATION. Remove steering column. See STEERING
COLUMN under REMOVAL & INSTALLATION. Turn steering shaft to remove.
Inspection
Inspect all components for damage and wear. Check steering shaft for bends, damage or sheared plastic pins.
Check bearings for excessive play. Replace components as necessary. Measure length of steering shaft. See
STEERING SHAFT DIMENSIONS
table. See Fig. 12 -18 .
Reassembly
To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Use NEW shear
screws.
STEERING SHAFT DIMENSIONS
(1)
ApplicationLength - In. (mm)
Miata22.75-22.83 (577.8-579.8)
Millenia21.95 (557.5)
MPV24.09-24.21 (612.0-615.0)
MX-322.46-22.54 (570.6-572.6)
MX-6 & 62622.35-22.42 (567.6-569.6)
Protege21.24-21.31 (539.3-541.3)
RX730.69-30.76 (779.5-781.5)
92924.49-24.57 (622.0-624.0)
(1)For measuring points, see Fig. 12 -Fig. 18 .

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.

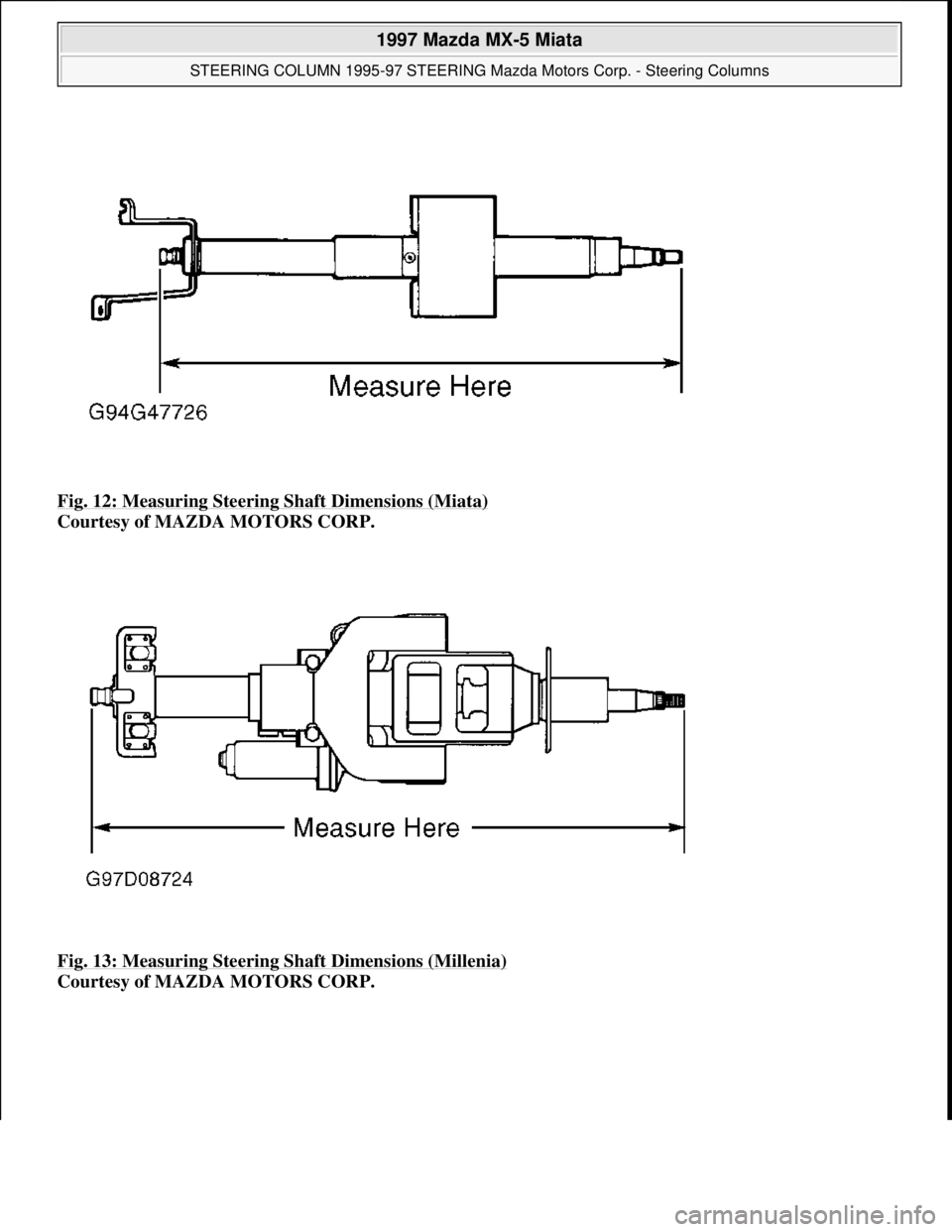

Fig. 12: Measuring Steering Shaft Dimensions (Miata)
Courtesy of MAZDA MOTORS CORP.
Fig. 13: Measuring Steering Shaft Dimensions (Millenia)

Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.

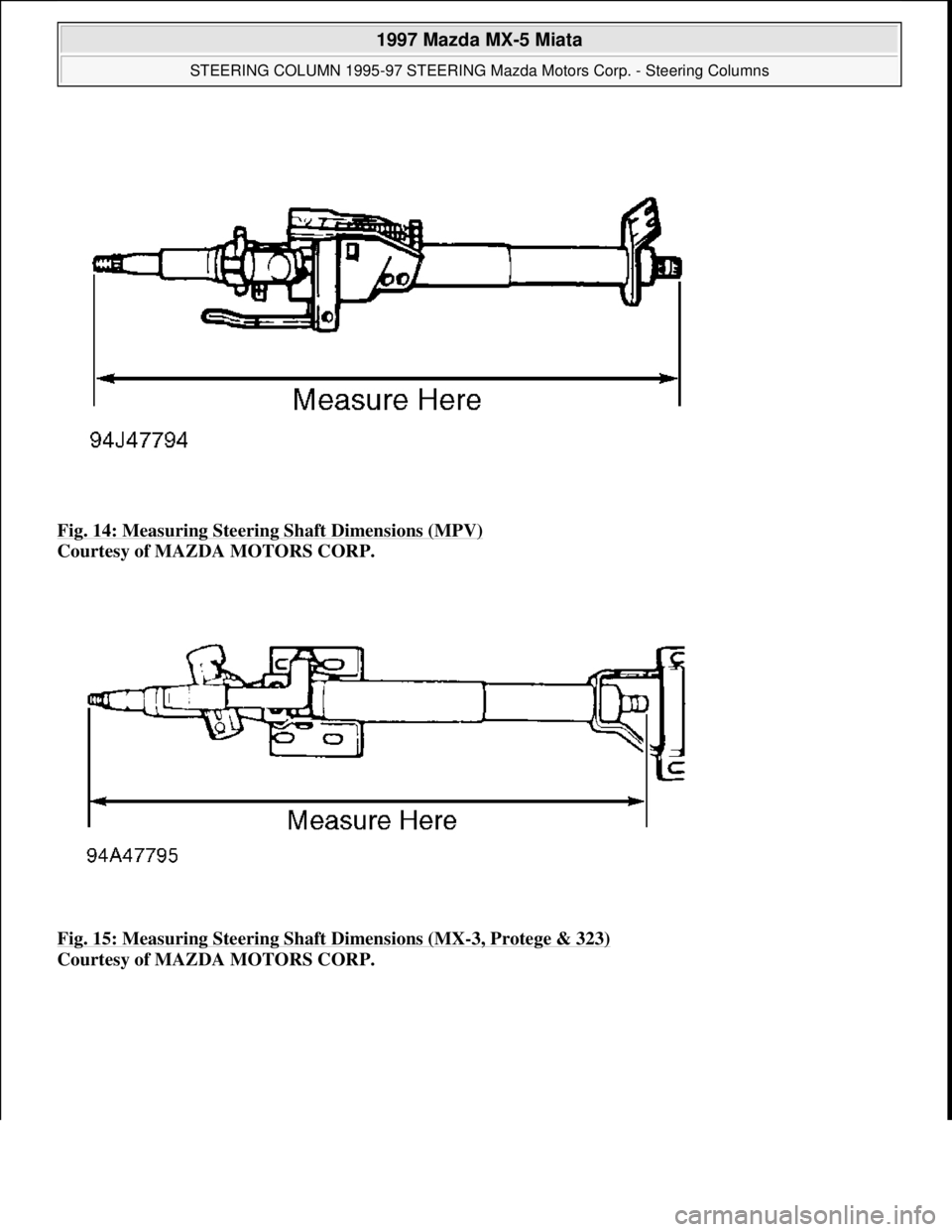

Fig. 14: Measuring Steering Shaft Dimensions (MPV)
Courtesy of MAZDA MOTORS CORP.
Fig. 15: Measuring Steering Shaft Dimensions (MX
-3, Protege & 323)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.

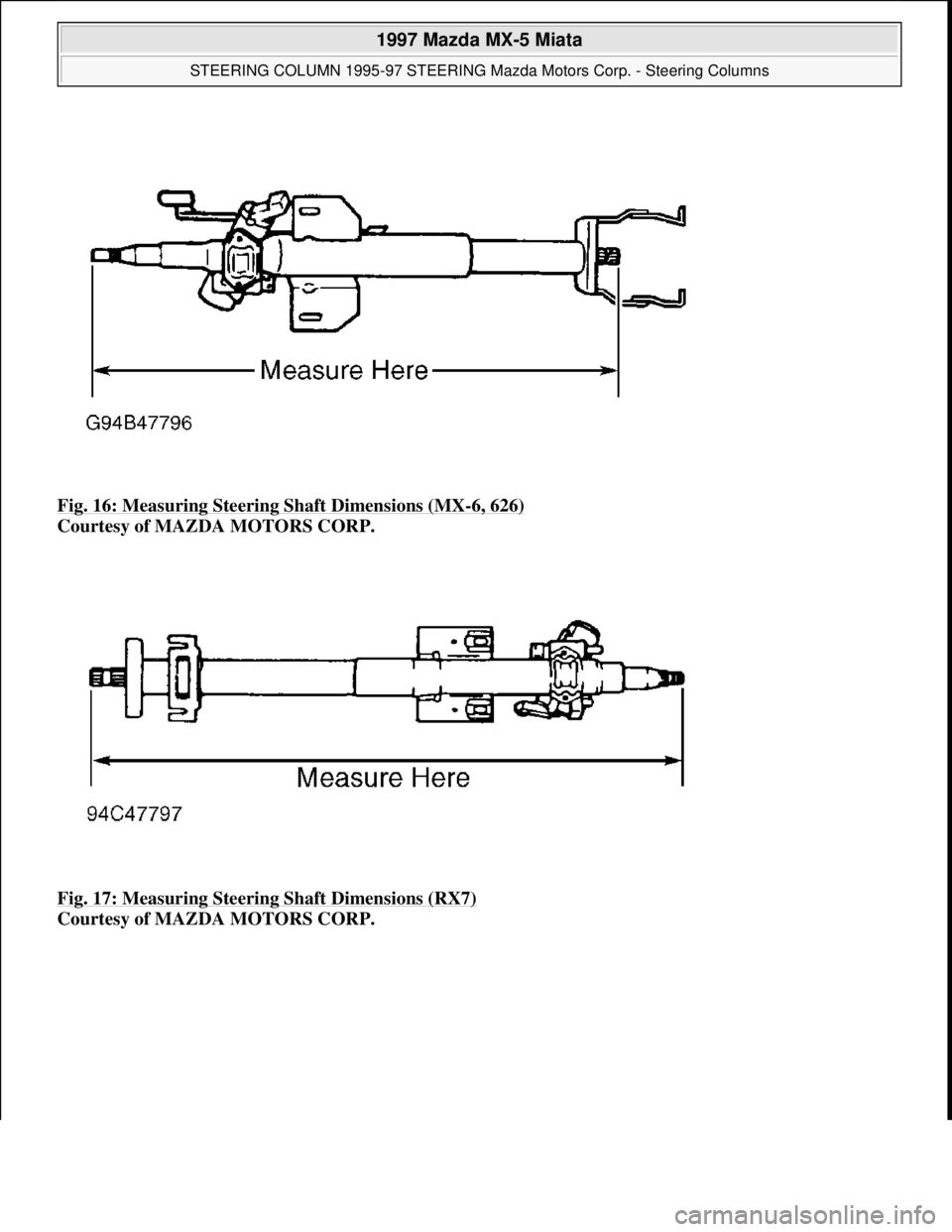

Fig. 16: Measuring Steering Shaft Dimensions (MX-6, 626)
Courtesy of MAZDA MOTORS CORP.
Fig. 17: Measuring Steering Shaft Dimensions (RX7)

Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.

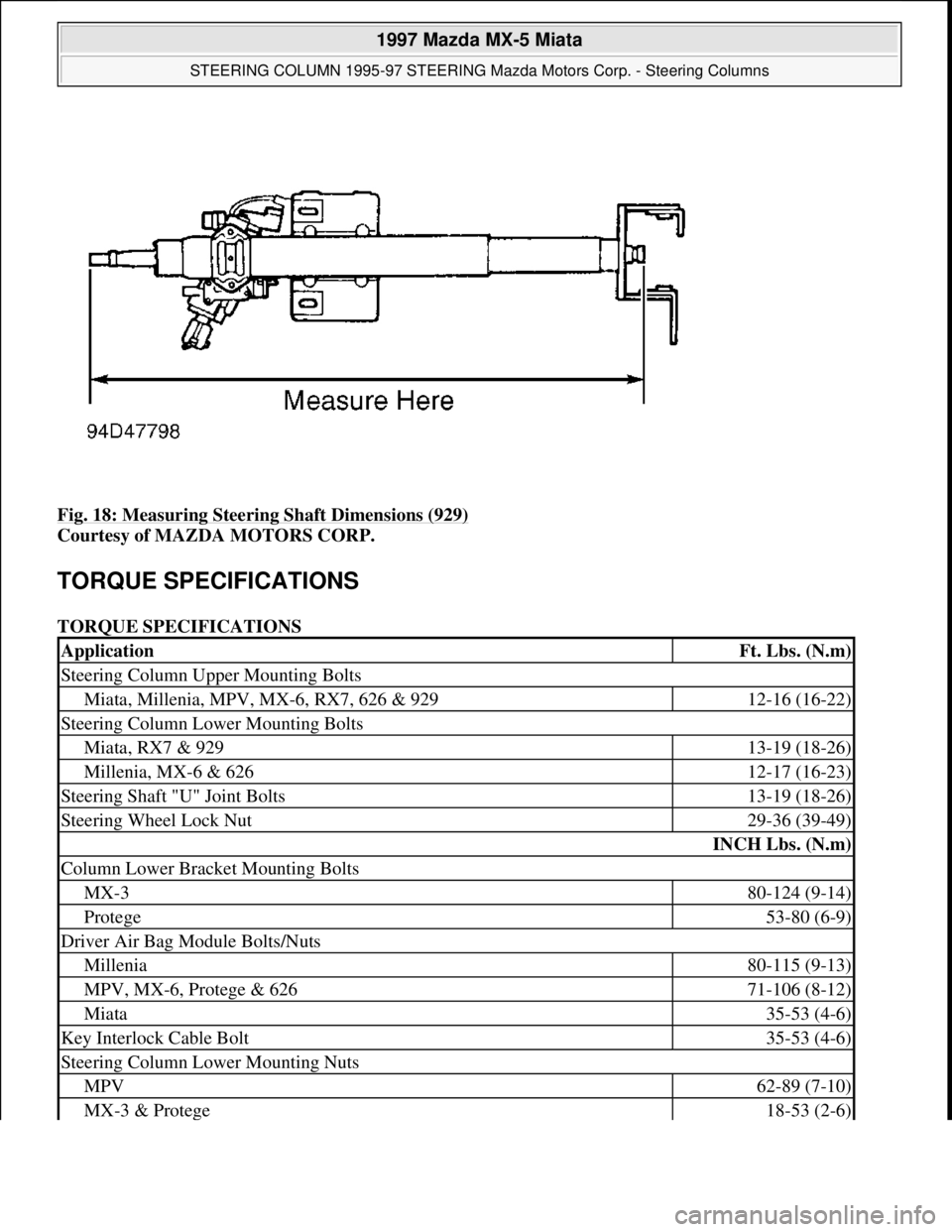

Fig. 18: Measuring Steering Shaft Dimensions (929)
Courtesy of MAZDA MOTORS CORP.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Steering Column Upper Mounting Bolts
Miata, Millenia, MPV, MX-6, RX7, 626 & 92912-16 (16-22)
Steering Column Lower Mounting Bolts
Miata, RX7 & 92913-19 (18-26)
Millenia, MX-6 & 62612-17 (16-23)
Steering Shaft "U" Joint Bolts13-19 (18-26)
Steering Wheel Lock Nut29-36 (39-49)
INCH Lbs. (N.m)
Column Lower Bracket Mounting Bolts
MX-380-124 (9-14)
Protege53-80 (6-9)
Driver Air Bag Module Bolts/Nuts
Millenia80-115 (9-13)
MPV, MX-6, Protege & 62671-106 (8-12)
Miata35-53 (4-6)
Key Interlock Cable Bolt35-53 (4-6)
Steering Column Lower Mounting Nuts
MPV62-89 (7-10)
MX-3 & Protege18-53 (2-6)

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.

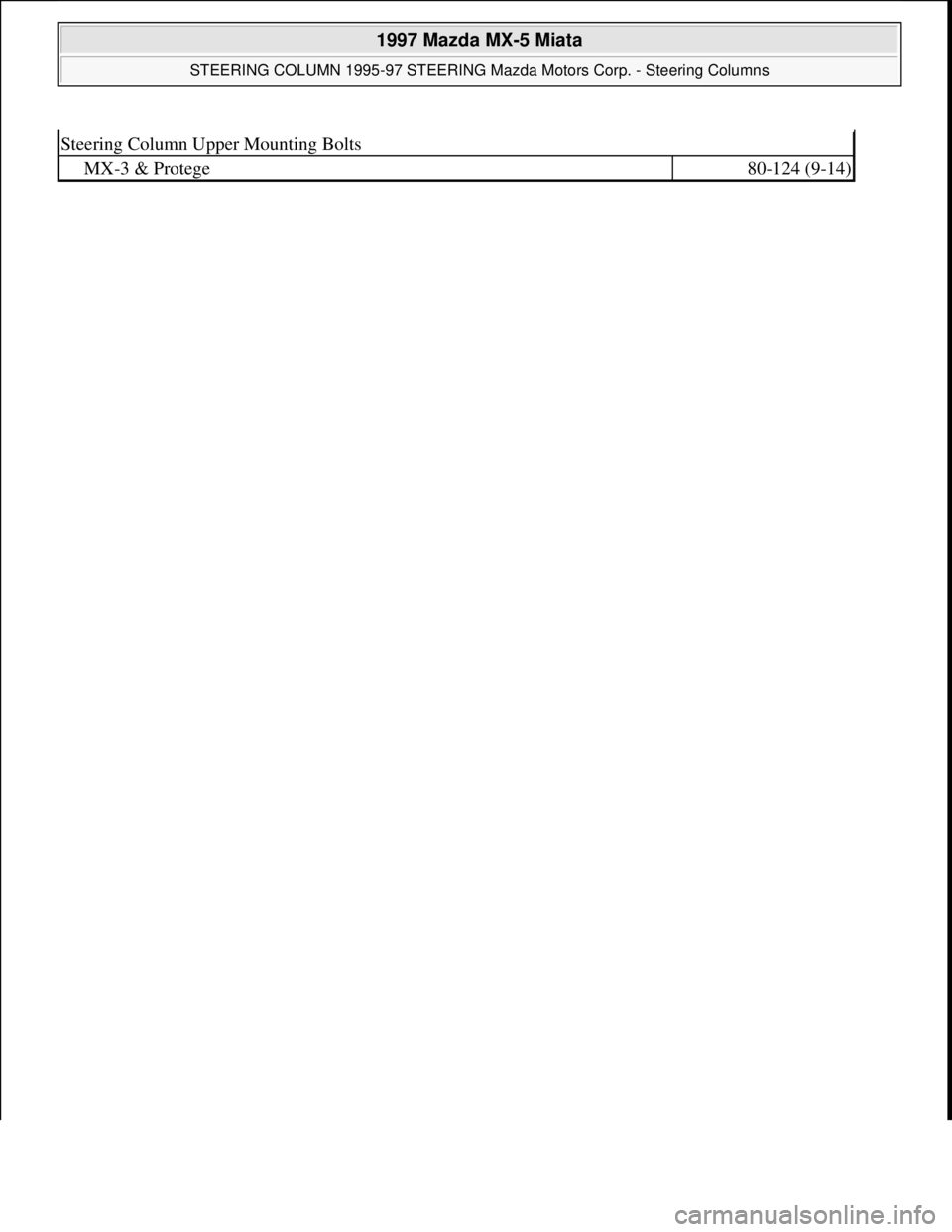

Steering Column Upper Mounting Bolts
MX-3 & Protege80-124 (9-14)

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.

1997-98 APPLICATIONS & IDENTIFICATION
Oil Pan Gasket Identification
AUTOMATIC TRANSMISSIONS

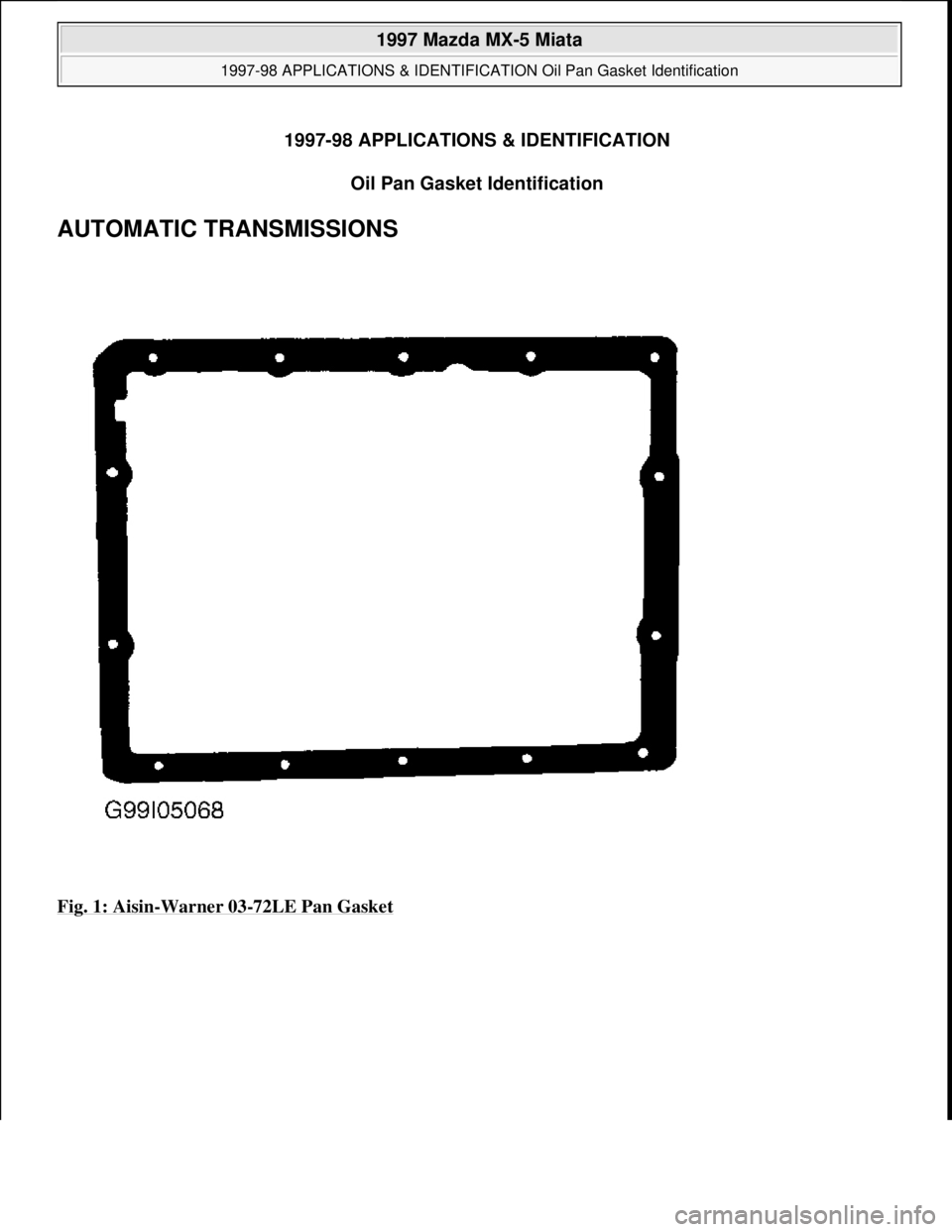

Fig. 1: Aisin-Warner 03-72LE Pan Gasket
