Replacing a Tire
WARNING
Always use tires that are in good
condition:Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Replace all four tires at the same time: Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle
control. Mazda strongly recommends
that you replace all four tires at the
same time.
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace the tire before the band
crosses the entire tread.
(With tire pressure monitoring system)
After adjusting the tire pressure,
initialization of the tire pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tire Pressure Monitoring System
Initialization on page 4-96.
NOTE
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. The period in which the tire
was manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-24.
Replacing a Wheel
WARNING
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:
 Tire fit Wheel and bearing life Ground clearance Snow-chain clearance Speedometer calibration Headlight aim Bumper height Tire Pressure Monitoring System*
MX-5_8EU4-EA-15D_Edition3.indb 432015/10/21 16:55:20

6–44
Maintenance and Care
Owner Maintenance
NOTE
 When replacing a wheel, make sure
the new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).
 For details, contact an Authorized
Mazda Dealer.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
MX-5_8EU4-EA-15D_Edition3.indb 442015/10/21 16:55:20

6–45
Maintenance and Care
Owner Maintenance
Light Bulbs
Overhead light
Side turn signal lights
High-mount brake light
Trunk light
Front side-marker lights
Front turn signal lights
Headlights (low beam)
Parking lights
Headlights (High beam)
Daytime running lights
License plate lights
Brake lights
Taillights
Rear side-marker lights
Reverse lights
Rear turn signal lights
MX-5_8EU4-EA-15D_Edition3.indb 452015/10/21 16:55:21

6–46
Maintenance and Care
Owner Maintenance
CAUTION
When removing the lens or lamp unit
using a flathead screwdriver, make
sure that the flathead screwdriver does
not contact the interior terminal. If
the flathead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
 To replace the bulb, contact an
Authorized Mazda Dealer. Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.

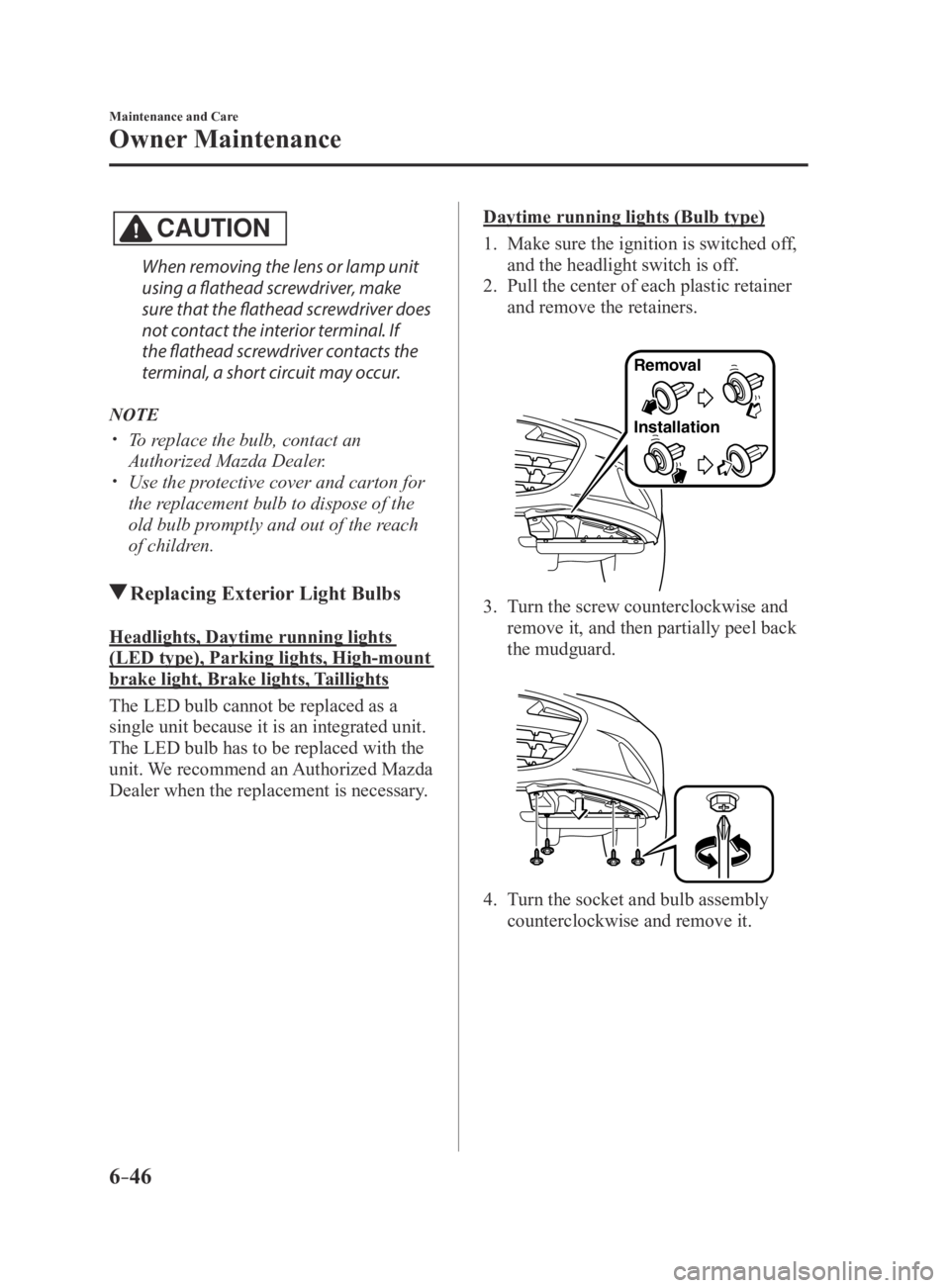

Replacing Exterior Light Bulbs
Headlights, Daytime running lights
(LED type), Parking lights, High-mount
brake light, Brake lights, Taillights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Daytime running lights (Bulb type)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers.

Removal
Installation
3. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.

4. Turn the socket and bulb assembly
counterclockwise and remove it.
MX-5_8EU4-EA-15D_Edition3.indb 462015/10/21 16:55:22

6–47
Maintenance and Care
Owner Maintenance
5. Disconnect the bulb from the socket.

6. Install the new bulb in the reverse order
of the removal procedure.
Front side-marker lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.

Remova l
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.

6. Install the new bulb in the reverse order
of the removal procedure.
Front turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.

Remova l
Installation
MX-5_8EU4-EA-15D_Edition3.indb 472015/10/21 16:55:23

6–48
Maintenance and Care
Owner Maintenance
4. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector rearward.

5. Turn the socket and bulb assembly
counterclockwise and remove it.
6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverse order
of the removal procedure.
Side turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the mudguard.

Remova l
Installation
4. Remove the unit by pressing the tab on
the unit with your finger and pulling the
unit forward.

5. Detach the electrical connector from
the unit by pulling it to the rear.

6. Install the new side turn signal unit
in the reverse order of the removal
procedure.
MX-5_8EU4-EA-15D_Edition3.indb 482015/10/21 16:55:24

6–49
Maintenance and Care
Owner Maintenance

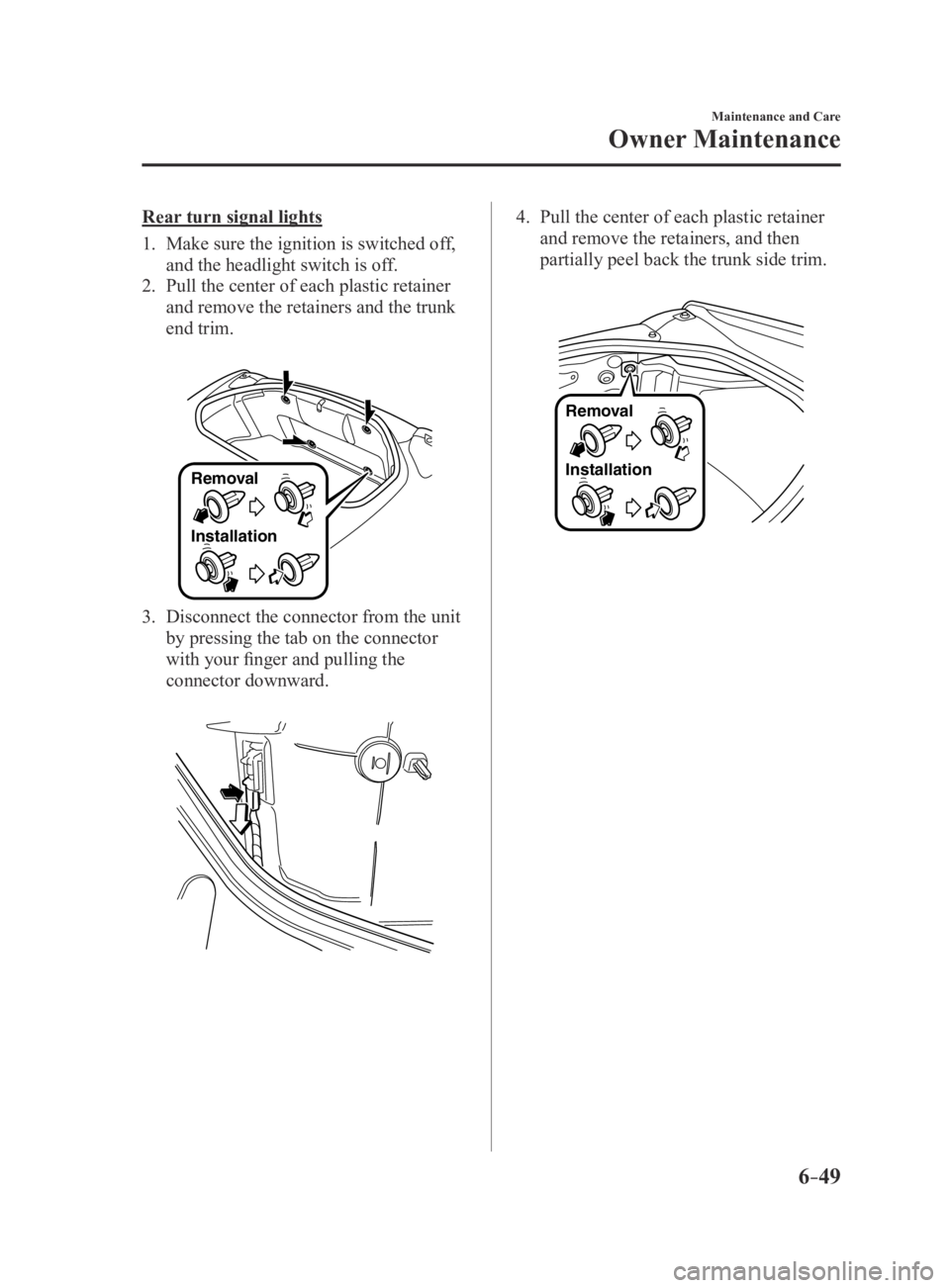

Rear turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.

Removal
Installation
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.

4. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the trunk side trim.

Remova l
Installation
MX-5_8EU4-EA-15D_Edition3.indb 492015/10/21 16:55:24

6–50
Maintenance and Care
Owner Maintenance

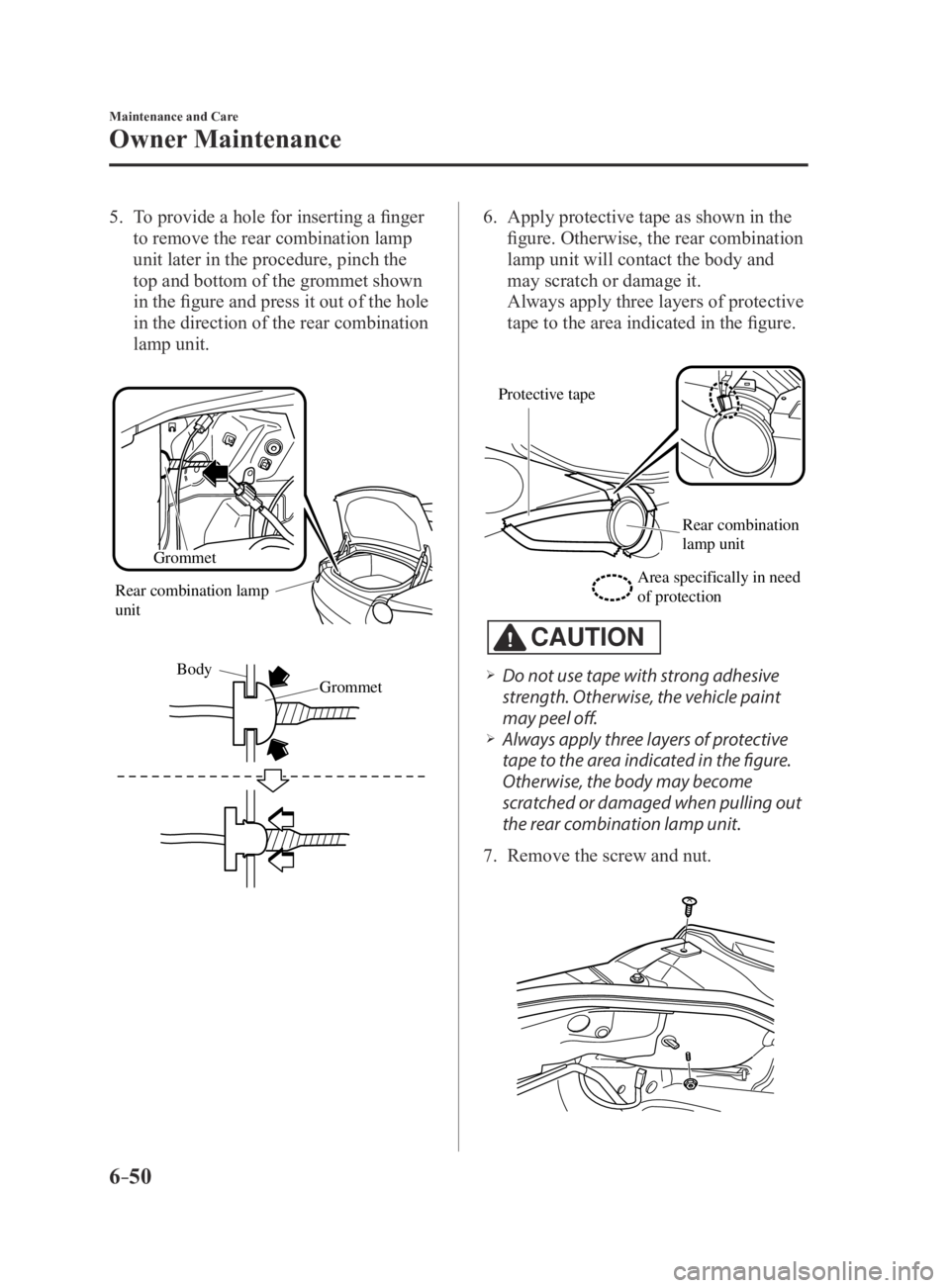

5. To provide a hole for inserting a finger
to remove the rear combination lamp
unit later in the procedure, pinch the
top and bottom of the grommet shown
in the figure and press it out of the hole
in the direction of the rear combination
lamp unit.

Grommet
Rear combination lamp
unit

GrommetBody
6. Apply protective tape as shown in the
figure. Otherwise, the rear combination
lamp unit will contact the body and
may scratch or damage it.
Always apply three layers of protective
tape to the area indicated in the figure.

Protecti ve tape
Rear combination
lamp unit
Area specifically in need
of protection
CAUTION
 Do not use tape with strong adhesive
strength. Otherwise, the vehicle paint
may peel off.
 Always apply three layers of protective
tape to the area indicated in the figure.
Otherwise, the body may become
scratched or damaged when pulling out
the rear combination lamp unit.
7. Remove the screw and nut.

MX-5_8EU4-EA-15D_Edition3.indb 502015/10/21 16:55:26

6–51
Maintenance and Care
Owner Maintenance

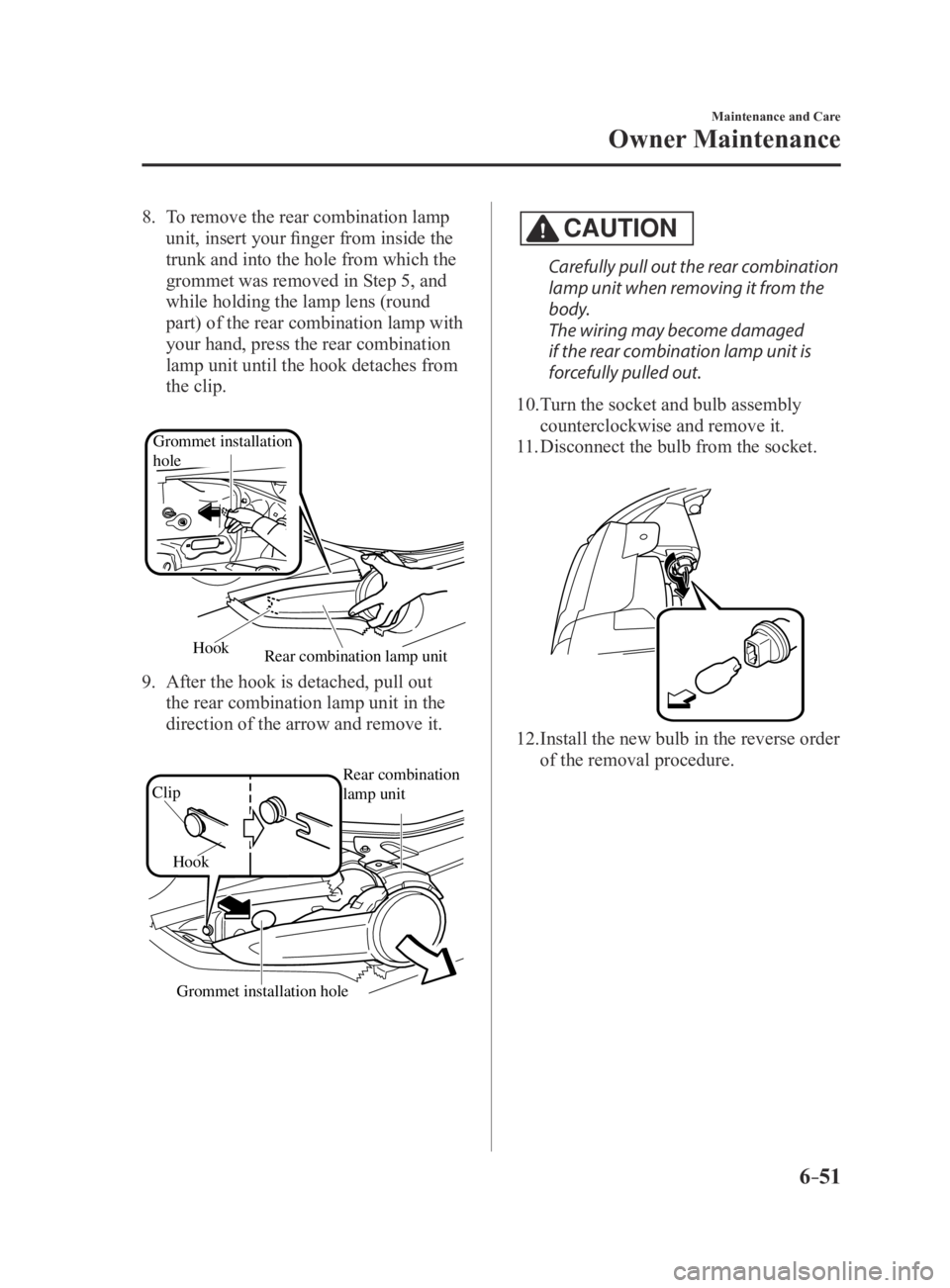

8. To remove the rear combination lamp
unit, insert your finger from inside the
trunk and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
part) of the rear combination lamp with
your hand, press the rear combination
lamp unit until the hook detaches from
the clip.

Rear combination lamp unit
Hook
Grommet installation
hole
9. After the hook is detached, pull out
the rear combination lamp unit in the
direction of the arrow and remove it.

Grommet installation hole
Clip
Hook
Rear combination lamp unit
CAUTION
Carefully pull out the rear combination
lamp unit when removing it from the
body.
The wiring may become damaged
if the rear combination lamp unit is
forcefully pulled out.
10. Turn the socket and bulb assembly
counterclockwise and remove it.
11. Disconnect the bulb from the socket.

12. Install the new bulb in the reverse order
of the removal procedure.
MX-5_8EU4-EA-15D_Edition3.indb 512015/10/21 16:55:26

6–52
Maintenance and Care
Owner Maintenance

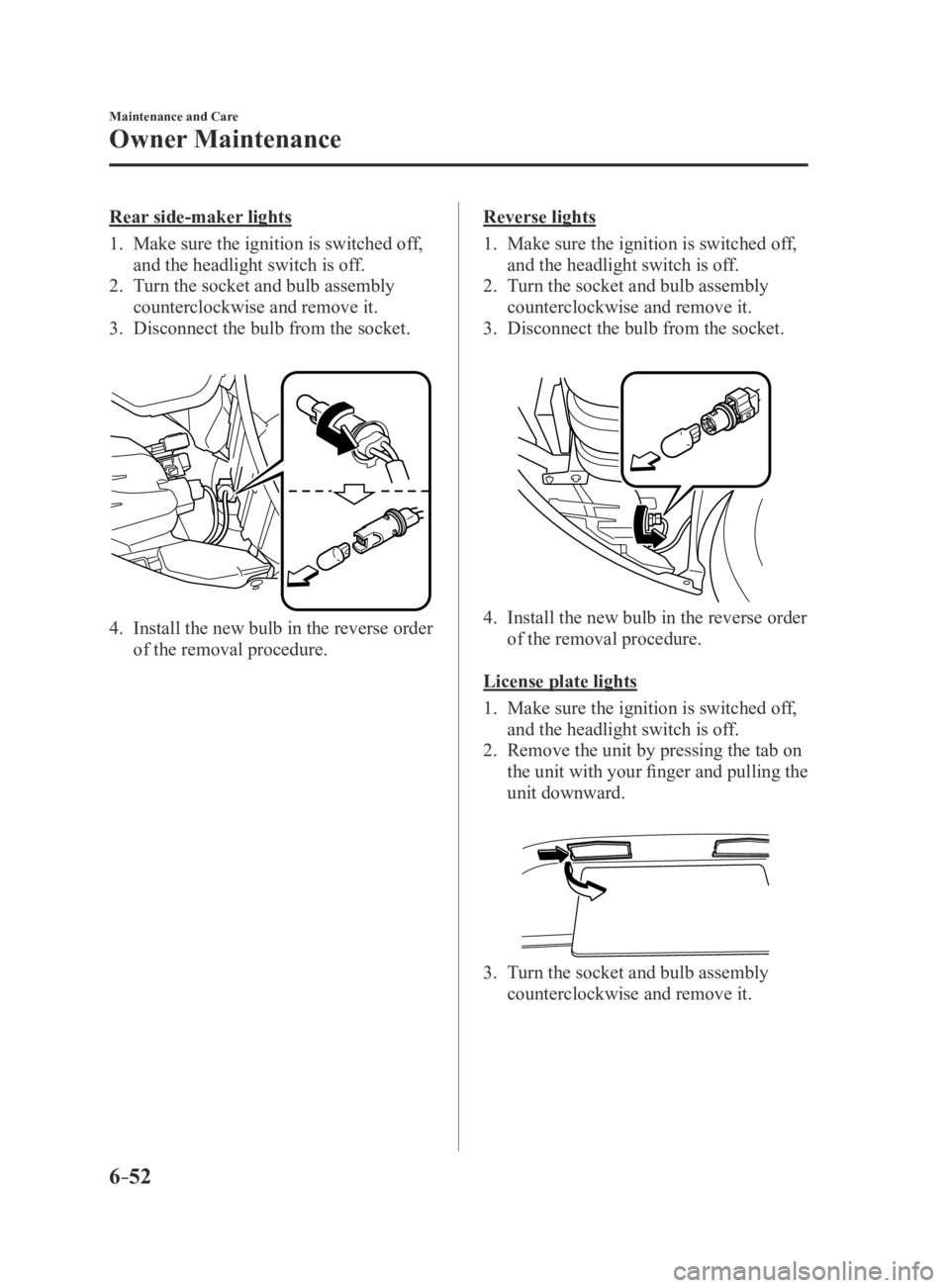

Rear side-maker lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse order
of the removal procedure.
Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse order
of the removal procedure.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the unit by pressing the tab on
the unit with your finger and pulling the
unit downward.

3. Turn the socket and bulb assembly
counterclockwise and remove it.
