MAZDA MX5 MIATA 2016 Owners Manual

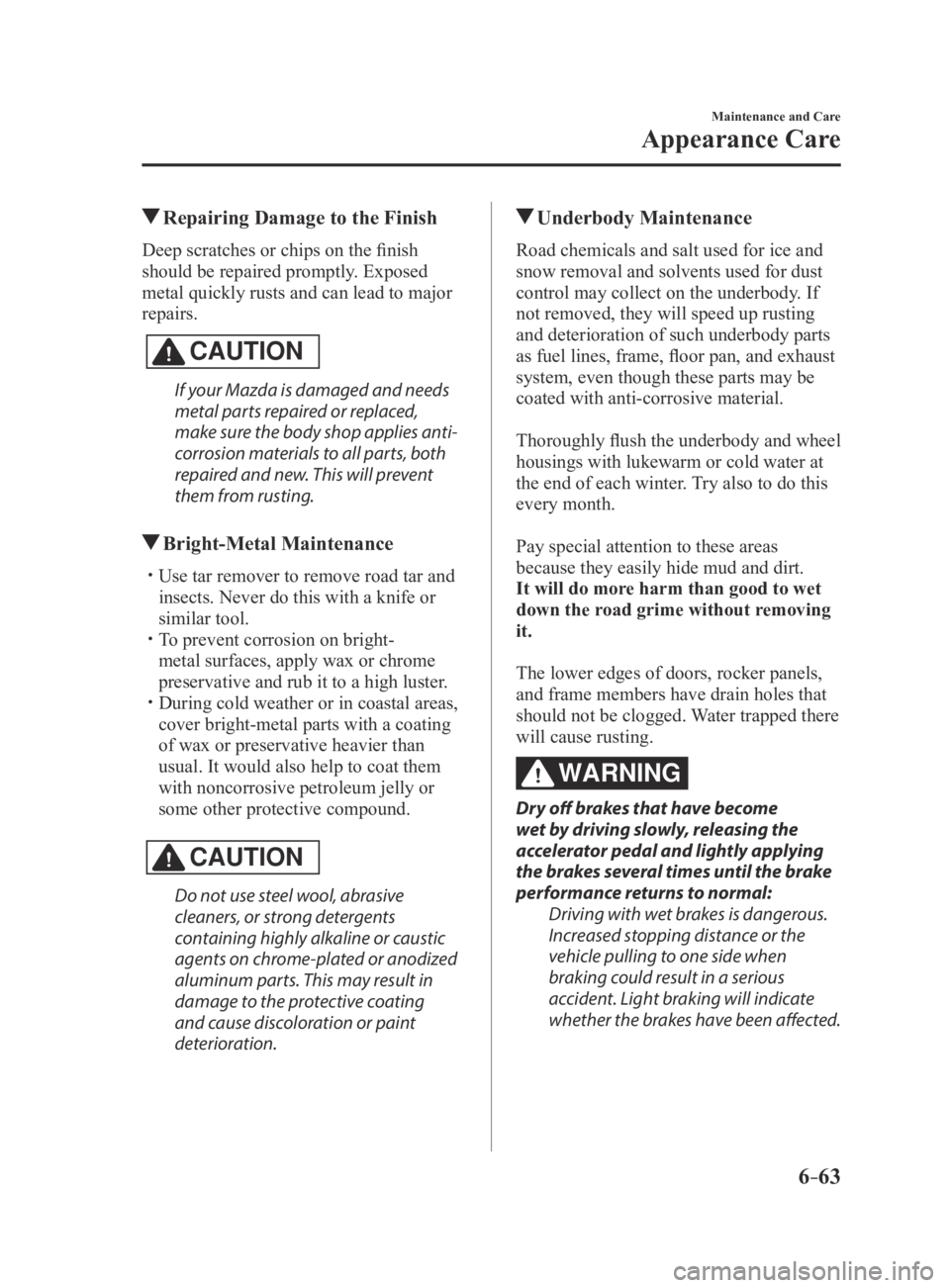

6–63
Maintenance and Care
Appearance Care
Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
Bright-Metal Maintenance
 Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
 To prevent corrosion on bright-
metal surfaces, apply wax or chrome
preservative and rub it to a high luster.
 During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating
and cause discoloration or paint
deterioration.
Underbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and wheel
housings with lukewarm or cold water at
the end of each winter. Try also to do this
every month.
Pay special attention to these areas
because they easily hide mud and dirt.
It will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped there
will cause rusting.
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
MX-5_8EU4-EA-15D_Edition3.indb 632015/10/21 16:55:32

6–64
Maintenance and Care
Appearance Care
Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
NOTE
 Do not use a wire brush or any abrasive
cleaner, polishing compound, or solvent
on aluminum wheels. They may damage
the coating.
 Always use a sponge or soft cloth to
clean the wheels.
Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure
to clean the wheels after driving on
dusty or salted roads to help prevent
corrosion.
Convertible Top Maintenance
The convertible top is made of a special
high-grade material, but if it's not taken
good care of, hardening, staining, and
loss of luster will result. Maintain it under
these guidelines.
Washing
Do not wait until the convertible top gets
really dirty before cleaning it. Dirt that's
there too long will cause deterioration.
1. Before washing, remove dust and
coarse particulate with a soft brush.
2. Gently clean the convertible top with
a synthetic neutral detergent, lots of
water, and a soft brush.
3. Rinse it thoroughly with clean water to
remove all the soap.
4. Wipe it as dry as you can before the
water dries on it.
5. Then allow it to dry completely before
lowering it.
CAUTION
 Automatic and high-pressure car washes
are harmful to a convertible top. Avoid
them.
 Do not spray water directly on the
area where the window glass and
the convertible top meet. This would
probably cause water to enter the cabin.
 Do not spray water directly on the seam
area of the body and the convertible top
as it could result in water penetrating the
cabin and trunk.
 Some leather treatment products can
ruin the convertible top's gloss. Be careful
of the one you choose.
 Test on an inconspicuous, small corner of
the convertible top if you are not sure. Do not wipe the convertible top using
alcohol, chlorine bleach, or organic
solvents such as thinner, benzene, or
gasoline. Otherwise, they may cause
discoloration or stains.
MX-5_8EU4-EA-15D_Edition3.indb 642015/10/21 16:55:32

6–65
Maintenance and Care
Appearance Care
 Do not get any car wax on the
convertible top.
If you do, remove it with a good leather
cleaner or mild detergent (about 5%
solution).
 Too much treatment on the convertible
top can be as damaging as too little.
Follow the manufacturer's directions.
Do not overdo it! Let the convertible top dry completely
before lowering after applying treatment
or dressing.
Drain filter cleaning procedure
Drain filter
NOTE
If leaves or other matter block the drain
filter, water may enter the vehicle.
Clean the drain filter at least once a year.
1. Check the position of the drain filter
with your hand from behind the bow.
Drain filter
Bow
2. Remove the drain filter while pressing
the tab.
3. Remove leaves and other matter
accumulated in the drain filter.
4. Reinstall the drain filter in the reverse
order of the removal procedure.
CAUTION
When installing the drain filter, make
sure that the drain filter is securely
attached to its designated position by
pushing it until the tab locks. Water
may enter the vehicle if the drain
filter is not secured to its designated
position.
MX-5_8EU4-EA-15D_Edition3.indb 652015/10/21 16:55:33

6–66
Maintenance and Care
Appearance Care
Plastic Part Maintenance
 When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
 If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
 High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.
 Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
 In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.
Interior Care
WARNING
Do not spray water into the vehicle
cabin:Spraying water into the vehicle cabin is
dangerous as electrical devices such as
the audio and switches could get wet
resulting in a malfunction or vehicle
fire.
NOTE
 Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration
or stains.
 Rubbing har d with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling
of the coating, and it will make it hard to
wipe off later.
 Beverage or fragrance Grease or oil Soiling
Seat Belt Maintenance
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
MX-5_8EU4-EA-15D_Edition4.indb 662016/01/20 11:07:28

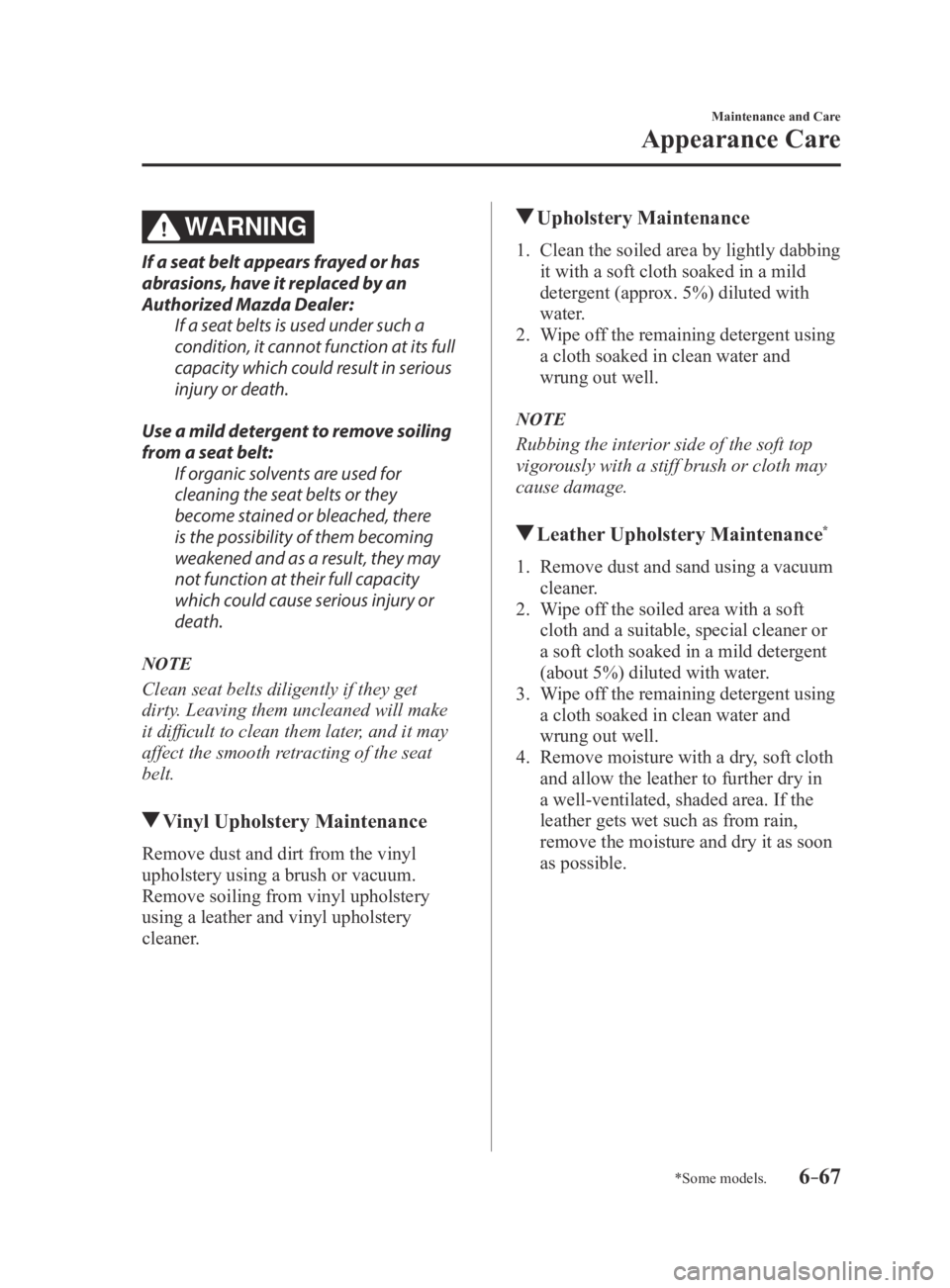

6–67
Maintenance and Care
Appearance Care
*Some models.
WARNING
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:If a seat belts is used under such a
condition, it cannot function at its full
capacity which could result in serious
injury or death.
Use a mild detergent to remove soiling
from a seat belt: If organic solvents are used for
cleaning the seat belts or they
become stained or bleached, there
is the possibility of them becoming
weakened and as a result, they may
not function at their full capacity
which could cause serious injury or
death.
NOTE
Clean seat belts diligently if they get
dirty. Leaving them uncleaned will make
it difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.
Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from vinyl upholstery
using a leather and vinyl upholstery
cleaner.
Upholstery Maintenance
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
NOTE
Rubbing the interior side of the soft top
vigorously with a stiff brush or cloth may
cause damage.
Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft
cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth
and allow the leather to further dry in
a well-ventilated, shaded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
MX-5_8EU4-EA-15D_Edition3.indb 672015/10/21 16:55:34

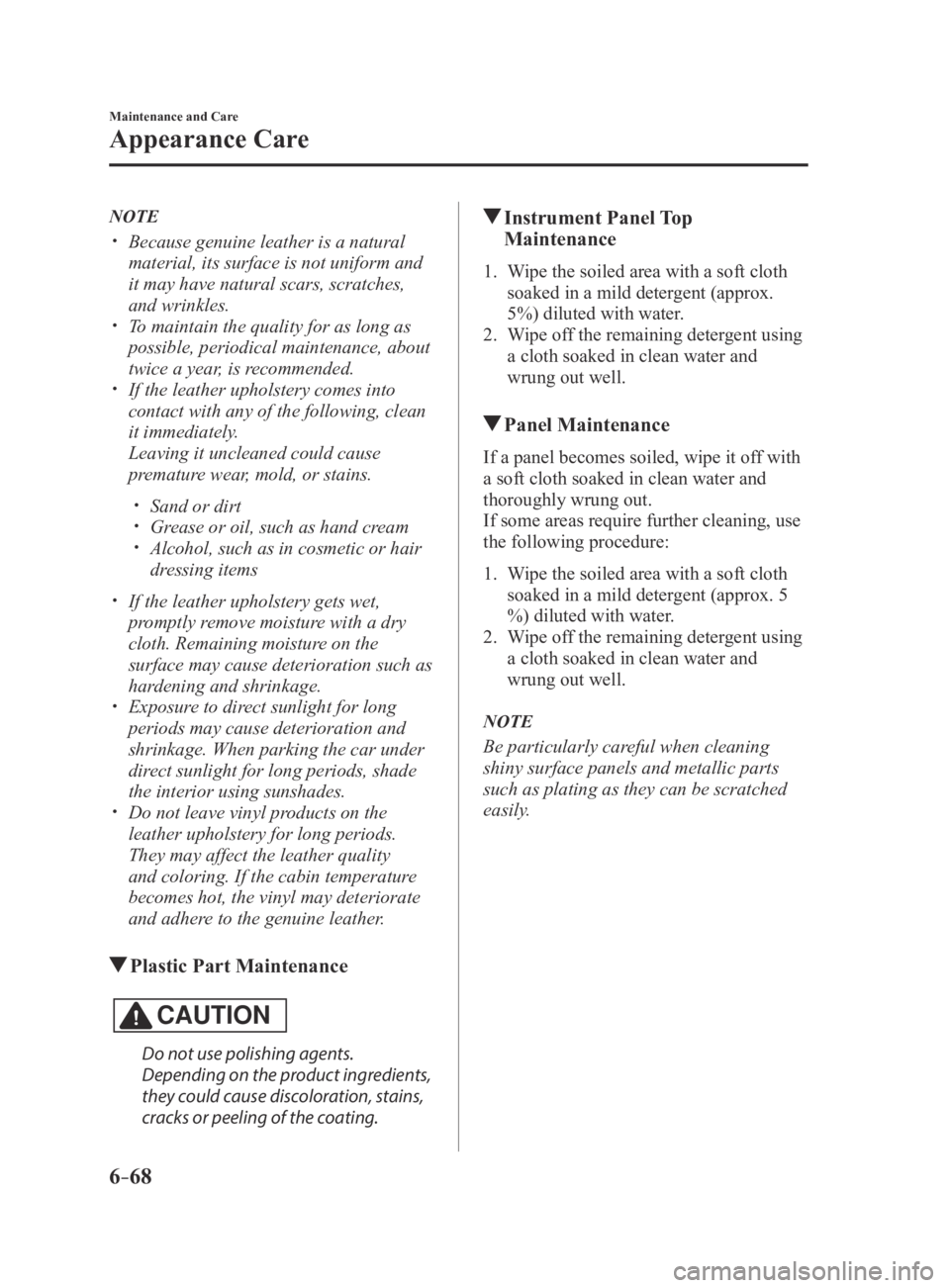

6–68
Maintenance and Care
Appearance Care
NOTE
 Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
 To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
 If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
 Sand or dirt Grease or oil, such as hand cream Alcohol, such as in cosmetic or hair
dressing items
 If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
 Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
 Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality
and coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
Instrument Panel Top
Maintenance
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx. 5
%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
MX-5_8EU4-EA-15D_Edition3.indb 682015/10/21 16:55:34

6–69
Maintenance and Care
Appearance Care

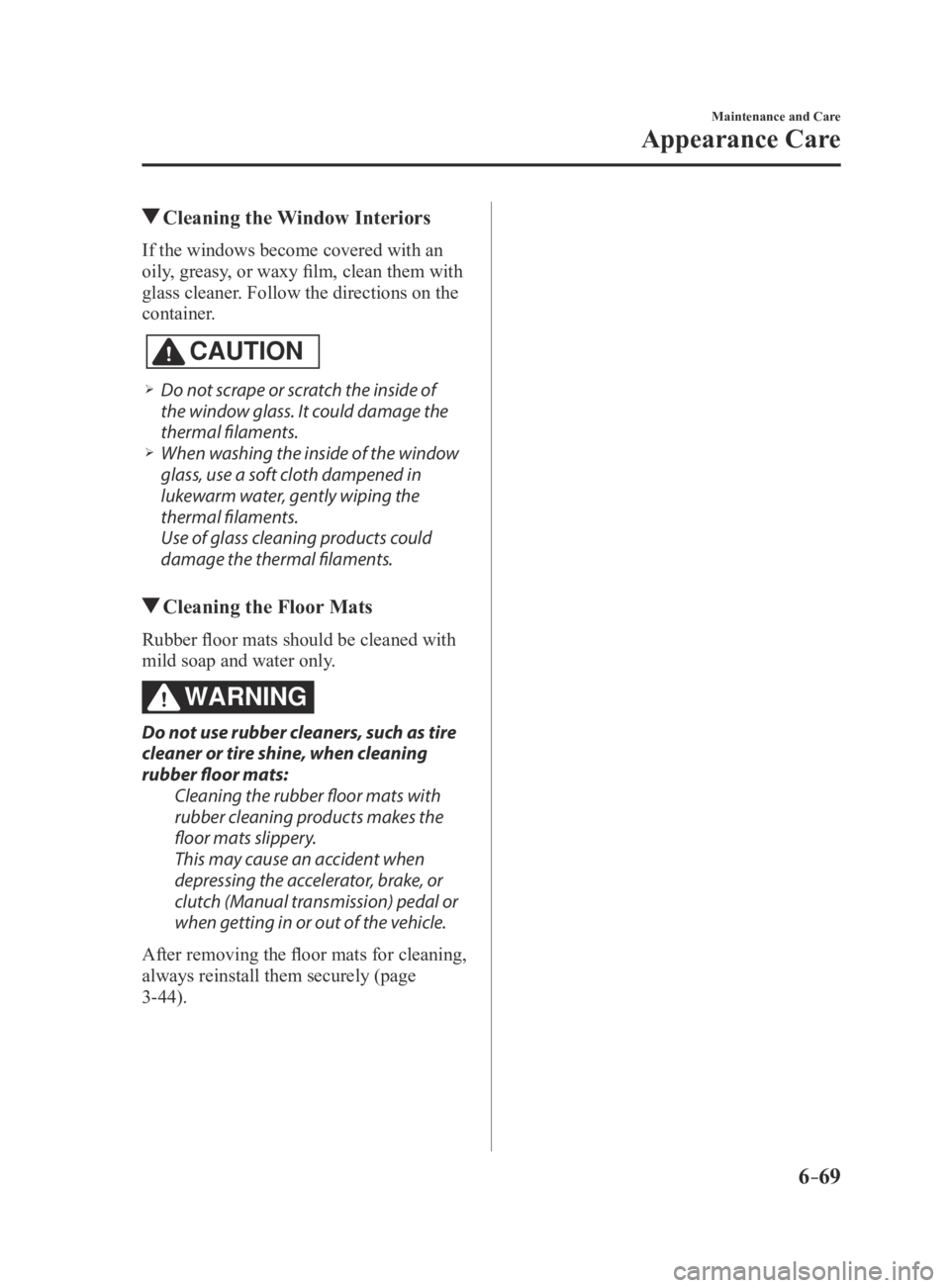

Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION
 Do not scrape or scratch the inside of
the window glass. It could damage the
thermal filaments.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments.
Use of glass cleaning products could
damage the thermal filaments.
Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber floor mats:
Cleaning the rubber floor mats with
rubber cleaning products makes the
floor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transmission) pedal or
when getting in or out of the vehicle.
After removing the floor mats for cleaning,
always reinstall them securely (page
3-44).
MX-5_8EU4-EA-15D_Edition3.indb 692015/10/21 16:55:35

6–70
MX-5_8EU4-EA-15D_Edition3.indb 702015/10/21 16:55:35
MEMO

7–1*Some models.
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency
..................................................................7-2
Parking in an Emergency
..............................................................7-2
Flat Tire ........................................................................\
....................... 7-3
Tool Storage
........................................................................\
..........7-3
Emergency Flat Tire Repair Kit
....................................................7-5
Changing a Tire
........................................................................\
...7-16
Battery Runs Out
........................................................................\
.....7-23
Jump-Starting
........................................................................\
......7-23
Emergency Starting
........................................................................\
.7-26
Starting a Flooded Engine
...........................................................7-26
Push-Starting
........................................................................\
.......7-26
Overheating
........................................................................\
..............7-27
Overheating
........................................................................\
.........7-27
When Fuel-Filler Lid Cannot be Opened
......................................7-29
When Fuel-Filler Lid Cannot be Opened
....................................7-29
Emergency Towing
........................................................................\
...7-30
Towing Description
.....................................................................7-30
Tiedown Hooks* ........................................................................\
..7-31
Warning/Indicator Lights and Warning Sounds
...........................7-33
If a Warning Light Turns On or Flashes ......................................7-33
Message Indicated on Display
....................................................7-43
Warning Sound is Activated
........................................................7-45
When Trunk Lid Cannot be Opened
..............................................7-49
When Trunk Lid Cannot be Opened
...........................................7-49
MX-5_8EU4-EA-15D_Edition3.indb 12015/10/21 16:55:35

7–2
If Trouble Arises

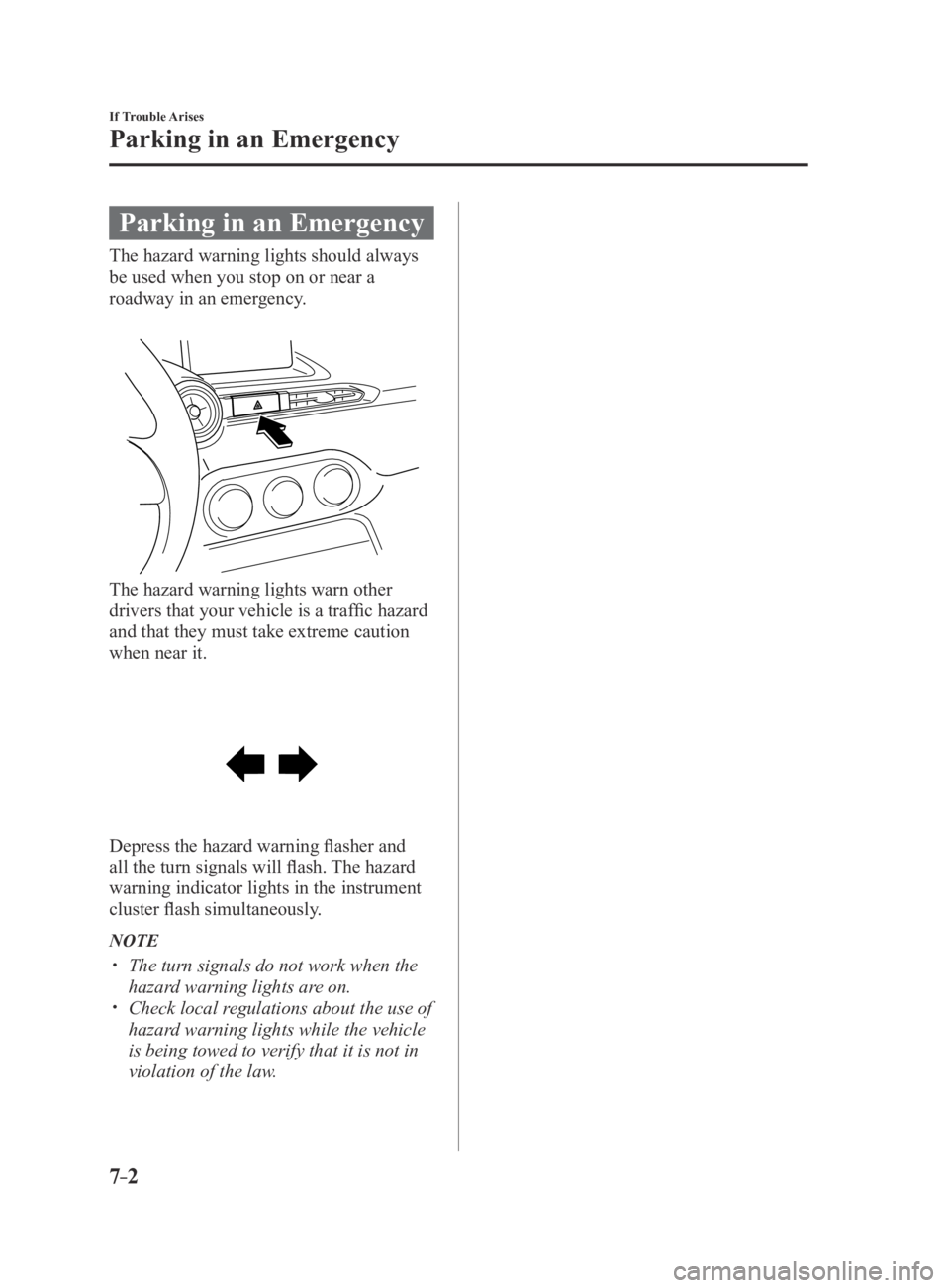

Parking in an Emergency
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
 The turn signals do not work when the
hazard warning lights are on. Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
MX-5_8EU4-EA-15D_Edition3.indb 22015/10/21 16:55:35
