NOTE
To allow the passenger occupant
classification sensor to function
properly, do not place and sit on an
additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then cont inues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item.
To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
▼ Retractable Hardtop Warning Beep*
When operating the retractable hardtop
switch, the warning beep is activated when
the retractable hardtop operation begins
and when it is completed.
If there is a problem with the retractable
hardtop, the warning beep is activated
continuously while operating the switch. If
the warning beep is activated continuously
while operating the
switch, have the
vehicle inspected at an Authorized Mazda
Dealer.
▼ Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will be
heard continuously in the cabin to notify
the driver that the ignition has not been
switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
▼
Key Removed from Vehicle Warning
Beep
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside the
vehicle will be
heard 6 times.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-49
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
▼Request Switch Inoperable Warning
Beep
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a
key being carried, a
beep will be heard outside for about 2
seconds to notify the driver that the door
or trunk lid cannot be locked.
▼ Key Left-in-trunk Compartment
Warning Beep
If the key is left in the trunk with all the
doors locked and the trunk lid closed, a
beep will be heard outside for about 10
seconds to notify the driver that the key is
in the trunk. In this case, take out the key
by pressing the electric trunk lid opener
and opening the trunk lid. The key taken
out of the trunk may not operate because
its functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure (page
3-9).
▼Key Left-in-vehicle Warning Beep
If all the doors and tr
unk are locked using
another key while the key is left in the
cabin, the beep which sounds outside of
the vehicle will be heard for about 10
seconds to notify the driver that the key is
in the cabin. In this case, take out the key
by opening the door. A key taken out of
the vehicle using this method may not
operate because its functions have been
temporarily stopped. To restore the key's
functions, perform the applicable
procedure (page 3-9).
▼ Power Steering Warning Buzzer
If the power steering system has a
malfunction, the power steering
malfunction indication/malfunction
indicator light turns on or flashes and the
buzzer operates at the same time.
Refer to Stop Vehicle in Safe Place
Immediately on page 7-33.
▼Tire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds if the tire pressures
decrease.
Refer to Tire Pressure Monitoring System
on page 4-114.
▼Blind Spot Monitoring (BSM)
Warning Beep*
Driving forward
The warning beep ope
rates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-50*Some models.
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Reversing
The Blind Spot Monitoring (BSM)
warning sound is activated if there is a
possibility of collision with a vehicle
approaching from behind and from the
rear on the left and right sides of the
vehicle.
▼Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
The volume of the LDWS warning sound
can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
The type of the LDWS warning sound
can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼
Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed on the
multi-information display, the warning
sound is activated and the area around the
speed limit sign displayed on the
multi-information display flashes 3 times
in amber, and if the vehicle speed
continues to exceed the displayed speed
limit sign, the indication stops flashing
and remains on.
▼Collision warning*
If there is a possibility of a collision with a
vehicle ahead or an obstruction at the rear
of the vehicle, the warning light in the
instrument cluster flashes at the same time
as the warning indication is displayed in
the multi-information display, and a
warning sound is activated intermittently.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-51
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

▼Manual closing
Before closing manually
WA R N I N G
Verify that the ignition is switched off
before manually operating the roof:
Manually closing the roof with the ignition
not switched off is dangerous as the
motors could turn on suddenly and cause
injury resulting from hands or fingers being
pinched in the mechanism.
1. Park on a hard, level surface off the
right-of-way and firmly set the parking
brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Switch the ignition off while depressing the brake pedal.
4. Turn on the hazard warning flasher if it is needed.
Tool preparation
Take out the five tool s stored in the seat
side box.
Refer to Seat Side Box on page 5-42.
Wire Gear
(tool kit) Rope
L-shaped
hexagonal wrench
(Small) L-shaped
hexagonal wrench
(Lar
ge)
Opening the rear roof
CAUTION
When turning the bolt, cover the front
roof using a cloth. The front roof may be
damaged if the L-shaped hexagonal
wrench contacts it.
 Because the clearance with the stored
front roof is narrow, be careful not to let
the L-shape hexagonal wrench contact
the roof when turning the bolt.
NOTE
Moving the seats as far forward as
possible and folding the seatbacks forward
will facilitate the procedure.
Refer to Adjusting the Driver's Seat on
page 2-5.
Refer to Adjusting the Passenger's Seat on
page 2-10.
1. Remove the antenna if it is installed.
2. Insert the short end of the L-shaped
hexagonal wrench (Large) into the
motor bracket bolt.
Bolt
If Trouble Arises
When the Roof Cannot be Closed
7-59
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

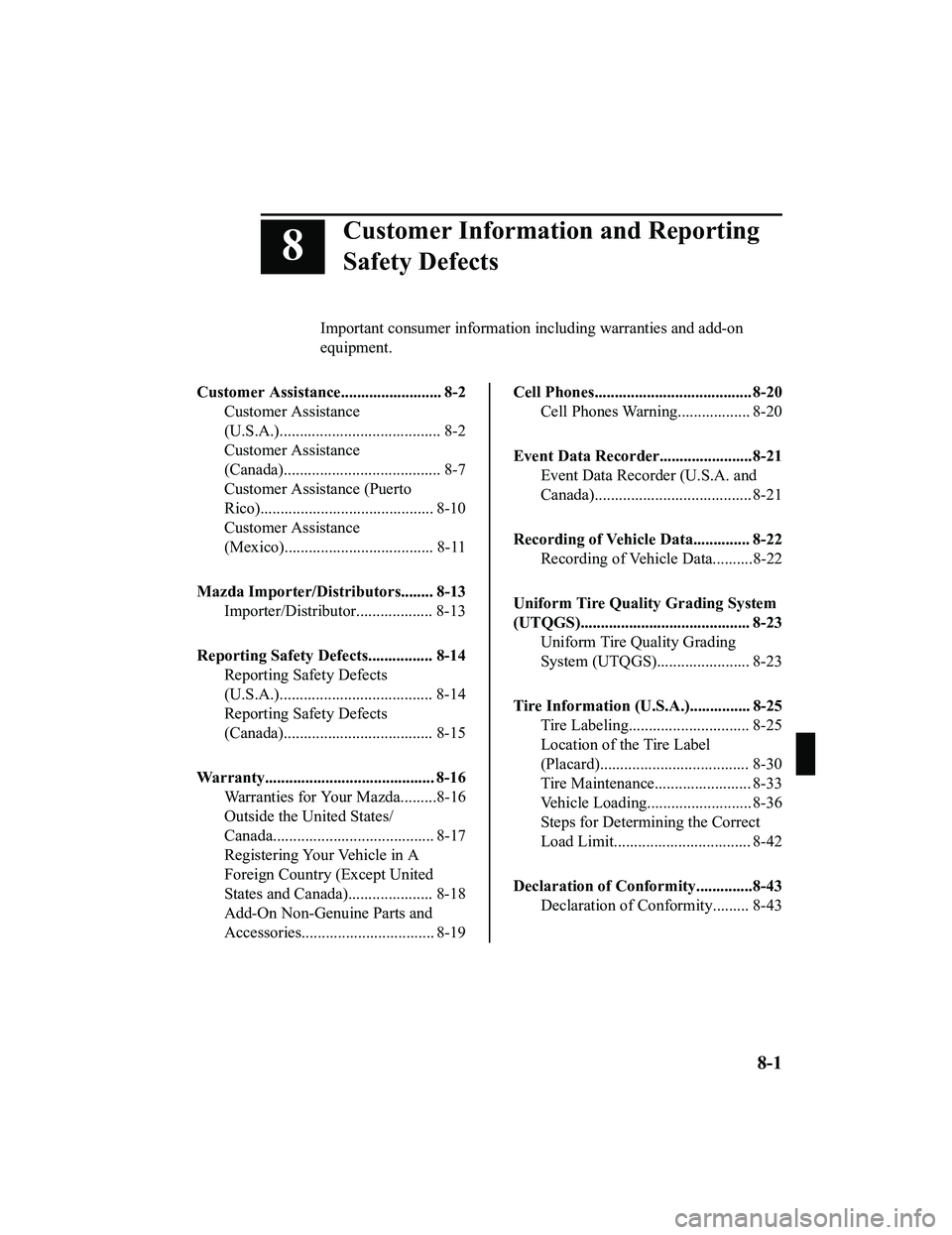

8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on
equipment.
Customer Assistance......................... 8-2 Customer Assistance
(U.S.A.)........................................ 8-2
Customer Assistance
(Canada)....................................... 8-7
Customer Assistance (Puerto
Rico)........................................... 8-10
Customer Assistance
(Mexico)..................................... 8-11
Mazda Importer/Distributors........ 8-13 Importer/Distributor................... 8-13
Reporting Safety De fects................ 8-14
Reporting Safety Defects
(U.S.A.)...................................... 8-14
Reporting Safety Defects
(Canada)..................................... 8-15
Warranty.......................................... 8-16 Warranties for Your Mazda.........8-16
Outside the United States/
Canada........................................ 8-17
Registering Your Vehicle in A
Foreign Country (Except United
States and Canada)..................... 8-18
Add-On Non-Genuine Parts and
Accessories................................. 8-19
Cell Phones....................................... 8-20
Cell Phones Warning.................. 8-20
Event Data Recorder.......................8-21 Event Data Recorder (U.S.A. and
Canada)....................................... 8-21
Recording of Vehicl e Data.............. 8-22
Recording of Vehicle Data..........8-22
Uniform Tire Quality Grading System
(UTQGS).......................................... 8-23 Uniform Tire Quality Grading
System (UTQGS)....................... 8-23
Tire Information (U.S.A.)............... 8-25 Tire Labeling.............................. 8-25
Location of the Tire Label
(Placard)..................................... 8-30
Tire Maintenance........................ 8-33
Vehicle Loading.......................... 8-36
Steps for Determining the Correct
Load Limit.................................. 8-42
Declaration of Conf ormity..............8-43
Declaration of Conf ormity......... 8-43
8-1
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Cell Phones Warning
WA R N I N G
Please comply with the legal regulations concerning the use of communication equipment in
vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver's hands. Use of these devices will
cause the driver to be distracted and could lead to a serious accident. If a passenger is unable
to use the device, pull off the right-of-way to a safe area before use. If use of a cell phone is
necessary despite this warning, use a hands-free system to at least leave the hands free to
drive the vehicle. Never use a cell phone or othe r electrical devices while the vehicle is moving
and, instead, concentrate on the full-time job of driving.
Customer Information and Reporting Safety Defects
Cell Phones
8-20
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifies and descri bes the fundamental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.
▼ Information on Passenger Vehicle Tires
Please refer to the sample below.
1. TIN: U.S. DOT tire identification number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Run-flat tire
7. Rim diameter code
8. Load index & speed symbol
9. Severe snow conditions
10. Tire ply composition and materials used
11. Max. load rating
12. Tread wear, traction and temperature grades
13. Max. permissible inflation pressure
14. SAFETY WARNING
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-25
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pave ment as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Te m p e r a t u r e : The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specif ied indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels. Make
sure you purchase snow tires that are the same size and construction type as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM DIAMETER; NEVE R EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/
DAMAGE-FOLLOW OWNER'S MANUAL AND PLACARD IN
VEHICLE-FREQUENTLY CHECK INFLATION PRESSURE AND INSPECT FOR
DAMAGE.
▼ Information on Temporary Tires
Please refer to the sample below.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-28
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

Index
A
Accessory Socket.............................. 5-36
Adaptive Front Lighting System
(AFS)................................................. 4-75
Add-On Non-Genuine Parts and
Accessories........................................ 8-19
Advanced KeyAdvanced keyless entry system... 3-10
Operational range........................ 3-11
Air Bag Systems............................... 2-36
Air Bag/Seat Belt Pretensioner System
Warning Beep.................................... 7-48
Ambient Temperature Display.......... 4-17
Antilock Brake System (ABS).......... 4-66
Automatic Transmission
Active Adaptive Shift (AAS)...... 4-37
Automatic transmission
controls........................................ 4-35
Direct mode................................. 4-43
Driving tips..................................4-44
Manual shift mode.......................4-38
Shift-lock system...... ................... 4-36
Transmission ranges.................... 4-36
B
Back Trim Storage Box.................... 5-43
Battery............................................... 6-29
Maintenance.................................6-31
Replacement................................ 6-31
Specifications.................................9-4
Battery Runs Out.............................. 7-23 Jump-starting............................... 7-23
Blind Spot Monitoring (BSM).......... 4-85 Canceling operation of Blind Spot
Monitoring (BSM).......................4-89
Blind Spot Monitoring (BSM) System
Warning Beep.................................... 7-50
Body Lubrication.............................. 6-25
Brakes
Brakes assist................................ 4-64
Foot brake....................................4-62
Pad wear indicator....................... 4-64
Parking brake...............................4-63
Warning light............................... 4-63
Break-In Period................................. 3-48
C
Capacities............................................ 9-5
Carbon Monoxide......... .................... 3-24
Cell Phones....................................... 8-20
Child Restraint Categories of child-restraint
systems.........................................2-25
Child-restraint precautions.......... 2-21
Child-restraint system
installation................................... 2-25
Child-restraint system suitability for
various seat positions table..........2-27
Installing child-restraint
systems.........................................2-29
Climate Control System...................... 5-2 Fully automatic type....................5-10
Manual type................................... 5-5
Operating tips................................ 5-2
Vent operation................................5-3
Collision warning.............................. 7-51
Coming Home Light......................... 4-49
Console Box...................................... 5-42
Convertible Top Hardtop........................................ 3-38
Convertible Top (Soft Top)............... 3-33
Cruise Control.......... ....................... 4-109
Cruise control swit ch.................4-109
Cruise main indication (white)............
................................................... 4-109
Cruise set indication (green)/indicator
light (green)............................... 4-109
Cruise Control Set Vehicle Speed
Display.............................................. 4-17
10-2
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Index
Cup Holder........................................ 5-38
Customer Assistance........................... 8-2
D
Dashboard Illumination............ .........4-16
Daytime Running Lights................... 4-50
Defogger Mirror...........................................4-57
Rear window........... .................... 4-56
Dimensions.......................................... 9-6
Door Locks........................................3-12
Drive Selection..................................4-70
Driving In Flooded Ar ea...................3-52
Driving on Uneven Road.................. 3-54
Driving Tips Automatic transmission............... 4-44
Break-in period............................ 3-48
Driving in flooded area............... 3-52
Driving on uneven road...............3-54
Floor mat..................................... 3-49
Hazardous driving.. ..................... 3-49
Overloading............. .................... 3-53
Rocking the vehicle. .................... 3-50
Saving fuel and protection of the
environment................................. 3-48
Winter driving............................. 3-50
Dynamic Stability Control (DSC)..... 4-68 DSC OFF indicator light............. 4-69
DSC OFF switch......................... 4-69
TCS/DSC indicator light............. 4-68
E
Emergency StartingPush-starting................................ 7-26
Starting a flooded engine............ 7-26
Emergency Towing Tiedown hooks........ .................... 7-31
Towing description...................... 7-30
Emission Control System..................3-23
Engine
Coolant.........................................6-22
Engine compartment overview.... 6-19
Exhaust gas..................................3-24
Hood release................................ 6-17
Oil................................................ 6-20
Starting...........................................4-5
Engine Coolant Temperature
Gauge................................................ 4-15
Essential Information.......................... 6-2
Event Data Recorder......................... 8-21
Excessive Speed Warning................. 7-51
Exhaust Gas...................................... 3-24
Exterior Care..................................... 6-53
Aluminum wheel maintenance.... 6-58
Bright-metal maintenance........... 6-57
Convertible Top (Retractable
Hardtop) Maintenance................. 6-60
Convertible Top (Soft Top)
Maintenance.................................6-58
Maintaining the fini sh................. 6-54
Plastic part maintenance.............. 6-63
F
Flasher Hazard warning........................... 4-58
Headlights.................................... 4-45
Flat Tire............................................... 7-3 Mounting the tire......................... 7-21
Removing a tire........................... 7-17
Floor Mat.......................................... 3-49
Fluid Brake/Clutch................................ 6-23
Washer......................................... 6-24
Fluids Classification................................. 9-5
Foot Brake.........................................4-62
Forward Sensing Camera (FSC)..... 4-103
Fuel Filler lid and cap......................... 3-25
Gauge........................................... 4-15
10-3
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24
