Page 331 of 503

MAZDA MX5 MIATA 2023  Owners Manual Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.
WA R

Page 332 of 503

MAZDA MX5 MIATA 2023  Owners Manual Underinflation can cause reduced fuel
economy, uneven and accelerated tire
wear, and poor sealing of the tire bead,
which will deform the wheel and cause
separation of tire from rim.
Overinflati

Page 333 of 503

MAZDA MX5 MIATA 2023  Owners Manual Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:

Incorrect tire pressure
Improper wheel alignment
Out-of-balance whee

Page 334 of 503

MAZDA MX5 MIATA 2023  Owners Manual NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent

Page 335 of 503

MAZDA MX5 MIATA 2023  Owners Manual Light Bulbs
Overhead lightSide turn signal lights
High-mount brake light
Trunk light
Front side-marker lights
Front turn signal lights
Headlights (Low/High beam)
Parking lights
Daytime running lights

Page 336 of 503

MAZDA MX5 MIATA 2023  Owners Manual CAUTION
When removing the lens or lamp unit using a flathead screwdriver, make sure that the
flathead screwdriver does not contact the int erior terminal. If the flathead screwdriver
contacts the term

Page 337 of 503

MAZDA MX5 MIATA 2023  Owners Manual Front side-marker lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. If you are changing the right bulb, start the engine, turn the steering wheel all
the way to the

Page 338 of 503

MAZDA MX5 MIATA 2023  Owners Manual 5. Turn the socket and bulb assemblycounterclockwise and remove it.
6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverseorder of the removal procedure.
Side turn signal lig

Page 339 of 503

MAZDA MX5 MIATA 2023  Owners Manual 6. Install the new side turn signal unit inthe reverse order of the removal
procedure.
Rear turn signal lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Pull the c

Page 340 of 503

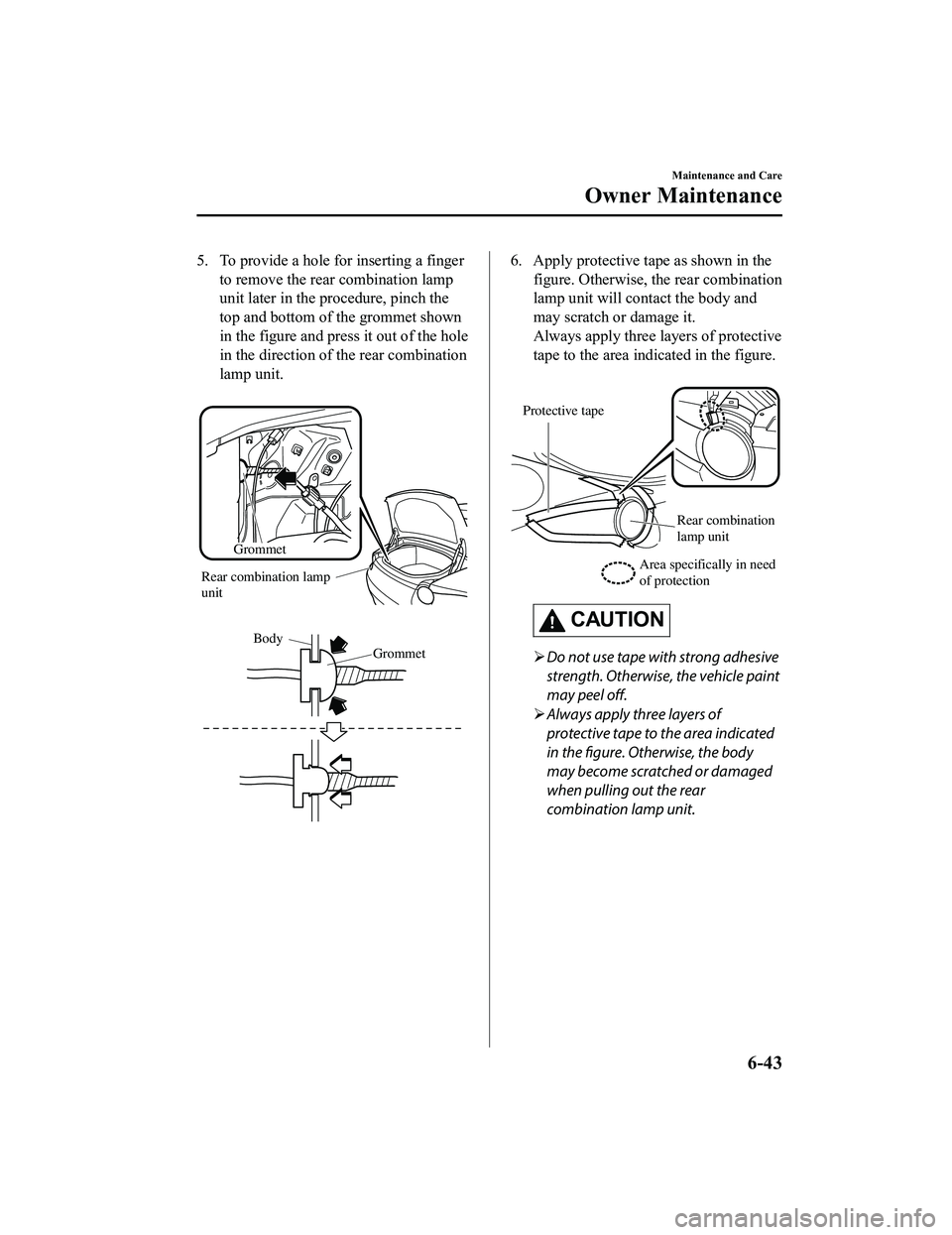

MAZDA MX5 MIATA 2023  Owners Manual 5. To provide a hole for inserting a fingerto remove the rear  combination lamp
unit later in the procedure, pinch the
top and bottom of the grommet shown
in the figure and press it out of the hole
in
