MAZDA MX5 MIATA 2023 Owners Manual

Interior Care
WA R N I N G
Do not spray water into the vehicle cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as the
audio and switches could get wet resulting
in a malfunction or vehicle fire.
NOTE
Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration or
stains.
Rubbing hard with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled by
any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling of
the coating, and it will make it hard to
wipe off later.
Beverage or fragrance
Grease or oil
Soiling
▼ Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
WA R N I N G
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:
If a seat belt is used under such a condition,
it cannot function at its full capacity which
could result in serious injury or death.
Use a mild detergent to remove soiling
from a seat belt:
If organic solvents are used for cleaning the
seat belts or they become stained or
bleached, there is the possibility of them
becoming weakened and as a result, they
may not function at their full capacity
which could cause serious injury or death.
NOTE
Clean seat belts diligently if they get dirty.
Leaving them uncleaned will make it
difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.
▼ Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from vinyl upholstery
using a leather and vinyl upholstery
cleaner.
Maintenance and Care
Appearance Care
6-64
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

▼Upholstery and Synthetic Leather
Maintenance
Fabric
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
Synthetic leather
1. Remove dust and sand using a vacuum cleaner.
2. Wipe the soiled ar ea with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
3. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
▼Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft
cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth and allow the leather to further dry in a
well-ventilated, sh aded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
NOTE
Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
Sand or dirt
Grease or oil, such as hand cream
Alcohol, such as in cosmetic or hair
dressing items
If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality and
coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
Maintenance and Care
Appearance Care
*Some models.6-65
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

▼Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
▼Instrument Panel Top Maintenance
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Cleaning the Wi
ndow Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION
Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments.
Use of glass cleaning products could
damage the thermal
filaments.
▼Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap an
d water only.
WA R N I N G
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor mats:
Cleaning the rubber floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator, brake, or clutch
(Manual transmission) pedal or when
getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-49).
Maintenance and Care
Appearance Care
6-66
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Tool Storage..................................7-3
Emergency Flat Tire Repair
Kit................................................. 7-5
Changing a Tire.......................... 7-17
Battery Runs Out............................ 7-23 Jump-Starting............................. 7-23
Emergency Starting.........................7-26 Starting a Flooded Engine.......... 7-26
Push-Starting.............................. 7-26
Overheating......................................7-27 Overheating................................ 7-27
When Fuel-Filler Lid Cannot be
Opened..............................................7-29 When Fuel-Filler Lid Cannot be
Opened........................................7-29
Emergency Towing.......................... 7-30
Towing Description.................... 7-30
Tiedown Hooks
*......................... 7-31
Warning/Indicator Lights and
Warning Sounds.............................. 7-33 If a Warning Light Turns On or
Flashes........................................ 7-33
Message Indicated in Multi-
information Display
*.................. 7-45
Message Indicated on
Display........................................7-46
Warning Sound is Activated....... 7-48
When Trunk Lid Cannot be
Opened..............................................7-52 When Trunk Lid Cannot be
Opened........................................7-52
When the Roof Cannot be
Closed............................................... 7-57 When the Roof Cannot be
Closed......................................... 7-57
*Some models.7-1
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator ligh ts in the instrument
cluster flash simultaneously.
NOTE
The turn signals do not work when the
hazard warning lights are on.
Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

Tool Storage
NOTE
Your vehicle may or may not be equipped with a jack and lug wrench. For details, consult
an Authorized Mazda Dealer.
Tools are stored in the locations illustrated in the diagram.
Jack
Emergency flat tire repair kit
Jack
Some models.
Tool bag
Lug wrench
Jack lever
Tiedown eyeletSoft top model
Emergency flat tire repair kit
Tool bag
Lug wrench
Jack lever
Tiedown eyelet
Hardtop model
If Trouble Arises
Flat Tire
7-3
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

▼Jack*
To remove the jack
1. Remove the cover.

2. Turn the wing bolt and jack screwcounterclockwise.

Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing back and turn
the wing bolt cloc kwise to temporarily
tighten it.
2. Turn the jack screw clockwise.
Wing bolt
Jack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
4. Insert the cover tabs and install the
cover.
NOTE
Verify that the cover is securely
installed.
Maintenance
Always keep the jack clean.
Make sure the moving parts are kept
free from dirt or rust.
Make sure the screw thread is
adequately lubricated.
If Trouble Arises
Flat Tire
7-4*Some models.
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

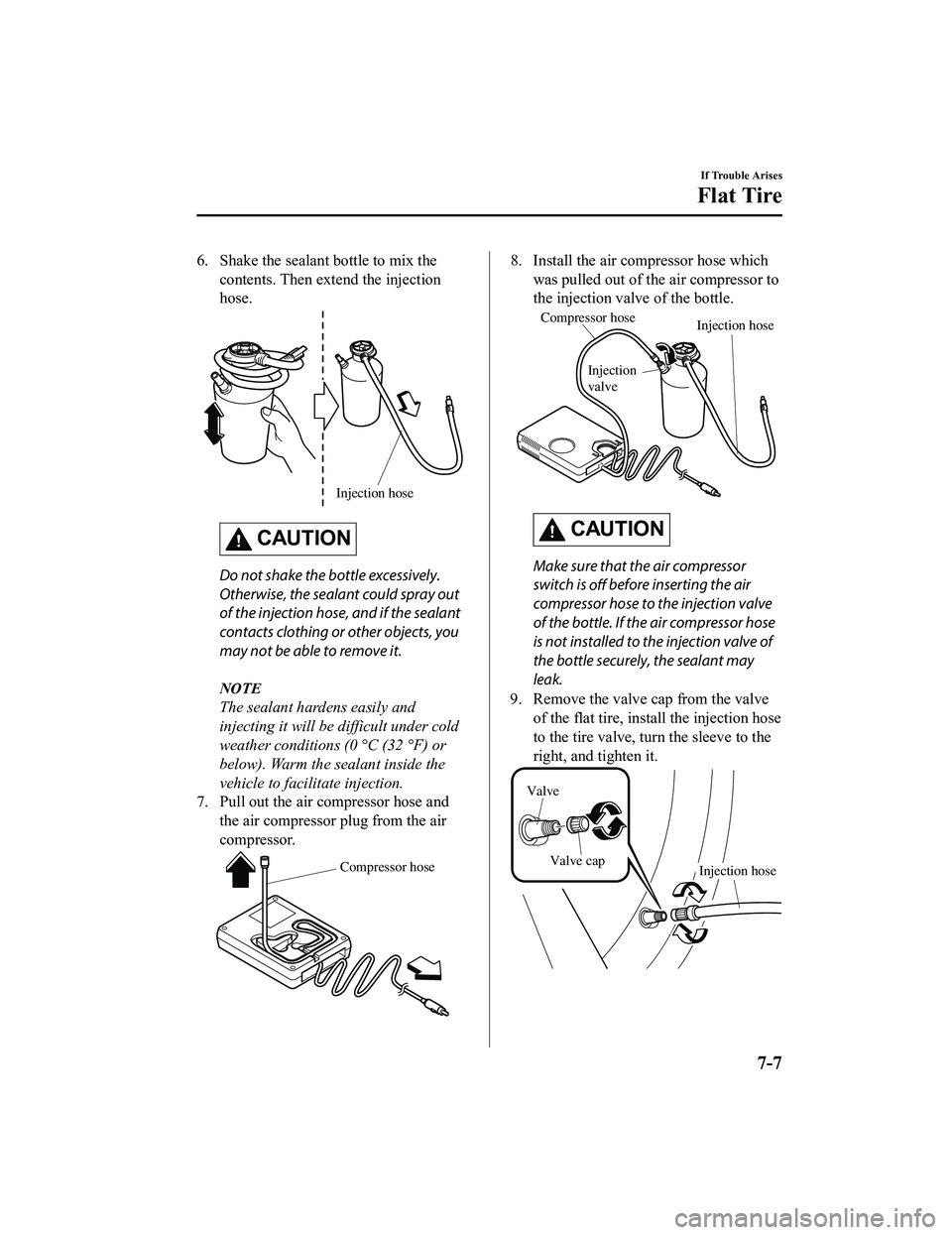

Emergency Flat TireRepair Kit
The emergency flat tire repair kit included
with your Mazda is for a temporary repair
of a slightly damaged flat tire resulting
from running over nails or similar sharp
objects on the road surface.
Perform the emergency flat tire repair
without removing the nail or similar sharp
object which punctured the tire.
NOTE
Your vehicle is not equipped with a spare
tire. In the event of a flat tire, use the
emergency flat tire repair kit to repair the
tire temporarily. When doing the repair,
refer to the instructions included in the
emergency flat tire repair kit. If an
emergency repair was performed on a flat
tire using the emergency flat tire repair kit,
have an Authorized Mazda Dealer, repair
or replace the tire as soon as possible.
▼About the Emergency Flat Tire
Repair Kit
The emergency flat tire repair kit includes
the following items.
U.S.A. and Canada

Compressor
Sealant bottle
Speed restriction sticker InstructionsRepaired tire sticker
Mexico
Tire sealant
Injection hose Compressor
Valve core tool
Spare valve core
Speed restriction sticker Instructions
If Trouble Arises
Flat Tire
7-5
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

WA R N I N G
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous. In
the event tire sealant is accidentally
swallowed, drink large amounts of water
immediately and seek medical
assistance.
 Tire sealant that comes into contact with
the eyes and skin is dangerous. If tire
sealant enters the eyes or contacts the
skin,
flush immediately with large
amounts of water and seek medical
assistance.
NOTE
The tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer.
The emergency flat tire repair kit cannot
be used in the following cases.
Consult an Authorized Mazda Dealer.
The period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
The tear or puncture exceeds about 4
mm (0.16 in).
The damage has occurred to an area
of the tire other than the tread.
The vehicle has been driven with
nearly no air remaining in the tire.
The tire has come off the wheel rim.
Damage to the wheel rim has
occurred.
The tire has two or more punctures.
▼ Using the Emergency Flat Tire
Repair Kit
U.S.A. and Canada
1. Move the vehicle off the right-of-way
to a safe place on a level and hard
surface where the vehicle does not
obstruct traffic.
2. Shift the shift lever to the 1 or Reverse (R) position for a manual transmission,
and shift the selector lever to the P
position for an automatic transmission.
3. Apply the parking brake with the brake pedal depressed and turn off the
engine.
4. If necessary, flash the hazard warning
lights and set up the roadside
emergency triangle.
5. Unload passengers and cargo and
remove the emergency flat tire repair
kit.
Hardtop modelSoft top model
If Trouble Arises
Flat Tire
7-6
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24

6. Shake the sealant bottle to mix thecontents. Then extend the injection
hose.
Injection hose
CAUTION
Do not shake the bottle excessively.
Otherwise, the sealant could spray out
of the injection hose, and if the sealant
contacts clothing or other objects, you
may not be able to remove it.
NOTE
The sealant hardens easily and
injecting it will be difficult under cold
weather conditions (0 °C (32 °F) or
below). Warm the sealant inside the
vehicle to facilitate injection.
7. Pull out the air compressor hose and
the air compressor plug from the air
compressor.
Compressor hose
8. Install the air compressor hose whichwas pulled out of the air compressor to
the injection valve of the bottle.
Compressor hose Injection hose
Injection
valve
CAUTION
Make sure that the air compressor
switch is off before inserting the air
compressor hose to the injection valve
of the bottle. If the air compressor hose
is not installed to the injection valve of
the bottle securely, the sealant may
leak.
9. Remove the valve cap from the valve of the flat tire, install the injection hose
to the tire valve, turn the sleeve to the
right, and tighten it.
Valve cap
Valve Injection hose
If Trouble Arises
Flat Tire
7-7
MX-5_8LE7-EA-22K_Edition1_old
2022-8-4 8:12:24
