MERCEDES-BENZ A CLASS 2012 Owners Manual

Setting the air distribution
THERMATIC automatic climate control Air distribution settings
¯
Directs the airflow through the demis-
ter vents
P Directs the airflow through the centre
and side air vents
O Directs the airflow through the foot-
well air vents
i You can also activate several of the air
distribution settings simultaneously. In
order to do this, press several of the air
distribution buttons. The air is then routed
through different air vents.
Setting the air distribution
X Turn the key to position 2 in the ignition
lock (Y page 143).
X Press one or more of the P, O,
¯ buttons.
The corresponding indicator lamp comes
on.
THERMOTRONIC automatic climate
control Air distribution settings
¯
Directs the airflow through the demis-
ter vents
P Directs the airflow through the centre
and side air vents
O Directs the airflow through the foot-
well air vents
S Directs airflow through the centre and
side
air vents as well as the footwell air
vents 10
.
b Directs the airflow through the centre
and

side air vents as well as the demis-
ter vents 10
a Directs the airflow through the foot-
well and demister vents i
Regardless of the air distribution setting,
airflow is always directed through the side
air vents. The side air vents can only be
closed

if the adjusters are turned clockwise
until they engage.
Setting the air distribution
X Turn the key to position 2 in the ignition
lock (Y page 143).
X Press the É or Ë button until the
desired symbol appears in the display. Setting the airflow
THERMATIC automatic climate control X
Turn the key to position 2 in the ignition
lock (Y page 143).
X To increase/reduce: turn control A
clockwise or anti-clockwise (Y page 123).
THERMOTRONIC automatic climate
control X
Turn the key to position 2 in the ignition
lock (Y page 143).
X To increase/reduce: press the K or
I button. Switching the ZONE function on/off
This function is only available with the
THERMOTRONIC automatic climate control.
X To activate: press the á button.
The
indicator lamp in the á button lights
up.
The temperature setting for the driver's
side is not adopted for the front-passenger
side.
X To deactivate: press the á button.
The
indicator lamp in the á button goes
out.
10 Only for certain countries. Operating the climate control system
129
Climate control

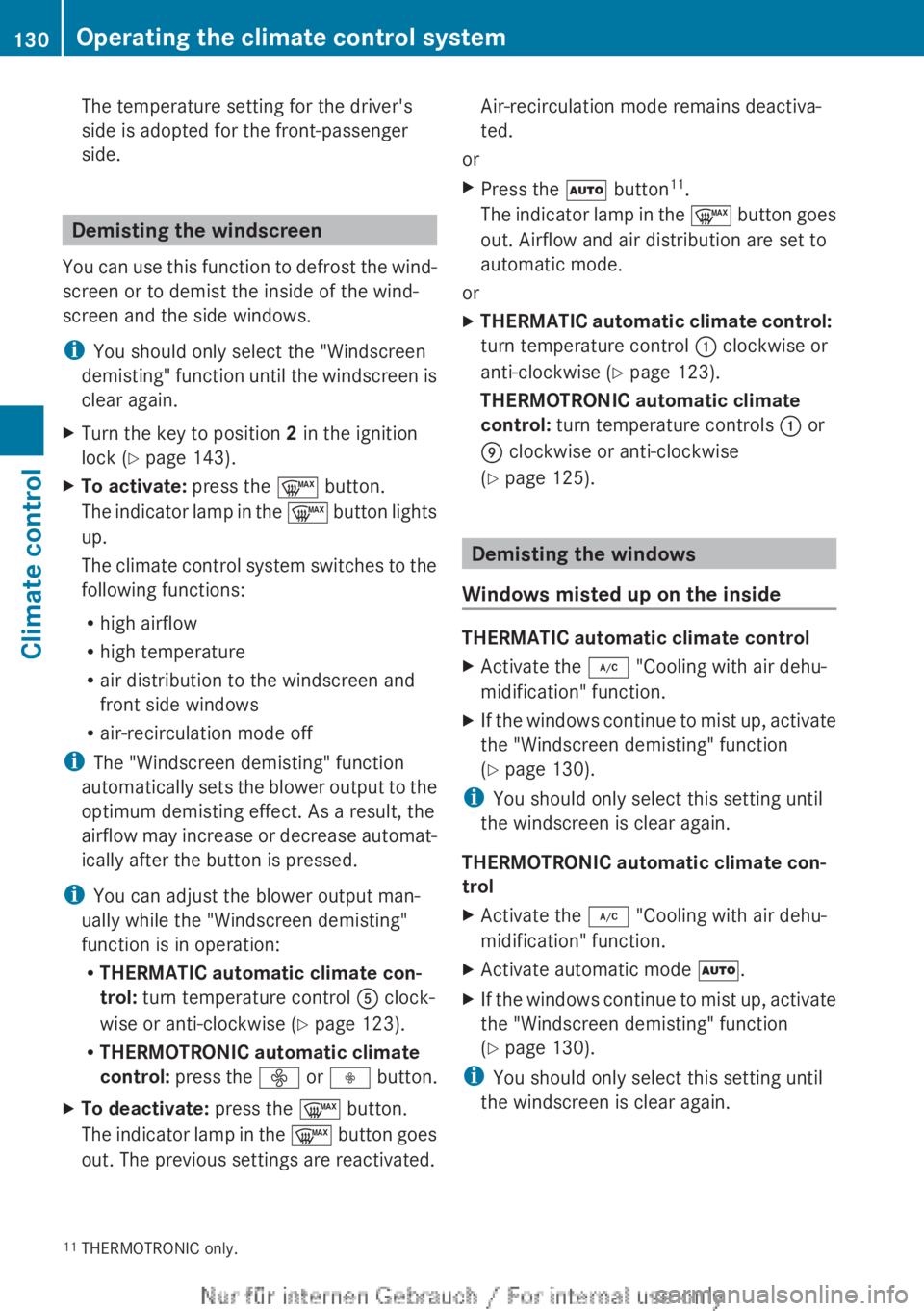

The temperature setting for the driver's
side is adopted for the front-passenger
side.
Demisting the windscreen
You can use this function to defrost the wind-
screen or to demist the inside of the wind-
screen and the side windows.
i You should only select the "Windscreen
demisting" function until the windscreen is
clear again.
X Turn the key to position 2 in the ignition
lock (Y page 143).
X To activate: press the ¬ button.
The
indicator lamp in the ¬ button lights
up.
The climate control system switches to the
following functions:
R high airflow
R high temperature
R air distribution to the windscreen and
front side windows
R air-recirculation mode off
i The "Windscreen demisting" function
automatically

sets the blower output to the
optimum demisting effect. As a result, the
airflow may increase or decrease automat-
ically after the button is pressed.
i You can adjust the blower output man-
ually while the "Windscreen demisting"
function is in operation:
R THERMATIC automatic climate con-
trol: turn temperature control A clock-
wise or anti-clockwise ( Y page 123).
R THERMOTRONIC automatic climate
control: press the ó or ô button.
X To deactivate: press the ¬ button.
The
indicator lamp in the ¬ button goes
out. The previous settings are reactivated. Air-recirculation mode remains deactiva-
ted.
or
X Press the à button 11
.
The
indicator lamp in the ¬ button goes
out. Airflow and air distribution are set to
automatic mode.
or
X THERMATIC automatic climate control:
turn temperature control : clockwise or
anti-clockwise (Y page 123).
THERMOTRONIC automatic climate
control: turn temperature controls : or
E clockwise or anti-clockwise
(Y page 125). Demisting the windows
Windows misted up on the inside THERMATIC automatic climate control
X
Activate the ¿ "Cooling with air dehu-
midification" function.
X If the windows continue to mist up, activate
the "Windscreen demisting" function
(Y page 130).
i You should only select this setting until
the windscreen is clear again.
THERMOTRONIC automatic climate con-
trol
X Activate the ¿ "Cooling with air dehu-
midification" function.
X Activate automatic mode Ã.
X If the windows continue to mist up, activate
the "Windscreen demisting" function
(Y page 130).
i You should only select this setting until
the windscreen is clear again.
11 THERMOTRONIC only.130
Operating the climate control system
Climate control

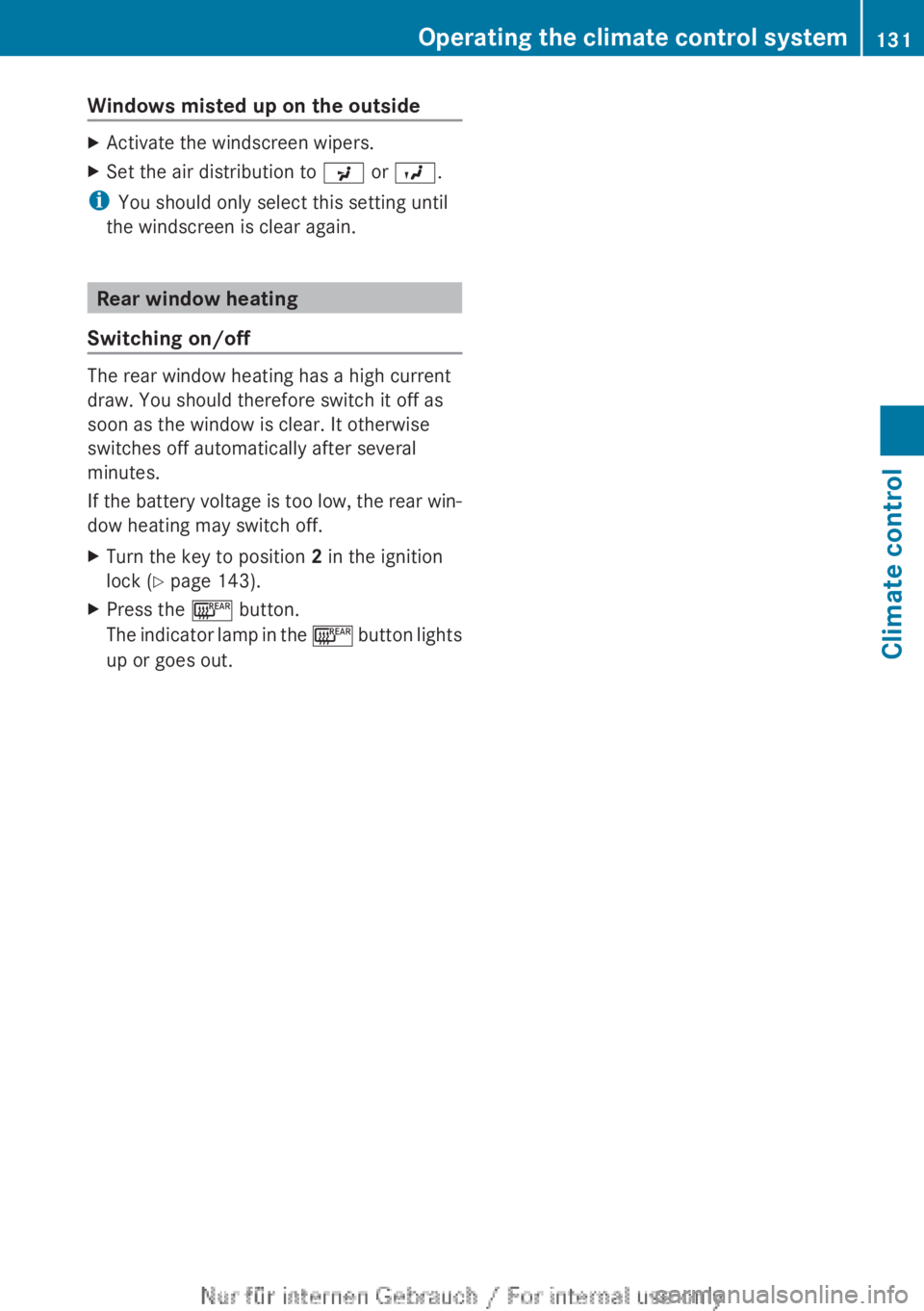

Windows misted up on the outside
X
Activate the windscreen wipers.
X Set the air distribution to P or O.
i You should only select this setting until
the windscreen is clear again. Rear window heating
Switching on/off The rear window heating has a high current
draw. You should therefore switch it off as
soon as the window is clear. It otherwise
switches off automatically after several
minutes.
If
the battery voltage is too low, the rear win-
dow heating may switch off.
X Turn the key to position 2 in the ignition
lock (Y page 143).
X Press the ¤ button.
The

indicator lamp in the ¤ button lights
up or goes out. Operating the climate control system
131
Climate control

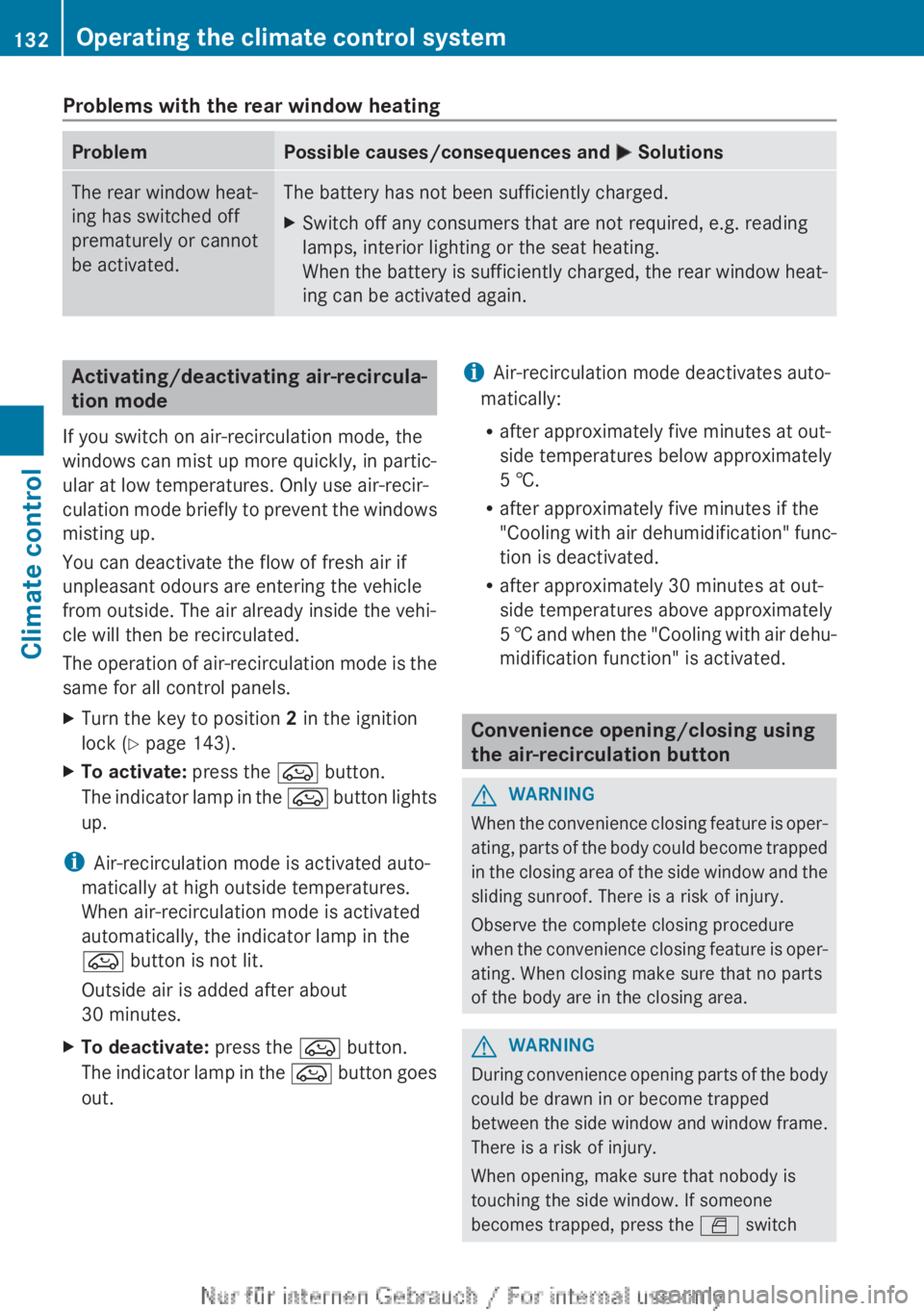

Problems with the rear window heating
Problem Possible causes/consequences and
M SolutionsThe rear window heat-
ing has switched off
prematurely or cannot
be activated. The battery has not been sufficiently charged.
X
Switch off any consumers that are not required, e.g. reading
lamps, interior lighting or the seat heating.
When
the battery is sufficiently charged, the rear window heat-
ing can be activated again. Activating/deactivating air-recircula-
tion mode
If you switch on air-recirculation mode, the
windows can mist up more quickly, in partic-
ular at low temperatures. Only use air-recir-
culation

mode briefly to prevent the windows
misting up.
You can deactivate the flow of fresh air if
unpleasant odours are entering the vehicle
from outside. The air already inside the vehi-
cle will then be recirculated.
The operation of air-recirculation mode is the
same for all control panels.
X Turn the key to position 2 in the ignition
lock (Y page 143).
X To activate: press the e button.
The
indicator lamp in the e button lights
up.
i Air-recirculation mode is activated auto-
matically at high outside temperatures.
When air-recirculation mode is activated
automatically, the indicator lamp in the
e button is not lit.
Outside air is added after about
30 minutes.
X To deactivate: press the e button.
The
indicator lamp in the e button goes
out. i
Air-recirculation mode deactivates auto-
matically:
R after approximately five minutes at out-
side temperatures below approximately
5 †.
R after approximately five minutes if the
"Cooling

with air dehumidification" func-
tion is deactivated.
R after approximately 30 minutes at out-
side temperatures above approximately
5 † and when the "Cooling with air dehu-
midification function" is activated. Convenience opening/closing using
the air-recirculation button
G
WARNING
When the convenience closing feature is oper-
ating,
parts of the body could become trapped
in the closing area of the side window and the
sliding sunroof. There is a risk of injury.
Observe the complete closing procedure
when the convenience closing feature is oper-
ating. When closing make sure that no parts
of the body are in the closing area. G
WARNING
During convenience opening parts of the body
could be drawn in or become trapped
between

the side window and window frame.
There is a risk of injury.
When opening, make sure that nobody is
touching the side window. If someone
becomes trapped, press the W switch132
Operating the climate control system
Climate control

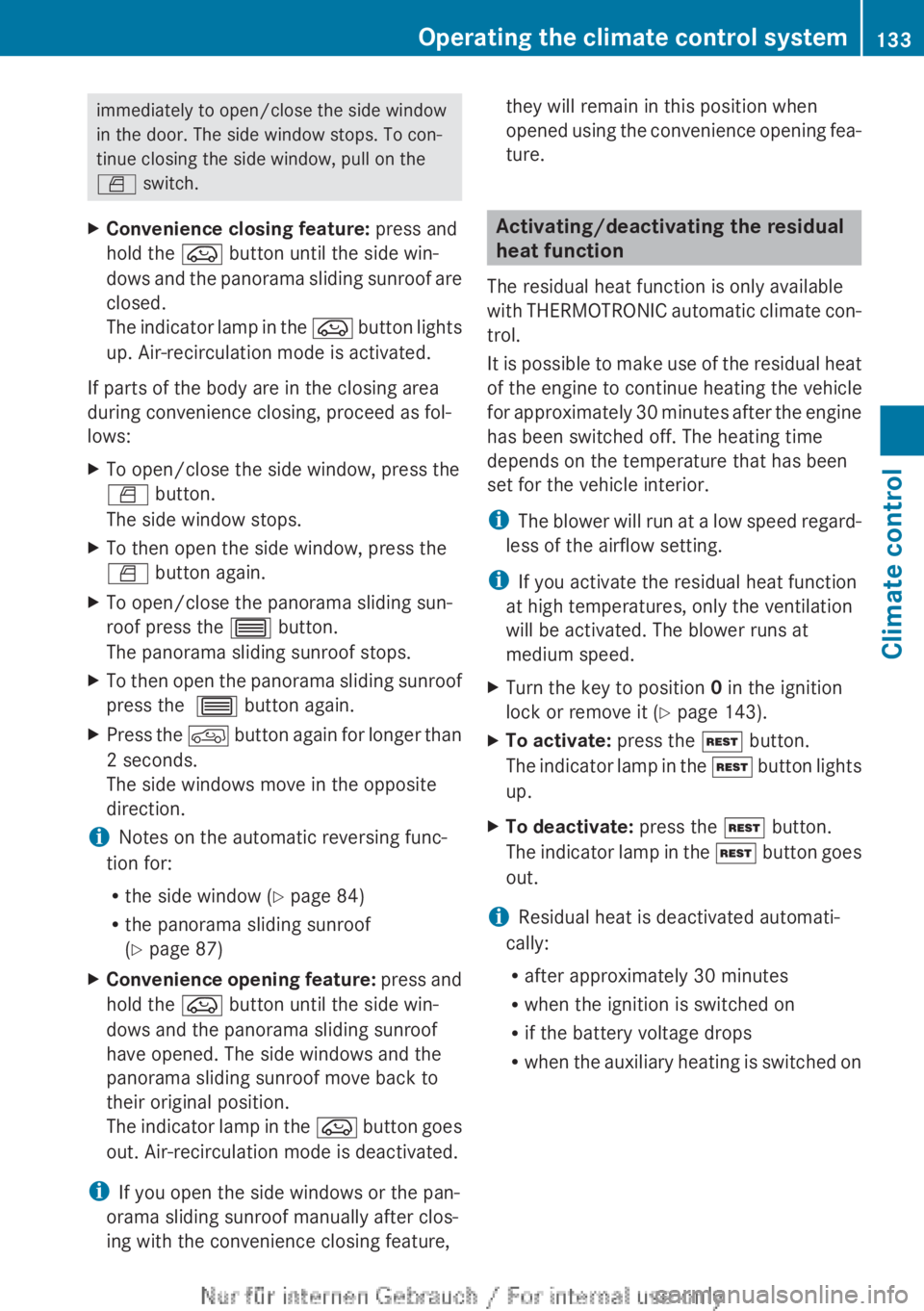

immediately to open/close the side window
in the door. The side window stops. To con-
tinue closing the side window, pull on the
W switch.
X Convenience closing feature: press and
hold the e button until the side win-
dows
and the panorama sliding sunroof are
closed.
The indicator lamp in the e button lights
up. Air-recirculation mode is activated.
If parts of the body are in the closing area
during convenience closing, proceed as fol-
lows:
X To open/close the side window, press the
W button.
The side window stops.
X To then open the side window, press the
W button again.
X To open/close the panorama sliding sun-
roof press the 3 button.
The panorama sliding sunroof stops.
X To then open the panorama sliding sunroof
press the 3 button again.
X Press the d
button again for longer than
2 seconds.
The side windows move in the opposite
direction.
i Notes on the automatic reversing func-
tion for:
R the side window

(Y page 84)
R the panorama sliding sunroof
(Y page 87)
X Convenience opening feature:
press and
hold the e button until the side win-
dows and the panorama sliding sunroof
have opened. The side windows and the
panorama sliding sunroof move back to
their original position.
The indicator lamp in the e button goes
out. Air-recirculation mode is deactivated.
i If you open the side windows or the pan-
orama sliding sunroof manually after clos-
ing with the convenience closing feature, they will remain in this position when
opened

using the convenience opening fea-
ture. Activating/deactivating the residual
heat function
The residual heat function is only available
with

THERMOTRONIC automatic climate con-
trol.
It is possible to make use of the residual heat
of the engine to continue heating the vehicle
for approximately 30 minutes after the engine
has been switched off. The heating time
depends on the temperature that has been
set for the vehicle interior.
i The blower will run at a low speed regard-
less of the airflow setting.
i If you activate the residual heat function
at high temperatures, only the ventilation
will be activated. The blower runs at
medium speed.
X Turn the key to position 0 in the ignition
lock or remove it ( Y page 143).
X To activate: press the Ì button.
The
indicator lamp in the Ì button lights
up.
X To deactivate: press the Ì button.
The
indicator lamp in the Ì button goes
out.
i Residual heat is deactivated automati-
cally:
R after approximately

30 minutes
R when the ignition is switched on
R if the battery voltage drops
R when the auxiliary heating is switched on Operating the climate control system
133
Climate control Z

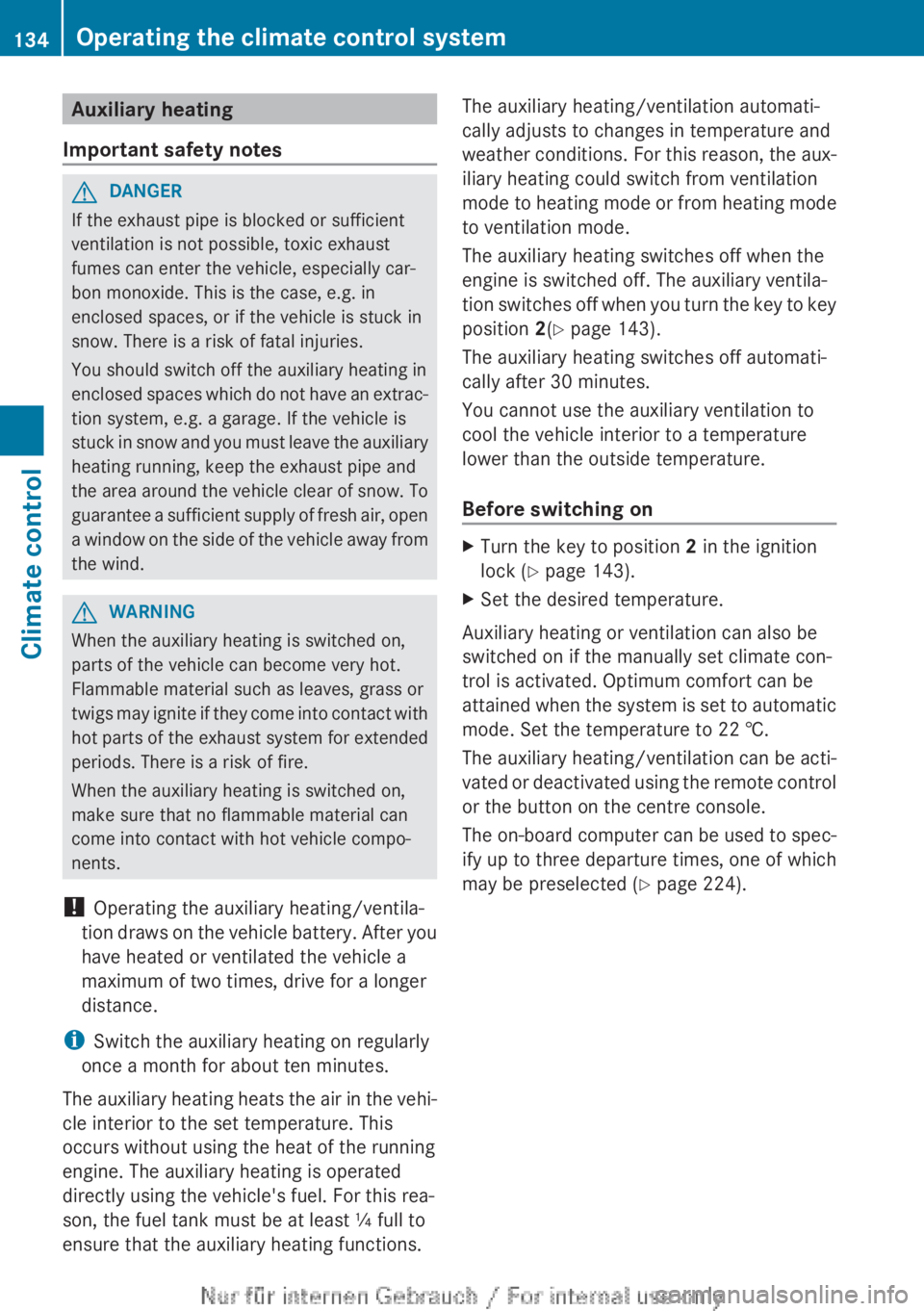

Auxiliary heating
Important safety notes G
DANGER
If the exhaust pipe is blocked or sufficient
ventilation is not possible, toxic exhaust
fumes can enter the vehicle, especially car-
bon monoxide. This is the case, e.g. in
enclosed spaces, or if the vehicle is stuck in
snow. There is a risk of fatal injuries.
You should switch off the auxiliary heating in
enclosed
spaces which do not have an extrac-
tion system, e.g. a garage. If the vehicle is
stuck in snow and you must leave the auxiliary
heating running, keep the exhaust pipe and
the area around the vehicle clear of snow. To
guarantee a sufficient supply of fresh air, open
a window on the side of the vehicle away from
the wind. G
WARNING
When the auxiliary heating is switched on,
parts of the vehicle can become very hot.
Flammable material such as leaves, grass or
twigs

may ignite if they come into contact with
hot parts of the exhaust system for extended
periods. There is a risk of fire.
When the auxiliary heating is switched on,
make sure that no flammable material can
come into contact with hot vehicle compo-
nents.
! Operating the auxiliary heating/ventila-
tion draws on the vehicle battery. After you
have heated or ventilated the vehicle a
maximum of two times, drive for a longer
distance.
i Switch the auxiliary heating on regularly
once a month for about ten minutes.
The auxiliary heating heats the air in the vehi-
cle interior to the set temperature. This
occurs without using the heat of the running
engine. The auxiliary heating is operated
directly using the vehicle's fuel. For this rea-
son, the fuel tank must be at least ¼ full to
ensure that the auxiliary heating functions. The auxiliary heating/ventilation automati-
cally adjusts to changes in temperature and
weather

conditions. For this reason, the aux-
iliary heating could switch from ventilation
mode to heating mode or from heating mode
to ventilation mode.
The auxiliary heating switches off when the
engine is switched off. The auxiliary ventila-
tion switches off when you turn the key to key
position 2(Y page 143).
The auxiliary heating switches off automati-
cally after 30 minutes.
You cannot use the auxiliary ventilation to
cool the vehicle interior to a temperature
lower than the outside temperature.
Before switching on X
Turn the key to position 2 in the ignition
lock (Y page 143).
X Set the desired temperature.
Auxiliary heating or ventilation can also be
switched on if the manually set climate con-
trol is activated. Optimum comfort can be
attained

when the system is set to automatic
mode. Set the temperature to 22 †.
The auxiliary heating/ventilation can be acti-
vated or deactivated using the remote control
or the button on the centre console.
The on-board computer can be used to spec-
ify up to three departure times, one of which
may be preselected ( Y page 224).134
Operating the climate control systemClimate control

Switching the auxiliary heating/venti-
lation on/off using the centre console
button
Switching on the auxiliary heating/venti-
lation
The colours of the indicator lamps on the but-
ton have the following meanings:
Blue Auxiliary ventilation switched on
Red Auxiliary heating switched on
Yellow Departure time preselected
(Y page 224)
X Press button :.
The red or blue indicator lamp in but-
ton : lights up.
Switching off the auxiliary heating/venti-
lation
X Press button :.
The red or blue indicator lamp in but-
ton : goes out.
Switching the auxiliary heating/venti-
lation on/off using the remote control Your vehicle comes with one remote control.
You may use two additional remote controls
for
your vehicle. For more information, please
contact a qualified specialist workshop.
The remote control has a maximum range of
approximately 300 metres. This range is
reduced by:
R sources of radio interference
R solid objects between the remote control
and the vehicle R
the remote control being in an unfavoura-
ble position in relation to the vehicle
R transmitting from an enclosed space
i The

optimum range can be achieved if you
hold the remote control vertically, pointing
upwards when you press one of the but-
tons.
i A battery symbol appears in the display
when the battery in the remote control is
low. Replace the remote control battery
(Y page 136).
Switching the auxiliary heating/ventila-
tion on/off Remote control
:
Display
; . To check the status/set the depar-
ture time
= ^ To switch off the auxiliary heating/
ventilation
? u To switch on the auxiliary heating/
ventilation
A , To check the status/set the depar-
ture time
X To activate: press the u button.
ON is shown in the remote control display.
X To deactivate: press the ^ button.
OFF
is shown in the remote control display.
Checking the status of the auxiliary heat-
ing/ventilation
X Press the , or . button. Operating the climate control system
135
Climate control Z

The following messages may appear in the
display:
Display Meaning
The auxiliary heating/
ventilation is switched
off.
The auxiliary ventilation
is
switched on. The num-
ber in the display shows
the remaining time (in
minutes) for the auxiliary
ventilation. The auxiliary heating is
switched

on. The number
in the display shows the
remaining time (in
minutes) for the auxiliary
heating. A departure time has
been activated. The
departure time appears
in the display.
A departure time has
been activated. The aux-
iliary ventilation is cur-
rently activated. The
departure time appears
in the display.
A departure time has
been activated. The aux-
iliary heating is currently
activated. The departure
time appears in the dis-
play. Setting the departure time
X
Press the , or . button repeatedly
until
the time to be changed appears in the
display.
X Press the u and ^ buttons simulta-
neously.
The Î symbol in the remote control dis-
play flashes.
X Press the , or . button to set the
desired departure time.
i The longer you press the , or .
button, the faster the time changes.
X Press the u and ^ buttons simulta-
neously.
The new departure time is stored.
Activating the set departure time
X Press the , or . button repeatedly
until
the desired departure time appears in
the display.
X Press the u button.
The Í symbol and the departure time
appear in the display.
Deactivating a set departure time
X Press the , or . button.
The
status of the auxiliary heating is shown
in the display.
X Press the . button.
The first departure time stored appears in
the display.
X Press the ^ button.
OFF

is shown in the remote control display.
Replacing the remote control battery G
WARNING
Batteries contain toxic and corrosive substan-
ces.
If batteries are swallowed, it can result in
severe health problems. There is a risk of fatal
injury.
Keep batteries out of the reach of children. If
a battery is swallowed, seek medical attention
immediately. 136
Operating the climate control system
Climate control

H

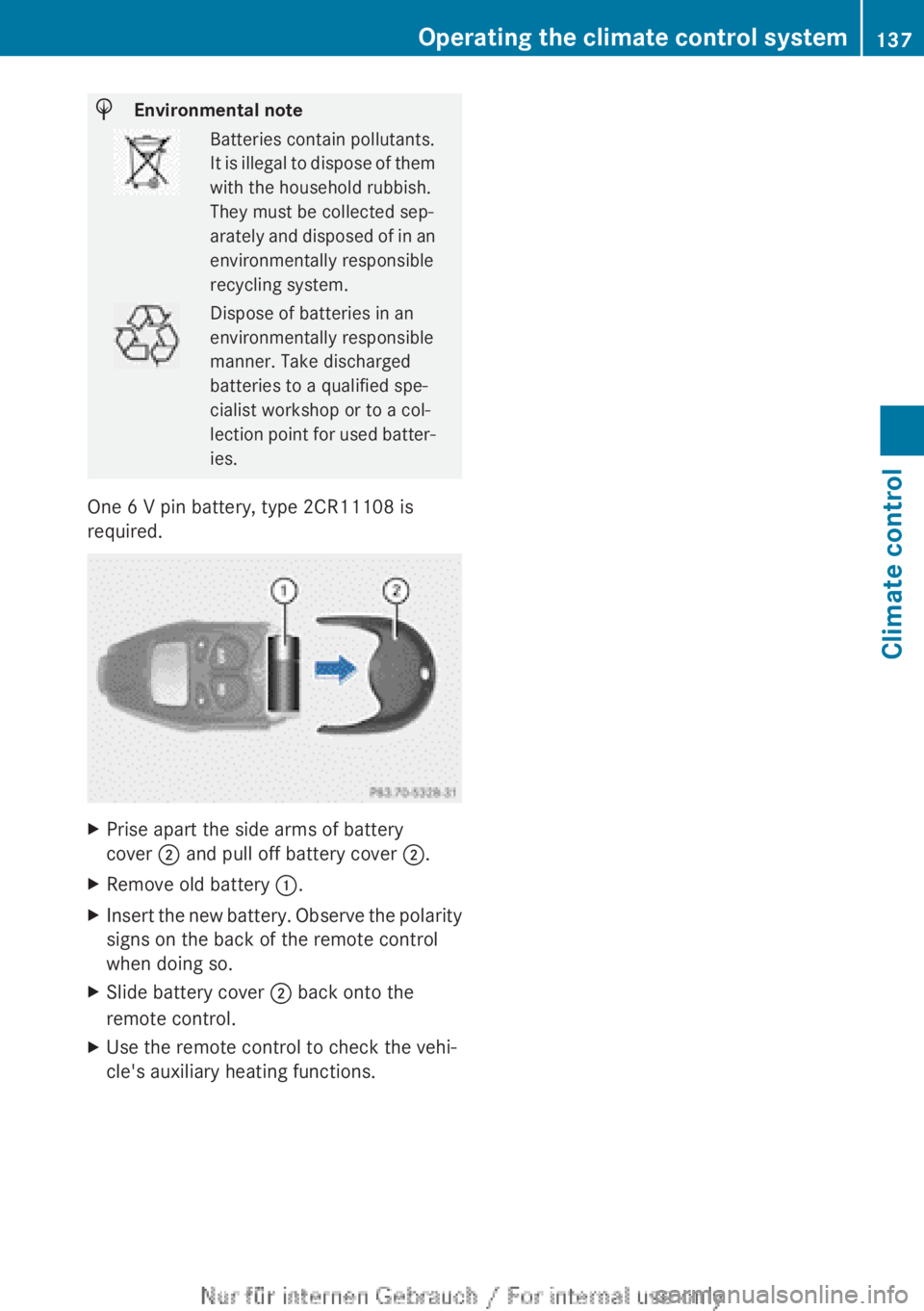

Environmental note Batteries contain pollutants.
It
is illegal to dispose of them
with the household rubbish.
They must be collected sep-
arately and disposed of in an
environmentally responsible
recycling system. Dispose of batteries in an
environmentally responsible
manner. Take discharged
batteries to a qualified spe-
cialist workshop or to a col-
lection

point for used batter-
ies.
One 6 V pin battery, type 2CR11108 is
required. X
Prise apart the side arms of battery
cover ; and pull off battery cover ;.
X Remove old battery :.
X Insert the new battery. Observe the polarity
signs on the back of the remote control
when doing so.
X Slide battery cover ; back onto the
remote control.
X Use the remote control to check the vehi-
cle's auxiliary heating functions. Operating the climate control system
137
Climate control Z

Problems with the auxiliary heating/ventilation
Display messages Possible causes/consequences and
M Solutions$
FAIL The signal transmission between the transmitter and the vehicle
is faulty.
X
Change your position in relation to the vehicle, moving closer if
necessary.
X Make another attempt to switch the auxiliary heating on or off
using the remote control. ©
FAIL There is too little fuel in the fuel tank.
X
Refuel at the nearest filling station.
X Make another attempt to switch on the auxiliary heating using
the remote control. The auxiliary heating is faulty.
X
Have the auxiliary heating checked at a qualified specialist
workshop. FAIL The auxiliary heating cannot be switched on or has switched itself
off.
The
auxiliary heating was started more than twice when the engine
was switched off.
X Switch on the engine and let it run for more than ten seconds.
X Make another attempt to switch on the auxiliary heating using
the remote control. The auxiliary heating cannot be switched on or has switched itself
off.
The starter battery is not sufficiently charged.
X
Charge the starter battery.
X Make another attempt to switch on the auxiliary heating using
the remote control.138
Operating the climate control system
Climate control
